C & D Technologies    Mansfield, MA 02048-1151
May 05, 2006 Providing stand-alone Sample-Hold solution, Model SHM-50 features signal bandwidth of 70 MHz and is available in through-hole or surface-mount, 8-pin mini-DIP package. Complete sample-hold circuit contains precision MOS hold capacitor and feed-through attenuation of -78 dB. FED input amplifier design allows acquisition time of 40 ns for 2 V step to ±0.01% accuracy, and 50 ns to ±0.005%. Requiring supply voltage of ±5 V, Model SHM-50 typically consumes 225 mW.

PCB Piezotronics Inc.    Depew, NY 14043 2495
May 05, 2006 Rack mounted Models 481A and 498A, with 101 Option for computer interface, are supplied with software that presents device settings in spreadsheet table view and is capable of controlling 16 units with 16 channels each, for total of 256 channels. Clicking software's discovery button begins process by interrogating connected units and populating table with each unit's current settings. Software includes reporting tool and ability to save and restore system settings.

Comba Telecom Systems Holdings Ltd    Shatin   Hong Kong (prc)
May 05, 2006 Utilizing adapted analog pre-distortion linearization technology, Multi-Carrier Power Amplifier enables amplification and integration of multiple carrier signals into single antenna on base stations. It features modular design for various power levels and frequencies, supports up to 4 WCDMA carriers, and provides greater than 18% efficiency.

Fujitsu Microelectronics Inc.    San Jose, CA 95134 1804
May 05, 2006 Series MB91F479 uses 32-bit, 80 MHz FR60 CPU core for processing power and includes triple ADC modules that support total of 20 channels of input from as many sensors. Three of these channels can execute simultaneously. While 2 ADC units have 12-bit resolution and operate together with flexible PWM unit, other ADC supports 8- or 10-bit resolution. MAC (Multiplication and Addition Calculator) circuit performs product-sum calculations separate from CPU.

Micrel Semiconductor Inc.    San Jose, CA 95131
May 05, 2006 Consisting of tiny single drivers for inverting and non-inverting solutions, Series MIC44F18/19/20 targets power supplies and synchronous rectification applications operating at frequencies up to 2 MHz. Output voltage levels can swing within 25 mV of positive supply ground. With input voltage of 4.5-13.2 V, chips are capable of symmetrically sinking and sourcing current up to 6 A with propagation delay of 10 ns and switching times of 15 ns.

Marktech Optoelectronics    Latham, NY 12110

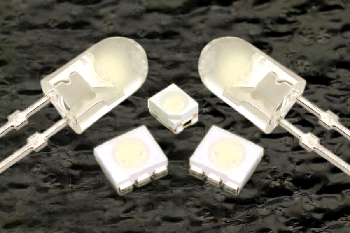

May 04, 2006 Based on InGaN die technology, Cotco's WR1 Series is offered in both 5 mm and surface mount packages with 15, 25, 50, and 120° viewing angles, and luminous intensities up to 12,000 mcd. Phosphor mixing technique achieves warm white tone with consistent color temperature of 3,000 K for thru hole devices and 3,200 K for SMT packages. General-lighting LEDs target applications in reading lights, mood lighting, display cabinets, and car interior lighting.

E-T-A Circuit Breakers    Mount Prospect, IL 60056 6060

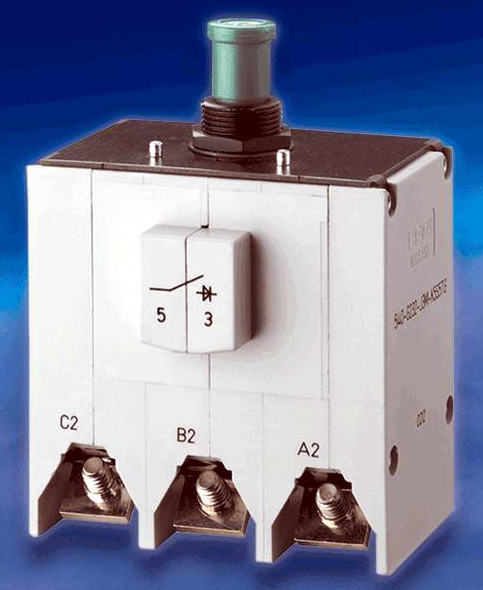

May 04, 2006 Available in current ratings from 20-50 A on 3 phases at 200 V and 400 Hz, 5140 three-pole circuit breaker is temperature-compensated in range of -67 to +194°F and qualified to operate in ambient temperatures to 257°F. Typical life for this trip-free mechanism is 5,000 mechanical cycles and 2,500 inductive cycles. Optional auxiliary contacts provide additional signaling up to 0.5 A at 28 Vdc, and single-pole version is also available (Type 4140).

E-T-A Circuit Breakers    Mount Prospect, IL 60056 6060

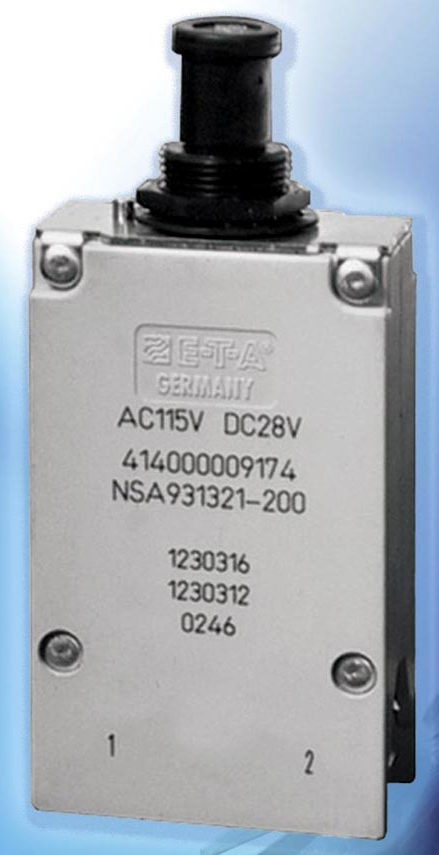

May 04, 2006 Offered in current ratings from 20-50 A, 4140 single-pole circuit breaker weighs 60 g and is designed for 115 Vac (400 Hz) or 28 Vdc applications. Product is smaller than Mil-spec 24571 requirements, temperature-compensated from -67 to +194°F, and qualified to operate in ambient temperatures to 257°F. With rated life of 5,000 mechanical cycles and 2,500 inductive cycles, unit is available with optional polarized or unpolarized auxiliary contacts.

Stackpole Electronics, Inc.    Raleigh, NC 27604
May 04, 2006 Offered in 0402-2512 sizes, Series RNCS has resistance range of 25 ohms to 600 Kohms, with tolerances down to ±0.01%, TCRs as low as 5 ppm/°C, and temperature range of -55 to +155°C. During manufacturing, passivation layer is introduced between nichrome resistive element and epoxy overcoat to ensure stable performance in harsh and wet environments. In MIL-STD-202 testing, resistors demonstrated no significant shift in resistance after 1,000 hour life test at 85°C and 85% humidity.

Xilinx, Inc.    San Jose, CA 95124 3400
May 04, 2006 PCI Express Starter Kit uses PCI Express IP core from Xilinx LogiCORE(TM) portfolio. Kit consists of reference board with 1 mil gate Spartan-3 FPGA, Philips PHY, DDR memory, Flash memory, evaluation versions of Xilinx Integrated Software Environment (ISE(TM)) Foundation, and Embedded Developer Kit design software suites. It enables deployment of PCI Express capabilities for applications like add-in cards, host bus adapters, graphics cards, and high-end servers.

Connect One Semiconductors, Inc.    Phoenix, AZ 85023
May 04, 2006 Designed for 802.11b/g WiFi and 10/100BaseT LAN access, iChip(TM) CO120SQ features pin-out and functionality determined by firmware that includes features and IP needed for application-specific designs. Programmable Internet Controller(TM) chip, supplied in 64-pin TQFP, helps meet M2M connectivity needs that enable combination of up to 10 TCP/UDP sockets; 2 listen sockets; clients for HTTP, SMTP, and FTP; and SerialNET(TM) port server operating mode for serial-to-IP bridging.

Omega Engineering, Inc.    Stamford, CT 06907
May 03, 2006 Offered with NEMA 4 (IP66) enclosure and CE approval, Model FLSC-45B dc powered frequency-to-analog output signal conditioner accepts low level magnetic pickup signal or high level dc pulse from flow paddlewheel sensor or turbine meter without amplification and converts it into analog output. It features ±0.15% of full scale accuracy, ambient operating temperature of 20-70°C, and operates on 15-32 Vdc with .025% repeatability.

Agilent Technologies, Inc.    Santa Clara, CA 95051
May 03, 2006 Providing output power up to 21 dBm, fully synthesized Model E8663B features low phase noise of -130 dBc/Hz or lower at 1 kHz offset from 1 GHz carrier. It is suitable for range of applications, including low jitter local oscillator substitution, radar signal simulation, and as reference source for phase noise measurements. Close-to-carrier phase noise performance makes it possible to characterize high-resolution radar and electronic warfare systems.

Ironwood Electronics, Inc.    St. Paul, MN 55121
May 03, 2006 Intended for 23 mm, 22X22 array ICs, 10 GHz Model SS-BGA324J-02-01 dissipates up to 7 W without extra heatsinking and can handle up to 60 W with custom heatsink. Contact resistance is typically 30 mOhm per ball. Constructed with spring pins rated at 500,000 actuations, socket operates from -40 to +150°C. Pin inductance is 1.3 nH and mutual inductance is 0.62 nH typically. Capacitance to ground is 0.45 pF and pin to pin capacitance is 0.0425 pF.

Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
May 03, 2006 Operating at 54 MHz, 32-bit single-chip MIPS-based Model TMP19A64F20AXBG integrates Model TX19A core with 64 KB RAM. In backup mode, power consumption is 5 µA at 2.7 V. Other built-in functions include 24-channel by 10-bit ADC with conversion speed of 8.44 µs and 8-channel high-speed serial interface. Intended for battery-operated digital consumer applications, device includes multiply/accumulate capability of 32-bit by 32-bit plus 64-bit in single clock cycle.

Diamond Ground Products Inc.    Newbury Park, CA 91320
May 03, 2006 Cryo-T Thoriated Tungsten Electrodes are cooled with nitrogen gas to -300°, then slowly reheated back to room temperature, producing dense structure and increased surface area that provides stress relief and dimensional stability. They offer long tip life and consistent welds resulting from crisp starts.

Saelig Co., Inc.    Pittsford, NY 14534

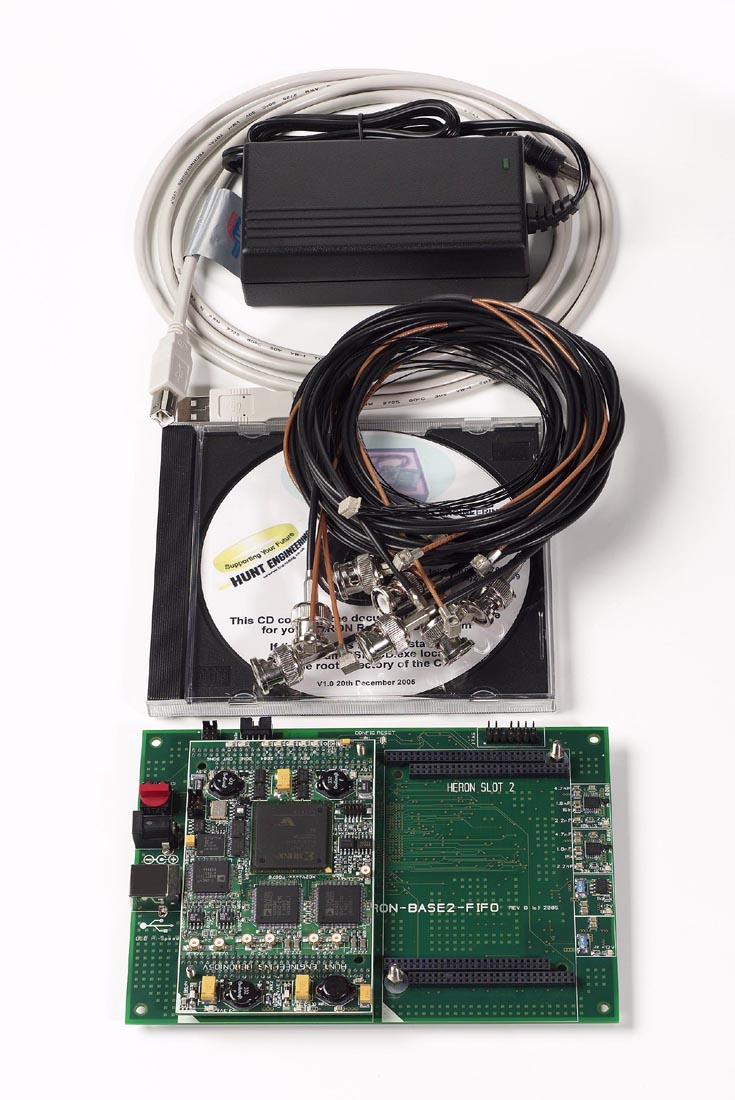

May 02, 2006 With software APIs, tools, and tutorials, RTG001 programmable USB 2.0 connected fast DAQ and FPGA processing system enables users to quickly implement out-of-the-box FPGA designs. It offers 2 channels of 210 MS/sec 12 bit A/D conversion, 2 channels of 160 MS/sec 16 bit D/A conversion, and 8 user programmable digital I/Os combined with 1.5 M gate FPGA. Each system is delivered with USB-connected FPGA/DSP hardware of choice, USB cable, I/O cables, and power supply, and documentation.

Marktech Optoelectronics    Latham, NY 12110

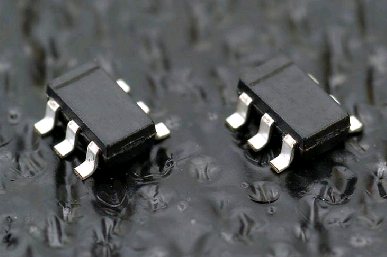

May 02, 2006 Housed in 2.9 x 2.8 x 1.3 mm SOT23-6 package, Model TB62752AFUG powers multi-segment white LEDs used to backlight color LCD panels in small portable devices such as cell phones and PDAs. High output power allows for up to 800 mW LED loading, while dedicated surge-detection pin minimizes need for external components. Device operates with input voltages from 2.8-5.5 V and achieves power efficiency in excess of 80% during 7-segment white LED operation.

Stout Tool Corp    Wixom, MI 48393

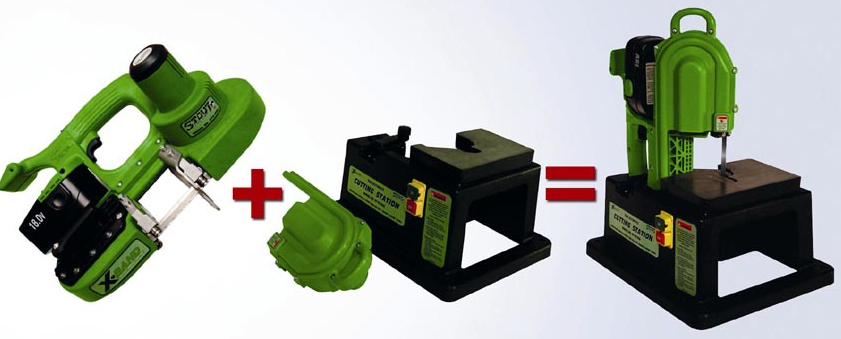

May 02, 2006 As portable docking system, The Ultimate Cutting Station converts hand-held X-Band® STX-250(TM) series cordless band saw into bench top, stationary cutting tool. It enables users to cut materials up to 2½ in. dia without picking up tool. Able to be transported between jobsites and workshops or from construction sites to lifts, product eliminates labor-intensive associations of sawing tasks.

Caddock Electronics, Inc.    Riverside, CA 92507

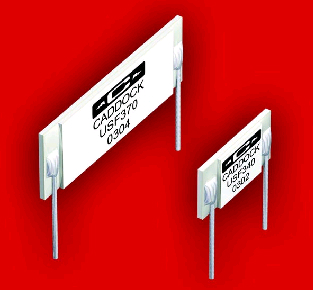

May 02, 2006 Manufactured with alumina ceramic sandwich, Models USF340, USF370, and USF371 provide voltage ratings of 300, 1,400, and 2,500 V and power ratings of 0.33, 0.75, and 0.75 W, respectively. Units feature resistance range of 50 ohms to 25 Megohms with temperature coefficient of ±5 ppm/°C max from -40 to +85°C. Applications include amplifier gain setting, bridge circuits, weighing systems, strain gage circuits, reference resistors, and precision voltage dividers.
