Omnetics Connector Corp.    Minneapolis, MN 55432

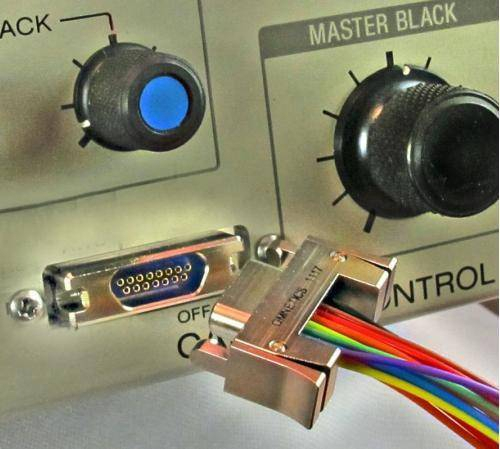

Apr 30, 2012 Designed for high-reliability miniaturization of military, aerospace, and medical equipment, Latching Micro-D(TM) connectors have .050 in. pitch and tool-free, push-and-latch design that reduces time and effort required to plug connector into circuit. Panel-mount connectors offer options for connecting inside instrument, including PCB lead frames and direct wiring, and designs with aluminum alloy 6061 shells and nickel plating offer contact counts from 9-51 positions.

Allegro MicroSystems Inc.    Worcester, MA 01615
Apr 30, 2012 Operating at temperatures up to +150°C, Model A1250 integrates voltage regulator, Hall-voltage generator, small-signal amplifier, chopper stabilization, Schmitt trigger, and short-circuit-protected, open-collector output on single silicon chip. On-board regulator permits operation with supply voltages of 3.0-24 V. Available in modified SOT-23W surface mount package or ultra-mini-SIP for through-hole mounting, switch is suited for automotive, industrial, and consumer markets.

Larson Electronics, LLC    Kemp, TX 75143
Apr 30, 2012 With 500 V rating, Model EPL-TX-500-4-1MLED converts 220 V 50/60 Hz current to 120 Vac 50/60 Hz, distributes secondary output via four 20 A twist-lock explosionproof receptacles, and provides 10,000 lumens via 150 W explosionproof LED light, which is vertically adjustable. Dolly cart mounting configuration allows operators to roll entire unit into position and move it about as needed. With built-in hanging rack, operators can stow included 25 ft explosionproof cord.

Analog Devices, Inc.    Norwood, MA 02062-9106
Apr 30, 2012 With input range of 3.2-15 V, Models ADP2370/71 deliver 800 mA output current with greater than 93% conversion efficiency. Devices offer adjustable output voltage from 0.8 V to input voltage, as well as fixed output options. Quiescent current is less than 14 µA in Power Saving Mode. Model ADP2371, otherwise identical to ADP2370, also offers quick output discharge feature. Housed in 3 x 3 mm QFN-8 package, synchronous step-down regulators optimize energy efficiency in battery-powered applications.

CUI, Inc.    Beaverton, OR 97005
Apr 27, 2012 Offering alternative to linear regulators, V78XX-1000-SMT series achieves efficiencies up to 92% via use of switching topology. This 15.24 x 8.50 x 7.00 mm series, suited for use where board space is at premium, has 5-18 Vdc input range and is offered with regulated output voltages of 2.5, 3.3, 5, or 6 Vdc. Remote on/off control, short circuit protection, and over temperature protection are standard features, and trim pin offers output voltage adjustability.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Apr 27, 2012 Housed in 2.7 x 3.2 mm micro SMD package, Model LM48903 and companion software helps mobile device designers overcome limited soundstage of closely spaced speakers by manipulating sounds in 3D space to create immersive cinematic experience. IC integrates spatial processing DSP, 2 Class D amplifiers, 18-bit stereo ADC, phase-locked loop, and I2S/I2C interfaces. Speaker drivers deliver 2 W/channel of continuous output power into 4 W load with less than 1% THD+N.

Touchstone Semiconductor    Milpitas, CA 95035
Apr 27, 2012 Supplied in low-profile, 8-pin, 2 x 2 mm TDFN package with exposed back-side paddle, TS3001 CMOS oscillator/timer consumes 1 µA supply current at 25 kHz and operates from single 0.9-1.8 V supply. Operation is specified over -40 to +85°C range, and timer frequency is set with one resistor. Additional characteristics include frequency out period drift of 0.021%/°C, PWMOUT duty cycle range of 12%-90%, and output driver resistance of 160 ohm.

Everlight Electronics Co. Ltd.    TAIPEI   Taiwan
Apr 26, 2012 Housed in ceramic package measuring 3.5 x 3.5 x 0.58 mm, Shwo D Series features standard operating current of 350 mA and can be driven at 1 W. Minimum luminous flux of 1 W units can be up to 110 lm at 6,500K or 80 lm at 3,000K when driven at 350 mA of current. LEDs are suited for variety of applications, such as general illumination, flash, spot, signal, industrial, and commercial lighting.

Pepperl+Fuchs    Twinsburg, OH 44087
Apr 26, 2012 Following AS-Interface specification 3.0, G10 AS-Interface Accessories include IP69K washdown-rated splitters and network terminator. One model provides flat cable connection for both AS-Interface and auxiliary power, and includes two M12 round cable connections, enabling 2 devices to be split off from one accessory. In addition to gold-plated piercing contacts, accessories have mounting holes in base, plastic cover with visible wiring instruction, and pass-through auxiliary flat cable tray.

Broadcom Corp.    San Jose, CA 95110
Apr 26, 2012 Optimized for top-of-rack switches, 10 GbE server adapters, and LAN-on-Motherboards in data centers, quad-port Model BCM84844 and dual-port Model BCM84846 reduce power consumption at 10 GE to less than 2 W per port through use of Energy Efficient Ethernet capability. PHYs operate over 100 m Category 6A cables with 4-pair magnetics. Both provide on-chip IEEE802.1ae MACsec link layer security and 1588v2 precision time protocol, delivering precise and accurate synchronization of nodes in network.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Apr 25, 2012 Available in single and double row versions with pin through hole processing, MiniPower Connectors are suited for high-current and high-density applications. Units feature 2-24 circuits, polarized housings to prevent mismatching, and fully insulated terminals. Locking feature is available for securing connectors to printed circuit board.

Cree, Inc.    Durham, NC 27703
Apr 25, 2012 Cree® XLamp XT-E and XM-L High-Voltage LEDs leverage SC³ Technology Platform, which is built on proprietary advanced silicon carbide technology. At 85°C, XT-E products can deliver up to 357 lm at 3 W in cool white (6500K) and up to 275 lm at 3 W in warm white (3000K). Similarly, XM-L High-Voltage LEDs can deliver, also at 85°C, up to 647 lm at 6 W in cool white and 555 lm at 6 W in warm white.

Analog Devices, Inc.    Norwood, MA 02062-9106
Apr 25, 2012 Operating over temperature range of -40 to +105°C, ½ Watt Model ADL5324 can be biased from 3.3-5 V, enabling RF designer to adjust power consumption to required system performance without need for bias resistor. Device features low power consumption of 62 mA on 3.3 V and up to 133 mA on 5 V. Available in SOT-89 package, amplifier operates over frequency range of 400-4,000 MHz with OIP3 of 43 dBm, P1dB of 29 dBm, gain of 14.6 dB, and low noise figure of 3.8 dB at 2,140 MHz.

Allegro MicroSystems Inc.    Worcester, MA 01615
Apr 24, 2012 Housed in 4 x 4 mm TQFN/MLP-20 package, Model A8303 utilizes small ceramic capacitors within boost regulator control instead of electrolytic units, making device suitable for LCD TV designs. IC combines integrated boost MOSFET, current sensing, and compensation. Resistor-programmed output current limit minimizes boost inductor/diode size. With key output voltage setting of 15.6 V, regulator accommodates Japan-specific design requirements.

MaxLite    West Caldwell, NJ 07006
Apr 24, 2012 At 5 in. dia x 3 in. long, Pancake PAR40 LED Lamp has 160° beam angle and is suited for general lighting. Eclipse PAR40 LED Lamp, at 5.25 in. dia x 4.75 in. long, has 45° beam angle and is suited for spot lighting. Constructed with solid aluminum body, lamps produce 1,000 lm and are available with E26 Edison screw-in or GU24 pin bases and 3000K, 4000K, and 5000K color temperatures. Component Isolation Technology features driver in isolated, ventilated, heat-sinked center section of bulb.

Cree, Inc.    Durham, NC 27703
Apr 24, 2012 Built on SC³ Technology Platform, which leverages advanced silicon carbide technology, MT-G2 LEDs deliver up to 2,100 lumens in warm white at 25 W, 85°C. Units are available in 2- and 4-step EasyWhite® color temperatures ranging from 2,700-5,000 K and provide 80 and 90 CRI options. With 8.9 x 8.9 mm footprint, devices are suited for track, accent, lamp retrofit, and down lighting applications.

FCI Electronics    Etters, PA 17319 9769
Apr 24, 2012 With 4 mm connection height, MEG-Array® Connectors perform at 28 Gbps per electrical lane, meeting/exceeding requirements of OIF Short Reach specification for insertion loss, insertion loss deviation, return loss, and integrated cross-talk noise. Eye patterns, bit-error rate, and bathtub curve simulations demonstrate 28 Gbps performance even without signal conditioning. Featuring BGA attachment for SMT assembly, connectors are suited for telecom, datacom, and instrumentation applications.

Renco Electronics, Inc.    Rockledge, FL 32955
Apr 24, 2012 Measuring 7.8 mm in diameter by 7.5 mm in height, Model RL-8054 includes stand-off capability and operates over temperature range of -40 to +130°C. RoHS-compliant device is packaged in tape and reel quantities of 300 and suitable for use in noise filtering applications.

Analog Devices, Inc.    Norwood, MA 02062-9106
Apr 24, 2012 Intended for high-efficiency AC/DC and isolated DC/DC power supply systems, ADP1046 has 7 PWM logic outputs that can be programmed using GUI with I²C interface. Adaptive dead-time control increases efficiency across entire load range, while current share and OR-ing control accommodate use in parallel and redundant systems. Other features include voltage feed-forward for accelerated line transient response as well as dedicated loop filters for soft start, light load, and normal load.

RF Industries    San Diego, CA 92126 4202
Apr 24, 2012 P2RFA-4031-01 kit features three 3.5 mm adapters with 50 ohm impedance and made of non-magnetic 303 stainless steel with beryllium copper contacts supported with bead configuration. They are designed to operate up to 34 GHz with a VSWR rating of 1.05+.006 f (f-GHz) max and have same electrical length. Coaxial connectors and adapters inter-mate with SMA and 2.9 mm connectors and are used primarily on test equipment. Kit includes male-to-male, female-to-female, and male-to-female adapters.
