American Bright Optoelectronics Corp.    Chino, CA 91710

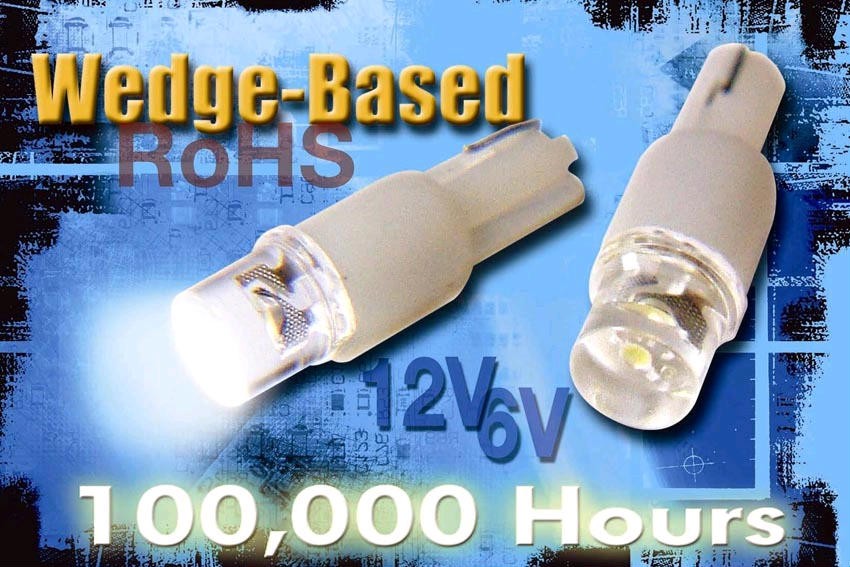

Sep 13, 2005 With service life of 100,000 hr and intensities from 240-1,230 mcd, miniature Wedge-Based LEDs produce similar color output as white T-1/34 wedge-based incandescent bulbs. Internal resistor is provided at 130 or 430 â"¦. InGaN chip materials create rugged design with operating temperature from -40 to 80°C. Compliant with Pb-Free materials and processes, LEDs feature power dissipation of 120 mW, peak forward currents of 150 mA, and viewing angle of 85º.

Micronas GmbH    Frieburg D-79108  Germany

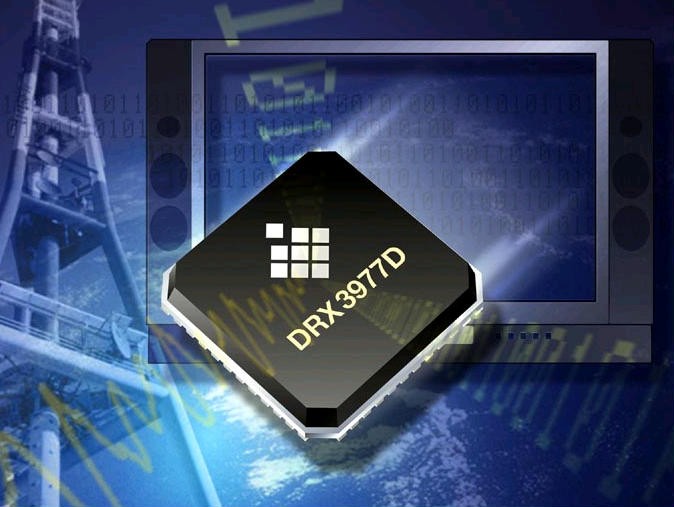

Sep 13, 2005 Offered in QFN48 package with 7 x 7 mm footprint, Model DRX 3977D enables error-free reception in fringe areas or when using Single Frequency Networks. It includes IF amplifier and PLL that can reuse tuner clock without performance degradation. Unit exceeds, with several dB of margin, NorDig-Unified Specification v1.0.2. Small package size makes it suited for PC cards, ExpressCard(TM) designs, USB solutions, dual channel applications, and small form factor NIMs.

Phoenix Contact    Harrisburg, PA 17111 0100
Sep 13, 2005 Measuring 6.2 mm wide, quick connection IDC Series QTC 2.5 accepts 20-14 AWG conductors and offers current carrying capacity of 15 A at 600 V. When cable is inserted into contact, soft pivot is actuated and gas-tight, vibration-proof termination is made. Wiring installation requires only standard screwdriver.

IBS Electronics, Inc.    Santa Ana, CA 92704
Sep 12, 2005 Designed for use with Conexant Smart DAA® modem chipsets, ETAL surface mount transformers include 6 models with various turn ratios. RoHS-compliant products are suitable for lead-free, conventional placement and reflow. UL-recognized P5200 range is compliant with IEC950 and UL60950, providing supplementry (2k Vrms) isolation for primary circuit at working voltage of 250 Vrms. Applications include set top boxes, faxes, EPOS, and modems.

Sensory Inc.    Santa Clara, CA 95054
Sep 12, 2005 General-purpose RSC-464 IC provides speech recognition, synthesis, and system control on one chip. Inside speech recognition SoC includes 16-bit ADC, DAC, digital filter unit, math unit, 4K RAM, 64K ROM, output amplification, timers, and comparators. Also able to be used as slave for speech recognition, voice biometrics, and speech and music playback, product implements FluentChip(TM) v2.0 technologies, Quick T2SI(TM) Toolkit, integrated IDE, and Quick Synthesis tool.

LSI Logic Corp.    Milpitas, CA 95035
Sep 09, 2005 Comprised of MegaRAID SATA 300-8X and SATA 300-8XLP, iMegaRAID(TM) product line enables construction of iSCSI storage products with terabytes of pooled storage shared in IP-SAN environment using x86 Linux platforms and LSI Logic MegaRAID® SATA storage adapters. Users can build iSCSI appliance featuring iSCSI path redundancy, bandwidth scaling, and port segmentation. Selectable components include CPU, memory, number of Ethernet ports, and 1.5 or 3 Gbps SATA disks.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Sep 09, 2005 Housed in 4-bump micro SMD package, miniature 100 mA low dropout Model LP5900A provides output voltages from 1.5""3.3 V with ±2% accuracy over full line/load/temperature. Unit emits 6.5 µVRMS of noise and features power supply rejection ratio of 75 dB without use of bypass capacitor. Measuring 1.1 x 1.1 mm, regulator includes two 0.47 µF capacitors, consumes 25 µA of quiescent current, and is suited for low-noise amplifiers, VCOs, and RF receivers.

MagnaChip Semiconductor    Cheongju-si,Chungbuk   Korea (south)
Sep 09, 2005 Produced using TSMC's 0.25 µm process, IS2320 provides users with single-chip QVGA solution for mobile display products. It supports resolution of 240 RGB x 320 dot and 262K color in 2.0, 2.2, and 2.4 in. panel displays. Along with 68/80 system MPU interface and 18/16/6-bit RGB interface, product contains source driver, gate driver, memory, and embedded power supply.

Altera Corporation    San Jose, CA 95134
Sep 09, 2005

NEC Electronics    Santa Clara, CA 95050
Sep 09, 2005 Low-voltage power MOSFETs serve as switching devices with minimal current leakage to provide power management in high-frequency power supplies and motor control systems. Noise-clipping and ESD protection diodes protect high-speed system data from being degraded because of electromagnetic noise and chips from being damaged by static electricity. LDO voltage regulators maintain stable power supply in systems receiving unstable or unrectified direct current.

STMicroelectronics    Lexington, MA 02421
Sep 07, 2005 Supporting Intel 82573E PCI Express Gigabit Ethernet Controller, 8-Mbit Model M25PE80 provides 16 sectors of memory space, each containing 256 pages. Each page is 256 bytes wide, and all sectors and pages can be erased independently. Operating from 2.7""3.6 V, unit encompasses standard SPI bus with clock speed of 50 MHz for data transfer, and features 1 µA deep power-down mode. RoHS-compliant device comes in 8-pin MLP package measuring 5 x 6 mm.

Harting KGaA      Germany
Sep 07, 2005 Han DD series high pin count, industrial multi-pole inserts feature creepage and clearance distances that comply with IEC 61984 to provide user with optimal safety while in use. Manufactured from polycarbonate to UL94 V0, products are suitable for use in pollution category 3 environments at up to 250 V and 10 A. Versions are available with 24, 42, 72, or 108 contact cavities.

FCI Electronics    Etters, PA 17319 9769
Sep 07, 2005 Featuring dual-beam, double-sided contact system, AirMax VS 4-pair vertical headers and right angle receptacles help improve PCB routing density as well as multiple IMLA counts and spacings. Protective cover on vertical headers is designed for maximum protection of open pin field structure and serves as press-in block. Products use air as dielectric between adjacent conductors, providing optimal signal density while exhibiting minimal insertion loss and crosstalk.

AVX Corp.    Myrtle Beach, SC 29578
Sep 07, 2005 Designed to address dc blocking issues from 15 kHz to 40 GHz in optical transceivers, GZ Series Capacitors match .015 and .020 in. micro strip widths. Units combine Ni-Au terminated MLCs for low frequency coverage, and maxi dielectric single-layer ceramics to facilitate surface mounting. Most applications experience resonance-free performance of less than 0.5 dB through at least 26.5 GHz.

Norstat, Inc.    Rockaway, NJ 07866
Sep 07, 2005 Available in 6 connector types, DIN 43650 Connectors and Molded Cable Assemblies come with or without LED and surge suppression. All feature impact-resistant, plastic housings with Molded Assemblies offering cable strain relief and protection against environment. Pre-wired units offer cable lengths up to 10 m and are available with M-12 connectors. Unwired connectors carry IP 65 protection rating, while molded assemblies carry protection rating of IP 67.

Ikanos Communications    Fremont, CA 94538
Sep 07, 2005

Silicon Storage Technology Inc.    Sunnyvale, CA 94086
Sep 07, 2005 Supporting 2.4 GHz 802.11 b/g and 5 GHz 802.11a standards, dual-band Model SST13LP02 provides 20 dBm for 802.11b, 18 dBm for 802.11g, and 18 dBm for 802.11a applications. Integrated, temperature-stable, on-chip power detector tolerates output mismatch of VSWR greater than 2:1 at all angles. On-off switching is controllable by baseband chip with minimum reference current of ~2 mA. Applications include notebook PC-based networking, access points, and multimedia equipment.

AVX Corp.    Myrtle Beach, SC 29578
Sep 02, 2005 Offered in 0402 size, surface-mount L0402 provides thin film equivalent of wire-wound inductor, with no constraint in values and inductance range of .82–6.8 nH. Land Grid Array (LGA) packaging and miniature size allow for self-alignment during reflow. Product is suited for automatic assembly in applications such as mobile communications, satellite TV receivers, GPS, vehicle location systems, wireless LANs, filters, and matching networks.

Kemet Electronics Corp.    Greenville, SC 29606
Sep 02, 2005 Voltage and capacitance extensions in surface-mount commercial X5R MLCCs (Multi Layer Ceramic Capacitors) are available with X5R dielectric as well as K (±10%) and M (±20%) tolerances. RoHS-compliant devices offer capacitance ranges from 1.2-22 µF in 0603, 0805, and 1206 EIA case sizes with 10 V ratings. Components provide circuit functions such as decoupling and output filtering to computer, power supply, and automotive markets.

Kemet Electronics Corp.    Greenville, SC 29606
Sep 02, 2005 Commercial, surface-mount X7R MLCCs (Multi-Layer Ceramic Capacitors) offer capacitance ranges from 8.2-10 µF in EIA 1206 case size with 16 V rating. Components provide circuit functions such as decoupling and output filtering to computer, power supply, and automotive markets. Capacitance values are available in X7R dielectric as well as K (±10%) and M (±20%) tolerances. Operating temperature range is -55 to +125°C, with zero bias capacitance shift limited to ±15%.
