Agilent Technologies, Inc.    Santa Clara, CA 95051
Oct 03, 2006 Agilent MXG analog and vector signal generators feature adjacent channel leakage ratio performance of -65 dBc for 4-carrier 3GPP W-CDMA signal and -71 dBc for single-carrier signal. With SCPI programming, generators can make arbitrary switches in frequency and amplitude at less than or equal to 1.2 ms. In list mode, simultaneous switching of frequency, amplitude, and waveforms takes place at less than or equal to 900 µs. Simplified self-maintenance allows for in-house repair.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Oct 03, 2006 Available in models TPA2032D1, TPA2033D1, and TPA2034D1 with fixed gain amplification of 6, 9.5, and 12 dB respectively, TPA203xD1 Class-D audio power amplifiers come in 1.5 x 1.5 mm Wafer Chip Scale Package. They have efficiency of 88% and are capable of driving 2.75 W from 5 V power supply into 4 W with 27 mVrms A-weighted noise floor. With CMRR of -69 dB and PSRR at 217 Hz of -73 dB, devices are for use in wireless portable applications.

Kemet Electronics Corp.    Greenville, SC 29606
Oct 03, 2006 Featuring 100 V rating and ranges from .047-1.0 µfarads, X7R surface-mount multilayer ceramic capacitor has tolerances of J (±5%), K (±10%), and M (±20%). Operating temperature range of capacitor is between -55 to 125°C, with zero bias capacitance shift limited to ±15%. Used in automotive and power supply applications, RoHS compliant capacitor is offered with 100% pure matte tin-plated terminations.

Leadis Technology, Inc.    Sunnyvale, CA 94085
Oct 03, 2006 Model LDS522 65K color OLED driver IC with integrated controller supports 128 (RGB) x 68, 128 (RGB) x 36, and 96 (RGB) x 68 display resolutions. Integrating 139 kbits of full frame memory, on-chip oscillator, DC/DC converter, and temperature sensor, LDS522 SoC provides accurate color images for MP3 player and mobile phone sub-display applications. Two independent settings for RGB reference current enable device to make adjustments based on panel process variation and temperature changes.

BI Technologies Corp.    Fullerton, CA 92835-1051

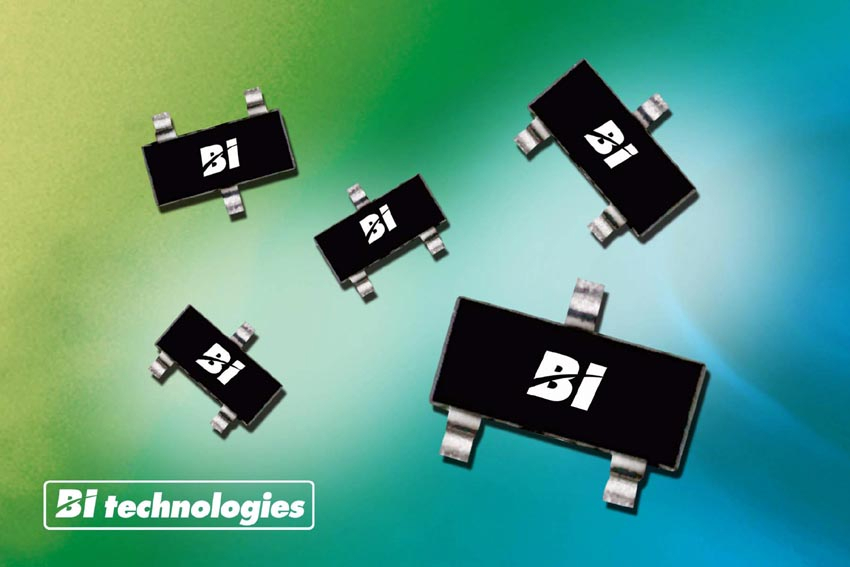

Oct 02, 2006 Consisting of 2 stable Nichrome thin film resistors on silicon substrates connected in series, SS1 Series thin film resistor networks are housed in SOT-23 package. They feature ratio tolerance of ±0.05% with TCR tracking tolerance at ±5 ppm/°C, and available R2/R1 ratio values include 10, 9, 4, 3, 2, and 1. With maximum operating voltage of 100 Vdc and temperature range of -55 to 125°C, networks are used to design precision divider circuits for military and medical applications.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Oct 02, 2006 IP phone System-on-a-Chip (SoC), TNETV1051, features 150 MHz DSP platform and 300 MHz RISC processor. Able to support multiple wideband codecs on IP phone, Gigabit Ethernet IP phone software and silicon solution also protects against Layer 3 and 4 Denial of Service attacks. PoE-enabled product also integrates 3-port Gigabit Ethernet switch and PIQUA(TM) technology, which provides real-time distributed system of complete quality management elements.

Dynamic Engineering Inc.    Ben Lomond, CA 95005
Oct 02, 2006 Model cPCIBPMC3U64ET has PMC card slot mounted to universal 3U 4HP cPCI card that is wired for 64-bit PCI operation with pull-ups on control lines to allow use in 32-bit system. PMC bezel connector is mounted through cPCI mounting bracket. Power is routed from cPCI to PMC connectors with mini-planes, each of which is rated for more than maximum PMC draw. Featuring operating temperature range of -40 to 85°C, product is suitable for 32/64 with 33/66 MHz bus operation.

Power Analog Microelectronics    Shanghai   China
Oct 02, 2006 Available with over temperature and short circuit protection, Model PAM3111 ultra-low output voltage LDO linear regulator works with 0.9-2.5 V output voltages, with optional currents of 1.5 or 3 A. Features include 300 mV dropout at 3 A output, less than 150 µA q-current, and less than 350 µA ground current at full load. High current regulator is suitable for many applications such as serial-ATA and computers.

Allegro MicroSystems Inc.    Worcester, MA 01615
Sep 29, 2006 With low EMI noise characteristics at more than 2 MHz, STR-W67xx series of low-power off-line SMPS primary regulators includes quasi-resonant topology ICs, and enables output powers up to 160 W at 120 Vac, or 240 W at 230 Vac input. Soft switching mechanism turns on internal MOSFET at close point to VDS bottom point, while bottom-skip function skips first bottom of VDS and turns on MOSFET at second bottom point to minimize increase of operational frequency at light output load.

Temex Time    Oxnard   Switzerland
Sep 29, 2006 Compatible with Cenelec EN16769 and multi-dwelling unit standard, SAW filters include balun function and accommodate up to 12 users on single cable. SAW technology enables LNB architecture to simplify Ku band section (single DRO instead of pair) and switching matrix (2 x 4 instead of 4 x 4). RoHS compliant filters come in 0.1 x 0.1 in. hermetically sealed ceramic package and have passivation coating on top of electrodes.

Advanced Interconnections Corp.    West Warwick, RI 02893
Sep 29, 2006 Suitable for 1.27 mm pitch surface mount board stacking applications, B2B® High Density SMT Connectors employ screw-machined terminals with multi-finger contacts and solder ball terminal design. They offer over 400 contacts/in.² and are provided with pick-up caps (male) or polyimide dots (female) to facilitate automated pick-and-place. Polarized male and female engagement prevents 180° out-of-orientation mismating, and standard mated heights range from 6.00-12.70 mm.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Sep 29, 2006 Featuring 4:1 input multiplexer, Model LMH0056 supports data rates for standard-definition SDI and high-definition SDI serial routing and distribution, including 143 Mbps, 270 Mbps, 1.4835 Gbps and 1.485 Gbps. Multi-rate reclocker is enclosed in 48-pin LLP® package, and power consumption from 3.3 V supply is 350 mW. Minimum jitter tolerance is 0.6 unit intervals (UI) with output jitter of 0.02 UI at SD rates of 270 Mbps and 0.05 UI at HD rates of 1.485 Gbps.

Sirenza Microdevices    Broomfield, CO 80021
Sep 29, 2006 Available in RoHS/WEEE compliant SOT-89 package, Model SGA-9089Z Silicon Germanium (SiGe) high linearity, medium power discrete product can be biased from 2.7-3.3 V over wide range of currents to deliver linearity, noise figure, and power up to 24 dBm. One-quarter watt SGA-9089Z is suitable for 3G, cellular, fixed wireless, and various other low noise and driver amplifier applications.

Actel Corp.    Mountain View, CA 94043 4655
Sep 29, 2006 Available in 8 x 8 mm, 196-pin chip scale package, Actel IGLOO(TM) family FPGAs support 1.2 V and offer 3 modes for optimizing power consumption. Flash*Freeze(TM) conserves power while maintaining FPGA content; low-power active maintains capabilities with FPGA core, clocks, and I/O; while sleep mode drops power below 25 µW when power to FPGA core is removed. Features include up to 3 million system gates, 616 user I/Os, 6 PLLs, 504 Kbits RAM, and 350 MHz performance.

Analogix Semiconductor Inc.    Santa Clara, CA 95054
Sep 29, 2006 Meeting VESA standards for digital interface for video and audio content in highly extensible format, ANX9801 DisplayPort(TM) transmitter targets PC graphics adapter boards and provides deep color and WQXGA resolution. Single link DVI + HDCP transmitter circuit offers legacy digital interface support, which enables output to HDMI display as well.

Macraigor Systems, LLC    Brookline Village, MA 02447-1008

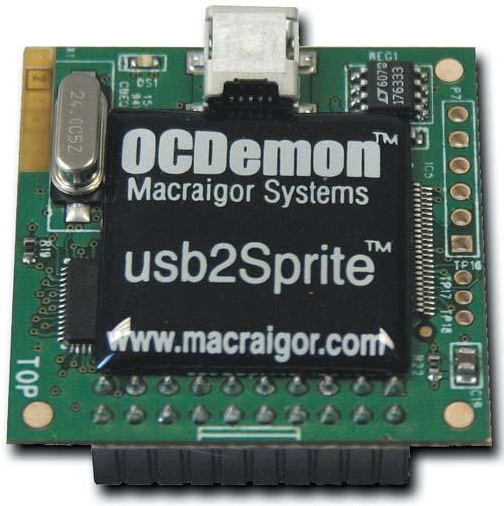

Sep 28, 2006 While OCDemon usb2Sprite provides USB 2.0 interface to on-chip debugging features of ColdFire and DSP 56300 microprocessors offering solution for designing, debugging, and programming embedded hardware and application software. Pre-built GNU tools and sample configurations contain source, gdbinit, and make files, allowing developers to build, download, and debug via gdb. Flash Programmer provides in-circuit programming of internal Flash and externally connected devices.

Aries Electronics, Inc.    Bristol, PA 19007-6810

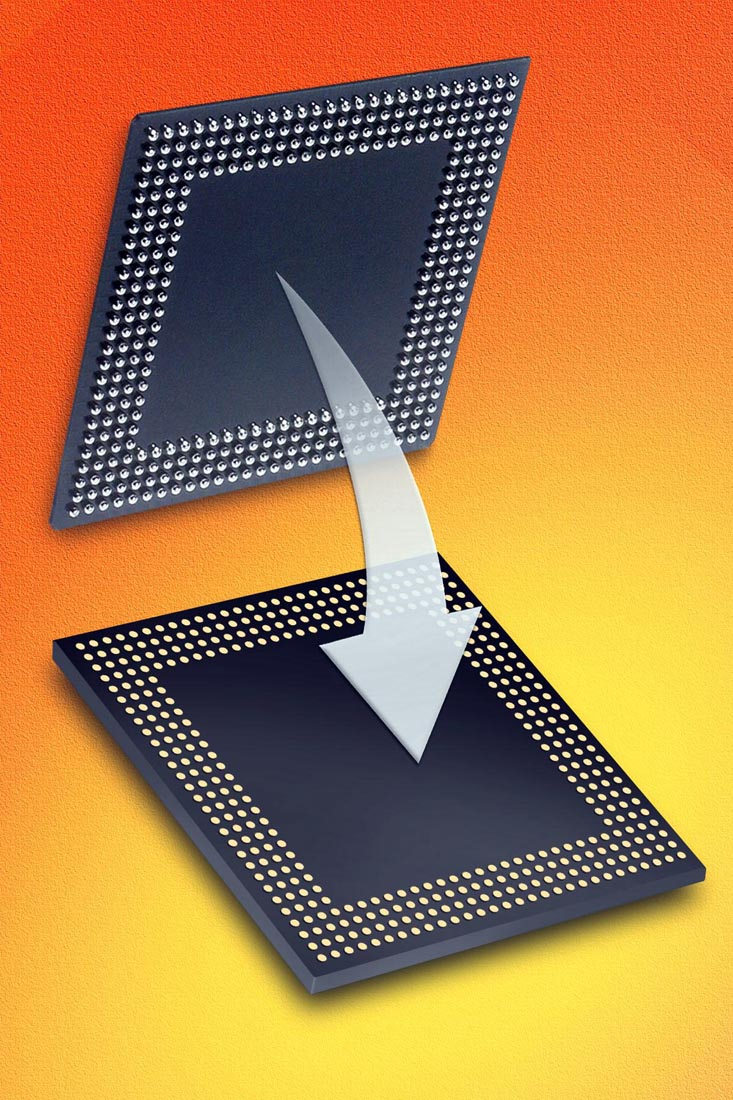

Sep 28, 2006 BGA-to-BGA adapter solves solder joint reliability problems that occur when RoHS-compliant solder balls are assembled with devices whose connections are not lead-free. Adapter body is made from high-temperature glass reinforced material that allows lead-free components to be mounted at higher temperatures, while eutectic tin-lead ball terminations, which have standard reflow temperatures profiles, enable assembly to be mounted to tin-lead PCB using standard temperatures.

TT electronics IRC Wirewound and Film Technologies Division    Boone, NC 28607
Sep 28, 2006 Designed for military and avionics systems, RB/RBR Series axial lead precision wirewound resistors are suited for applications where accurate measurement of voltage or current is required. Available in axial and radial terminal configurations, resistors operate from -65 to 145°C and feature power ratings from 0.125-0.5 W and tolerances ranging from ±0.01 to ±1.0%.

Advantech Automation Corp.    Cincinnati, OH 45240
Sep 28, 2006 With operating temperature range of -40 to 85°C, ADAM-4510I isolated RS-422/485 repeater and ADAM-4520I isolated RS-232 to RS-422/485 converter feature automatic RS-485 data flow control, 3,000 Vdc isolation protection, surge protection RS-485 data line, transmission speed up to 115.2 Kbps, and networking up to 1,200 m. Mountable on DIN-rail, panel, or piggyback, they have space for termination resistors and power and data flow indicator for troubleshooting.

Actel Corp.    Mountain View, CA 94043 4655
Sep 28, 2006 Silicon Sculptor 3 field-programmable gate array (FPGA) programming tool features high-speed USB 2.0 interface allowing connection of up to 12 programmers to single PC. Leveraging antifuse-based Axcelerator FPGA device, unit offers concurrent programming of highly dense parts. Device supports standard and ARM-enabled versions of ProASIC3 family and Actel Fusion Programmable System Chips.
