LitePoint Corporation    Sunnyvale, CA 94085
Jun 05, 2007 Multiport Test Adapter (MPTA) enables comprehensive composite EVM and fast-switching testing on multi-channel MIMO devices through one-box test instruments. Allowing OEMs and ODMs to minimize manufacturing implementation test times, this adapter offers an operating range of 2-6 GHz and addresses both 802.11n WiFi and 802.16e Wave 2 WiMAX products. Features include direct RF connections to DUT and single USB 2.0 interface.

Laser Components, inc.    Santa Rosa, CA 95403
Jun 05, 2007 Offering low pulse distortion, Model HCA-400M-5K-C features gain of 5 x 10² V/A and minimum rise/fall time of 1 ns. It comes in miniaturized and rugged aluminum housing that optimizes EMI shielding. Small size lets user get amplifier close to detector, minimizing noise from long detector leads. Amplifier is suited for amplification of small currents generated by high impedance sources such as photodiodes, PMTs, ionization, and particle detectors.

LEDtronics, Inc.    Torrance, CA 90505
Jun 04, 2007 Integrating InGaN diode with optical-grade epoxy, 525 nm Model LD200-0AG-15D produces 28,000 mcd illumination at 20 mA with viewing angle of 15°. Discrete, 5 mm standard dome unit lights up variety of applications including full color screens, moving signs, displays, mini lamps, pushbutton switches, and backlighting. With average life span of 100,000-plus hours, unit is impervious to shock, vibration, frequent switching, and environmental extremes.

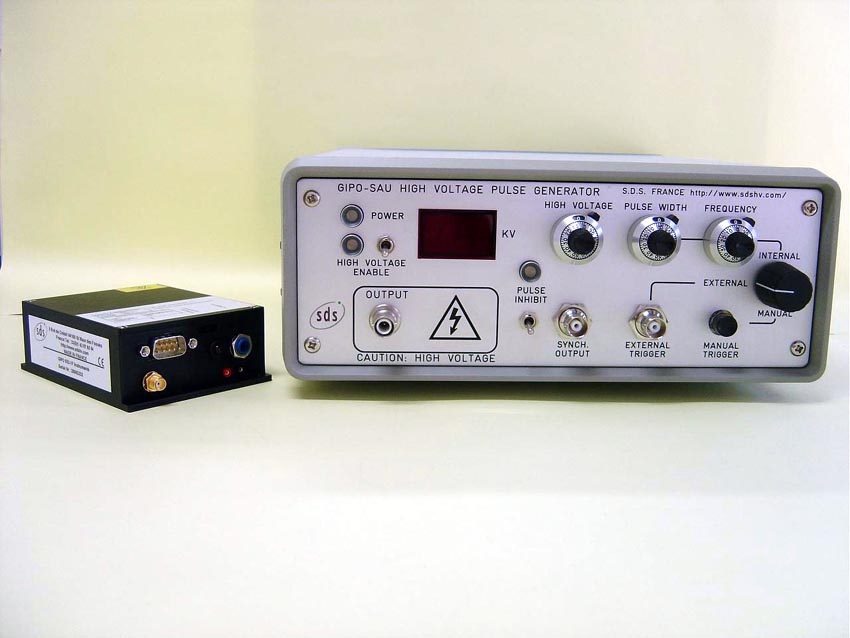

Laser Components, inc.    Santa Rosa, CA 95403
Jun 04, 2007 Available in block configuration or as stand-alone unit, GIPO high voltage pulse generators can produce pulses that can reach 5.5 kV with rise time of 2.5 ns. With adjustable pulse length from 200 ns to 30 µs, they can be utilized in applications where it is necessary to switch high voltage quickly. Generators can be used with pockel cells, multi channels plates, intensified CCDs, laser diodes, and flash lamps.

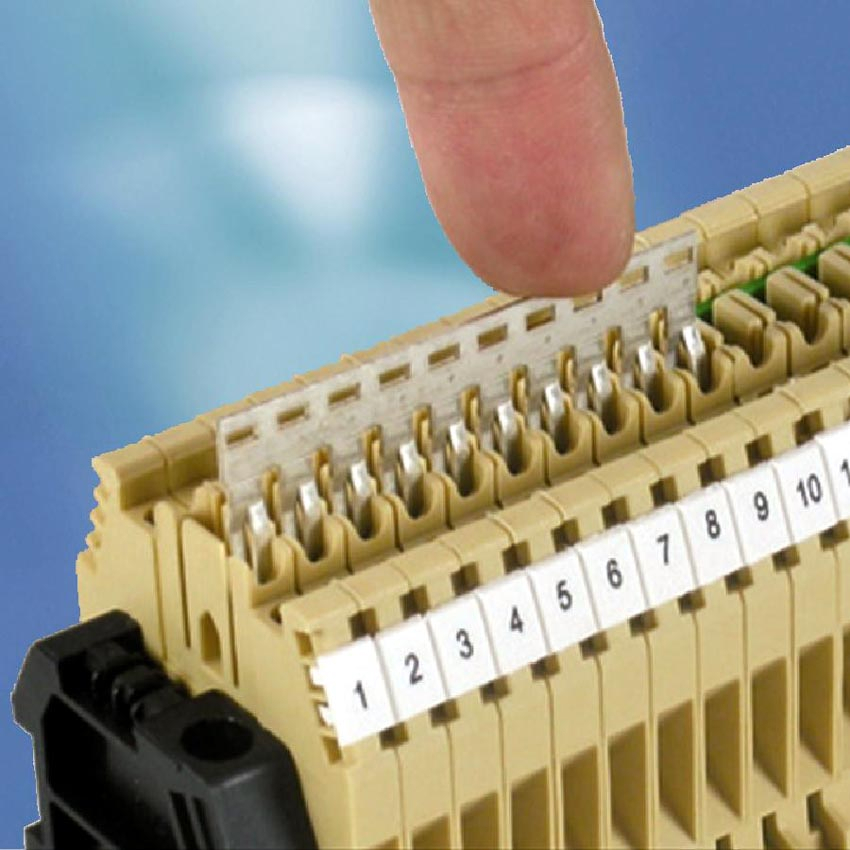

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Jun 04, 2007 With ability to accept wires ranging from 6-24 AWG, CBC series terminal blocks are designed to address applications where bridging of circuits is required for consecutive, alternate, and numerous terminal blocks in one assembly. Bridging is accomplished with Easy Bridge System comb-type bridge ranging from 2 to 50 positions. Available in 4 sizes and made of UL94V-0 polyamide insulating body, blocks have operating temperature range of -40 to +80°C.

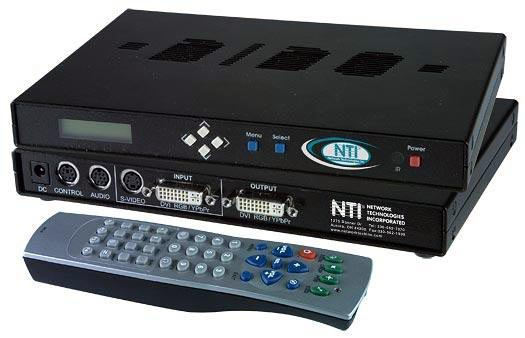

Network Technologies, Inc. (NTI)    Aurora, OH 44202
Jun 04, 2007 Model SPLITMUX-SVDVI-2 allows users to simultaneously display and monitor video signals from 2 different computers or video sources on single screen. Combining functions of video wall processor, video scaler, PiP generator, and audio/video switch, device supports resolutions up to 1,900 x 1,200 and can de-interlace 1080i to 1080p. Controllable via IR remote control, front panel interface, or RS232 commands, it enables operators to rotate, stretch, and crop multiple images.

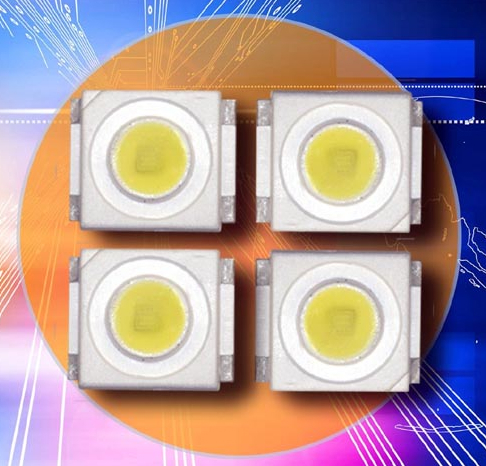

Optek Technology, Inc.    Carrollton, TX 75006-6905
Jun 01, 2007 Measuring 6 x 6 mm with 1.5 mm height, Model OVS5WBCR4 0.5 W surface mount white LED package comes with water clear lens and 120° viewing angle. Typical luminous flux is 21 lumens, with typical on-axis intensity of 8.5 cd and forward voltage of 3.2 V. DC forward current is 180 mA, with peak pulsed forward current of 500 mA. Power dissipation is 700 mW and maximum rated junction temperature is 125°C. Operating temperature range is -40 to +100°C.

Altera Corporation    San Jose, CA 95134
Jun 01, 2007 Tranceiver-based FPGAs Arria(TM) Series GX support PCI Express (PCIe), Gigabit Ethernet (GbE) and Serial RapidIO(TM) (SRIO) standards up to 2.5 Gbps. Features iclude Stratix® GX tranceiver technology, flip-chip packages, software tools, and verified intellectual property (IP) cores. Arria(TM) GX Series range in density from 21,580 to 90,220 logic elements (LEs), are built on TSMC's 90 nm process, and have up to 4.5 Mbits of embedded memory and 176 multipliers.

Micrel Semiconductor Inc.    San Jose, CA 95131
Jun 01, 2007 Housed in 3 x 3 mm MLF® package, 7 W Model MIC2298 offers switch current of 3.5 A, allowing device to deliver 1 A into 2 high-brightness WLEDs connected in series. Brightness can be controlled by applying voltage or PWM signal to brightness pin. Featuring input voltage of 2.5-10 V, DC-DC converter IC operates at fixed 1 MHz switching frequency with greater than 86% efficiency. Device is suited for photoflash and torchlight applications in mobile phones, PDAs, and digital cameras.

Bud Industries, Inc.    Willoughby, OH 44094
Jun 01, 2007 Suited for wet, dry, and corrosive environments, BT Series allows users to see inside from every direction, inspect for moisture, and read indicators without opening seal. Available in 7 sizes ranging from 4.53 x 3.54 x 2.17 in. to 11.81 x 9.06 x 3.39 in., they feature wall mounting holes, cover attaching screws, and internal guide slots. Enclosures are made of transparent plastic with blue tint, and meet NEMA 1, 2, 4, 4X, 12, and 13 IEC52/IP65, and UL508-4X specifications.

STMicroelectronics    Lexington, MA 02421
Jun 01, 2007 With configurable analog functions, Structured Architecture of Bridges and Regulators (S.A.B.Re(TM)) suits printer, fax, and embedded-control applications. Customizable unit consists of 4 configurable bridges that can also function as switching regulators or power charge, variable-voltage buck switching regulator, switching regulator controller, linear regulator, multi-channel configurable 9-bit A/D converter, 2 operational amplifiers, bi-directional serial interface, and general-purpose I/Os.

Linear Technology Corp.    Milpitas, CA 95035
May 31, 2007 Operating from single 3V supply, LTC6400-20 and LTC6401-20 include gain setting resistors and VOCM pin for setting output common mode voltage to match input range of ADC. Model LTC6400-20 provides fixed gain of 20 dB with -93 dBc third-order intermodulation distortion performance and noise figure of 6.5 dB for 140 MHz input frequency. For input frequencies up to 70 MHz, LTC6401-20 maintains same low noise performance and offers -90 dBc distortion performance.

Vyyo, Inc.    Palo Alto, CA 94304
May 31, 2007 Featuring fully integrated support for IP-based transport, XMTS-TE expands ability of cable operators to deliver T1 services via hybrid fiber-coaxial plant. Solution eliminates need for operators to deploy TDM/SONET backbones for business services. Used in conjunction with Vyyo V510 TDM/Ethernet Gateway, XMTS-TE encapsulates T1 circuits into Ethernet frames to allow transport over metro or regional Ethernet networks.

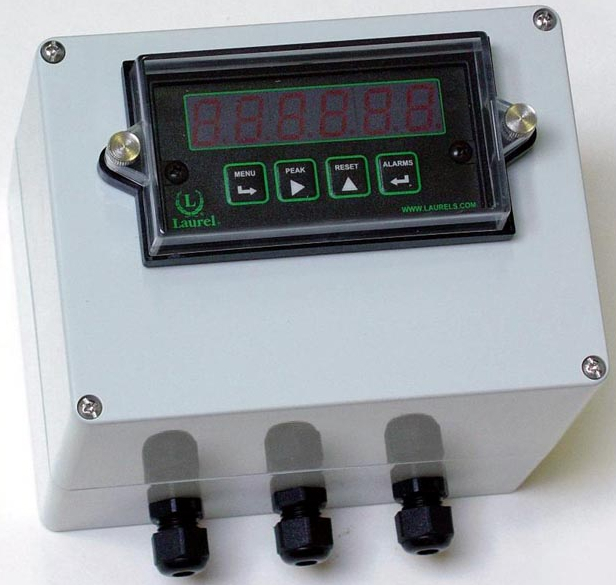

Laurel Electronics, Inc.    Costa Mesa, CA 92626
May 30, 2007 Offering environmental protection to NEMA-4X, Model BOX wall- or bulkhead-mount enclosure comes with 1/8 DIN panel cutout for use with 1/8 DIN instruments with 5.30 in. max depth. Compartment that houses instrument is hermetically sealed, and mounting holes are located on rear surface, outside of sealed compartment. Wire feedthroughs are via 3 sealed cable glands, which accept up to 0.24 in. dia cables. Transparent cover is available for instruments lacking front-panel protection.

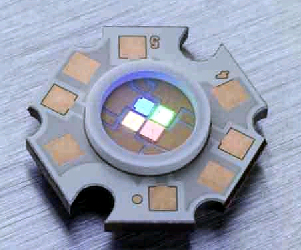

PerkinElmer, Inc., Optoelectronics Headquarters    Fremont, CA 94538-3180
May 30, 2007 With luminous flux up to 325 lumens, ACULED VHL comes in monochromatic as well as RGBY versions. Thermal resistance can be as low as 4.5 K/W, depending on chip configuration. Each chip features separate anode and cathode, enabling chips to be driven individually. With ACULED DYO, customers can design their own 4-chip LED configuration to suit specific lighting needs. Users can select from visible and non-visible LED chips, sensors, and ESD protection chips.

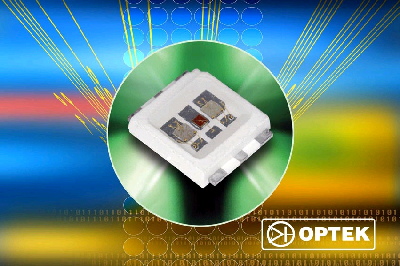

Optek Technology, Inc.    Carrollton, TX 75006-6905
May 30, 2007 Designed for high current drive, surface mount Model OVSPRGBCR4 is composed of red, green, and blue LED with water clear lenses mounted on top of devices. Each color can be independently controlled, as well as programmed for color mixing. Typical luminous flux for red, green, and blue LEDs is 21l m, 32l m, and 7.5l m, with typical on-axis intensity of 7 cd, 11 cd, and 2.8 cd, respectively. Measuring 6 x 6 mm with 1.5 mm height, package operates from -40 to +100°C.

Strategic Test Corporation    Woburn, MA 01801-1915
May 30, 2007 Equipped with ABA Mode, 1-16 channel UltraFast(TM) Oscilloscope/Digitizer PCI cards can be configured for slow continuous recording, switch to high-speed sampling on detection of trigger event, and return to slow recording until next trigger event. Timestamp is recorded for each trigger event, and pre-trigger can be set so that data is recorded prior to trigger event at fast sample rate. Min sampling rate is 1 kSPS, and max sample rates range from 0.25-200 MSPS.

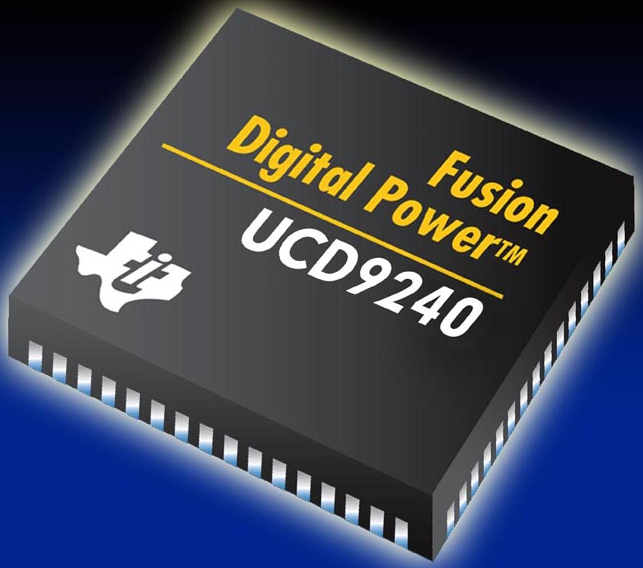

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
May 30, 2007 Requiring supply current as low as 40 mA during operation, UCD9240 controllers can digitally manage up to 4 independent digital-control loops and up to 8 phases. Products implement digital PWMs with 250 psec resolution and are fully configurable via GUI for monitoring, control, and management of DC/DC point-of-load power conversion. Also included, Fusion Digital Power(TM) peripheral performs full-digital loop control while supporting switching frequencies to 2 MHz.

Supertex Inc.    Sunnyvale, CA 94619
May 30, 2007 Fully integrated, 4-channel HV738 and HV748 combine logic control circuitry, level translators, and MOSFET gate drive buffers in one package. In addition to output drain bleed resistors, up to 20 MHz operating frequency, and matched delay times, both models have controls to enable pulsed- and continuous-wave mode operations. Respectively, HV738 and HV748 feature outputs specified up to ±65 V and ±75 V each as well as ±750 mA and ±1.25 A source and sink currents in pulsed-width mode.

Fairchild Semiconductor Corp.    South Portland, ME 04106
May 30, 2007 Optimized for half- or full-bridge inverter designs, 40 V Model FDD8424H integrates P-channel high-side MOSFET and N-channel low-side MOSFET into single device, allowing common drain connection. It offers thermal resistance of 4.1 C/W for N-channel and 3.5 C/W for P-channel. Equipped with Dual DPAK packaging, lead-free device is suited for use in backlighting units for LCD TVs, LCD monitors, motor drives, and lamp drives.
