MMD Components    Rancho Santa Margarita, CA 92688

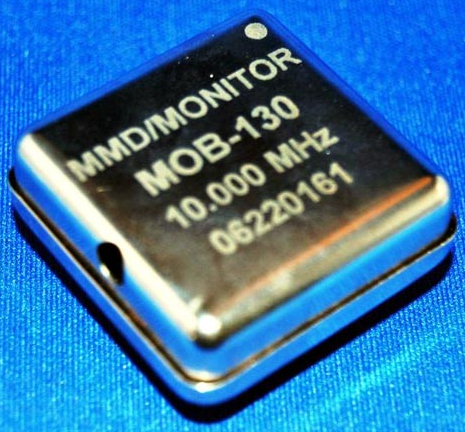

Aug 08, 2006 Supplied in 2 x 2 x 1 in. package, single-oven oven-controlled crystal oscillator (OCXO) utilizes proprietary compensation and stabilization methods to maintain frequency stability as low as 1 ppb over -20 to +70ºC operating temperature range. Highly polished SC cut crystals are employed to maintain minimal frequency drift over time. Available within frequency range of 1-150 MHz, products are offered with sine wave or CMOS output.

MAZeT Mikroelektronik Anwendungszentrum GmbH      Germany
Aug 08, 2006 Suited for sensors such as opto arrays and rows in UV, VIS, NIR, and IR regions, Model MTI04CS/CQ is capable of adapting compensation of amplifier to input capacitance of sensors, which is done digitally in 2 stages, 5 and 80 pF. Programming of transimpedance gain is carried out via 3 input pins to any of 8 levels and takes effect for all channels simultaneously. Amplification is 20 Mohm and smallest current measurement range is 25 nA.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 08, 2006 Offered in 5 case sizes, TH3 Molded Solid Tantalum Chip Capacitors operate at 150°C with 50% voltage derating. Devices feature capacitance range of 0.33-100 µF and voltage range from 10-50 V. Available in standard EIA tape-and-reel packages, surface mount units are compatible with automatic pick-and-place equipment and are suited for under-hood and on-engine applications such as engine control, fuel injection systems, diesel ignition control, and transmission control.

MMD Components    Rancho Santa Margarita, CA 92688
Aug 07, 2006 Offered in 14-pin DIP (dual inline package) configuration or gull-wing SMT version, MOFL series oven-controlled crystal oscillators (OCXOs) exhibit stabilities of ±0.1 ppm over -20 to +70ºC operating temperature range. Typical current consumption is 200 mA during start-up and under 75 mA in steady-state operation @ 25°C for 12 Vdc unit. Series may also be specified with 3.3 and 5 V operating voltages as well as frequency ranges from 1-100 MHz.

Altera Corporation    San Jose, CA 95134
Aug 07, 2006 Featuring 240 Kbits of embedded RAM and 14,448 logic elements, Cyclone II EP2C15A is designed with fast-on capability, shortening power-on time of device at start up. Fast-on enables unit to meet 50 ms requirement for automotive applications such as navigation, rear-seat entertainment, car networking, and driver assistance. Consuming as little as 12 mW of static power, Model EP2C15A is available on 90 and 130 nm process technologies.

Sipex Corp.    Miliptas, CA 95035-1701
Aug 07, 2006 Respectively offering 50 and 150 mA of load capability, SP6222 and SP6223 low dropout (LDO) linear regulators operate from 1.6 V input and have low dropout voltage of 200 mV. This allows 1.4-0.9 V output to power MCU and high-speed memory circuits. Both offer 2% output voltage accuracy, 0.05%/V typ line regulation, and 125 µV/mA load regulation. Capable of operating over -40 to +125°C range, LDOs feature thermal shutdown protection and 14 µA quiescent current.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Aug 04, 2006 Offering optimum trade-offs between low conduction loss and switching loss to minimize system's operating temperature, 1,200 V/15 A NPT-Trench IGBT Model FGA15N120ANTD ensures fail-safe operation of systems during abnormal avalanche-mode conditions that affect induction heating appliances. When tested in set evaluation using 1.4 kW/24 kHz IH appliance, trade-offs between device's switching and conduction losses reduced operating temperature to 34.5°C.

Littelfuse, Inc.    Des Plaines, IL 60016
Aug 04, 2006 Housed in QFN package with footprint of 3.3 x 3.3 mm and 1 mm height, Q2L Series C-Rated SIDACtor Thyristor offers surge rating of 500 A 2 x 10 µs and provides bidirectional transient voltage protection. Unit is equipped with leads on bottom to address creepage and clearance requirements of UL/EN 60950, providing routing of traces on PCB. Device is RoHS-compliant and has surge withstand capability to comply with coordination requirements of GR-1089-CORE.

Pericom Semiconductor Corp.    San Jose, CA 95131
Aug 04, 2006 While PI3USB411 is used for switching 2 audio signals (right and left) or USB data through single socket, PI3USB412 is used for switching 2 audio signals (right and left) from 2 different sources or USB data through single socket. Both support USB 1.1, USB 2.0 Full Speed, USB 2.0 High Speed, and Hi-Fi audio signals. Supplied in Pb-free, 3.5 x 1.5 mm TDFN packaging, products offer over 600 MHz bandwidth for USB channels and are suited for handheld applications.

Endwave Corp.    San Jose, CA 95134
Aug 03, 2006 Micro-YIG and Mini-YIG are YIG (Yttrium Iron Garnet) frequency sources that provide ±450 MHz and ±1 GHz tunable bandwidths respectively. Their 3-10 and 3-11 GHz output frequencies minimize spurious signals in advanced radars, while shock-mounting techniques minimize microphonics. Products can be operated in unlocked free-running mode, providing phase noise better than -105 dBc/Hz @ 10 kHz offset and -128 dBc/Hz @ 100 kHz offset.

FCI Electronics    Etters, PA 17319 9769

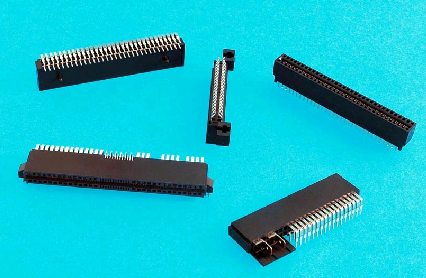

Aug 03, 2006 Manufactured from high-conductivity copper alloy, Power Card-Edge Series can be used for dc power output from embedded ac/dc power supplies or for power distribution between boards within enclosure. Right-angle, vertical, and straddle-mount connectors are available in various circuit counts. Adjacent power contacts are positioned on 2.54 mm pitch along card edge, and each power contact is rated for up to 7 A current measured at 30°C temperature rise in still air.

Stackpole Electronics, Inc.    Raleigh, NC 27604

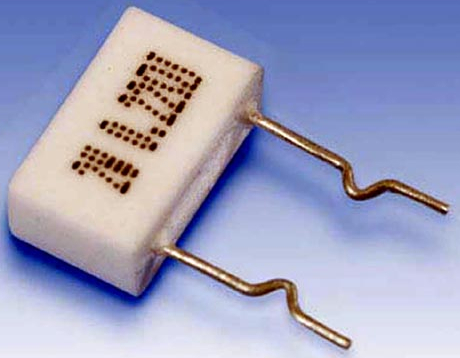

Aug 03, 2006 Featuring non-inductive metal plate resistive element, MPR Series comes in ceramic case and is RoHS-compliant. Radial leads have 10 mm standoff to aid in heat dissipation without overheating circuit board and surrounding components. In addition to 2-10 W power range, series offers resistance values from 0.01-2.2 ohms in 5% and 10% resistance tolerances. Applications include power supplies, voltage regulation, and automotive systems and controls.

Vativ Technologies, Inc    San Diego, CA 92121
Aug 03, 2006 VTV2310 high performance HDMI(TM) supports 3 independent HDMI inputs and selectable single decoded output in 24-bit digital video format. Unit is suited for multiple HDMI capable devices such as HD-DVD players and recorders, Blu-ray DVD players, and HD set-top boxes. Consuming 1.5 W at highest pixel rate, chip is available in 15 x 15 mm BGA package. DSP-based adaptive equalizer recovers TMDS data error-free at cable attenuation of 40 dB at 800 MHz.

AR Worldwide    Souderton, PA 18964
Aug 03, 2006 Custom Traveling Wave Tube Amplifiers (TWTAs) fit in standard 19 in. rack and deliver up to 1,000 W power. Amplifier line includes Model 511, which delivers 1,000 W/2.5-7.5 GHz, Model 512 with 500 W/7.5-18 GHz, and Model 513 with 1,000 W/1-2.5 GHz.

STMicroelectronics    Lexington, MA 02421
Aug 03, 2006 High-voltage IC L6599 features <30 mW power consumption and combines high-voltage floating structure tolerating more than 600 V with synchronous-driven high-voltage Lateral Double-diffused Metal Oxide Semiconductor. Device enables 500 kHz operation with reduced EMI emissions, and allows design of power supplies suitable for LCDs, plasma TVs, and laptop ac/dc adapters. Other features include latch-up free operation with slew rates to 50 V/ns and over-current protection.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Aug 03, 2006 Offered in 2.5 x 2.5 mm, 25-bump micro SMD packages suited for cell phones and other handheld devices, LP3958 and LP5526 control up to 20 series-connected LEDs in display backlights as well as keypad, RGB, and camera flash LEDs. They integrate boost converter and programmable constant-current driver along with I2C interface and 3 general-purpose I/Os to trigger lighting functions or control device-enable signals. LP3958 offers 70 mA output current while LP5526 offers 150 mA.

STMicroelectronics    Lexington, MA 02421
Aug 03, 2006 Designed to protect Low-Noise-Block voltage regulators in satellite set-top-boxes against lightning and electrical overstress surges, Series LNBTVSx-22x includes 3, 4, and 6 kV devices that fully comply with LNB supply voltage and IEC61000-4-5 protection standards. Units offer low clamping voltage from 30-35 V and low forward voltage of 1.2 V at IF = 3 A. They are UL recognized and available in axial and SMD packages.

Steren Electronics International, LLC    San Diego, CA 92126
Aug 03, 2006 From centralized location, FastHome(TM) structured wiring platform integrates, manages, and distributes broadband and multimedia services. It provides secure control center for wiring of cable TV, telephony, high-speed data, and home security. Customizable and upgradeable, platform can be expanded by adding modules. Enclosures are constructed of 18-gauge cold rolled steel for RFI shielding. Modules fit within enclosure or directly on backboard and are housed in 18-gauge steel or ABS plastic.

Micronas GmbH    Frieburg D-79108  Germany
Aug 02, 2006 Suited for component audio systems, integrated stereo systems, and home theater systems, Models MAP 54/560xM and MAP 44/460xM combine 24/48 bit QuadMAU® DSP running Customizable Modular Processing technology with digital and analog audio interfaces. Digital audio sources such as CD and DVD players connect to processor via multiple on-chip S/PDIF I/O. Analog sources from up to 6 channels can be routed through built-in multiplexers to 6 on-chip A/D converters.

MtronPTI    Orlando, FL 32804
Aug 02, 2006 Surface Acoustic Wave Devices come in standard models as well as custom models with frequencies of 20-2,500 MHz. Application bandwidths range from 0.01% in fractional bandwidth for resonators to 45% for wideband filter requirements. Products are offered in ceramic surface mount packages from 3 x 3 mm² to 9 x 24.7 mm² on tape and reel. Applications include band pass filters, delay lines, coded waveform generation, and correlators and resonators for phase noise clean up in synthesizers.
