Silicon Line GmbH    Munich 80331  Germany
Aug 23, 2007 Addressing market for optical fiber links in mobile electronics such as mobile phones or PDAs, Model SL82020 multi-rate Vertical Cavity Surface Emitting Laser (VCSEL) driver is optimized for low-power, fiber related data transport applications with respect to various transmission standards. Operating over -40 to +100ºC temperature range, it is designed in standard CMOS and supports data rates beyond 2 Gbps. IC can be DC-coupled to VCSEL, eliminating need for any bias filters.

Semtech Corp.    Newbury Park, CA 91320
Aug 23, 2007 Offering high attenuation for lines operating at 800 MHz to 2.7 GHz, Series EClamp238xP resistor-capacitor (R-C) protection devices include 4-line EClamp2384P, 6-line EClamp2386P, and 8-line EClamp2388P. Units feature 2-pole R-C filter network with 200 W and two 12 pF capacitors, TVS diodes for ESD protection, and R-C network for EMI and RFI filtering. Suited for GSM, CDMA, or 3G-based mobile phones, devices are available in RoHS/WEEE-compliant SLP packages.

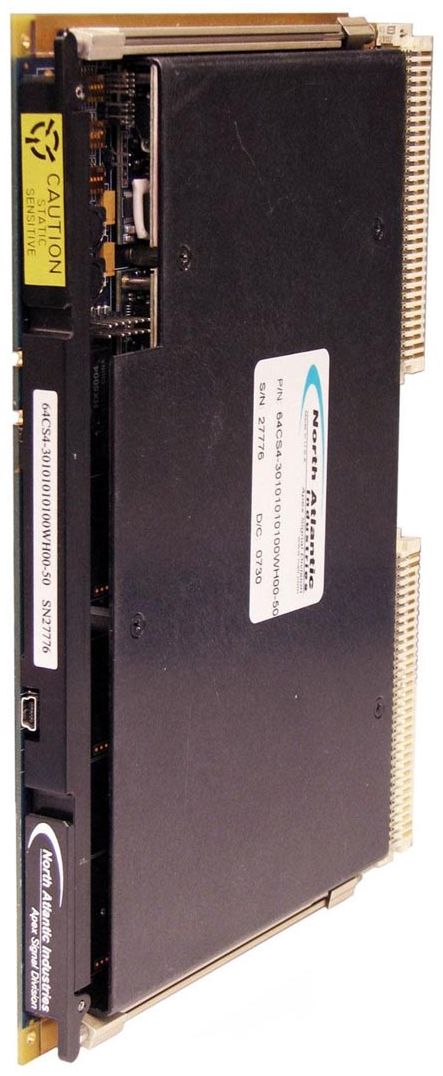

North Atlantic Industries, Inc.    Bohemia, NY 11716
Aug 22, 2007 Model 64CS4 accommodates up to 5 independent function modules, selected from library, that include D/S, S/D, D/LVDT, LVDT/D, A/D, D/A, Reference Generator, Function Generator, Discrete I/O, Transceiver I/O, and RTD. Each function is highly programmable at channel level. Also included, Gigabit Ethernet interface enables data transfer to and from board without using VME backplane bus. Multiple 64CS4 boards can be networked together in system.

Spectrum Control, Inc.    Fairview, PA 16415
Aug 22, 2007 Available in ac and dc models, Single-Line EMI Filters offer commercial equivalent to M15733-PRF/72, M15733-PRF/73, and M15733-PRF/74. Units filter up to 500 A with attenuation of 4-90 dB from 1 MHz to 1 GHz and voltage ratings of 130 Vdc and 250 Vac. DC models have C and Pi configurations with Class Y4 capacitors, while AC models have C and Pi configurations with Class Y2 capacitors. Both feature bolt-in style with D-shaped bushing.

Linear Technology Corp.    Milpitas, CA 95035
Aug 22, 2007 Operating within 3.6-36 V range, Model LT3680 is suited for load dump and cold-crank conditions found in automotive applications. Unit features internal switch that can deliver up to 3.5 A of continuous output current to voltages as low as 0.79 V. Switching frequency is user programmable from 250 kHz to 2.4 MHz. Housed in 3 x 3 mm DFN-10 package, converter operates from -40 to 125°C and includes power good flag, thermal protection, and soft-start capability.

Zilog, Inc.    San Jose, CA 95126
Aug 22, 2007 AcclaimPlus!(TM) application specific standard product (ASSP) provides embedded drop-in Ethernet capability, delivering 16-bit performance in 8-bit footprint. Backward-compatible with eZ80Acclaim! 8-bit MCUs, this System-on-Chip (SoC) has 50 MHz CPU core, 24-bit addressing, and 10/100 Ethernet MAC along with up to 256 KB flash memory and 16 KB SRAM. It provides complete connectivity solution stack, including application-specific silicon, software stack, RTOS, and TCP/IP stack.

Simtek Corp.    Colorado Springs, CO 80920 3975
Aug 22, 2007 Designed for outdoor ruggedized data logging, traffic control/monitoring, industrial/military portable equipment, smart ordinance, and automobiles applications, Model STK14C88-NF35U 256 K nvSRAM IC features operating temperature range of -55 to 125°C. It offers access time of 35 nsec, endurance of 100,000 read-write cycles, and retention of stored data of 10 yr at 125°C. Unit is also available in 32-pin ceramic DIP and ceramic LCC packages over same temperature range.

Linear Technology Corp.    Milpitas, CA 95035
Aug 21, 2007 With 1.8-20 input range, 1.1 A Model LT1965 features low dropout voltage of 300 mV at full load and adjustable output from 1.2-19.5 V. Ultra-low output noise of 40 µVrms minimizes noise in instrumentation, RF, DSP, and logic supply systems and is beneficial for post-regulating switching power supplies. Output tolerance is regulated to within ±3% over line, load, and temperature. Regulator is available in choice of DFN, MSOP, DD-Pak, and TO-220 packages.

Omega Engineering, Inc.    Stamford, CT 06907
Aug 21, 2007 Wireless Thermocouple Connector Series (UWTC Series) features stand-alone, battery-powered thermocouple connectors that transmit linearized, cold junction-compensated measurements back to USB-powered receiver connected to PC. Each wireless connector unit can be programmed in-field to work as type J/K/T/E/R/S/B/N/C calibration connector. When activated, connector transmits data continuously at user-selectable time intervals. Up to 12 wireless connectors can be used with one receiver.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Aug 21, 2007 Designed for industrial process control applications, Series REF50xx 3ppm/°C (max) temperature drift CMOS voltage reference features output current of ±10 mA that provides accurate voltage reference to ADC without additional op amp buffer. It features maximum accuracy of 0.05%, low output voltage noise (7.5 µVpp for 2.5 V output), and supply range of 0.2-18 V. With operating temperature range of -40 to 125°C, series offers 6 output voltages including 2.048, 2.5, 3.0, 4.096, 4.5, and 5 V.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Aug 21, 2007 Operating at 315, 433, 868, and 915 MHz frequency bands, Model CC1101 sub-1 GHz RF transceiver can also be programmed for frequencies in 300-348, 387-464 and 779-928 MHz bands. It provides hardware support for package handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and wake-on radio. Using SPI interface, unit controls main operating parameters and 64-byte transmit/receive FIFOs.

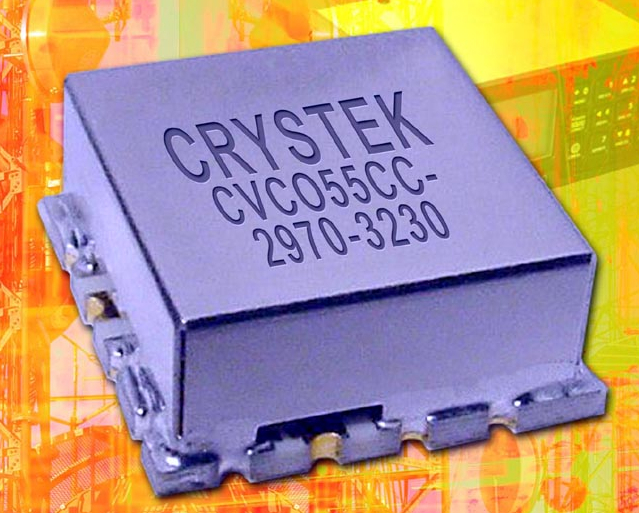

Crystek Corp.    Fort Myers, FL 33913
Aug 20, 2007 Available in 0.5 x 0.5 in. SMD package, Model CVCO55CC-2970-3230 features control voltage range of 0.5-4.5 V, phase noise of -104 dBc/Hz @ 10 kHz offset, and 5.0 V input voltage with max current consumption of 35 mA. Pulling and pushing are minimized to 1.5 MHz and 3 MHz/V respectively, while second harmonic suppression is -20 dBc typical. VCO is suited for digital radio equipment, fixed wireless access, satellite communications systems, and base stations.

Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
Aug 20, 2007 Available in 3.2 x 2.9 x 1.9 mm PLCC2 SMT package, TLWK1100B combines blue InGaN LED and yellow-emitting phosphor to deliver typical luminous intensity levels of 1,500 mcd from 20 mA drive current. Unit is specified over -40 to +100°C range and has 120° viewing angle, 114 mW max power dissipation, and 3.2 V typ forward voltage. Uses include automotive lighting designs, LCD backlighting, panel indicators, and replacement of incandescent bulbs in certain lighting applications.

Anadigm®, Inc.    Tempe, AZ 85284
Aug 17, 2007 Comprised of AN231E04 dpASP and AN236C04 State Machine, AnadigmFilter1(TM) chipset utilizes sixth order filtering and is dynamically programmable from DC to 600 kHz. Low pass, band pass, high pass, or band stop circuits can be implemented without D/A conversions or writing DSP or MPU programming code. Design enables selection of one of 4 types of filters, frequency, and gain control using 16-bit control interface, DIP switches, or hard wired pull-up and pull-down resistors.

ERNI Electronics, Inc.    Midlothian, VA 23112
Aug 17, 2007 Available in angled single-port versions, low-profile modular jack components feature integrated magnetic filters and LED status indicators. Compact network connectors, designed for heavy-duty applications, are resistant to electromagnetic faults and designated for use in RJ45 applications compliant with 10/100 or 10/100/1000 Base-T Ethernet. RoHS-compliant, 8-core design with capacitors and resistors meets all gigabit Ethernet requirements in switches or hub products.

Micronas GmbH    Frieburg D-79108  Germany
Aug 17, 2007 Housed in 9 x 9 mm² 64-pin QFN package, Model AVF 49x0B supports worldwide analog broadcast TV video decoding and analog video input sources, including composite video, S-Video, component video, and SCART RGB. Video data path features 10-bit front-to-back video processing capability and up to 8 video inputs that can be assigned to composite and component video processing paths. Consuming less than 300 mW, decoder supports NTSC, PAL, and SECAM standards.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Aug 17, 2007 Models LMP8100A and LMP8100 programmable gain amplifiers (PGAs) are built on 33 MHz CMOS input, rail-to-rail I/O operational amplifier with typical open-loop gain of 110 dB. Model LMP8100A delivers 0.03% gain accuracy using software adjustable gain (in 1 V/V increments) from 1-16 V/V over full industrial temperature range of -40 to 125°C, while Model LMP8100 semi-precision grade PGA provides 0.075% gain accuracy over -40 to 85°C temperature rage.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Aug 17, 2007 Models AAT2846 and AAT2856 combine backlight drivers, high-current flash drivers, and 2 general purpose, low-noise LDOs in single 4 x 4 mm package. Featuring AS2Cwire(TM) single-wire interface and integrated short-circuit and over-temperature protection, Model AAT2846 uses tri-mode charge pump capable of driving up to 6 backlight LEDs at 30 mA each and 2 flash LEDs at up to total of 600 mA, while Model AAT2856 can drive 6 backlight LEDs at up to 30 mA each.

Siemon Co., The    Watertown, CT 06795
Aug 17, 2007 Featuring standards-recognized TERA interface on one end and RJ45-style MC plug on other, 10 Gbps capable hybrid TERA to RJ patch cords allow users to install high-performance category 7A/class FA copper cabling infrastructure. Units are compatible with both T568A and T568B wiring schemes, and meet FCC68.500 and IEC 60603-7 specifications. Utilizing category 7A stranded cable, patch cords meet/exceed all 10GBASE-T standard requirements including all alien crosstalk parameters.

Maxim Integrated Products    Sunnyvale, CA 94086
Aug 16, 2007 Providing carrier-class clock synchronization for new Synchronous Ethernet (SyncE) line cards and mixed SONET/SDH/SyncE line cards, Model DS3104 features 2 independent DPLLs for bidirectional frequency conversion between Ethernet clock rates and SONET/SDH rates. It supports 1G, 10G, and 100M Ethernet PHY clock rates as well as PDH, wireless-base-station, and GPS receiver clock rates. Unit can produce total of 7 output-clock frequencies simultaneously and 2 and 8 kHz frame pulses.
