M/A-COM Technology Solutions, Inc.    Lowell, MA 01851
Aug 09, 2011 Respectively, MAPS-010143/63 are GaAs pHEMT 4- and 6-bit digital phase shifters that have 1.4-2.4 GHz range and are suited for communications, electronic warfare, and radar applications. Model MAPS-010143 provides 360° phase shift range with 22.5° step size, 3.2 dB insertion loss, with ±0.5 dB attenuation variation and ±2.0° phase accuracy. Respective values for MAPS-010163 include 5.625° step size, 5.0 dB insertion loss, ±0.8 dB attenuation variation, and ±4.0° phase accuracy.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Aug 08, 2011 Supplied in 8-pin, 3 x 5 mm MSOP PowerPad(TM) package, TPS54062 synchronous 50 mA, 60 V SWIFT(TM) step-down regulator provides 90% power efficiency. Integration of high- and low-side power MOSFETs provides power conversion and transient protection to noise-sensitive applications/designs. Offering respective operating and shutdown current of 89 and 1.7 µA, converter can be synchronized to clock via fixed frequency and supports switching frequency range of 100-400 kHz.

SemiSouth Laboratories, Inc.    Starkville, MS 39759
Aug 05, 2011 Compatible with standard gate driver ICs, SJEP120R100A and SJEP120R063A are silicon carbide (SiC) JFETS feature respective RDS(on) max of 0.100 ohm and 0.063 ohm. Both products offer positive temperature coefficient that facilitates paralleling as well as fast switching with no tail current at up to 150°C max. Both SiC JFETs are available in TO-247 packages, and 100 mohm part also comes in die form for integration into modules.

CUI, Inc.    Beaverton, OR 97005
Aug 05, 2011 Suited for consumer electronics and electrical equipment, Mid-Mount Connectors include PCB 3.5 mm audio jacks and 2.5 mm center pin DC power jacks. Switch options for audio jacks include ring switch, tip switch, and 2 or 3 switch configurations. Fully shielded for EMI suppression, DC power jacks are rated 16 Vdc at 5 A. All connectors are RoHS-compliant.

Saelig Co., Inc.    Pittsford, NY 14534

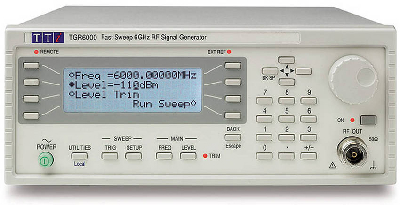

Aug 05, 2011 Housed in half-rack 2U case with backlit LCD and keyboard with spin wheel control, 6 GHz Model TGR6000 offers low phase noise over frequency range of 10-6,000 MHz, with output from -110 to +7 dBm, adjustable in 0.1 dB steps. Frequency resolution is 10 Hz and internal time-base stability is better than 1 ppm. System incorporates advanced stepped sweep system, which allows both frequency and amplitude to be swept, with custom output level trim up to 100 points.

Kemet Electronics Corp.    Greenville, SC 29606
Aug 05, 2011 Utilizing lead frame technology to isolate multilayer ceramic component from PCB, KPS High Voltage SM Series offers up to 10 mm of board flex capability. Units are available in both formed L and J lead configurations, and offer additional screening options, including Group A and Group B testing/inspection per MIL-PRF-49467. Typical applications include switch mode power supplies, high voltage coupling and DC blocking, voltage multiplier circuits, and DC/DC converters.

Murata Electronics North America, Inc.    Smyrna, GA 30080

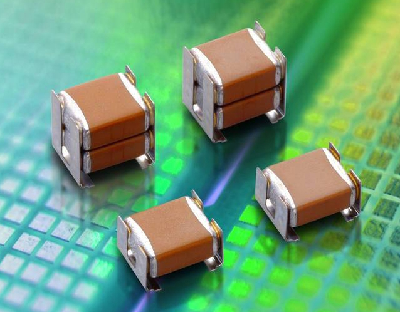

Aug 04, 2011 To minimize acoustic noise and cracks caused by PCB flexure, KRM Series features external metal terminals, which lift body up to 1 mm above surface of PCB when mounted, ensuring that bending forces are not transmitted between PCB and capacitor. Design allows 2 capacitors to be mounted on top of each other, doubling effective capacitance. Models range from 47 µF unit measuring 6.1 x 5.3 x 6.4 mm with 25 V rating to 10 µF version measuring 6.1 x 5.3 x 4.8 mm with 100 V rating.

Connor-Winfield Corp., The    Aurora, IL 60505
Aug 04, 2011 With Stratum 1 time source, 125 Series Xenith TBR (Model FTS500) consists of OCXO-based enclosed GPS disciplined clock and timing device for DVB, DAB, wireless communication infrastructures, time-stamping, or any other critical timing applications. This GPS-driven, mixed-signal PLL provides 1 pps CMOS output and generates 10 MHz SINE output from low-jitter VCXO. Supplied in aluminum housing measuring 106 x 125 x 56 mm, solution is G.811 compliant (GPS locked) and G.812 Holdover compliant.

L-Com, Inc.    North Andover, MA 01845

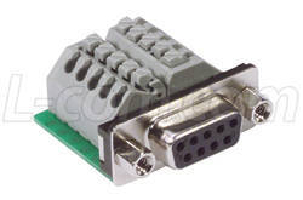

Aug 04, 2011 Offered in tool-free version, D-Subminiature Connectors feature spring clamps instead of screws in terminal block that allow termination of wires to connector in field. Connectors are available in DB9, DB15, DB25, and HD15 versions, all of which are panel-mountable for thicknesses up to 0.062 in.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Aug 04, 2011 Available in 2 x 1.5 mm QFN package, ADS1118 is 16-bit delta-sigma ADC with integrated PGA, reference, temperature sensor, and 4-input multiplexer. It provides direct, linearized measurements with uncalibrated error below 0.5°C from 0 to +65°C. Supporting data rates to 860 samples/sec and power supplies from 2.0-5.5 V, ADC consumes 150 µA typ and provides complete data acquisition solution when paired with MSP430(TM) MCU.

Atmel Corporation    San Jose, CA 95131
Aug 03, 2011 Operating at up to 400 MHz, SAM9 ARM926(TM)-based MCUs feature DDR2 memory for memory-intensive applications; NAND flash support with 24-bit ECC; and communication channels, including dual 10/100 Ethernet, dual CAN, and up to 3x USB ports. Core and peripherals consume 100 mW at max performance, while graphics LCD controller with hardware acceleration features overlays, alpha blending, image scaling, rotating, and color space conversion.

Samtec, Inc.    New Albany, IN 47151 1147
Aug 03, 2011 Eliminating possibility of bent pins while providing reliable connection, SIR1 Series is suited for high-shock/-vibration applications. Board-to-board interconnect, designed for power or signal applications, has current carrying capacity range of 1.4-2.8 A per contact at 30°C temperature rise, depending on total number of contacts powered. Product has 6 mm profile and .100 in. pitch contact system and is available in single row with 3, 5, 10, and 15 positions.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Aug 03, 2011 Suited for applications that need to save space, double level Model HD200GR uses spring clamp connection and accepts push-in jumpers for connecting adjacent circuits. Rated at 15 A and 600 V, terminal block is UL recognized and accepts wires from 24-14 AWG. Housing is molded with UL940V materials.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Aug 03, 2011 Combining condenser microphone and preamplifier, Model HT378B02 helps overcome high temperature testing challenges associated with acoustic measurements in environmental chambers or other high temperature applications. Unit is used by test engineers to measure sound pressure amplitude and perform frequency analysis to minimize noise, identify resonance frequencies, and preserve human hearing. Typical applications include automotive engine testing, aerospace engine tests, and pump analysis.

STMicroelectronics    Lexington, MA 02421
Aug 03, 2011 Supplied in one LCC8 leadless package that measures 3.2 x 1.5 mm, M41T62 improves performance of battery-powered systems whose functions rely on data logging, time stamping, interval monitoring, or synchronization. IC combines real-time clock (RTC) die and matched oscillator crystal, operates from 1.3-4.4 V, and draws 350 nA. Used for time, calendar, and alarm functions, IC produces stable 32 kHz signal on startup and also provides oscillator failure detection.

Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
Aug 03, 2011 Models SSM3K37MFV, SSM3K37FS, SSM3K37CT, SSM6N37FU, SSM6N37FE, and SSM6N37CTD address power consumption issues and physical size restrictions of mobile devices. Able to be driven at voltages as low as 1.5 V, these transistors can act as switch to control which loads are connected or disconnected from circuit. Products have 250 mA drain current and are suitable for high-speed switching applications. They come in various package sizes, with smallest being CST3 at 0.6 x 1.0 mm.

LED Autolamps    Sutton Coldfield B76 1AL  United Kingdom
Aug 03, 2011 Measuring 10 mm D x 25 mm W, LED Interior Strip Lamps are available in 100, 150, 300, and 600 mm lengths with 12/24 V dual voltage rating. ECE certified units utilize cool white color LEDs to simulate fluorescent tube lights. Lamps are specifically designed for applications in fleets as well as for van converters, mobile workshops, and utilities' vehicles.

Kemet Electronics Corp.    Greenville, SC 29606
Aug 02, 2011 With X8L dielectric, FT-CAP Flexible Termination Capacitors operate at temperatures up to 150°C, minimizing ceramic chip failures. Units are available in DC voltages of 10, 25, and 50 V with capacitance from .012-10 µF. Utilizing conductive silver epoxy between base metal and nickel barrier layers, capacitors establish pliability while maintaining terminal strength. Flex Termination technology addresses flex cracks by directing circuit board stress away from ceramic body and into termination area.

Melexis Inc.    Concord, NH 03301
Aug 02, 2011 Able to control single-coil brushless cooling fan speed using PWM or analog signals, Hall effect-based Model MLX90287 is suited for desktop computers, gaming consoles, and LED automotive headlights. Unit operates from supply voltage of 4.5-16 V and within ambient temperatures from -40 to 150°C. With integrated power stage, IC can drive fans rated up to 550 mA. Device directly accepts, without any external circuitry, PWM frequency range of 100 Hz to 100 kHz.

Crystek Corp.    Fort Myers, FL 33907

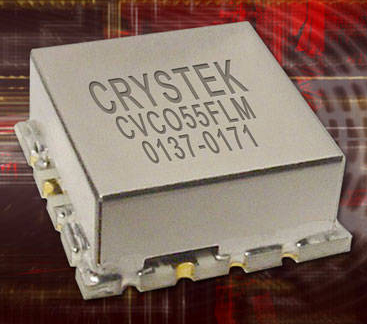

Aug 01, 2011 Operating from 137-171 MHz with 0.5-4.5 V control voltage range, CVCO55FLM-0137-0171 features typ phase noise of -118 dBc/Hz @ 10 kHz offset. Extra modulation port (TX modulation), suited for transmitter applications, has negative slope and typ modulation sensitivity of -25 kHz/V. Supplied in 0.5 x 0.5 in. SMD package, U.S. manufactured product offers typical output power of 0 dBm, input voltage of 5 V, and max current consumption of 20 mA. Second harmonic suppression is -15 dBc typ.
