National Semiconductor Corp.    Santa Clara, CA 95051-0695
Oct 12, 2006 Available in 3 grades, LM4702 has output-power stage design that is scalable over power levels and applications from 50 W AV receivers to 500 W amplifiers. This 200 V stereo driver has integrated power amplifier driver and is designed to drive high-power discrete transistors, or Darlington pairs, in systems delivering 25-300 W per channel. Monolithic, output stage driver has integral thermal protection scheme that activates when die temperature exceeds 150°C.

BI Technologies Corp.    Fullerton, CA 92835-1051
Oct 12, 2006 Molded SMT inductors in HM72A Series offer inductance values from 100 nH to 33 mH with saturation levels to 80 A. These RoHS-compliant powdered iron inductors come in 3 package footprints and 6 height options from 2.5-6.5 mm. Along with power applications such as servers, notebooks, work stations, DC/DC converters, and point-of-load modules, products suit distributed power architectures such as telecom, datacom, industrial, and automotive designs.

Pentek Inc.    Upper Saddle River, NJ 07458
Oct 11, 2006 Based on 215 MHz A/D converter VME with dual Virtex-II Pro FPGAs, Model 6821-422 includes wideband digital downconverter IP core. Preconfigured, digital software radio subsystem accepts front panel analog RF input and delivers real or complex digital output samples translated to baseband from any frequency slice of input signal. Operating at frequencies up to 296 MHz, core delivers adjacent channel rejection of up to 100 dB and frequency tuning resolution of 32 bits.

Gowanda Electronics Corp.    Gowanda, NY 14070
Oct 11, 2006 Suited for medical industry and other applications where magnetic materials and characteristics must be avoided, MG inductor series act as filter to block certain frequencies that could compromise device performance. Through-hole leaded and surface mount versions, along with RoHS-compliant version, are available. Products are offered with 0.01-4.7 µH inductance options, 260-3,835 mA dc current ratings, and 90-1,800+ MHz self resonant frequencies.

Pixelplus Co., Ltd.    Gyeonggi-do 463-811  Korea (south)
Oct 11, 2006 Suited for mobile and stationary applications, PO4030 is based on PlusPixel(TM) technology in 0.13 µm CMOS process and programmable via 2-wire serial interface. This video-graphic-array System-on-a-Chip image sensor integrates image signal processing (ISP) algorithms and 2.6 micron pixel array. While on-chip regulator enables single 2.8 V operation, image capture capabilities in low light conditions are attributed to functional features incorporated in pixels and ISP engine.

SiGe Semiconductor Inc.    Ottawa, ON K2B8J9
Oct 11, 2006 Featuring software-upgradeable architecture that keeps up with standards, SE4120 Galileo-ready receiver enables integration of navigation services into portable consumer electronics. Integrated receiver, SE4120L, supports software-defined satellite signal processing for GPS and Galileo. On-chip LNA delivers 18 dB of gain at 1.6 dB without active antennas and external amplification. Systems using SE4120L are capable of tracking satellite signals down to as low as -170 dBm.

Tyco Electronics/Raychem.    Menlo Park, CA 94025-1164
Oct 10, 2006 Suited for portable equipment that utilizes barrel jacks for dc power input, PolyZen(TM) polymer-enhanced micro-assembly protects sensitive electronics from damage caused by inductive voltage spikes, voltage transients, incorrect power supplies, and reverse bias. It incorporates stable Zener diode for precise voltage clamping and resistively non-linear, polymer positive temperature coefficient layer. RoHS-compliant device offers power handling of 100 W in 4 mm package.

Crystek Crystals Corp.    Fort Myers, FL 33913

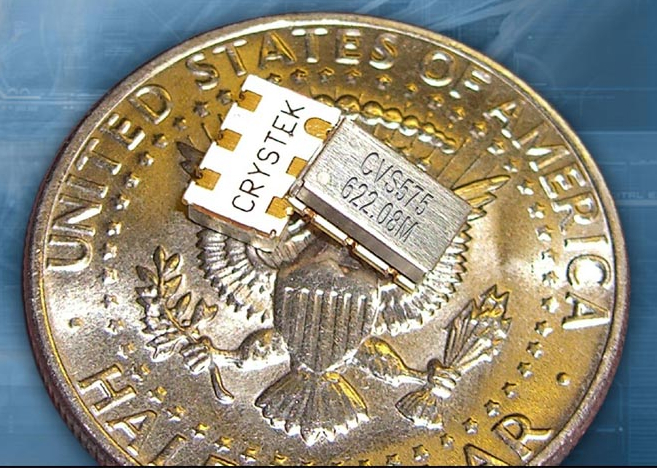

Oct 10, 2006 Model CVS575 Voltage Controlled SAW Oscillator (VCSO) operates in -45 to +85°C temperatures from 3.3 V power supply. RoHS-compliant, 622.08 MHz VCSO provides optimum phase noise at -130 dBc/Hz at 10 KHz offset, which translates to 150 fs (rms) max jitter for SONET OC-192 (50 KHz to 80 MHz). Product is intended for use in telecommunications applications with low jitter requirements and in frequency translation, clock smoothing, and SONET/SDH/ATM networks.

Exar Corp.    Fremont, CA 94538
Oct 10, 2006 Comprised of 6 different devices, XR16Vxx4 Series includes Models XR16V554/554D, XR16V564/564D, and XR16V654/654D, each with 4 independent UART channels, selectable TX and RX trigger levels, and data rate up to 16 Mbps. Models XR16V564/564D and XR16V654/654D have automatic sleep mode, automatic hardware flow control, automatic software flow control, wireless infrared encoder/decoder, and fractional baud rate generator. Series is compliant with Intel and Motorola bus interfaces.

Micrel Semiconductor Inc.    San Jose, CA 95131
Oct 10, 2006 Supplied in 3 x 3 mm package, SY88343DL can amplify signals with data rates up to 3.2 Gbps and as small as 5 mVpp to drive devices with CML inputs or AC-coupled CML/PECL inputs. This CML limiting post amplifier operates from one 3.3 V power supply and offers high-gain TTL loss-of-signal detection. Designed for use in fiber-optic receivers, IC connects to typical transimpedance amplifier and quantizes linear signal output to produce CML-level waveforms to ensure low noise levels.

Macro Sensors    Pennsauken, NJ 08110 1334

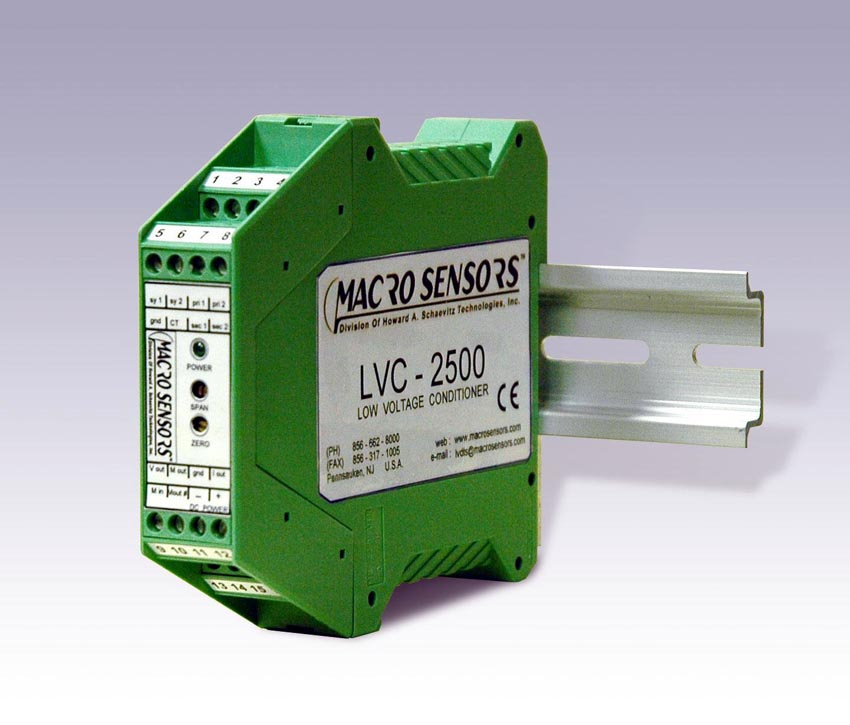

Oct 09, 2006 Designed for use in PLCs and vehicular testing systems, single channel Model LVC-2500 DC-LVDT Signal Conditioner offers bipolar 0 to ±10 Vdc, unipolar 24 Vdc, or 4-20 mA (sourcing) analog outputs in 3-wire common ground system. Nominal excitation frequencies of 3, 5, or 10 kHz are available at 3 Vrms for operating LVDTs with primary impedance. Front panel span and zero controls permit output offset adjustment from -100 to +100% of full-scale output.

BI Technologies Corp.    Fullerton, CA 92835-1051
Oct 09, 2006 Housed in TO-263 package suited for high-density PCB installation, non-inductive Series SMHP features resistance range from 0.01-220 W and TCRs from 50-250 ppm/°C, with tolerances of ±5% and ±1%. Max operating voltage is 500 V, and thermal resistance is 3.3°C/W from resistor's hot spot to package's metal flange. Since design provides complete thermal flow, resistors are suited for automotive electronics, switchmode power supplies, and pulse handling circuits.

MPS Industries    Gardena, CA 90248
Oct 09, 2006 Suited for CATV/Broadband/RF applications, standard and custom products include Balun transformer and double balanced mixer, RF and wideband isolation transformer/mixer, directional coupler/splitter, and power RF chokes to over 800 MHz. They perform over industrial temperature ranges, with bandwidth from 100 kHz to 2 GHz. Packages vary from 3.8 x 3.8 mm with 1.25 mm pins spacing to 6.5 x 7.2 mm with 2.54 mm pins spacing, from gold plated ceramic base to LCP header.

austriamicrosystems AG    Premstatten   Austria
Oct 09, 2006 Eight-channel AS1109 uses serial data I/O lines for error information readback; no additional PCB tracks are needed for open and shorted LED error diagnostics. Built-in LED error detection can be invoked during normal operation without switching into separate detection mode. Currents, adjustable from 0.5-100 m, control LED brightness with ±2% output accuracy. Low-Current Diagnostic mode applies 0.6 A test current to display for short time, making LED testing invisible.

Phoenix Contact    Harrisburg, PA 17111 0100

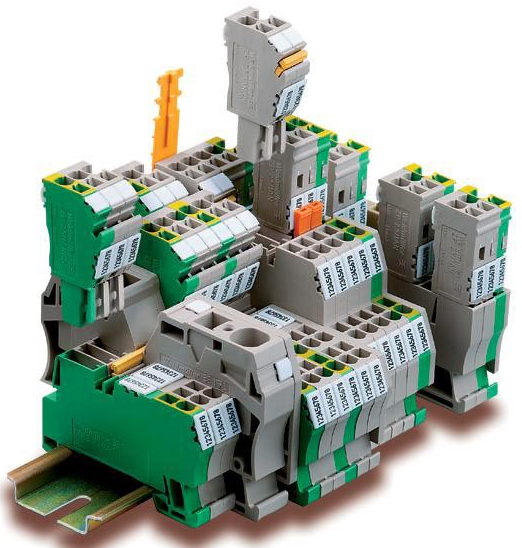

Oct 09, 2006 Available in screw, spring, or IDC (insulation displacement connection) technologies, COMBI plug connectors plug into DIN-mounted pluggable terminal blocks, and use same plug-in zones for all basic blocks. Standard plugs (UP, SP, QP) feature wire exit on top, while plugs with screw and spring-cage technology (UPBV, SPV) have side wire exit. Units are available in pre-assembled position sizes or individually for self-assembly.

Atmel Corp.    San Jose, CA 95131
Oct 09, 2006 Supplied in 208-pin BGA package, AT76C902 runs VoIP SIP stack, uCLinux(TM) OS software, and firmware enabling 802.11a/g (Wi-Fi®) and voice compression and decompression on single chip. Its ARM946(TM) processor handles VoIP call control, authentication, and signaling functions, while hardware security accelerators offer on-the-fly encryption/decryption and authentication support. Wi-Fi Multimedia (WMM) and WMM Power Save mode suppot enables 6+ hr talk times from 900 mA battery.

VIA Technologies, Inc.    Taipei 231  Taiwan
Oct 09, 2006 Available at 1.5 and 1.8 GHz speeds, VIA C7®-D is based on VIA CoolStream(TM) architecture of Esther core and has max power consumption of 20 W. It comes in 21 x 21 mm nanoBGA2 package and features StepAhead(TM) Advanced Branch Prediction, 16 pipeline stages, and support for SSE2 and SSE3 multimedia 3D instruction sets. Along with dual monitor output support, 6-channel audio, and DDR2 400/533MHz memory, processor includes 128 KB full-speed exclusive L2 cache with 32-way associativity.

Weidmuller, Inc.    Richmond, VA 23236
Oct 06, 2006 Included in WeiCoS (Weidmuller Connection System) terminal block series, ZT4/2AN/1 and ZTPE4/2AN/1 are 4 mm² models that carry 600 V/32 A electrical rating and handle up to 10 AWG conductors. They combine terminal block and plug-in connection technology, resulting in modular, functionally flexible, and manufacturer-independent wiring system. Externally-tensioned contact and locking element ensure shock- and vibration-proof connection of plug-in connector with terminal block.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Oct 06, 2006 SuperFET(TM) MOSFETs withstand high-speed voltage (dv/dt)- and current (di/dt)-switching transients necessary for ballasts to operate at high frequencies. With on-resistance of 0.6-1.2 W and 600 V breakdown voltage, units minimize switching and conduction losses. DPAK-packaged devices meet requirements of joint IPC/JEDEC standard J-STD-020C and are compliant with European Union regulations.

AVX Corp.    Myrtle Beach, SC 29578
Oct 06, 2006 Available in compact and low profile package designs, LT Series multilayer ceramic capacitors are designed for decoupling and filtering applications where height clearance is limited. Class II dielectric has temperature variation of capacitance within ±15% from -55 to 85ºC. Featuring operation voltages of 4, 6.3, 10, or 16 Vdc with capacitance tolerance of ±10 or ±20%, LT Series is offered in 0402, 0603, 0805, and 1206 case sizes.
