HBM, Inc.    Marlborough, MA 01752 3014
Oct 30, 2007 Featuring integrated Advanced Plug & Measure (APM) technology, QuantumX comes with 8 connectors each of which independently recognizes and supports all transducer technologies. Up to 128 CAN signals can be acquired on one connector. Transducers fitted with TEDS technology are automatically recognized as soon as they are connected to instrument, while transducers without TEDS are configured using expandable sensor database.

Sullins Electronics Corp.    San Marcos, CA 92079-0189
Oct 29, 2007 Cantilever edgecard connector series features insulation resistance of 5,000 mW minimum as well as dialectric withstanding voltage of 600 Vdc on 0.100 in. centerline boards and 1,800 Vdc on 0.156 in. centerlines. They are designed to mate with plated fingers of 0.062 in. ±0.008 in. daughterboard. Available in temperature ratings from 125-175°C, double row connectors have current rating of 3 A per pin and are available with 0.370 or 0.400 in. wide insulators.

Cinch Connector Div., Labinal Components & Systems Inc.    Lombard, IL 60148
Oct 29, 2007 Utilizing high-quality turned pin contacts, high-density filtered D-Sub connector includes filter elements that are encapsulated using epoxy resin for maximum performance in hazardous environments. Connector shells are available in tin or nickel finish. RoHS-compliant devices are available in 15-62 I/O variants and 330 and 1,000 pF configurations.

TURCK, Inc.    Plymouth, MN 55441
Oct 29, 2007 Featuring fiberglass-reinforced nylon housing and full epoxy encapsulated electronics, Analog Input Station supports 4 analog inputs on DeviceNet(TM) network. Inputs may be configured for either analog current from 0-20 mA or 4-20 mA, or analog voltage from 0-10 V or -10 to 10 V. Capable of on-machine installation in harsh environmental conditions, station uses rotary switch or DeviceNet software for configuration.

Microchip Technology, Inc.    Chandler, AZ 85224 6199

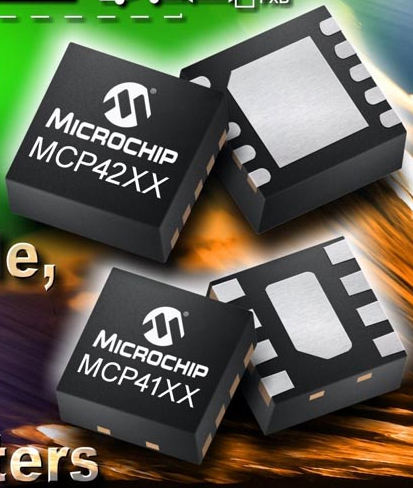

Oct 26, 2007 Specified over -40 to +125°C range, models MCP4141/2, MCP4241/2, MCP4161/2, and MCP4261/2 can be controlled digitally through SPI interface. All 7- and 8-bit devices feature non-volatile memory for retaining settings at power down, and maximum static current consumption of 5 µA helps extend battery life. Depending on model, packaging options include 8-pin, 3 x 3 mm, DFN, MSOP, PDIP and SOIC; 10-pin MSOP; 10-pin, 4 x 4 mm QFN; and 14-pin SOIC, PDIP, TSSOP packages.

STMicroelectronics    Lexington, MA 02421
Oct 26, 2007 Operating at up to 175°C junction temperature, SMA6J Transil(TM) 600 W transient voltage suppressing diode is used in SMPS, HDD, and battery-powered applications. It protects sensitive electronic equipment against ESD and power surges, meeting IEC and MIL STD standards. Offered in unidirectional and bidirectional versions, unit features leakage currents of 0.2 µA at 25°C, and 5.0-188 V stand-off voltage. Maximum clamping voltage is specified for 8/20 and 10/1,000 µsec surges.

Honeywell Sensing and Control    Golden Valley, MN 55422
Oct 25, 2007 Part of aerospace position sensors family, Rotary Variable Differential Transformer (RVDT) Position Transmitter is designed for European aerospace market. Multi-purpose, environmentally sealed, dual redundant device with self-rigging mechanism is supplied standard with fork-style interface, integral rig-lock feature, twin bayonet connectors, and flange mounting.

ON Semiconductor, LLC    Phoenix, AZ 85008

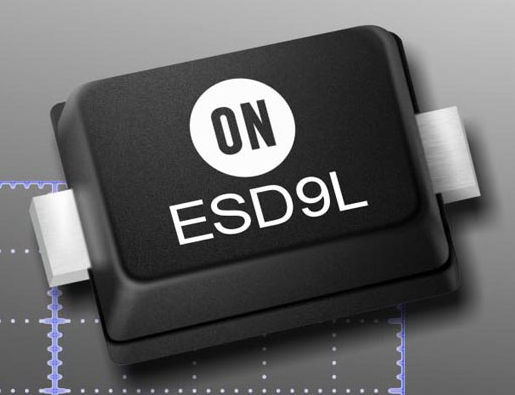

Oct 24, 2007 Model ESD9L single-line ESD protection device offers 0.5 pF capacitance and clamps input ESD waveform of 15 kV per IEC61000-4-2 standard, to less than 7 V in nanoseconds. It integrates ultra-low capacitance pin diodes with high-power TVS diodes into monolithic die. Designed for high-speed data lines in portable applications such as cell phones, MP3 players, PDAs, and digital cameras, device fits in SOD-923 package measuring 1.0 x 0.6 x 0.4 mm.

MPS Industries    Gardena, CA 90248
Oct 24, 2007 MPS video isolation transformers are constructed to provide optimal ground loop isolation and common mode rejection. This improves image quality in video monitoring or surveillance systems by reducing longitudinal hum caused by earth loop current flows due to ac or dc earth potentials, with bandwidth from 10 Hz to 10 MHz. Supporting CCTV and A/V industries, products can be custom-designed to configuration and dimensional requirements of en-users for impedance matching and bandwidth.

MPS Industries    Gardena, CA 90248
Oct 24, 2007 Available in thru-hole and SMT versions, miniature digital audio transformers comply with Audio Engineering Society/European Broadcasting Union standards. RoHS-compliant products have 1:1 turn ratio and exhibit sample data rate from 32-192 KHz suitable for 75-110 W connections. Transformers can be custom designed into various configurations upon customer request.

Linear Technology Corp.    Milpitas, CA 95035
Oct 24, 2007 Housed in 3 x 3 mm DFN package, Model LT3500 operates from VIN range of 3-36 V making it suitable for load dump and cold-crank conditions found in automotive applications. Internal switch, rated at 2.3 A, can deliver up to 2 A of continuous output current at voltages as low as 0.8 V. Switching frequency is user-programmable from 250 kHz to 2.2 MHz, enabling designer to avoid critical noise-sensitive frequencies. Unit also includes power good flag and soft-start capability.

FCI    Etters, PA 17319
Oct 24, 2007 Suited for optical disc drives and flat-panel display applications, GLH Series provides 0.4 mm spacing, height of 1.2 mm with FPC thickness of 0.2±0.03 mm, and pin count of 40 to 60 contacts. Flip-type ZIF connector is available in pick-to-board, panel-to-board, and board-to-board connections.

Exar Corp.    Fremont, CA 94538
Oct 24, 2007 Housed in 6-pin TSOT package, 1.2 MHz Model SP7601 delivers input voltage range up to 30 V and is capable of supporting 24 Vdc and 12 Vdc rails most commonly found in architectural and general LED lighting systems. Step-down regulator controller has 0.2 V feedback, which eliminates excessive heating. Device supports PWM dimming and color mixing by allowing for PWM control up to 1 kHz with duty cycles as short as 10%.

ITT Electronic Components    Santa Ana, CA 92705
Oct 23, 2007 Built with aluminum shells able to withstand harsh environment applications, TMDMP filter is available in 5 sizes with contacts for both sockets (receptacle) and pins (plugs). Internal filter design provides density needed to accommodate ferrite tubes necessary for Pi filtering in military and aerospace applications. It utilizes 2 capacitors around ferrite inductor to provide optimal attenuation. Capacitance values include H, L, M and T.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Oct 23, 2007 Measuring 4.06 x 2.69 mm with height profile of 1.60 mm, DSMZ Z-Foil surface-mount voltage divider provides matched pair of Bulk Metal® Z-Foil resistors in single, surface-mount package. It features TCR of ±0.05 ppm/°C from 0-60°C and ±0.2 ppm/°C from -55 to +125°C, PCR tracking of 5 ppm at rated power, tolerance match of ±0.01%, and load life stability of ±0.005%. Unit also features resistance range of 100 W to 10 kW per resistor and offers 1-10 ns rise time.

RadioPulse Inc.    Seoul   Korea (south)
Oct 23, 2007 Compliant to ZigBee and IEEE 802.15.4, Series MG245X integrates 2.4 GHz RF transceiver, 8-bit microcontroller, a/u-law voice codec, 64-key scan, 96 KB embedded flash, 8 KB SRAM, and 8-bit ADC into single chip. Units support 250 Kbps, 500 Kbps, and 1 Mbps for wireless applications, as well as 16 MHz MCU system clock and 1 Mbps UART interface.

Spectrum Control, Inc.    Fairview, PA 16415

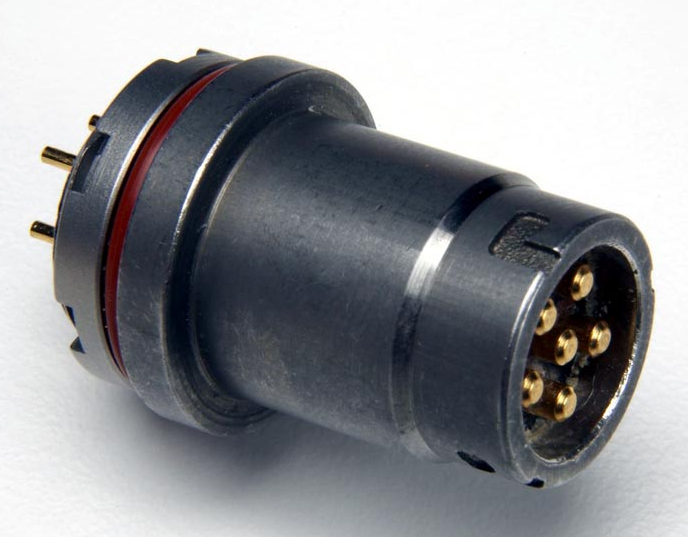

Oct 22, 2007 Custom line of connectors are for use in 60 V audio frequency circuits with 0.5 A of current to provide effective EMI filtering. Waterproof, polarized devices have capacitance value range of 10 pF - 1 mF and are available in C and Pi circuit configurations, as well as 5- or 6-pin electrical plugs/receptacles. They also meet all requirements of MIL-STD-810F, including sand, dust, salt, fog, high altitude operation, fungus resistance, and immersion to 20 meters.

Meritec Div., Associated Enterprises    Painesville, OH 44077
Oct 22, 2007 Available in X1, X4, X8, and X16 configurations, Straddle Mount PCI Express Connectors offer additional solutions for co-planar applications between printed circuit boards. Rugged design is manufactured using insert molding process ensuring proper pin alignment and accurate contact registration. Low profile allows for dense packaging options. Each serial lane is comprised of differential transmit and receive signals with data rates running at 5.0 Gbps.

Allegro MicroSystems Inc.    Worcester, MA 01615
Oct 22, 2007 Designed to work over automotive battery voltage range of 7-40 V in temperatures from -40 to +125°C ambient, Model A4401 automotive grade, quasi-resonant, discontinuous flyback converter control IC supports range of power requirements via sizing of external MOSFET and magnetics. Integrated transconductance amplifier regulates voltage on one or several outputs where cross-regulation is needed. Features include soft-start, low quiescent SLEEP mode, and high voltage enable pin.

American Bright Optoelectronics Corp.    Chino, CA 91710

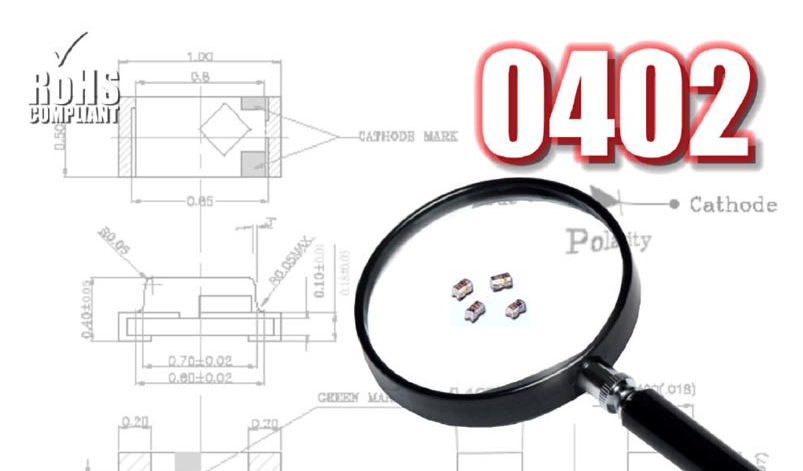

Oct 19, 2007 Suited for backlighting LCDs, keypads, point of sale displays, or automotive instrument clusters, subminiature Series BL-Hxxx7A-TRB low current SMT LED is compatible with automatic assembly equipment and infrared and vapor phase reflow solder as well as lead free processes. RoHS compliant series is available in wide selection monolithic colors, and features water clear epoxy lens and 120° viewing angle. Model BL-HB337A-TRB has luminous intensity of 18 mcd at 5 mA.
