NXP Semiconductors    NanGang District   Taiwan
Nov 12, 2007 Delivering complete system-level operation in single monolithic IC, Nexperia(TM) PNX4903 GSM/GPRS-optimized multimedia solution is designed for Ultra Low-Cost (ULC) mobile handsets. It allows complete, dual-band GSM/GPRS modem to be realized with 49 external components on 4-layer PCB. External ICs required are power amplifier and memory. By integrating analog and digital basebands, RF transceiver, power management, and audio circuitry, IC minimizes BoM and footprint.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Nov 09, 2007 PowerWise® LM201xx and LM202xx series include 10 synchronous buck regulators, each of which integrate 2 switching MOSFETs and utilize externally compensated peak current-mode control loop. Operating from 2.95-5.5 V input, 9 buck regulators (fixed and adjustable switching frequency) deliver up to 5 A continuous output current. High-voltage buck regulator, LM20242, operates with 4.5-36 V input and delivers up to 2 A continuous output. Frequency is adjustable from 250 kHz to 1 MHz.

Linear Technology Corp.    Milpitas, CA 95035
Nov 09, 2007 Featuring threshold accuracy of ±1.5% over automotive temperature range, Series LTC291x is suited for single channel point-of-load or multi-channel applications. Drawing 70 µA, Model LTC2910 monitors 8 adjustable UV inputs, while Model LTC2914 monitors 4 adjustable inputs for OV, UV, or negative voltages. Model LTC2913 monitors 2 input channels for OV and UV conditions and draws 60 µA, while Model LTC2912 monitors single supply for OV and UV conditions, with 40 µA of supply current.

National Semiconductor Corp.    Santa Clara, CA 95051-0695

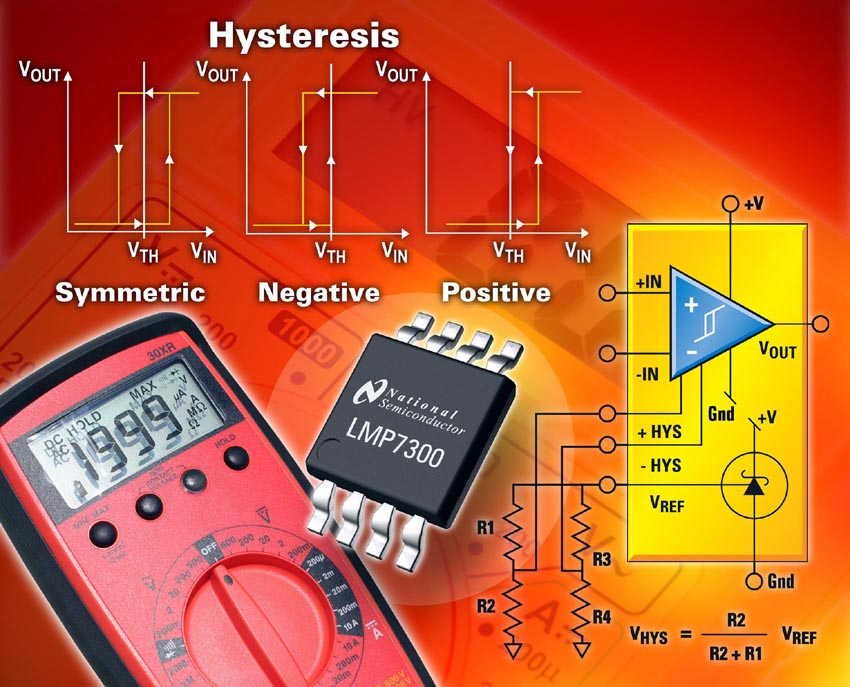

Nov 09, 2007 Built on VIP50 BiCMOS process technology, Model LMP7300 features low-offset voltage of 300 µV, supply current of 10 µA, and supply voltage range of 2.7-12 V for use in 3.3, 5, and ±5 V applications. Low-power amplifier offers adjustable hysteresis and less than 5 µsec propagation delay to enable precise and high-accuracy signal detection. Available in 8-pin SOIC package, unit is suited for precision battery-operated systems.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Nov 09, 2007 Model CC1111 sub-1 GHz RF SoC combines RF transceiver with MCU, 8/16/32 KB of in-system programmable flash memory, and USB controller. It features embedded 128-bit AES security coprocessor, receiver selectivity and blocking performance, programmable data rate of up to 500 kbaud, supply voltage range of 2.0-3.6 V, and 4 flexible power modes. Offered in 6 x 6 mm QFN-36 package, unit suits alarm and security systems and automatic meter reading.

Tyco Electronics/Raychem.    Menlo Park, CA 94025-1164
Nov 09, 2007 Featuring 0805 EIA compliant form factor, surface-mount PolySwitch(TM) picoSMD035F offers circuit designers smallest PPTC (polymeric positive temperature coefficient) overcurrent protection device available for consumer and computer electronics. Resettable solution, rated at 6 V, provides hold current of 0.35 A, trip current of 0.75 A, and max resistance of 1.4 X. It is full-edge terminated with nickel-gold finish and RoHS-compliant.

Microbridge Technologies Corp.    Burlington, MA 01803
Nov 09, 2007 Comprised of 4 electronic temperature compensation rejustors (re-adjustable resistors) configured in bridge, MBW-303 compensates for offset errors and offset drift in Wheatstone bridge, solving problem at source. Single chip enables adjustment and verification to be performed in single temperature cycle and can operate in temperatures from -40 to +150°C. Adjustment process is isolated from circuit, allowing true, passive in-circuit calibration and compensation.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Nov 09, 2007 Available in yellow, amber, warm white, and white, Little Star® 1 W LEDs offer thermal resistance of 18 and 20 K/W, luminous intensity from 7,150-22,400 mcd, and luminous flux from 21,000-70,000 mlm. All devices feature 60° half-intensity angle and 120° viewing angle and are compatible with IR-reflow solder processes. Housed in SMD power package with 6.0 x 6.0 mm footprint and 1.5 mm profile, devices are suited for backlighting and illumination in variety of applications.

STMicroelectronics    Lexington, MA 02421
Nov 09, 2007 Produced using IPAD(TM) (integrated Passive and Active Devices) technology, Model EMIF06-SD02F3 memory-card transceiver integrates signal conditioning, bidirectional level shifting, ESD protection, EMI filtering, and 2.9 V voltage regulator. Requiring less than 7 sq mm of board space, chip is compliant with standard and high-speed SD standards, and with MiniSD, MMC, and uSD/TransFlash. Product has pull-up and pull-down resistors to prevent floating data lines.

FCI    Etters, PA 17319
Nov 08, 2007 Providing 170 contacts on 0.75 mm pitch, press-fit, Vertical Card Edge Connector enables AdvancedMC(TM) cards to be plugged directly to backplane, accommodating speeds up to 10 Gb/s. Surface mount version utilizes PCB footprint and will support differential signals at data rates up to 12.5 Gb/s. Available to handle 48, 24, or 12 Vdc, D-Subminiature Connectors enable DC input connections to power modules used in MicroTCA shelves.

Electronic Concepts, Inc.    Eatontown, NJ 07724
Nov 08, 2007 Featuring built-in Fuseac technology to protect against overheating, 5MPF Series is housed in aluminum cylindrical can with plastic header, radial terminals, and mounting bolt to meet power management systems' requirements. Internal fuse electrically disconnects when capacitor's hot spot reaches defined temperature, without deforming case. With voltage ratings of 300, 600, and 900 Vac, capacitors range from 10-250 µF and operate from -40 to +85°C.

Cinch Connectors    Vinita, OK 74301
Nov 08, 2007 Available in 330 and 1,000 pF configurations, RoHS-compliant high-density filtered D-Sub connector features dense contact arrangement. Using turned pin contacts, connector shells are available in bright tin or nickel finish. Filter elements are encapsulated using epoxy resin for optimal performance characteristics in hazardous environments.

Antares Advanced Test Technologies    Vancouver, WA 98683
Nov 07, 2007 Able to accept QFN packages down to 0.35 mm pitch, 880 Series features compression mount clamshell that allows chipmakers to remove or replace sockets and retain production capacity if they were to be damaged. Specifications include beryllium copper alloy contact, gold contact plating, 20 g contact force, temperature rating of -40 to 155°C, and durability of 30,000 cycles. Socket's wiping-action contact works to create consistent resistance during burn-in, reducing maintenance.

Pickering Interfaces    Wobum, MA 01801

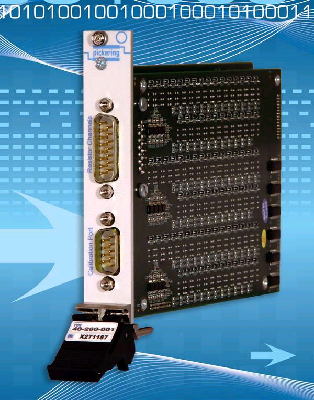

Nov 07, 2007 Featuring PXI form factor, 3-channel Series 40-260 covers resistance range of 90 W to 8 kW. Resistance setting resolution is better than 10 mW over entire resistance range and accuracy is better than 0.1% for all resistance settings. Suited for simulating RTD's and strain gauges in test environment, modules include calibration port that can be used to calibrate resistor channels while unit is connected to UUT.

STMicroelectronics    Lexington, MA 02421
Nov 07, 2007 Models L6726A and L6727 single-phase PWM controllers include embedded high-current drivers, enabling creation of general purpose dc-dc step-down converters. Featuring ±0.8% voltage accuracy over line/temperature variations and PowerGOOD output, L6728 and L6728A offer fixed-frequency 300 kHz or 600 kHz oscillator, respectively. Chips include embedded high-current, high-speed N-channel MOSFET drivers and operate over input voltage range of 1.4-18 V.

Taiyo Yuden (USA) Inc. / Power Systems Group    San Marcos, CA 92069
Nov 07, 2007 Designed for backlighting two 10-15 in. industrial LCD panels, Model LS6D0812A-RH provides dual LCD panel capability, and features brightness/backlight on-off control and 5 V (Typ) alarm output if inverter detects CCFL open condition in LCD display systems. RoHS-compliant unit provides 12 Vdc input, output current of 3-6 mArms per lamp, 1,500 Vrms start-up voltage, 1 A maximum input current, and operating and storage temperature ranges of -20 to +70°C and -30 to +85°C, respectively.

Linear Technology Corp.    Milpitas, CA 95035
Nov 06, 2007 Supplied in 15 x 15 x 2.8 mm LGA plastic molded package, LTM4605 DC/DC uModule(TM) regulator can regulate output voltage from variable-input voltage greater than, less than, or equal to output voltage. It integrates synchronous buck-boost DC/DC controller, 4 N-channel MOSFETs, input and output bypass capacitors, and compensation circuitry. Able to achieve up to 97.3% efficiency in boost mode (97.7% buck), IC operates from 4.5-20 VIN, regulates 0.8-16 V output, and delivers up to 150 W.

austriamicrosystems AG    Premstatten   Austria

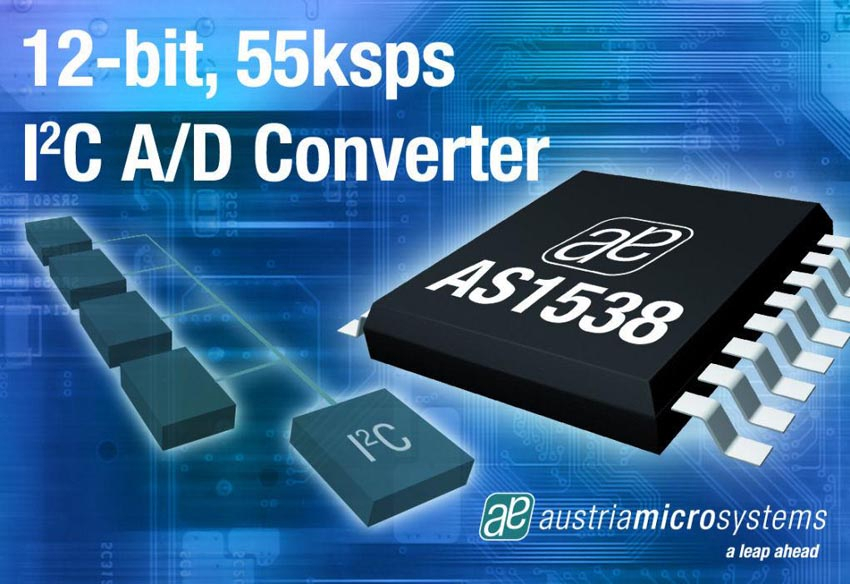

Nov 06, 2007 Suited for 2.7-5.25 V battery-powered and industrial applications using I²C bus, Model AS1538 offers 12-bit resolution on each of 8 input channels. Available in 16-pin TSSOP package designed for operating environments ranging from -40 to +85°C, unit offers conversion speed of 50 ksps while using 850 µA supply current. In shutdown mode supply current drops to less than 1.5 µA. Internal 2.5 V reference or external reference in 1-5.25 V range determines full-scale analog input range.

Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
Nov 05, 2007 Part of UMOS V-H Series, Model TPCA8012-H features max drain current of 40 A, max drain-source voltage rating of 30 V, and RDS(ON) of 4.9 mW, while Model TPCA8019-H operates with 30 V max drain-source voltage rating, max drain current of 45 A, and RDS(ON) of 3.1 mW. Housed in SOP Advance package with 5.0 x 6.0 mm footprint, units are suited for dc-dc converters in power supplies for servers, desktop and mobile computers, and portable electronics.

Tundra Semiconductor Corp.    Kanata, ON K2K2M5  Canada
Nov 05, 2007 Supplied in 27 x 27 mm 675-pin PBGA package, Tsi620(TM) multi-standard Serial RapidIO Switch bridges switched cluster of RapidIO-based DSPs to PCI-enabled microprocessors and FPGAs. RapidIO Interface supports up to 3 ports in 4x mode and 6 ports in 1x mode, offering 1.25, 2.5, and 3.125 Gbaud data rate as well as non-standard speeds in-between. Non-serial FPGA Interface supports RapidIO (layers 2 and 3) at 1-10 Gbps data rate, while PCI interface operates up to 66 MHz and supports up to 4 devices.
