Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Nov 16, 2007 Available in 11 standard inductance values, Model TJ5-HT features max DCR range of 0.29-0.0024 W when vertically mounted and 0.3-0.003 W when horizontally mounted. Units offer inductance range of 470-0.47 µH and saturation current from 1.5-50 A. With operating temperature to +200°C and toroidal design to minimize EFI, RoHS-compliant inductor is suited for switching power supplies, EMI-RFI filtering, and output chokes.

Bulgin Components PLc    Barking Essex IG11 0AZ  United Kingdom

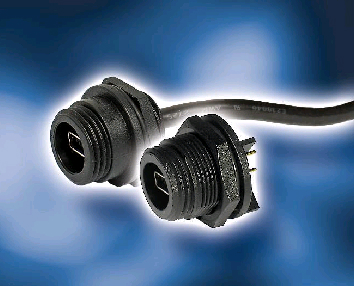

Nov 16, 2007 Available in 3 panel-mounted configurations, Mini USB AB-style Connectors include Model PX0456, which mounts in front of panel with flying lead to rear and is terminated with 6-way 0.1 in. crimp connector. Mounted in rear of panel, Model PX0457 has flying lead terminated with 6-way PCB header, and Model PX0458 has straight PC pins for direct soldering to PCB. RoHS-compliant, 5-pole connectors provide USB V2.0 performance up to 480 Mb/s.

Elma Electronic Inc.    Fremont, CA 94538

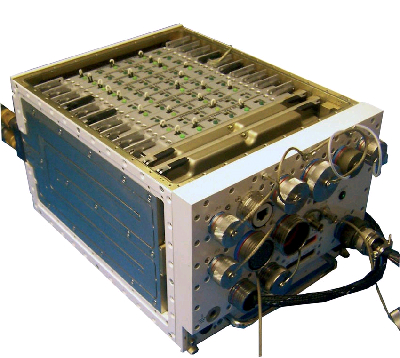

Nov 16, 2007 Designed to ARINC 404A, Air Transport Rack Chassis can fit up to 10 6U x 160 mm slots in 1 ATR Short size. Unit accepts conduction-cooled modules in various architectures such as VME/64x, cPCI, and VXS. Independent dual liquid-cooled sidewalls dissipate in excess of 100 W/slot, and can use glycol, kerosene, PAO, and salt water. Powered via 28 Vdc/270 V or optionally 1 and 3-phase 115 Vac at 400 Hz, chassis can take up to 1 kW of input power.

Streamlight, Inc.    Eagleville, PA 19403
Nov 16, 2007 Weighing 12.8 oz, measuring 8.85 in. long, and generating up to 80 lumens of light, Stinger® DS LED features 2 fully independent switches, one located on light head and one on tailcap. Constructed of machined 6000-series aluminum with tough anodized finish and non-slip rubberized grip, 3 W unit delivers up to 1.75 hrs of continuous runtime per charge at full power, up to 3.75 hrs of runtime on medium brightness, and up to 6.75 hrs of continuous runtime on low power setting.

Seiko Epson Corporation    Suwa, Nagano   Japan
Nov 15, 2007 Measuring 3.2 x 2.5 x 1.05 mm, SG-8003CE series programmable SPXOs (simple packaged crystal oscillators) support voltages down to 3.3, 2.5, and 1.8 V as well as frequencies from 1-166 MHz. Functions include output enable (PE, PD, PC) and standby (SE, SD, SC), while max current consumption of 10 mA (15 mA no load) makes these products suited for use as clocks in office equipment, PCs, mobile devices, and general consumer electronics.

Seiko Epson Corporation    Suwa, Nagano   Japan
Nov 15, 2007 Suited for use in digital cameras, optical low pass filter (OLPF) employs structure wherein wide-band phase retardation film is sandwiched between pair of quartz plates. This design provides uniform light separation at all wavelengths of visible light, eliminating moire patterns across visible spectrum. Requiring only 2 quartz plates, this OLPF enhances quality of digital cameras and enables them to be made thinner.

Xmultiple Technologies    Simi Valley, CA 93065
Nov 15, 2007 Resistant to high cable stress and damage incurred by sharp bending, UltraJax Plus connectors have no interior metal parts except for chemically treated contact pads on PCB inside insertion cavity. In addition to dust, water, and corrosive matierials, solution is resistant to humidity/moisture, temperatures from -40 to +85°F, vibration, and EMI. Female and male connectors have interlocking mechanism to secure male to female and provide stress relief.

Xmultiple Technologies    Simi Valley, CA 93065
Nov 15, 2007 UltraJax connectors have PCB located in center, with contact pads on top and bottom of board. Male UltraJAX plug has contact points on top and bottom of slotted cavity, which surrounds both top and bottom of PCB when inserted. Suited for 10/100 Mbps, Gigabit, or 10Gb networking requirements, each stackable connector has 16 contacts that can be configured as multiple RJ11/RJ45 combo connectors. UltraJax female connectors are provided with optional status LEDs.

Silicon Storage Technology Inc.    Sunnyvale, CA 94086
Nov 15, 2007 Theseus Titanium 240 utilizes 8051 controller core that allows 4 clocks/instruction cycle, as well as 60 MHz internal oscillator. Power saving features include clock gating and voltage scaling. For security, device uses flash memory and features secure memory blocks that prohibit write and erase, as well as encrypted loader application that protects OS during third-party programming. Various detectors offer protection from environmental conditions.

ERNI Electronics, Inc.    Midlothian, VA 23112

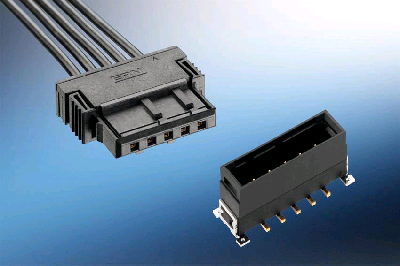

Nov 14, 2007 Featuring 2.54 mm pitch and -55 to +125°C temperature range, single-row MaxiBridge(TM) Connector System provides straight and angled male connectors as well as straight female connectors with 180° cable outlet. Male connectors have SMT terminals while female connectors are designed in crimp technology. Components offer selective gold plating in contact area, fully coated contacts, double-sided spring contacts, and guaranteed minimum contact forces in addition to soldered clips on side.

Linear Technology Corp.    Milpitas, CA 95035
Nov 14, 2007 Housed in DFN packages, Models LTC6087 and LTC6088 are dual and quad amplifiers that achieve 750 µV max offset voltage, 14 MHz GBW, and 1 pA bias current while consuming 1.25 mA each. Both offer 93 dB PSRR and maintain low frequency noise of 5.8 µVp-p. Signal voltage gain of 136 dB ensures gain linearity. Specified over 0-70°C and extended -40 to +125°C temperature ranges, amps are suited for high volume industrial applications, such as portable test equipment.

BI Technologies Corp.    Fullerton, CA 92835-1051

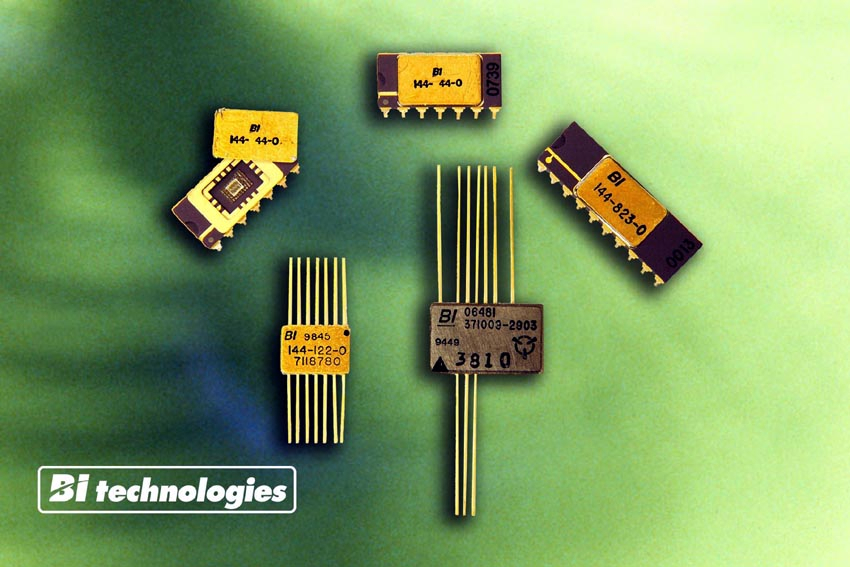

Nov 14, 2007 Offered in through hole DIP and surface mount packages, thin film resistor networks feature resistance range from 10 to 1 M, with absolute tolerances to less than 0.05% and ratio tolerance to less than 0.01%. TCRs are less than 25 ppm/XC with TCR tracking to less than 5 ppm/XC. Available with hot solder dip, tin-lead plate, and gold plate finishes, units meet MIL-STD-883, MIL-STD-1835, MIL-PRF-38534, MIL-STD-38510, and MIL-STD-202 standards.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Nov 14, 2007 Available in N-channel and P-channel models, 1.2 V-rated TrenchFET® Devices bring MOSFET turn-on voltage into alignment with 1.2-1.3 V operating voltages of digital ICs used in mobile electronics. Units offer n-channel on-resistance as low as 0.041 W and p-channel on-resistance as low as 0.095 W. Offered in packages as small as 1.5 x 1.5 mm, devices are suited for load, power amplifier, and battery charger switching in cell phones, PDAs, and MP3 players.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Nov 14, 2007 Offering low RDS(ON) of 100 mW at 4.5 V, Model AAT4684 protects low-voltage systems against voltage spikes up to 28 V from power line surge or from using wrong charger. IC uses P-channel MOSFET power switch to break connection between charger adapter and battery charger when input voltage exceeds preset level. Providing OVP response of 1 µs max, IC also includes UVLO protection circuit, which places device into sleep mode at input voltages less than 1 µA.

Fujitsu Microelectronics Inc.    San Jose, CA 95134 1804
Nov 14, 2007 Enabling rear-seat entertainment using high-speed video image transmission, Models MB88388A and MB88389 incorporate PHY and link layer functions specified in IDB-1394 standard, with support for 100/200/400 Mbps data transmission speeds. Model MB88388A implements SmartCODEC video codec, which can compress and decompress high-resolution video without perceptible latencies in 2-3 msec. Both include digital transmission content protection to prevent unauthorized duplication of digital content.

Broadcom Corp.    San Jose, CA 95110
Nov 14, 2007 Single-chip Bluetooth® audio solution, BCM2044S, leverages ROM-based architecture to implement SmartAudio(TM) noise and echo reduction algorithms. This technology distinguishes voice from background noise to optimize audio conversation clarity. While single-chip solution is designed for use in headsets, product is also available as BCM92044 reference design, which provides headset OEMs with 2-layer PCB that includes Bluetooth software and development tools.

Linear Technology Corp.    Milpitas, CA 95035
Nov 14, 2007 Supplied in 15 x 15 x 2.8 mm LGA package, LTM4607 regulates output voltage from variable input voltage greater than, less than, or equal to the output voltage. It integrates synchronous buck-boost DC/DC controller, 4 N-channel MOSFETs, input and output bypass capacitors, and all compensation circuitry. Operating from 4.5-36 VIN and regulating output voltage from 0.8-24 V, product is phase-lockable to external clock frequency from 200-400 kHz and achieves efficiencies up to 97.7%.

3M Co., Electronic Products Div.    Austin, TX 78726
Nov 14, 2007 Suited for system design engineers working with VME and CompactPCI backplane systems, MetPak HSHM B19 supports speeds of up to 5.0 Gbps per differential pair while maintaining pin-to-pin compatibility on backplane with VME64x, P0 VITA 31, and P3 PICMG 2.16 connectors. It uses virtual coaxial shielding technology to provide maximum performance with minimal cross talk and skew, allowing them to plug into existing 2 mm hard metric connectors and support PCI Express and RapidIO protocols.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Nov 13, 2007 Housed in 3.2 x 2.8 mm PLCC-4 package, Model VLMRGB343 offers luminous intensity range up to 285 mcd for red, 560 mcd for green, and 200 mcd for blue. Multi-SMD unit features 60° half-intensity angle and is compatible with IR-reflow solder processes. Device is preconditioned according to JEDEC moisture sensitivity Level 2 standards, and is RoHS-compliant. With separate control of red, green, and blue chips, LED is suited for backlighting and illumination applications.

BI Technologies Corp.    Fullerton, CA 92835-1051
Nov 13, 2007 HM88 Series is high frequency inductor that is rated for operation at frequencies of 300 kHz and higher, and has operating temperature to +180°C. Shielded inductor is suited for space-confined areas including printed circuit boards in Point-of-Load applications, and high temperature environments including automotive underhood and telecom applications.
