Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Feb 27, 2008 Including Power Coeffient of Resistance (PCR) of ±5 ppm and tolerances to ±0.01%, Z202 Series miniature ultra-high-precision Z-Foil resistors provide load life stability of ±0.01%, and can be trimmed to any specific value at any tolerance within standard resistance range of 5-30 W. They have power rating of 0.125 W at 125°C, current noise of less than -40 dB, and thermal EMF of 0.1 µV/°C. Constructed with bulk metal® Z-Foil element, devices offer ESD protection above 25,000 V.

Beswick Engineering Co., Inc.    Greenland, NH 03840
Feb 26, 2008 Constructed of stainless steel throughout and weighing 15 g, dry break quick disconnect connects without any fluid spray or leakage and disconnects with minimal dead volume. Internal and external ends are available with 10-32 internal or external threads and include captured o-ring seals for leak-tight connections. Panel mount versions are also available. Products suit applications where space, leak-tightness, durability, and weight are of concern.

Opto Diode Corp.    Newbury Park, CA 91320
Feb 26, 2008 Suited for tight spaces, 6 mm² Model ODA-6W-100M includes shielded amplifier electronics and operates in NIR wavelength with response at 940 nm. Standard version features 500 MW gain with custom gains also available. Housed in hermetically sealed TO-39 package, infrared component's operating and storage temperature ranges from -25 to +100°C. Device is suited for applications in low pW region where discrete detector/preamplifier solutions are not sensitive enough.

National Semiconductor Corp.    Santa Clara, CA 95051-0695

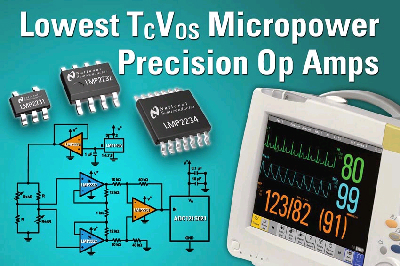

Feb 26, 2008 Built on VIP50 BiCMOS process technology, PowerWise LMP223x Series consumes less than 16 µW per channel while providing 130 kHz usable bandwidth and TCVOS as low as ±0.4 µV/°C. Series includes single, dual, and quad models featuring 1.6-5.5 V operation, 10 µA of supply current per channel, and operating temperature of -40 to 125°C. Units offer extended battery life in portable systems and battery-powered sensor interface products.

STMicroelectronics    Lexington, MA 02421
Feb 26, 2008 Suitable for appliance motor-control applications, HiTj Snubberless(TM) TRIACs deliver noise immunity up to 1,500 V/µs, require no derating of any parameters, and achieve turn-off performance at 150°C. Produced in TO-220AB, TO-220AB insulated, and D2PAK surface-mount packages, all are 600 V devices with current ratings of 8, 10, 12, 16, and 20 A. Applications include vacuum cleaners, cookers, ovens, and washing machine drum motors.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Feb 26, 2008 Model WSMS5515 Power Metal Strip® meter shunt resistor features processing technique that produces low resistance values ranging from 100-500 µW. Featuring 4-terminal (Kelvin) connection design, lead (Pb)-free and RoHS-compliant device comes with all-welded construction, inductance values of less than 5 nH, thermal EMF of less than 3 µV/°C, and frequency response to 50 MHz.

TE Connectivity Ltd.    Berwyn, PA 19312
Feb 26, 2008 Designed for telecommunication, industrial, and military applications, RN73 series of high frequency resistors are available in 0402 case size packages and standard case package size of 0805. Based on nichrome thin film technology, devices are produced with 3 sputtered layers of resistive metal film. TCR values down to 10 ppm/°C, and 5 ppm/°C for some case sizes, are available over 5R1 - 470 K value range in E96 and E24 value grids.

STMicroelectronics    Lexington, MA 02421
Feb 25, 2008 Using STripFET(TM) V technology, STD60N3LH5/STD85N3LH5 are 30 V (BVDSS) devices that deliver minimal conduction and switching losses while achieving low FOM. They allow practical circuits to operate higher-than-normal switching frequencies, reducing size of circuit's passive components. While gate charge (Qg) of 8.8 nC (nanocoulombs) and Rds(on) of 7.2 mX @ 10 V make STD60N3LH5 a suitable control FET, Qg of 14 nC and 4.2 mX Rds(on) @ 10 V make STD85N3LH5 a suitable synchronous FET.

Vectron International    Hudson, NH 03051
Feb 25, 2008 Featuring phase noise floor of -155 dBc/Hz, VTM3 temperature compensated crystal oscillator (TCXO) stabilizes frequencies from 8-45 MHz in -30 to +80°C range at equal to or better than ±0.5 ppm. It is generally available as fixed-frequency TCXO, but can also be ordered with voltage controlled crystal oscillator (VCTCXO) function. Optimized for wireless RF applications, RoHS-compliant solution operates from 2.8, 3.0, or 3.3 Vdc supply and consumes 1 mA.

Avensys Corporation    QC H4N 2G7  Canada
Feb 25, 2008 Small enough to be incorporated into industry standard 300-pin MSA-compliant transponder package, Differential Phase Shift Keying Demodulator is available with bit rates for 40 Gb/s DPSK and DQPSK with free-spectral range from 10-70 GHz. Device has almost insignificant polarization dependency of less than 1% of free-spectral range.

TDK Corporation of America    Mount Prospect, IL 60056
Feb 25, 2008 Offered in 1608 and 2012 configurations, Multilayer Ceramic Chip Capacitors offer resistance ranges of 10-1,200 mW and 10-500 mW, respectively. Internal structure allows ESR values to be set within specified range, so there are smaller changes in impedance between power supply and CPU over range of frequencies as well as voltage variation limiting effects. Units are suitable for communications base stations and high-end PCs.

Linear Technology Corp.    Milpitas, CA 95035
Feb 22, 2008 Designed for monitoring equipment with numerous supply voltage rails, 6-channel LTC2932 includes separate open-drain voltage comparator outputs. External resistive divider between bandgap reference output, ADC input, and ground determines which channels are set to preset or adjustable voltage monitor inputs. Offered in 20-pin TSSOP package, IC has adjustable reset timeout period as well as reset disable pin for margining applications. All channels feature ±1.5% max threshold accuracy.

Q-Tran Inc.    Bridgeport, CT 06610
Feb 22, 2008 Ranging from 2.5-5 in. wide, Q-Set modular toroidal transformer cassettes power low-voltage lighting for pool/spa, landscape, and indoor applications. Q-Set1 offers one secondary circuit breaker (CB) of 15, 20, and 25 A, which provides 180, 240, or 300 W in max lamp load. Q-Set2 offers 2 secondary CBs of 15, 20, or 25 A for max wattages of 360, 480, or 600, while Q-Set3 incorporates 3 secondary CBs of 15, 20, or 25 A, which provide 540, 720, or 900 W. All include 50 A terminal block.

FCI    Versailles Cedex   France
Feb 22, 2008 The 2 mm Millipacs® family consists of 5-row and 8-row versions suitable for solder-to-board, pin-in-paste applications. To incorporate into board assembly process, design features reflow temperature resistant resin, is packaged in tape, has pick-up cap for automatic pick-and-place by vacuum nozzle, and meets all requirements of IEC 61076-4-101.

Omnetics Connector Corp.    Minneapolis, MN 55432
Feb 22, 2008 Nano-Miniature Bi-Lobe® connectors, available in single- and dual-row formats, have 0.025 in. pitch and are certified on QPL for MIL-DTL 32139. Polarized to prevent mis-mating, single-row devices come in 5-51 pin count versions, have 0.115 in. profile, and feature metal shell and jackscrew for locking and un-mating. Dual-row devices, offering pin counts from 15-65 positions, have 1 A current carrying capability, captive jackscrew system, and fully shrouded nickel-plated shells.

Z-Communications, Inc.    San Diego, CA 92126

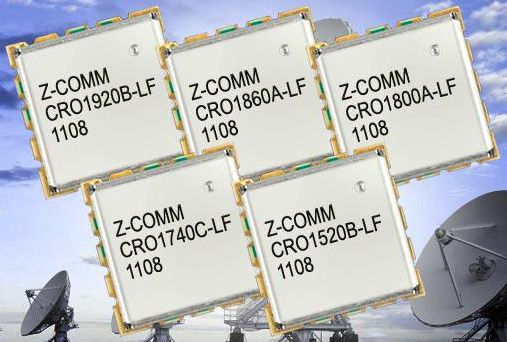

Feb 22, 2008 Supplied in 0.50 x 0.50 x 0.22 in. MINI package, CRO1520B-LF (1,520 MHz), CRO1740C-LF (1,740 MHz), CRO1800A-LF (1,800 MHz), CRO1860A-LF (1,860 MHz), and CRO1920B-LF (1,920 MHz) are all Pb-free, RoHS-compliant, single-frequency coaxial resonator oscillators. They offer average low phase noise performance of -118 dBc/Hz @ 10 kHz offset and linear tuning sensitivity of 5 MHz/V. Each VCO covers band between 0.5 and 4.5 V and delivers 3 dBm output power (typ) at 5 Vdc supply.

Z-Communications, Inc.    San Diego, CA 92126

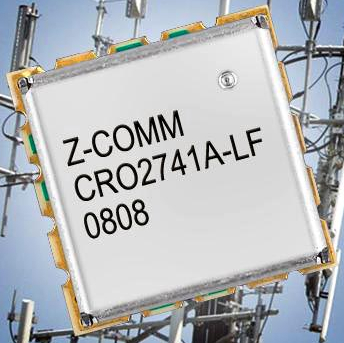

Feb 22, 2008 Suited for fixed wireless applications, CRO2741ALF is Pb-free, RoHS-compliant, single-frequency (2,741 MHz) coaxial resonator oscillator with low phase noise performance of -115 dBc/Hz @ 10 kHz offset. Design offers linear tuning sensitivity of 9 MHz/V (typ) and covers band between 0.5-4.5 V. Supplied in MINI 0.50 x 0.50 x 0.22 in. package, product is designed to deliver 7.5 dBm output power (typ) at 5 Vdc supply while drawing 19 mA (typ) over -40 to +85ºC range.

Z-Communications, Inc.    San Diego, CA 92126

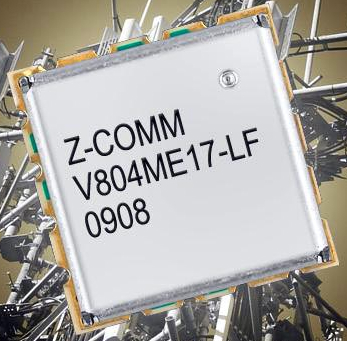

Feb 22, 2008 Supplied in MINI 0.50 x 0.50 x 0.13 in. package, V804ME17-LF is Pb-free, RoHS-compliant, S-Band (2,280-2,450 MHz) Voltage Controlled Oscillator suited for fixed wireless applications. Solution offers low phase noise performance of -95 dBc/Hz @ 10 kHz offset (typ), average tuning sensitivity of 98 MHz/V, and harmonic suppression of -20 dBc (typ) over -40 to +85ºC range. Drawing 20 mA (typ), product covers entire bandwidth from 0.5-4.5 V at dc supply voltage of 5 V.

Z-Communications, Inc.    San Diego, CA 92126

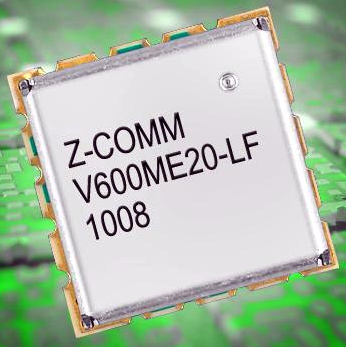

Feb 22, 2008 Supplied in MINI 0.50 x 0.50 x 0.13 in. package, V600ME20-LF is Pb-free, RoHS-compliant Voltage Controlled Oscillator in S-Band (1,700-2,800 MHz) suited for Broadband Transmission applications. It offers low phase noise performance of -96 dBc/Hz @ 10 kHz offset, average tuning sensitivity of 113 MHz/V, and typical harmonic suppression of -20 dBc over -40 to +85°C range. Drawing 21 mA (typ), product covers entire bandwidth from 0.5-15 V at dc supply voltage of 5 V.

Vubiq, Inc.    Aliso Viejo, CA 92656
Feb 22, 2008 Supplied in 10 mm BGA package, tiny radio modules combine 60 GHz transmitters and receivers with integrated antennas. Development system includes 60 GHz transmitter board and 60 GHz receiver board, each with USB controller. To facilitate setup and operation, embedded control firmware and GUI interface are included. Solutions enable commercial, government, and academic institutions to utilize unlicensed 57-64 GHz band for application development.
