Taiyo Yuden (USA), Inc.    Schaumburg, IL 60173
Apr 24, 2008 Including 8 models, BRC1608 Series high-current, wire-wound power inductors measure 1.6 x 0.8 x 0.8 mm. Units offer 0.06-0.55 W dc resistance, 0.2-2.2 µH inductance, and 0.98-0.28 A current ratings. Combining high bias characteristics of wire-wound devices with compact size of multi-layer type devices, they are suited for dc-dc converter choke coil applications in digital cameras, cell phones, MP3 players, and other battery-powered electronic devices.

Fujitsu Microelectronics Inc.    San Jose, CA 95134 1804
Apr 24, 2008 Embedding 26 multi-rate ports and pair of 10/100/1000 GbE management ports in 35 x 35 mm IC, Model MB86C69RBC combines Ethernet, Layer 2/3 capabilities, data center bridging, and QoS, along with 2.9 MB buffer memory. Programmable SerDes allows each port to directly support 10GBASE-KR standard for backplane serial connectivity, along with 1000BASE-KX. Consuming 22 W under full load, device supplies 520 Gbps of non-blocking aggregate switching capacity in cut-through and store-forward modes.

Schaffner EMC, Inc.    Edison, NJ 08837
Apr 23, 2008 Model FN9233E IEC inlet filter includes earth line choke that helps reduce interference signals on ground wire. They are designed for maximum continuous operating voltage of 250 Vac, 50/60 Hz and frequency range of DC to 400 Hz. Also featuring current rating of 1-15 A at 50°C maximum as well as operating temperature range of -25 to +85°C, devices have MTBF of 1,710,000 hr at 40°C/230 V. Units are available in hot inlet versions or low leakage current versions suited for medical applications.

V-Infinity    Beaverton, OR 97005
Apr 23, 2008 Pin-compatible with 78xx linear regulators, V78XX-1000 series 1 A DC switching regulators offer input ranges from 4.75-32 Vdc and output voltages from 3.3-12 Vdc. Regulators are non-isolated and feature built-in short circuit protection and thermal shutdown. Measuring 0.69 x 0.45 x 0.35 in., they have operating temperature range of -40 to +85°C.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Apr 22, 2008 Operating with Series 3991/3993 MEMS shock accelerometers, Model 478A30 provides MEMS-based shock measurement system with frequency range from DC-150 kHz. Automatic zero adjustment eliminates sensor's inherent DC offset voltage, while BNC output connectors enable hookup to readout and recording instruments. Offering differential output and gain adjustment from 0-999.9, device features 3 independent operating channels with selectable excitation voltage levels from 0-14 Vdc.

Bomar Interconnect Products    Ledgewood, NJ 07852
Apr 21, 2008 Model 300668SEZ Category 6 EZ-RJ45(TM) is shielded connector with 1-piece design that enables technicians to slide wire through connector and out front. Technician can pull connector over cable jacket and seat it securely in rear of connector to minimize distance between wire twists and contacts. Designed to prevent cable retraction snags, Model CBX600EZ snaggless boot provides an extended release mechanism for connector and supplementary strain relief.

Aeroflex Laboratories    Plainview, NY 11803
Apr 21, 2008 Avionics Test Bench and Avionics Test Studio address test compatibility for avionics navigation/communications. Utilizing Aeroflex 3000 Series PXI modules, Avionics Test Studio can generate avionics signal from 100 kHz up to 6 GHz, and can be used as bench-top instrument or within ATE environment. Available in 2 configurations, Avionics Test Bench offers ATB-3000 that includes touch-screen PXI chassis with built-in controller and 3025C RF signal generator and synthesizer module.

Allegro MicroSystems Inc.    Worcester, MA 01615
Apr 21, 2008 Suited for portable, office automation, and consumer applications, Model A4490 provides 3 high-current, adjustable, and switching regulator outputs with 4.5-34 V input voltage range. Each output is adjustable from 0.8-5 V with maximum current of 2 A. Triple output step down switching regulator features 550 kHz fixed frequency switching, charge pump to provide supply to drive power switches, power-on-reset circuit with programmable delay, and internal diagnostics.

VMETRO, Inc    Houston, TX 77077
Apr 21, 2008 Model FPE650 integrates 4 fully inter-connected user programmable Xilinx® Virtex®-5 FPGAs with 2 FMC I/O sites and VPX high-speed serial backplane connectivity, allowing I/O and processing capabilities in single 6U slot. Available in air- and conduction-cooled rugged versions, it is designed to tackle demanding digital signal processing applications such as Electronic Counter Measures (ECM), Signal Intelligence (SIGINT), and Electro-Optics (EO).

Octava    Norcross, GA 30071
Apr 18, 2008 Designed for home theaters and public HD display kiosks, 3x4 HDMI V1.3 Switch and Splitter Distribution Amplifier distributes full 1080p video streams to 4 HD displays simultaneously via HDMI. RS-232 serial port provides integration with 3rd party control systems, while 3x1 HDMI switching allows up to 3 separate HD sources to be selected. Unit processes HDMI data and outputs audio via Toslink Audio while leaving HDMI signals (both audio/video) available to both HDMI outputs.

Instruments For Industry, Inc.    Ronkonkoma, NY 11779
Apr 17, 2008 PT186-2KWR military ruggedized pulse amplifier is designed for outdoor mobile and fixed applications. Compact unit is 6.5-18.0 GHz, 1.5 kW peak power amplifier for up to 6% duty cycles. CW/Pulse version, as well as other frequency ranges, are available to meet application requirements.

Crystek Corp.    Fort Myers, FL 33913
Apr 15, 2008 Supplied in 0.5. x 0.5 in. SMD package, CVCO55CC-1260-1400 operates from 1,260-1,400 MHz with control voltage range of 0.5-12 V. It features typical phase noise of -115 dBc/Hz @ 10 kHz offset and input voltage of 8.0 V, with max current consumption of 35 mA. Pulling and Pushing are minimized to 0.20 MHz and 0.20 MHz/V, respectively, and second harmonic suppression is -20 dBc typical. Areas of use include various communications applications.

LEDtronics, Inc.    Torrance, CA 90505

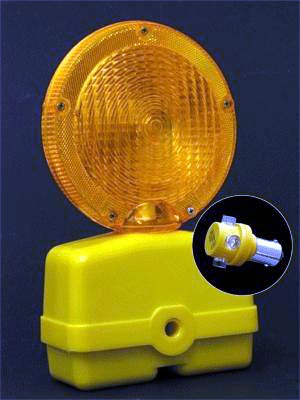

Apr 15, 2008 With ability to run for 4,728 hr in twin 6 Vdc battery-powered flashing road light unit, BRA304 Series LED lamp has Quick Disconnect type T 3¼ 9 mm single-contact bayonet base that mounts directly into hazard roadside flashing light socket. Unit can light up at 4.2 Vdc with optimal light output at 6 Vdc. It is made of four 5 mm, 595 nn peek wave yellow LEDs that are positioned to work with reflectivity prismatic lens in standard hazard roadside flashing light.

Horizon Semiconductors Ltd.    Herzliya   Israel
Apr 15, 2008 Suited for professional and consumer applications, multi-channel, multi-standard Model Hz4010 enables real-time transcoding of HD or multiple SD video streams, as well as faster than real-time transcoding of HD to SD or lower resolution video. Stand-alone, programmable unit supports AVC, MPEG-2, and VC-1 video compression standards. It features video pre/post-processor supporting spatial linear and non-linear noise reduction, motion-compensated temporal filtering, and frame rate conversion.

Photonic Products, Ltd.    Huntington Beach, CA 92647
Apr 15, 2008 Available in 35 and 60 mW versions, 405 nm Photon Laser Diode Modules produce elliptical output beam of 3.5 x 2 mm with added advantage of TTL modulation input, which accepts signals from DC up to 1 kHz max and can be used to enable, inhibit, or modulate laser. Glass AR-coated aspherical lens may be adjusted to produce collimated beam or focused spot. Beam divergence is typically less than 0.6 x 0.3 mrad. Measuring 12 x 43 mm, modules operate from -10 to +50°C.

Symwave, Inc.    San Diego, CA 92121
Apr 15, 2008 With ability to transfer 1,000, four megapixel digital pictures in under 5 sec, FirePHY-1600 complies with IEEE 1394b S1600 standard enabling data transfer rates up to 1.6 Gbps. Housed in 64-pin 8 x 8 mm QFN package, device is backwards compatible with all prior generations of FireWire/1394. Based on SERDES technology, it is suitable interface technology for Mac and PC platforms, computer peripheral devices, and consumer and industrial applications.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Apr 14, 2008 Available in 5 x 5 mm 32-pin LLP® package, Model LMH1982 clock generator with genlock delivers HD clock output jitter of 40 ps peak-to-peak, and offers reference clocks for video ADCs, DACs, and FPGA transceivers. It provides 2 LVDS output clocks with selectable frequencies for SD (27 or 67.5 MHz) and HD (74.25, 74.25/1.001, 148.5, or 148.5/1.001 MHz) resolutions. Unit operates from 3.3 and 2.5 V supplies and supports NTSC/525i, PAL/625i, 525p, 625p, 720p, 1080i, and 1080p video timing.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Apr 14, 2008 Supporting multiple output configurations, 20 W Class-D Model TAS5601 includes PWM interface to video or audio processor. Unit is more than 90% efficient and requires only 3.3 V and 10-26 V rail. Operation up to +26 V allows LCD-TV manufacturers to power device off existing +24 backlight rail, eliminating need for dedicated audio power rail. In addition, TAS5601 includes over-voltage, under-voltage, over-temperature, and short circuit protection.

RF Micro Devices, Inc.    Greensboro, NC 27409-9421
Apr 14, 2008 Housed in 5 x 5 mm QFN package, RF205x Series generates local oscillator signal range from 300 MHz to 2.4 GHz and operates over RF/IF range of 100 MHz to 2.5 GHz. Local oscillator, which consists of VCO and PLL, has adjustable loop bandwidth that is set by passive or active loop filter. On-chip op-amp eliminates need for external amplifier in active loop configurations. Mixer linearity is programmable up to +18 dBm, at which mixer, PLL, and VCO consume 72 mA from 3 V supply.

Xilinx, Inc.    San Jose, CA 95124 3400
Apr 14, 2008 Designed for space applications, Virtex®-4QV FPGAs offer multiple platforms optimized to meet processing needs of video, audio, radar streams, and packet processing functions. Reprogrammable devices incorporate high-performance logic, DSP, and embedded processing in single chip. They provide up to 200,000 logic cells, 10 Mbit of RAM/FIFO, 2 PowerPC® processor blocks with auxiliary processing unit controller, 512 DSP slices, and 4 Ethernet MAC blocks.
