Power Integrations, Inc.    San Jose, CA 95138
Sep 26, 2011 Incorporating controller, high- and low-side drivers, and both MOSFETs into single package, HiperLCS ICs enable designs with efficiency greater than 97% and offer peak switching frequency of 1 MHz. Housed in eSIP-16C package, ICs are suited for LED-backlit TVs, PC main power, servers, telecom and networking equipment, LED streetlights, and laser printers. Devices allow users to set key circuit parameters, such as dead time and soft start, to provide optimum solutions.

LED Autolamps    Sutton Coldfield B76 1AL  United Kingdom
Sep 26, 2011 Made from polycarbonate, 148 Series delivers high brightness, equivalent to 10 W output from 24 LEDs and operates from 12 V supply with ultra-low current draw of 0.17 A at 13.8 V. Lamps feature overall size of 148 x 71 x 19.5 mm, require just 2 fixing holes, and are available in white, grey, and black.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Sep 26, 2011 Supplied in 10-pin, 4 mm² DSQ SON package, TPD4S014 integrates 4 types of USB 2.0 chip protection: ESD, over-temperature, under-voltage (below 2.8 V), and over-voltage (above 6.15 V). Chip can be implemented in design configurations that require small footprint and covers all 4 USB 2.0 channels: D+, D-, VBUS, and ID. Compatible with Full and High Speed specifications, product supports data rates up to 480 Mbps and offers immunity of +8 kV contact discharge and +15 kV air-gap discharge.

TE Connectivity Ltd.    Berwyn, PA 19312
Sep 26, 2011 With contacts rated for 250 Vac at 3 A, Economy Power EP 2.5 offers option of combining power and signal in single solution. Plug and receptacle are available in 2-20 positions and can be used to integrate up to 20 discrete 22-26 AWG wires in single PCB section. Headers are shrouded and housings have polarization tabs to prevent post misalignment. Made from UL 94V-0 rated plastic, single-row crimp connector is UL recognized and operates from -55 to 105°C.

TE Connectivity Ltd.    Berwyn, PA 19312
Sep 26, 2011 Designed to interconnect 2-12 discrete power lines (sizes 24-18 AWG) to PCB, SL-156 crimp connector comes in UL 94-0 rated nylon housing that is fully compatible with SL-156 and MTA-156 board headers and can be used as drop-in replacement with existing headers. Single-row connectors with .156 in. contact pitch are rated for up to 250 Vac and up to 10 A. Breakaway-style retainers add Terminal Position Assurance (TPA) function to secure contacts in housing cavity against backing out.

Murata Electronics North America, Inc.    Smyrna, GA 30080
Sep 23, 2011 Combining power amplifier, low noise amplifier, and switching product, MMID® Series MDFE2PFA-022 and MDFE2PFA-023 target 2.45 GHz and 5 GHz bands, respectively. Modules support 802.11b/g and Bluetooth and/or 802.11a, and can be combined with single chip radio, such as BCM4330 chipset, to provide solution for cellular phone, portable device, and PC markets. Designers can also use one or both modules to mix and match wireless networks with minimal design resources.

Phoenix Contact    Harrisburg, PA 17111 0100
Sep 23, 2011 Offered in 1.5 and 4 mm² variants, modular push-in terminal blocks facilitate termination of ferruled or stranded wire from 24-10 AWG. Leg-spring design increases termination speed and reduces operator fatigue, while 250 N pullout force accommodates needs of high-vibration applications. Available in single, twin, Quattro, and double-level feed through as well as function blocks, products can also be used with stranded wire using orange actuation button.

Mini-Circuits    Brooklyn, NY 11235
Sep 23, 2011 Using combinations of lumped and distributed elements in 3D ceramic structure, BFCN products cover frequencies from 7,100-8,750 MHz. Products come in 1206 package format and offer designs with up to 5 sections and DC isolated I/O. These Low-Temperature Co-Fired Ceramic (LTCC) components feature conductive metallization in multi-layer structure. They enable realization of various RF building blocks: inductors, capacitors, broadside, and edge-coupled lines.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Sep 23, 2011 With capacitance of 10 pF and leakage current of less than 0.1 µA, bidirectional symmetrical single-line VCUT05D1-SD0 provides transient protection for one data line per IEC 61000-4-2 at ±30 kV (air and contact discharge) and surge current protection according to IEC 61000-4-5 at 6 A. At working voltage of 5.5 V, diode offers high isolation to ground and any transient voltage signal exceeding reverse breakdown voltage of 8 V typical at 1 mA will be clamped or shorted to ground.

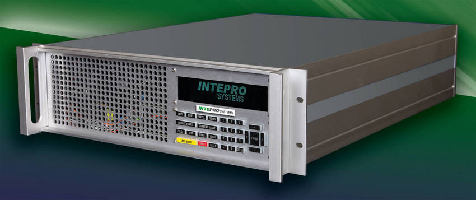

Intepro Systems, LLC    Santa Ana, CA 92705
Sep 22, 2011 Featuring microprocessor with 16-bit DAC control to simulate dynamic loading applications, HP Series delivers measurements every 30 µs. Devices' 4K pattern depth allows for programming of complex load waveforms and dynamic sweeping of load profile. Via single connection, 2,500 W units provide dual range 16-bit resolution measurements of voltage, current, resistance, and power. Loads are rated for 500 A to max of 100, 500, or 750 Vdc. All include OP, OC, OV, OT, and reverse polarity protection.

Trident Microsystems, Inc.    Sunnyvale, CA 94085
Sep 22, 2011 Integrating ADCs, DACs, and digital transceiver, MAP-X(TM) Audio SoCs enable users to stream Internet radio stations from services such as vTuner(TM), as well as their own files via USB or from PC/NAS devices over home network via DLNA. SoCs can decode HD Audio movie formats without external SDRAM, and also enable streaming audio functionality without adding streaming audio or Internet radio module. Applications include home audio, AV receivers, and sound bars.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Sep 22, 2011 Featuring 160 MHz analysis bandwidth option, PXA signal analyzer covers all bandwidths supported by 802.11ac. Performance offers insight that accelerates design, verification, and troubleshooting of 802.11ac devices. Also available, Signal Studio for WLAN enables creation of 802.11ac waveforms with BCC/LDPC channel coding, all MCS codes, and single- or multi-user MIMO up to 4 streams. Generation of up to 80 and 160 MHz bandwidth signals is possible depending on vector signal generator used.

Saelig Co., Inc.    Pittsford, NY 14534
Sep 21, 2011 Housed in 11 x 9 x 4 in. case, Models SDG1005 and SDG1050 provide 125 MS/sec sample rate, 14-bit resolution, and 16 Kpts waveform record length. Dual-channel units feature built-in AM, FM, PM, PWM, and FSK modulation, without requiring external modulating source, and both also function as 200 MHz frequency counter. In addition to sine waves, generators provide square waves, pulse and ramp waveforms, white noise, and arbitrary waveforms. USB Device/Host I/O allows for storage of waveforms/setups.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Sep 20, 2011 With frequency range up to 1 MHz, IHLP®-3232CZ-11 serves as high-performing, space- and power-saving solution for voltage regulator module and DC/DC converter applications. Inductance range is 0.22-33.0 µH, saturation current range is 2.5-24.0 A, heat rating current range is 2.6-36.0 A, and max DCR is from 1.62-205.0 mW. Device handles high transient current spikes without hard saturation and features RoHS-compliant, shielded, composite construction that reduces buzz noise to ultra-low levels.

VIA Technologies, Inc.    Taipei 231  Taiwan
Sep 20, 2011 Supporting USB Battery Charging Spec 1.2 and transfer rates up to 5 Gbps, 4-port VIA Labs VL811 enables one downstream port of host computer or another hub to simultaneously interface with multiple USB devices. Controller is fully backwards-compatible with USB 2.0/1.1 hosts, hubs, and devices and incorporates Charging Downstream Port (CDP) feature that enables equal data transfer rate when charging BCS-compatible device as when charging from AC adapter. Adaptive equalization is standard.

ViXS Systems Inc.    Toronto M2J 1R3  Canada
Sep 20, 2011 Able to be paired with other SoC solutions that do not have integrated MoCA, XConnex(TM) XC1025 MoCA 1.1 companion IC offers integrated Ethernet PHY, integrated memory that eliminates need for external DDR memory, and integrated microprocessor that provides end-to-end bridging with all firmware running on SoC. Additionally, IC supports key features of MoCA 1.1: 175+ Mbps throughput, 16-node support, QoS, packet level encryption, and co-existence with cable or satellite services.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Sep 20, 2011 Available in 3 package options, dual OPA2314 op amp operates from 1.8-5.5 V supply with rail-to-rail input and output swings. Max quiescent current of 190 µA/channel and noise of 14 nV/rtHz @ 1 kHz enable low-level signal amplification while maintaining high SNR and reducing system power consumption. Gain bandwidth of 3 MHz provides sensitivity to enable high-resolution systems across wide frequency range, while 0.2 pA input bias current supports high source impedance applications.

Atmel Corporation    San Jose, CA 95131
Sep 20, 2011 Certified to IEC/EN 60730 Class B, AT42QT1481/1244/1245/2640 are QTouch® capacitive touch controllers for buttons, sliders, and wheels are ready to use with no MCU programming and support high button counts through 24, 48, or 64 acquisition channels. Adjacent Key Suppression(TM) mode provides precise discrimination between closely spaced keys, while Failure Mode Effect Analysis support ensures system is running properly. Conducted immunity and QMatrix(TM) technology are standard.

Atmel Corporation    San Jose, CA 95131
Sep 20, 2011 Based on 32-bit AVR microcontroller, 1386-node maXTouch mXT1386 touch frame rates of 180 Hz and smart processing of capacitive touch image to accurately regenerate and report user interaction. SNR of 80:1 enables device to work with fingertip touch or stylus as small as 1 mm. Offering first touch latency as low as 20 msec with optimized edge detection, mXT1386 is suited for tablets, notebooks, and PCs supporting up to 15.6 in. touchscreens.

Jtag Technologies Inc    Stevensville, MD 21666
Sep 19, 2011 Based on QuadPod architecture and designed in MAC Panel Direct Access Kit (DAK) form factor, JT 2147/DAK signal conditioning module enables seamless connections from PXI DataBlaster to MAC-Panel Scout mass interconnect system. Functionality lets test system builders simplify wiring tasks while retaining optimal signal integrity. System features 4 independent JTAG Test Access Ports (TAPs), each programmable to operate through various voltage levels, and 16 user-assigned DIO channels.
