Semikron International Dr Fritz Martin GmbH & Co      Germany
Jul 23, 2008 Suitable for 1,200 and 1,700 V IGBT modules, RoHS-compliant SKYPER® 52 allows for transmission of isolated sensor signals and individual protection level settings. Use of differential digital signal processing enables switching characteristics, shut down levels, and error processing to be set to meet application requirements. Dual 9 W output channels and peak gate current up to 50 A make product suitable for parallel connected IGBT modules with total current up to 9,000 A.

austriamicrosystems AG    Schloss Premstaetten A 8141  Austria
Jul 23, 2008 To ensure ESD robustness of complex analog/mixed-signal designs in power management, automotive or medical applications, 0.35 µm High-Voltage CMOS process technology (H35) offers 4 kV HBM ESD protection level for 50 V max supply voltage. This periphery library includes fully scalable High-Voltage NMOS and PMOS devices, floating logic libraries, as well as optimal power-on resistance. Process allows integration of 3.3/5/20/50/120 V devices on one chip.

Meggitt (Maryland), Inc.    Germantown, MD 20876
Jul 23, 2008 Measuring 1 in. across flats with 0.82 mounting pad, Models SF21 and SF22 accommodate up to medium diameter accelerometers and small diameter side-exit accelerometers. Models SF23 and SF24 are both 1 1/8 in. across flats with 0.94 in. mounting pad that can accommodate large diameter top-exit sensors. All have ¼-28 integral stud on accelerometer side, and are used to prevent voltage spikes from reaching sensor by electrically isolating it from case of machine.

Southco    Concordville, PA 19331 0116

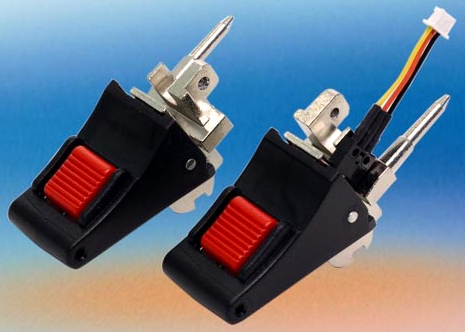

Jul 22, 2008 Compatible with all cPCI board sizes used in telecom, industrial, and military embedded computing applications, RoHS-compliant inject/eject mechanisms for circuit boards feature handle optimized for grip along with release action to facilitate use. Inject/eject handles engage with mounting rail to ensure positive connection as cPCI board is inserted into backplane connector. Operating button on each ejector is accessible and protected against accidental actuation.

Z-Communications, Inc.    San Diego, CA 92126

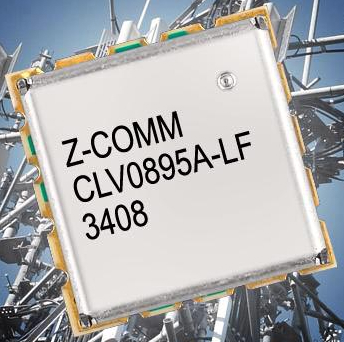

Jul 22, 2008 Featuring typical phase noise of -107 dBc/Hz @ 10 KHz offset and tuning sensitivity of 30 MHz/V, CLV0895A-LF operates in UHF band from 750-1,040 MHz with tuning voltage range of 0.5-11.5 Vdc. RoHS-compliant VCO, designed to deliver typical output power of 0 dBm at 3.3 Vdc supply while drawing 15 mA (typ) over -40 to +85ºC range, offers typical 2nd harmonic suppression of -13 dBc and comes in 0.50 x 0.50 x 0.22 in. MINI package.

Z-Communications, Inc.    San Diego, CA 92126

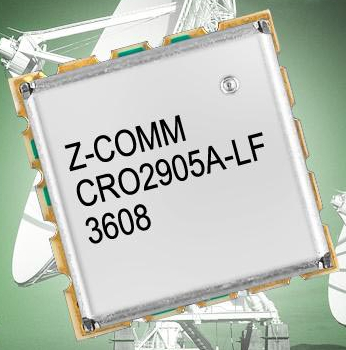

Jul 22, 2008 Featuring typical phase noise of -114 dBc/Hz @ 10 kHz offset and tuning sensitivity of 13 MHz/V, CRO2905A-LF operates at 2,905 MHz (single frequency) with tuning voltage range of 0.5-4.5 Vdc. RoHS-compliant VCO, designed to deliver typical output power of 6.5 dBm at 5 Vdc supply while drawing 19 mA over -40º to +85ºC range, offers typical 2nd harmonic suppression of -20 dBc and comes in 0.50 x 0.50 x 0.22 in. MINI package.

Z-Communications, Inc.    San Diego, CA 92126

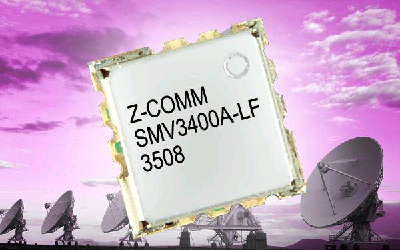

Jul 22, 2008 Operating from 3,220-3,580 MHz with tuning voltage of 0.5-3 Vdc, S-band Model SMV3400A-LF features typical phase noise of -80 dBc/Hz at 10 kHz offset and typical tuning sensitivity of 230 MHz/V. Unit delivers typical output power of 5 dBm at 3.3 Vdc supply while drawing 16 mA over temperature range of -30 to 85ºC. Housed in SUB MINI-L package measuring 0.3 x 0.3 x 0.08 in., VCO is suited for satellite communications applications.

Z-Communications, Inc.    San Diego, CA 92126

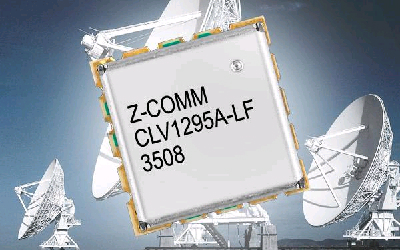

Jul 22, 2008 With tuning voltage of 0.5-4.5 Vdc and tuning sensitivity of 68 MHz/V, Model CLV1295A-LF delivers typical phase noise of -105 dBc/Hz at 10 kHz along with output power of 5 dBm at 5 Vdc supply while drawing 26 mA over temperature range of -40 to 85°C. RoHS-compliant unit features 2nd harmonic suppression of -15 dBc. Housed in MINI package measuring 0.50 x 0.50 x 0.22 in., device is suited for WiMax base station and satellite communications applications.

Z-Communications, Inc.    San Diego, CA 92126

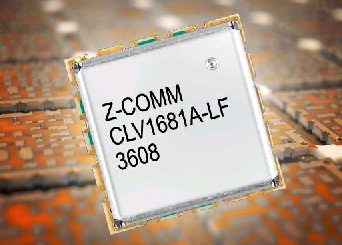

Jul 22, 2008 Operating from 1,651-1,711 MHz, L-Band Model CLV1681A-LF covers bandwidth between 2-4.4 V and offers typical tuning sensitivity of 59 MHz/V. Unit delivers typical power output of 0 dBm at 5 Vdc supply while drawing 11 mA over extended temperature range of -40 to 85°C. Housed in MINI package with low shield measuring 0.50 x 0.50 x 0.13 in., RoHS-compliant oscillator is suited for base station and other applications that require good phase noise performance.

Asus Computer, Inc.    Newark, CA 94560
Jul 22, 2008 While bundled with EN8600GT/HTDP/256M graphics card, ROG (Republic of Gamer) XG Station comes equipped with PCIe interface, 4 USB 2.0 ports, and Dolby A/V Technology. Station has dedicated 3D graphics engine, allowing users to connect it to any LCD monitor, connect to notebook via Express Card connector, and then perform graphics-intensive applications. Real-time overclocking can be controlled with ergonomic knob, and LED screen displays critical system status.

Schaffner EMC, Inc.    Edison, NJ 08837
Jul 22, 2008 ECOsine(TM) load-applied passive harmonic filters are suited for 3-phase power electronics with 6-pulse rectifier front ends. With total harmonic current distortion of under 5%, products guarantee compliance with IEEE 519 and other international power quality standards. Two ranges are available, one for 380-500 V, 50 Hz grids (FN 3410 series) and one for 440-480 V, 60 Hz systems (FN 3412 series). Plug-and-play concept facilitates installation, wiring, and commissioning.

GigOptix Inc.    Palo Alto, CA 94303
Jul 22, 2008 Comprised of 4 x 10.3 Gbps Transimpedance Limiting Amplifier (HXR4104) and 4 x 10.3 Gbps Vertical Cavity Surface Emitting Laser driver (HXT4104), HXR/T4104 chipset is fully programmable via 2-wire interface. This enables control of signal peaking, modulation, and average currents while also providing access to temperature and output power monitoring on channel-by-channel basis. Parallel VCSEL driver is compatible with QSFP Multi-Source Agreement (MSA).

Maxim Integrated Products    Sunnyvale, CA 94086
Jul 22, 2008 Designed to operate in harsh environments, MAXQ7665/MAXQ7666 mixed-signal MCU SoCs occupy 7 x 7 mm of board space and process magnetic sensor output signals in automotive as well as industrial applications. Both integrate all functions needed to measure signals from anisotropic magnetoresistive sensors, with accuracy of up to 8 µV, and transmit processed analog/digital data. Devices provide complete system solution for contactless sensing of linear or angular position/displacement.

Leadis Technology, Inc.    Sunnyvale, CA 94085
Jul 22, 2008 Suited for power-sensitive applications with headphone output, LDS9505 and LDS9504 incorporate Gmax(TM) technology for Class-G amplification and offer 5.5 mW/channel power dissipation to promote battery run-time. Adaptive Rail Amplifier and other technologies eliminate pop and click as well as zipper-noise concerns. Requiring 4 mW quiescent power, standalone products are capable of up to 63 mW in single-ended stereo and 106 mW in mono BTL output, with SNR of 102 dB.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jul 22, 2008 Supplied in 2 x 2 x 0.8 mm PowerPAK® SC-70 package, SiAx1xDJ series comes in various configurations: single, single plus Schottky, and dual devices in n-channel and p-channel as well as n- and p-channel complementary pairs. Voltage ranges are available from 8-30 V with on-resistance values down to 0.011 W at 4.5 V. Halogen-free and RoHS-compliant, products are suited for load switching and battery charging applications in portable devices.

SatCon Technology Corp.    Cambridge, MA 02142 1221
Jul 22, 2008 Suited for commercial and large-scale grid connected photovoltaic power systems, PowerGate® Plus 75, 100, and 135 kW models are certified to UL1741-2005 standards and have California Energy Commission (CEC) efficiency rating of 96.0%. Products, optimized for energy harvesting and longevity, feature G90 galvanized steel enclosure, DSP control, as well as HMI with sunlight-visible display and membrane keypad.

Silicon Laboratories    Austin, TX 78727
Jul 22, 2008 Occupying 200 mm², Si823x ISOdriver Series integrates 2-channel isolator and dual driver into single chip. High-side, low-side, 4 A units feature propagation delay of 50 ns, optimizing timing margins and control response. Because devices are designed in CMOS, they do not suffer from performance drift over time and temperature. Integrated under-voltage lock-out circuitry prevents erroneous FET driver switching when input voltages are low during system start up/shut down.

Telect Inc.    Liberty Lake, WA 99019
Jul 21, 2008 Based on 66 x 30 x 30 in. footprint, Standard Telect Modular Enclosures provide 32 rack units of interior space. Users can choose from list of frame, top panel, door, hatch, side panel, and mounting rail options to handle all types of electronic equipment, along with power gear and cooling components. Applications include radio, backup power and battery sites, WiMAX, and all types of general use communications network environments.

Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
Jul 21, 2008 Housed in surface mount package measuring 10.5 x 5.0 x 2.1 mm, Model TL12W02-D features typical forward voltage of 6.8 V at 250 mA, and operates from -40 to 100°C with thermal resistance of 10°C/W. LED is suited for commercial, residential, and industrial lighting applications that have previously used incandescent lamps.

Zilog, Inc.    San Jose, CA 95126
Jul 21, 2008 With multiple built-in wireless and wired connectivity interfaces, Crimzon Connects(TM) enables users to remotely access and control office electronic devices from any WiFi enabled device. Digital control and monitoring solution supports Web-enabled and native application-based options; interface applications are available for Apple® iPhone(TM) and iPod® touch as well as Blackberry® Curve(TM). One eZ80AcclaimPlus!(TM)-based live home Web server provides central point of access to all devices.
