Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
Sep 04, 2008 Power MOSFETs TPCM8004, TPCA8030-H, TPCA8031-H, TPC8037-H, and TPC8038-H come in 3 packages from 3.5 x 4.65 x 0.75 mm to 5 x 6 x 1.6 mm and are targeted for use in mobile and desktop computers, servers, and other electronic devices. They convert input voltage to level required for various subsystems. Across series, values include drain-source voltage of 30 V max, drain current of 12 or 24 A max, RDS(ON) of 11.0 or 11.4 mW, and typical low gate resistance of 1 or 3.4 W.

TE Connectivity Ltd.    Berwyn, PA 19312
Sep 04, 2008 Operating over 960-1,215 MHz bandwidth, M/A-COM MAPRST0912-50 is 50 Wpk Class C, silicon bipolar pulse power transistor that has minimum gain of 9.0 dB with 40% minimum collector efficiency on 50 Vdc supply, while M/A-COM MAPRST0912-350 is rated at 350 Wpk with 40 W drive and features minimum gain of 9.4 dB with 45% minimum collector efficiency. With minimum gain of 9 dB with 45% minimum collector efficiency, M/A-COM MAPR-000912-500S00 is rated at 500 Wpk.

AVX Corp.    Myrtle Beach, SC 29578
Sep 03, 2008 Available in case codes 1, 2, and 6, 500 V rated SMPS capacitors are characterized by low ESR, low ESL, and high current carrying capability. They come in 3 main lead configurations, N (thru hole) and J or L (surface mount), and feature leadframes that allow capacitor to absorb stress and strain. Military applications include I/O filters of high power and high voltage power supplies as well as in bus filters, dc snubber applications for inverters and also high current power supplies.

Catalyst Semiconductor    Sunnyvale, CA 94089
Sep 03, 2008 Available in 5-lead, TO-263 package, Model CAT4101 constant-current, low dropout LED driver is linear-based and does not require an inductor. LED current is set via external resistor connected to RSET pin, which is compatible with voltages up to 25 V, enabling unit to drive strings of up to 10 LEDs, adjustable to 1 A. Device offers high-resolution PWM dimming, instant-on PWM control mode, and thermal shutdown protection in the event of any over-temperature fault condition.

PCI Automation Inc    Antioch, CA 94509
Sep 03, 2008 Offering COTS modular chassis for VPX/VME/CPCI/CPCIe, ARINC600-ATR enclosures enable accelerated development of rugged conduction-cooled, embedded systems for airborne applications. Products are offered with interchangeable backplane-bus versions, and each slot has its own rear I/O PCB to facilitate definition and testing of custom wiring. This setup can be exchanged with custom rear I/O PCB set. Loaded via front, boards are fixed in place with self-clamping wedge locks.

ABB Inc.    Auburn Hills, MI 48326
Sep 03, 2008 PQF series is designed for active harmonic filtering, load balancing, and reactive power compensation. Designed to solve harmonic and neutral current related problems, wall-mount PQFS range works equally with 3-phase, 3-wire or 3-phase, 4-wire systems. PQFM range, suited for active filtering of lower-capacity, 3-phase industrial loads, can comprise one master and up to 7 slave units. It is suitable for direct connection up to 600 V.

R. Stahl, Inc    Houston, TX 77054
Sep 03, 2008 Complementing ISpac Isolator System, Type 9170 Switching Repeater and Type 9175 Digital Output modules provide safety while transferring intrinsically safe binary signals. Available in 1- or 2-channel versions, Model 9170/x0-14-12 emulates Namur signal at control system output, while Model 9175/10-1x-12 detects short circuits and wire breaks in field. Units ensure consistent error monitoring of every channel from field to control level despite isolator in between.

Samtec, Inc.    New Albany, IN 47151 1147
Sep 03, 2008 Suited for military and industrial applications, SBS Series SiliconBlade Socket can be used with SiliconDrive II USB Blade. Rugged, lightweight, and vertical unit includes Edge Rate contact system which offers Signal Integrity with high impedance control, reduced broadside coupling, and vibration dampening features. Deep polarizing guide rails add mechanical support and assure proper USB Blade insertion, while polarizing posts ensure proper socket placement.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Sep 03, 2008 DAS.4 double level terminal block is designed for space saving panel applications that require feed-through connections, while DSS.4 offers feed-through connection on bottom for 1 side of control loop and knife disconnect on upper level for opening/testing of other side of loop. DSFA.4 and related accessories have option for inserting small plug-in blade type micro fuse or holder that accepts 5 x 20 mm fuse. Units are 6 mm wide and rated to accept up to 10 AWG wire.

Absolute Process Instruments Inc.    Libertyville, IL 60048
Sep 02, 2008 Offering full 3-way (power/input/output) isolation, API 4300 DIN PLC solves isolation and ground loop problems when used with PLCs that have single-ended, 4-20 mA inputs. It can be selectively wired for sinking or sourcing I/O, allowing use with either passive or powered 4-20 mA signal sources. Features include input/output LoopTracker® LEDs and functional test pushbutton that lets users test output independent of input signal.

Fox Electronics    Fort Myers, FL 33905 5022
Sep 02, 2008 Employing noise reducing DSM technology and low noise architecture, Models FXO-LC52 and FXO-PC52 2.5 V XpressO LVPECL and LVDS Oscillators offer low levels of jitter and phase noise. They feature ASICs, frequency range of 0.75 MHz to 1.0 GHz, stabilities as tight as ±20 ppm and operate at temperatures of -20 to +70°C or ±25 ppm for -40 to +85°C. Made of gold over nickel termination finish, units have serial identification system with comprehensive traceability to ensure quality control.

Ramco Innovations    West Des Moines, IA 50265 4423
Sep 02, 2008 Model D2RF series amplifiers feature programming format offering 6 teaching modes including auto teach, zone teaching, and glass teaching mode. They include 2 x 4-digit displays for verification of light received level and threshold level, which also aid in setup and programming of devices. Equipped with selectable one-shot, off-delay, and on-delay timers, units are available in 2 output configurations and outputs can be set to 60 µs response.

Stewart Connector    Glen Rock, PA 17327
Sep 02, 2008 Optimized for extended life in voice and data applications, RJ11 and RJ45 connectors are available with EPP-918A protective compound that shields gold-plated contacts from corrosive elements and wear due to line cord insertion/reinsertion. Compound provides pore blocking and lubricating properties in addition to moisture, humidity, dirt, and chemical resistance. Offered in shielded/unshielded version with 1-12 ports, vertical and right-angle connectors operate from -40 to +85°C.

Thermo Fisher Scientific    Waltham, MA 02454
Sep 02, 2008 Featuring refillable epoxy body design, ROSS Ultra Triodes offer precision of 0.01 pH unit, accuracy within 0.03 pH units when using automatic temperature compensation, and fast temperature response within 1°C. Units are compatible with samples containing TRIS, proteins, and sulfides. Available in 4 different models depending on which meter customer has, all electrodes have waterproof BNC connectors for pH measurement.

TriQuint Semiconductor, Inc.    Hillsboro, OR 97124
Sep 02, 2008 Delivered as discrete die-level devices, TGF2023-xx gallium nitride (GaN) power transistors helps conserve power and space in smaller form factor applications. They operate up to 18 GHz, have 55% power added efficiency (PAE), and produce up to 90 W of output power. Areas of use include high-frequency applications such as mobile base station, defense, and space communications systems.

TriQuint Semiconductor, Inc.    Hillsboro, OR 97124
Sep 02, 2008 Integrating 2 stages into one package, 28 V HBT (heterojunction bipolar transistor) amplifiers AP631 (4 W) and AP632 (7 W) are suited as pre-drivers and drivers for RF section of base station radio. Linearity minimizes additional signal distortion for repeater applications when used in final amplifier stages and reduces backoff power requirements to minimize distortion from high PAR (peak to average ratio) signals in 3G/4G mobile base stations.

Precision Resistor Co., Inc.    Largo, FL 33777-1421

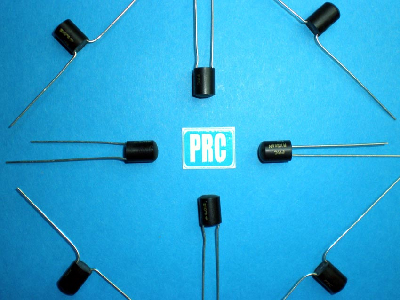

Aug 29, 2008 Featuring 2 adjustable axial leads encased in protective high-temperature epoxy shell with non-inductive windings, ¼ W Model RX255N is capable of holding resistance tolerances up to ±0.005% with T.C.R up to ±1 ppm for ohmic values to 150 kW and ±0.001% change/year for stability. Device meets DIN standards and is RoHS-compliant.

NEC Electronics    Santa Clara, CA 95050
Aug 29, 2008 Model µPD720180A enables wireless communication between Wireless USB-compatible personal computer or other Wireless USB host system, and printers, digital home appliances, and other devices supporting USB 2.0. LSI chip increases communication speed when multiple Wireless USB-based hosts communicate with peripherals, and helps improve communication quality by avoiding interference. It allows consumers to associate their devices wirelessly, without using USB cables.

NEC Electronics    Santa Clara, CA 95050
Aug 29, 2008 Combining functions of SCOMBO/UM2P and EMMA3P, Model EMMA(TM) 3PF offers analog circuit to process signals from optical pickup, decoding circuit for encoded video/audio, and HDMI to output video/audio. It features on-board USB2.0 host controller, 64-bit 655DMIPS VR5500 CPU application processor, 32-bit 495DMIPS CPU which delivers 1,150 DMIPS, vector graphics accelerator, and still-image decoder. Unit supports BD-ROM Profile 2.0 Blu-ray disc specification.

NEC Electronics    Santa Clara, CA 95050
Aug 29, 2008 Designed for mobile phones, music players, and other portable devices, Model µPD809400 integrates 8 megabits of embedded DRAM memory with graphics processing logic and high-speed graphics data interface, displaying 24-bit full color image data on VGA panels. Fabricated with 90 nm process technology, it integrates large memory, timing control circuits, as well as regulators and other analog circuits. Chip is also capable of expanding QVGA data for display on VGA screens.
