Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Nov 29, 2011 Consuming 77 mW/channel, 14-bit Model ADS5294 delivers SRN of 75.5 dbFS at 5 MHz and sampling frequency up to 80 MSPS. Unit integrates digital processing block, low-frequency noise suppression mode, and programmable input-to-output mapping. Using Model ADS5294, digital data can be output over 1 or 2 wires of LVDS pins per channel, minimizing interface lines. In addition to medical imaging, ADC is suited for radar, communications, test and measurement, and other multi-channel DAQ applications.

austriamicrosystems AG    Premstatten   Austria
Nov 28, 2011 Conforming to FlexRay(TM) v2.1 rev B, Model AS8222 provides interface between digital logic and copper cable transmission lines. Unit features in-package max ambient temperature of 150°C and bare dice max temperature of 165°C. Device supports 12 and 24 V systems and is compatible with MCUs running at 2.5, 3, 3.3, and 5 V. Available in SSOP20 package, IC includes optional interface for 2-wire bus-guardian or supervision circuits, automatic thermal shutdown protection, and short circuit protection.

PREMO Group    Barcelona   Spain
Nov 28, 2011 Suited for applications with max operating voltage up to 720 Vac, HCWMGF Series comes in 3-phase versions L1, L2, and L3 (without neutral) from 150-2,500 A, with power losses less than 0.02%. Units offer dielectric strength above 3,000 Vdc and insertion loss above 40 dB in entire range, reaching 80 dB between 200 kHz and 1 MHz. With UL94 V2 flammability rating, filters are suited for renewable energy equipment, UPS systems, and power inverters.

Power Integrations, Inc.    San Jose, CA 95138
Nov 23, 2011 Supplied in eSIP(TM)-7F (L package) with 2 mm profile, LinkSwitch(TM)-PH targets LED replacements for fluorescent tubes. Products can be used where low-profile packages are required to fit into space available behind LED circuit board as well as other applications where board height is constrained. Heat transfer tab is located on top of these single-stage, primary-side controlled LED driver ICs, which feature greater than 90% efficiency and greater than 0.9 power factor.

Kemet Electronics Corp.    Greenville, SC 29606
Nov 23, 2011 Operating from -55 to +125°C and available in C0G dielectric, HiQ-CBR Series features voltage ratings of 6.3, 10, 25, 50, 100, and 250 Vdc; capacitances from 0.1-100 pF; and tolerances of +/-0.05pF, +/-0.1pF, +/-0.25pF. Terminations are available in 100% matte tin plated finish that lend to solderability. Unit provides compatibility with KEMET chip inductors and ferrite beads. PB free, RoHS compliant capacitor features copper base metal electrode dielectric system.

Bud Industries, Inc.    Willoughby, OH 44094
Nov 22, 2011 Constructed from 14 GA steel with ANSI 61 grey powder coating, SPB Series meets NEMA 12/13 specifications. Cover has die-cut gasket for protection against dust, water, and oil. Cover screws thread into sealed nuts for additional sealing protection. Available in 4 sizes to accommodate either 22.5 or 30.5 mm push buttons, box can be mounted to wall or machine, providing protection for emergency shut-off controls in factory automation systems.

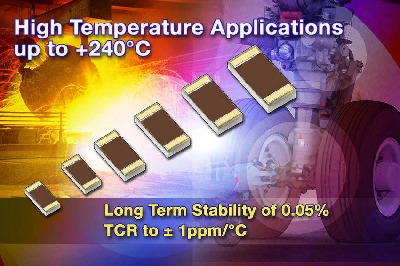

Vishay Precision Group    Malvern, PA 19355
Nov 22, 2011 Designed for hybrid circuits with aluminum wire bonding technology, HTHA Series Bulk Metal® Z1-Foil Resistors offer TCR of ±1 ppm/°C from -55 to +125°C and load-life stability to ±0.05% at +220°C. Devices are capable of withstanding electrostatic discharges to at least 25 kV without degradation. Offered in 6 case sizes ranging from 0603 to 2512, resistors feature working power to 150 mW at +220°C and provide resistance range from 5 W to 125 kW.

ZMDI    Dresden 01109  Germany
Nov 22, 2011 Meeting AEC-Q100 standard, ZSSC3131/5/6/8 condition signals of resistive bridge sensing elements in automotive and industrial pressure sensing applications. Diagnostics range from sensor connectivity check (ZSSC3135/8) to complete SIL-compliant sensor diagnostics (ZSSC3136). Models ZSSC3135/6 provide external sensor temperature measurement, and ZSSC3138, when used in ceramic sensor-based systems, eliminates need for sensor laser trimming in production.

RFMD Inc.    Greensboro, NC 27409
Nov 22, 2011 SMT power doubler, RFCM2680, is capable of delivering +61 dBmV output, while RFPP2870 push-pull amp features high gain 28 dB (min at 1,003 MHz). Functioning as Edge QAM amp or push-pull amp with +46 dBmV output, RFAM2790 meets DOCSIS 3.0 specifications with 7 dB margin and has inner-stage attenuator that provides 8-28 dB gain. Push-pull amp RFCA8818, optimized for CATV line driver stages, has 2 dB noise figure and delivers 17 dB gain and +34 dBmV min output power.

Atmel Corporation    San Jose, CA 95131
Nov 22, 2011 With 10+ in. sensing range, QTouch® AT42QT2120 Capacitive Touch Controller enables system to wake up as object or finger approaches. System then turns on backlight or boots up when touch operation commences. Utilizing QTouchADC sensing algorithm to eliminate need for external components, controller is suitable for automotive, computing, consumer, industrial, medical, and white/brown goods applications.

Atmel Corporation    San Jose, CA 95131
Nov 22, 2011 Offered in 5 x 7 mm QFN package, ATA5505 operates from 100-150 kHz and consists of AVR® MCU with RFID reader block and 16 KB in-system self-programmable Flash. Solution enables building of complete reader with few external components and antenna coil. By executing instructions in one clock cycle, MCU achieves throughputs approaching 1 MIPS per MHz. Applications include low-frequency Amplitude Shift Keying RFID readers and programmers for access control and industrial automation.

LSI Logic Corp.    Milpitas, CA 95035
Nov 22, 2011 Delivering operating speeds of up to 5.0 Gbps, TrueStore® PA5100 and PA5200 low-power preamplifier integrated circuits (ICs) accommodate needs of notebook, desktop, and enterprise HDD markets. HDD manufacturers gain flexibility to deploy common IC capable of serving all HDD market segments, from 5.4K rpm notebook through 15K rpm enterprise HDDs. While PA5200 write driver uses dual-power design, PA5100 write driver operates from single power supply.

Microsemi Corp.    Scottsdale, AZ 85251
Nov 22, 2011 Available in variety of packages, including DFN and WL-CSP, 2 A Model LX7167, 3 A Model LX7169, and 5 A Model LX7165 are suitable for powering disk drives used in enterprise applications. Control technology eliminates need for traditional control loop error amplifier and allows immediate response to load and line disturbances. Delays associated with control network are eliminated, maximizing speed while minimizing device bias currents.

eConais Inc    Patras   Greece
Nov 22, 2011 Measuring 20 x 27 mm, WiSmart-32 Series integrates embedded processor, onboard antenna, and power and clock management units. FCC-certified units support WPA/WPA2, 802.11b/g ad-hoc, and infrastructure mode, while providing variable memory space from 30-256 KB and up to 64 KB SRAM. Supporting digital communication ports like I2S, SPI, I2C, UART, and programmable GPIOs as well as ADCs and DACs, modules are suited for telemetry, medical electronic systems, POS equipment, and smart grid equipment.

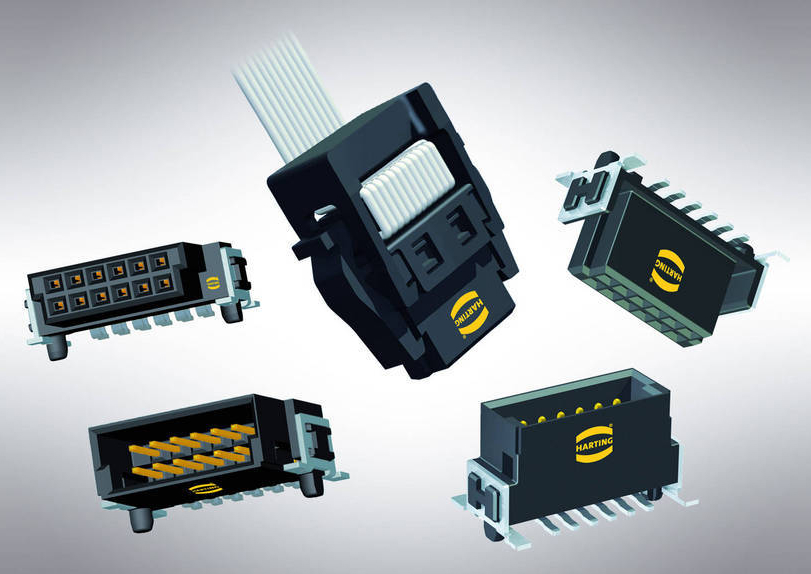

Harting KGaA      Germany
Nov 21, 2011 Complementing existing straight models and ribbon cable connectors, har-flex® series angled connector makes flexible and modular equipment configurations possible in board-to-board and board-to-cable applications. All versions are freely combinable and adapt to housing. Connector meets all requirements of transmission protocols such as Gigabit Ethernet and PCI Express and data rates up to 3.125 Gbit are achievable. Construction withstands adverse conditions.

Trek, Inc.    Medina, NY 14103 9710
Nov 21, 2011 Featuring all solid state design, Model 50/12 provides precise control of output voltages in range of 0 to ±50 kVdc or up to 100 kVac peak-to-peak with output current of 0 to ±12 mAdc or peak ac. Slew rate is greater than 350 V/µs and signal bandwidth (-3 dB) is dc to greater than 20 kHz. With less than 10 Vrms noise, bipolar amplifier is suited for dielectric studies, electrostatic deflection and flame control, high-voltage cable testing, and plasma studies.

M/A-COM Technology Solutions, Inc.    Lowell, MA 01851
Nov 21, 2011 MABA-000001-75KIT1 features 12 transformer models covering multiple impedance ratios and wind schematics. Transformer configurations include flux-coupled, transmission line, and auto transformer, and all parts in kit are SMT devices featuring ceramic, plastic, or FR4 substrates. Baluns meeting MoCA® and DOCSIS® requirements are also included, as is CD-ROM with datasheets, S-parameters, and application notes.

Supertex Inc.    Sunnyvale, CA 94619
Nov 18, 2011 Supplied in SOIC-8 or -16 package, HV9801A drives LEDs and dims lamp brightness to one of 4 preset levels via light switch toggling. Average-mode current control method, which does not require any loop compensation or high side sensing, provides accurate response to input voltage fluctuations, delivers accuracy exceeding 97%, and provides line and load regulation of LED current. Delivering flicker-free operation, IC works with all existing light switches and does not require wall dimmer.

NK Technologies    Campbell, CA 95008
Nov 18, 2011 Featuring 1 in. housing with ring design, AS1 Series-CC slips onto conductor to detect currents as low as 0.5 A with single conductor pass. Powered directly from monitored circuit, switch monitors and reports electric motor load status, identifies open heater circuit connections, and verifies that load is energized. Contact can control AC or DC circuits to 120 V, with max load capacity of 150 mA. With solid-state output and no moving parts, switch provides nearly unlimited operations.

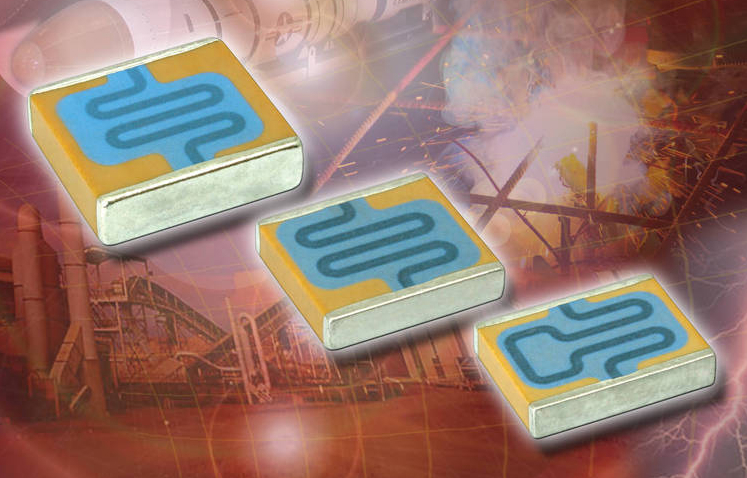

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Nov 18, 2011 For high-pulse-current applications, VJ controlled discharge capacitor (CDC) is manufactured in Noble Metal Electrode technology with wet build process and offers 1,000-1,500 Vdc voltage ratings and 33-560 nF capacitance values. Multilayer ceramic chip (MLCC) capacitor features low electrostrictive ceramic formulation for repeated charge and discharge cycles, promoting field reliability. Supplied in 3040, 3640, and 4044 case sizes, device is available with X7R and X5P dielectrics.
