Maxim Integrated Products    Sunnyvale, CA 94086
Aug 19, 2009 Operating from 500 kHz to 2 MHz switching frequency, MAX15038 and MAX15039 deliver up to 4 and 6 A output current, respectively, and enable implementation of all-ceramic capacitor designs. User-selectable, fixed-frequency PWM and pulse-skipping modes ensure optimal efficiency during light loads. Housed in 4 x 4 mm TQFN package, synchronous converters operate from 2.9-5.5 V supply and provide ±1% output voltage accuracy over line, load, and temperature variations.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 19, 2009 Available in 2 versions tailored for 3.3 or 5 V controllers, Model SiC769 integrates high-side and low-side n-channel MOSFETs, plus MOSFET driver IC in single PowerPAK® MLF6x6 package. Device is fully compliant with DrMOS specification for voltage regulators in CPU-based systems. Operating from input voltage of 3-16 V, unit delivers up to 35 A continuous output current. Integrated power MOSFETs are optimized for output voltages of 0.8-2.0 V, with nominal input voltage of 12 V.

Altera Corporation    San Jose, CA 95134
Aug 19, 2009 Offering complete system of pre-verified components and supporting hardware reference designs, Arria® II GX FPGA Development Kit provides hardware and software resources needed to evaluate and adopt Arria II GX 40 nm FPGAs. Entire PCIe Gen1 end-point design package features PCI-SIG-compliant Arria II GX FPGA-based development board with embedded PCIe Gen1 hard IP core. Users also get one-year license for Quartus® II Design Software and access to MegaCore® IP library.

RADIALL Inc    Chandler, AZ 85226
Aug 19, 2009 Field installable on most analog and digital coaxial cables using hand crimping tools, BNC 75 W HDTV Connectors feature gold-plated center and outer contacts, which provide electrical performance up to 6 GHz. Units can handle data rates up to 3 Gbps or higher to support SMTPE292 and SMTPE424 standards. Connectors are suited for cameras, video recorders, and routers, as well as satellite transceivers, aircraft audio systems, and test instrumentation.

Radiall    Chandler, AZ 85226

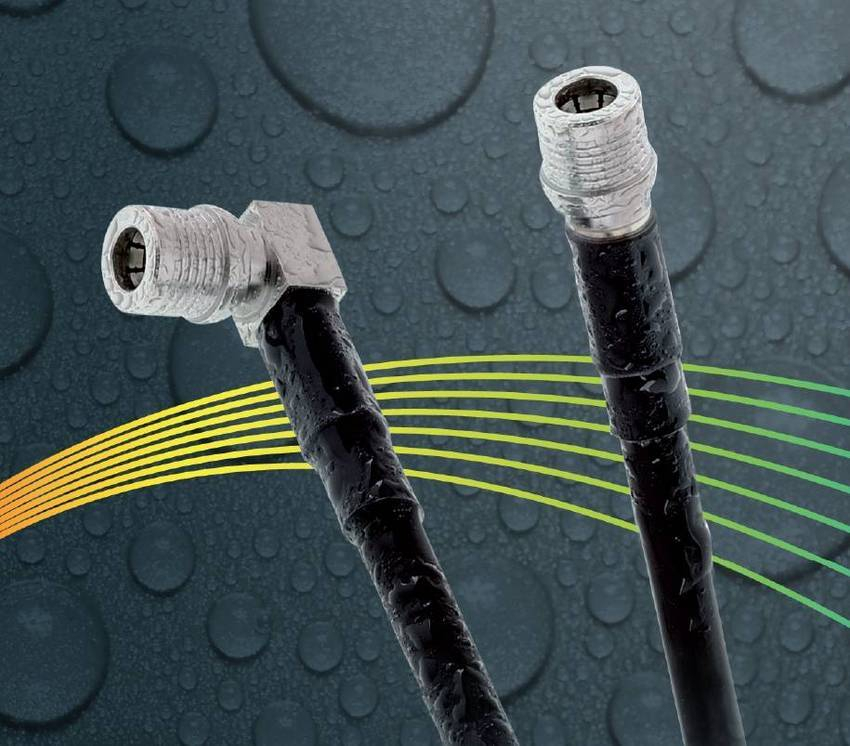

Aug 19, 2009 Featuring snap-on Quick Lock technology, high density RF coaxial Waterproof QMA (WQMA) connectors offer electrical performance and environmental characteristics, eliminating need for watertight enclosures or cable entries. They feature 100 matings minimum, straight and right angle options, wide temperature range of -40 to +105°C, and 200 W power rating at 1 GHz, 75°C. RoHS compliant connectors mate with any QLF® certified standard QMA jack, providing IP68 rated ingress protection.

Phoenix Contact    Harrisburg, PA 17111 0100

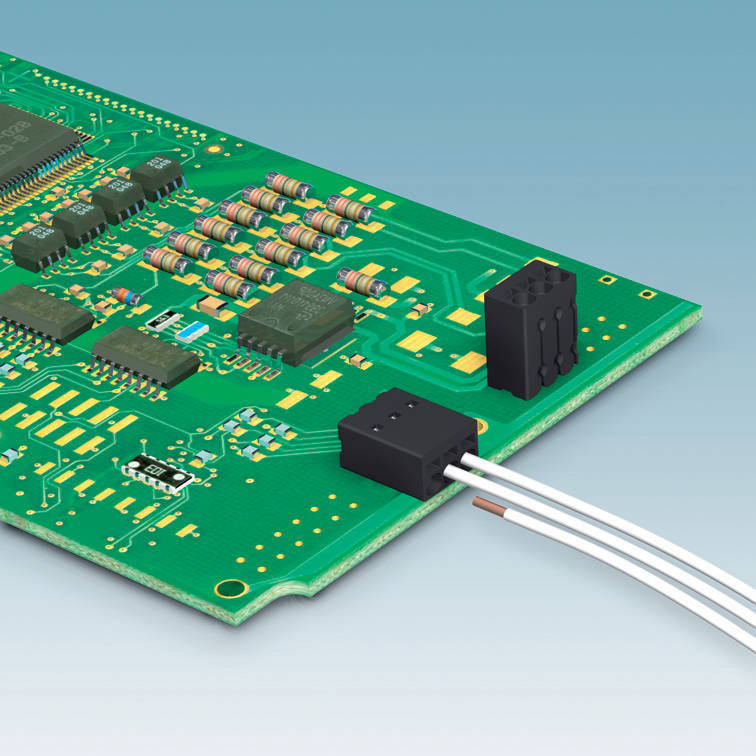

Aug 19, 2009 Standing 5 mm tall with 2.5 mm centerline, PTSM targets space-critical applications such as LED lighting, building automation, and power supply units. Spring-cage connector is rated for 6 A, and is available in 2 mounting technologies: pin-in-paste method or surface-mount technology. SMD anchors enable multiple wire termination and disengagement cycles.

Rohde & Schwarz GmbH & Co      Germany
Aug 19, 2009 BBA100 has modular design that allows users to select frequency range and output power to suit their requirements, and built-in expansion capability allows amplifier modules to be replaced easily. Device features 3 frequency bands, each with configurable interlock circuit, that cover range from 9 kHz to 1 GHz and provide power up to 500 W. Integrated system controller controls frequency bands, switches system components, and monitors device.

Maxim Integrated Products    Sunnyvale, CA 94086
Aug 18, 2009 Combining active-input-termination LNA, VGA, anti-alias filter, and I/Q mixer continuous-wave Doppler beamformer in one monolithic device, Model MAX2078 supports input impedances of 50, 100, 200, and 1,000 W. Unit can achieve full receiver noise figure of 2.4 dB with 200 W input impedance termination, while consuming less than 65 mW per channel. Device boasts SNR of 140 dBc/Hz at 1 kHz from 5 MHz clutter signal, and 23 nV cascaded output-referred noise.

Maxim Integrated Products    Sunnyvale, CA 94086
Aug 18, 2009 Sensitive to FM, VHF, and L-band frequency ranges, MAX2172 features FM sensitivity of -111 dBm. Integrated tracking filter eliminates interference between bands and unit includes mixers and synthesized local oscillator. Received-signal-strength indicator provides ±2 dB accuracy and outputs measured level in digital form through I²C bus. Drawing 61 mA from 3 V supply, IC utilizes standard 2.048 MHz IF frequency and is specified over -40 to +85°C temperature range.

Maxim Integrated Products    Sunnyvale, CA 94086
Aug 18, 2009 Designed to withstand harsh operating conditions in automotive applications, MAX9532 drives standard-definition video connections to in-dash or rear-seat automotive display. Unit integrates short-to-battery protection up to 18 V on video output, eliminating need for external series resistor. Operating from 2.7-3.6 V supply, amplifier employs DirectDrive® technology, which automatically removes dc offset, places video black level at ground, and puts sync-tip below ground.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 18, 2009 Measuring 0.455 x 0.275 in. with 0.095 in. profile, Power Metal Strip® WSR5 offers resistance values from 1-300 mW with ±1% tolerance and 10-300 mW with ±0.5% tolerance. Inductance values range from 0.5-5 nH. Featuring all-welded construction and molded, high-temperature encapsulation with integrated heat sink, current sensing resistor operates from -65 to +275°C. Applications include computer, telecommunications, and automotive systems.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 18, 2009 Suited for high-frequency applications, Models MUH1PB, MUH1PC, and MUH1PD respectively offer 100, 150, and 200 V reverse voltage ratings and come in eSMP(TM) series MicroSMP package measuring 2.3 x 1.2 x 0.65 mm. Each features average forward current of 1 A, forward surge capability of 10 A, and leakage current of 1 µA. Built to be RoHS-compliant, halogen-free products have 25 nsec reverse recovery time, offer oxide planar chip junction, and are suited for automated placement.

Altera Corporation    San Jose, CA 95134
Aug 18, 2009 Targeting power- and board space-sensitive applications, Altera® Cyclone® III LS FPGAs are rated at less than 0.25 W of static power for 200 K logic elements. Information-assurance design suite offers anti-tamper, design-security, and design-separation capabilities. To protect highly sensitive information, anti-tamper features include JTAG port protection, tamper monitoring, and cyclical redundancy check. FPGAs also have AES 256-bit encryption key for design security.

Altera Corporation    San Jose, CA 95134
Aug 18, 2009 Featuring up to 48 transceivers (11.3 Gbps) and 530K logic elements, Stratix® IV GT EP4S40G5 and EP4S100G5 support range of 40G/100G technologies. Single-chip solutions' transceivers can interface directly to CFP optical module and meet emerging IEEE 802.3ba standard for 100G MACs. Supporting various protocols and standards, FPGAs offer density and bandwidth that help incorporate traffic management, packet processing, and custom functionality into one device.

STMicroelectronics    Lexington, MA 02421
Aug 18, 2009 Able to simplify designs, STV4100 is supplied in 5 x 5 mm QFN package, eliminates need for up to 30 separate components, and does not require any adjustment. Single-chip DVB-T silicon tuner combines with ST demodulator and decoder ICs to deliver complete set-top box chipset. It meets all DVB-T standards, including DTG, Nordig Unified v2.0, and Digitenne, and has operating current of 600 mA that minimizes power consumption in STBs, iDTVs, PC-TV receivers, and DVD/Blu-ray recorders.

Lattice Semiconductor Corp.    Hillsboro, OR 97124
Aug 18, 2009 Available in 0.8 mm pitch, 14 x 14 mm, 256-pin Chip-Array BGA package with up to 211 user I/O, Mach XO640, XO1200, and XO2280 enable implementation of board space-constrained designs. Units include embedded memory, built-in PLLs, multi-voltage I/O, remote field upgrade technology, and low-power sleep mode. PLDs are suited for general purpose I/O expansion, control, bus bridging, and power-up management functions in wide range of low-density applications.

Xilinx, Inc.    San Jose, CA 95124 3400
Aug 18, 2009 Virtex®-5Q FPGAs leverage ASMBL(TM) architecture and underlying programmable technologies to optimize speed, capacity, and power consumption. Cryptographic capabilities are included along with inherent re-programmability and SCC technology, while ruggedized packaging across board provides redundant protection against tin-whiskering and support for military assembly processes. Defense-grade devices include 4 domain-specific FPGA families.

Xilinx, Inc.    San Jose, CA 95124 3400
Aug 18, 2009 Designed to help shorten development cycles, Xilinx Base Targeted Design Platform Kits combine v11.2 release of ISE® Design Suite, IP, and pre-verified reference designs targeting Virtex-6 or Spartan-6 FPGAs. Reference designs outline best practices for integrating custom elements into base design and implementing features such as DDR2 and DDR3 memory interfaces, high-speed serial I/O, and on-chip clocking resources. Board schematics and layout files further streamline design process.

Yageo Corporation    Taipei   Taiwan
Aug 18, 2009 Available in 0.25 and 0.5 W versions, PF1206 features ultra-low resistance range of 1-50 mW and temperature coefficient of 75 ppm/°C. Device can be used in power control circuit of netbook and notebook computers or hard disks of other compact portable devices that have stringent space as well as current sensing and over-current protection requirements.

Maxim Integrated Products    Sunnyvale, CA 94086
Aug 17, 2009 Available in 25 MHz SPI(TM) and 400 kHz I²C versions, MAX11810 and MAX11811 are touch-interface systems with integrated 4-wire touch-screen controllers, haptic controller drivers, and IR-based proximity sensing. Each operates from one 1.7-3.6 V supply and can drive DC motor directly or piezo elements using external piezo driver. Also included, automatic validation of touch responses functionality reduces data transfer and power draw.
