International Rectifier Corp.    El Segundo, CA 90245
Jan 07, 2010 Featuring 200 V technology, IR11672A SmartRectifier(TM) IC drives N-channel power MOSFETs used as synchronous rectifiers in isolated flyback and resonant half-bridge converters. MOT protection circuitry prevents reverse current at very light load or no load conditions, and minimizes power shutdown spikes that cause avalanche breakdowns during power off. With Vcc operating range of 11.3-20 V, RoHS-compliant device features max switching frequency of 500 kHz and 7 A peak turn-off gate drive current.

Microsemi    Irvine, CA 92614
Jan 07, 2010 Featuring PureBLACK(TM) technology, LX6503A(TM) Inverter Controller optimizes black-level quality and dynamic contrast performance in 40 in. and larger LCD TVs. Unit features soft-start capability, fault indication, and flexible configuration support for push-pull, full-bridge or half-bridge drive topologies. Synchronization functionality synchronizes both frequency and phase of lamp current between inverters, or to external signals from variety of sources.

TE Connectivity Ltd.    Berwyn, PA 19312
Jan 07, 2010 Rated at 2 A and 250 Vdc/250 Vac, RoHS-compliant G13 Style SMT Assembly supports PCBs and LED strip lighting modules found in standard T8 and T12 fluorescent LED retrofit tubes. Surface mount hold-down provides stability of connector during insertion and/or extraction of LED tube. Compatible with FR4 and aluminum clad PCBs, assembly has UL 94 V0 rated, high temperature-resistant thermoplastic housing. End-cap cover interfaces with connector assembly, heat sink, and tube.

Intersil Corporation    Milpitas, CA 95035
Jan 07, 2010 Operating from 4.5-19 V, Model 5421T contains 4 buffers, each exhibiting common mode input capability beyond supply rails and rail-to-rail output capability. Unit can be configured for single or dual supply operation, and typically consumes 500 µA per buffer. It has output short circuit capability of ±200 mA, continuous output current capability of ±70 mA, and slew rate of 12 V/µs. Housed in 10-lead MSOP package, Model 5421T operates over ambient temperature of -40 to +85°C.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675

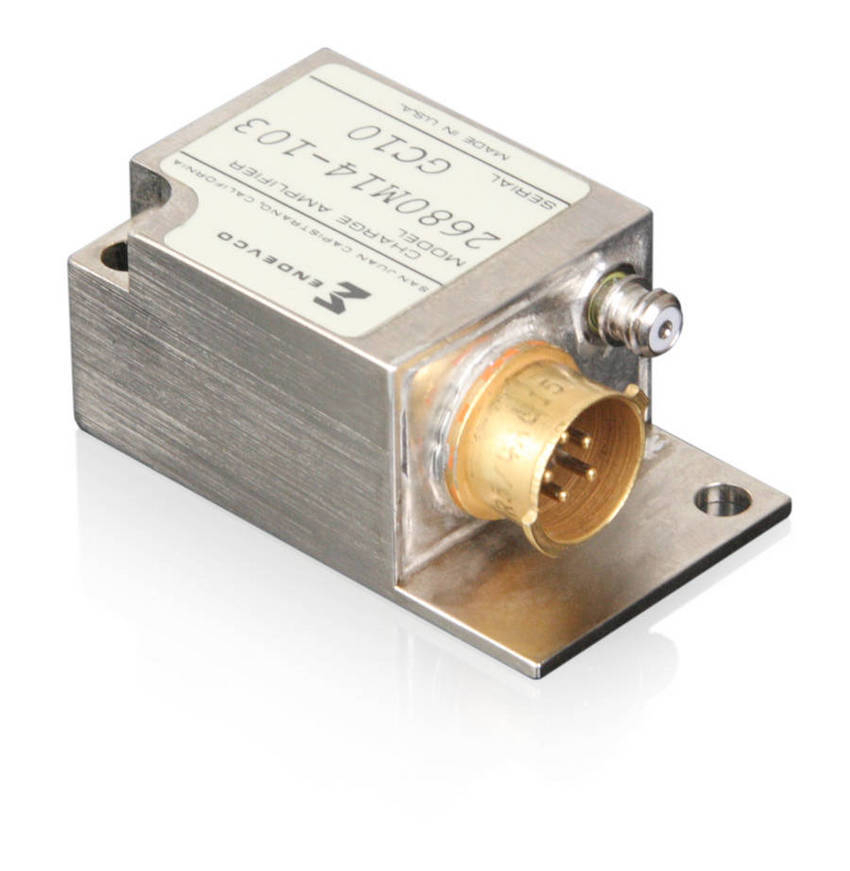

Jan 06, 2010 Operating from onboard aircraft DC-power source, Endevco® Airborne Amplifiers are designed for use with piezoelectric microphones and accelerometers. Charge amplifier, Model 2680M-XXX offers dual outputs, one biased and one unbiased, both of which are adjustable with common gain control. Voltage amplifier, Model 2685V is used with ISOTRON® accelerometers, providing constant current power source to transducer's integral electronics, while maintaining 2-wire connection.

Toko America, Inc.    San Jose, CA 95131
Jan 06, 2010 Supplied in 2.5 x 2.0 x 1.2 mm package, coiled power inductor is intended for personal electronics such as cell/smart phones and digital cameras. Its low-resistance coils, dense flat power lines, and metallic magnetic materials resist magnetic saturation and can be used for direct currents. Featuring inductance value of 10 µH, product also exhibits minimal audible noise due to combination of coil and core in one unit.

International Rectifier Corp.    El Segundo, CA 90245
Jan 06, 2010 Model IR3522 dual-output PWM controllers with I²C interface provide system control for DDR3 VDDQ and Vtt rails. They interface to any number of IR3506 phase ICs to drive as many phases as needed for powering unlimited number of memory modules. Efficiency is optimized via phase dropping feature and DirectFET® MOSFETs. Included phase ICs feature 7 V/2 A gate drivers, support lossless inductor current sensing, and include overcurrent protection during PSI assertion mode.

International Rectifier Corp.    El Segundo, CA 90245
Jan 06, 2010 Designed for high-current, high-voltage automotive inverter modules used in electric vehicles and hybrid electric vehicles as well as medium power drives, 1,200 V Model AUIRG7CH80K6B-M features Solderable Front Metal, which allows dual-sided cooling and enables wire bonds to be eliminated. Available in die form only, device includes square reverse bias safe operating area, up to 175°C max operating temperature, peak turn-off capability, and short circuit rating of 6 µs.

Microsemi    Irvine, CA 92614

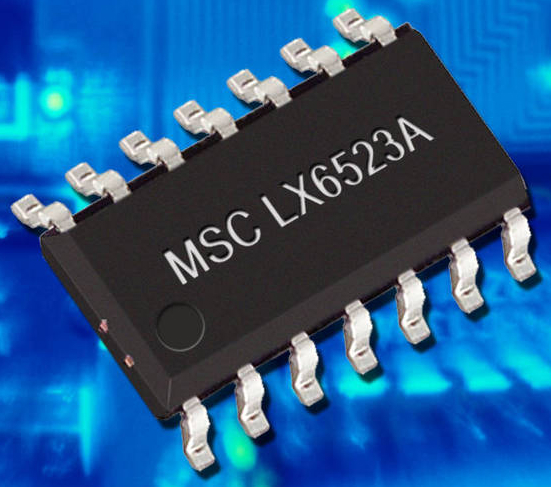

Jan 06, 2010 Supplied in 14-lead SOIC, LX6523A(TM) provides all key functions needed for 26-37 in. LCD TV/monitor displays. Embedded PureBLACK(TM) mega-contrast dimming technology promotes display quality and performance by adjusting lamp voltages to match multi-lamp currents to tight tolerances. It also optimizes black levels and contrast performance. Soft-start capability and fault indication are also included, along with configuration support for push-pull, full-bridge, or half-bridge drive topologies.

Intersil Corporation    Milpitas, CA 95035
Jan 06, 2010 Model QLx4300-S45 settable quad receive-side equalizer, compatible with InfiniBand and 10GBase-CX4 protocols, compensates for frequency-dependent attenuation of copper twin-axial cables to extend signal reach up to 40 m on 24 AWG cable. Its 4 equalizing filters can each be set to one of 32 compensation levels, each level set by either 3 external control pins or serial bus interface. Unit operates on 1.2 V power supply and utilizes current mode logic I/O.

Intersil Corporation    Milpitas, CA 95035
Jan 06, 2010 Model QLx4600-S30 settable quad receive-side equalizer offers support for protocols such as InfiniBand, PCI Express, and 10GBase-CX4. It compensates for frequency-dependent attenuation of copper twin-axial cables, extending signal reach up to 30 m on 24 AWG cable. Operating on 1.2 V power supply, unit offers 4 equalizing filters, each which can be set to 1 of 32 compensation levels. Product utilizes current mode logic I/O and is packaged in 4 x 7 mm, 46-lead QFN package.

Intersil Corporation    Milpitas, CA 95035
Jan 06, 2010 Operating on single 1.2 V power supply, Model QLx4600-SL30 enables per channel throughputs up to 6.25 Gbps for advanced protocols such as InfiniBand and 10GBase-CX4. Settable quad receive-side equalizer compensates for frequency dependent attenuation of copper twin-axial cables, extending signal reach to 30 m on 24 AWG cable. Housed in 4 x 7 mm QFN package, device uses current mode logic inputs/outputs and has 4 equalizing filters that can each be set to 1 of 32 compensation levels.

Microsemi    Irvine, CA 92614
Jan 06, 2010 Supplied in RoHS-compliant, 16-pin, 3 x 3 x 0.9 mm QFN package, LX5518(TM) is suited for IEEE 802.11b/g/n WLAN applications in 2.4-2.5 GHz range. It delivers 26.2 dBm of orthogonal frequency division multiplexing output power at 3% error vector magnitude while consuming 391 mA of current and operates over -40 to +85°C. Along with 30 dB+ OFDM Power Gain and 50 ohm input match, product features temperature-compensated on-chip output power detector.

SUYIN Connector GmbH    Pfarrkirchen 84347  Germany
Jan 05, 2010 Suitable for automatic assembly, rPGA-989 SMT processor sockets accommodate Intel Core-i7 Mobile Clarksfield quad-core CPUs. Each socket measures 46.98 x 39.6 x 4.60 mm and features 989 contacts arranged in 1 x 1 mm pattern. Design receives CPU chips without application of insertion force, and components located in socket are resistant to shock/impact up to 50G. Socket connections are available with flash gold plating in contact area with up to 0.76 µm of gold over 30 µm of nickel.

PR Electronics    San Diego, CA 92128
Jan 05, 2010 Featuring universal power supply of 21.6-253 Vac and 19.2-300 Vdc, PReasy 4100 Series can be configured for all types of industrial measuring signals such as RTD, TC, Ohm, Potentiometer, mA, and V. Depending on desired output function, user can choose between Model 4114 with analog output, Model 4131 with 2 relays, or Model 4116 with analog output and 2 relays. Display front, Model 4501, can be used for signal visualization, but modules can also function without display.

Emerson Network Power    St. Louis, MO 63136
Jan 05, 2010 Measuring 2.3 x 1.8 in., Model ATC250 features 12 V primary intermediate bus output rated up to 250 W at 20.83 A, and 2 independent -48 Vdc inputs, each with voltage range of -36 to -72 Vdc. Secondary 3.3 V management bus output can supply up to 14.85 W of regulated power for control and monitoring functions. Operating from -25 to +85°C, converter also includes EMI filter, remote On/Off, I2C serial bus interface, and 50-80 V of programmable hold-up voltage via external trim resistor.

California Micro Devices    Milpitas, CA 95035
Jan 05, 2010 Supplied in 10-pin, 2.5 x 1.0 mm microUDFN package, PicoGuard® CM1227 exceeds IEC61000-4-2 level 4 standards by providing 4 channels of ±15 kV of contact ESD protection in digital consumer and computer applications. It offers low channel input capacitance of 0.35 pF as well as channel input capacitance matching of 0.02 pF (typ). Each I/O pin can withstand 1,000+ ESD strikes, and level of ESD protection suits Transition Minimized Differential Signaling Channels.

Linear Technology Corp.    Milpitas, CA 95035
Jan 05, 2010 Designed for 4-80 V systems, Model LT2940 measures, monitors, and controls power in situations where current and voltage may vary due to supply voltage uncertainty, component parametric changes, transient conditions, or time-varying signals. After measurements are taken, current and power levels can be scaled, filtered, and monitored separately. Housed in 12-pin 3 x 3 mm DFN and 12-lead MSOP packages, IC offers 5% power measurement accuracy and 3% current measurement accuracy.

Central Semiconductor Corp.    Hauppauge, NY 11788
Jan 04, 2010 Supplied in 10.41 x 8.51 x 2.69 mm surface-mount SMDIP case, CBRSDSH5-40 features 5 A current rating and peak repetitive reverse voltage rating of 40 V. This full wave bridge rectifier, mounted in epoxy case, utilizes glass passivated chips and is suited for portable power management and solid state lighting applications. Additional specifications include VF of 0.37 V and IR of 40 µA.

Maxim Integrated Products    Sunnyvale, CA 94086
Jan 04, 2010 Featuring on-capacitance of 4 pF and on-resistance of 4 W, MAX14550E includes circuit that automatically detects portable devices. Unit allows host to charge portable devices even when it is in standby and cannot enumerate USB devices. Housed in 3 x 3 mm, 10-pin TDFN package, MAX14550E is suited for space-constrained notebooks and netbooks. It supports USB Battery Charging Spec Rev 1.0 with shorted D+/D- detection, as well as Apple®-compliant devices using set resistor bias.
