Kemet Electronics Corp.    Greenville, SC 29606
Feb 09, 2010 Supplied in 7 standard EIA case size options with nickel barrier/tin or Sn/Pb terminations, High Temperature Surface Mount C0G MLCCs feature base metal dielectric system. Standard capacitance ratings range from 0.5 pF to 0.22 µF in capacitance tolerance offerings of ±0.25 or ±0.5 pF and ±1%, ±2%, ±5%, ±10%, or ±20%, and temperature coefficient of capacitance is ±30 ppm/°C from -55 to +200°C. Non-polar devices exhibit no piezoelectric noise and no capacitance decay with time.

RADIALL Inc    Chandler, AZ 85226
Feb 09, 2010 Used to connect avionic equipment, multi-pin NSX series (ARINC 600 standard) offers contacts with standard crimp termination and solder tails for printed circuit card applications. Size 10 concentric twinax contact complements legacy size 8 and size 5 range while promoting density and electrical performance. Layout possibilities include 13 contacts size 10 (13T13); 18 contacts size 10 (18T18); and 2 contacts size 8, 7 contacts size 16, and 6 contacts size 10 (15T6Q2).

Pacific Aerospace & Electronic    Wenatchee, WA 98801
Feb 09, 2010 Combining MIL-PRF-83513 compliant Micro-D interface with low magnetic permeability, Micro-D Connectors are suitable for harsh environments where hermetic integrity and non-magnetic characteristics are crucial. Units feature titanium and Inconel shell with polycrystalline ceramic sealing technology. Available in 9-100 pin configurations, connectors provide insulation resistance of more than 5,000 MW at 500 Vdc and operate from -65 to 260°C.

AVX Corp.    Myrtle Beach, SC 29578

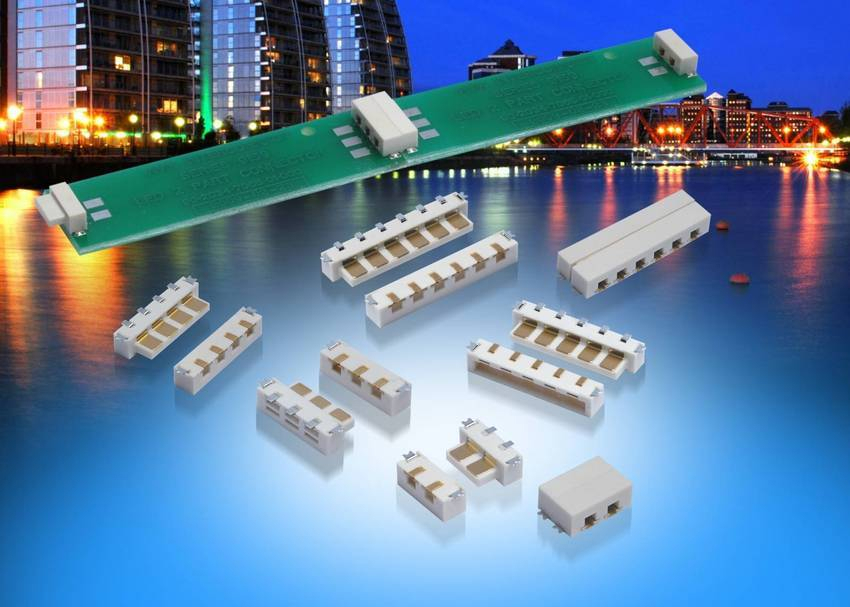

Feb 08, 2010 Miniature 9159 Series solid-state lighting connectors for PCB strip lighting applications feature slide-top receptacle that eases in-field repair and replacement. Shorting socket and locking mechanism ensure positive attachment. Two-piece SMT wire-to-board connectors have 3.0 mm pitch, 3.0 mm height, and 5.50 mm width when mated together. Operating in -55 to +125°C temperatures, units are tooled in 2-, 3-, 4-, 5-, and 6-position versions have 125 Vac voltage rating.

Linear Technology Corp.    Milpitas, CA 95035

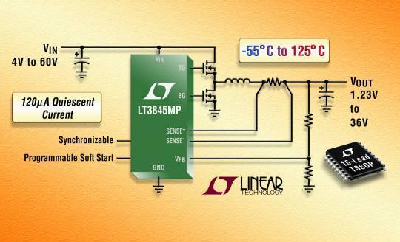

Feb 08, 2010 With input voltage of 4-60 V, synchronous Model LT3845 can produce output voltage of 1.23-36 V. Burst Mode® operation keeps quiescent current under 120 µA in no load standby conditions, while onboard N-channel MOSFET gate drivers provide output current up to 20 A at efficiencies as high as 95%, making device suited for 12 and 24 V automotive systems and industrial controls. Switching frequency is programmable from 100-500 kHz or can be synchronized to external clock up to 600 kHz.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Feb 08, 2010 Housed in 1.2 x 1.2 mm WCSP package, Model TPA2011D1 delivers 3.2 W into 4 W at 5 V with no audible pop. Device is equipped with integrated DAC noise filter, which minimizes out-of-band noise and provides low-pass cutoff frequency of 130 kHz, which could eliminate need for external filter on inputs. With quiescent current of 1.5 mA, amplifier optimizes battery efficiency and maximizes battery life in mobile phones and portable media players.

NEC Electronics    Santa Clara, CA 95050
Feb 05, 2010 Enabling high-resolution processing with one frame of image data, µPD9281GC NeoClearResolution(TM) ASSP addresses divergence between legacy image resolution and higher resolution of current AV display systems. It reduces mosquito noise caused by JPEG/MPEG compressed images and supports LVDS interface to reduce external components as well as conserve space on system boards. Designers can select up to 4 specific sections of image and apply super-resolution technology to enhance image quality.

NEC Electronics    Santa Clara, CA 95050
Feb 05, 2010 Featuring six 48-pin 78K0R/KC3-L models and six 64-pin 78K0R/KE3-L models, All Flash(TM) 16-bit Microcontrollers offer low standby power consumption of 0.37 µA and low active power consumption of 6.4 mA at 20 MHz during CPU operation. On-chip USB function controller facilitates connection between peripheral systems, consumer electronics devices, and healthcare appliances. All models are available in 7 x 7 x 1.0 mm TQFP package.

Epcos, Inc.    Iselin, NJ 08830
Feb 05, 2010 Sample kit includes EPCOS SMD CU varistors covering voltage range from 16-385 Vdc and designed for surge currents of between 100-1,200 A and standard pulse of 8/20 µsec. Depending on type of varistor, maximum energy from 2,200-23,000 mJ can be absorbed for 2 msec, and units have maximum AC operating voltage exceeding 130 Vrms to satisfy UL and CSA requirements. All CU varistors in kit can be operated at temperatures of up to 85°C without derating.

FCI    Etters, PA 17319
Feb 05, 2010 Based on stamped-and-formed power contact technology, HPCE(TM) High Power Card Edge Connector features low-profile height of less than 7.50 mm, which optimizes airflow and heat dissipation. Unit is available with power and signal contacts integrated into single molded housing for power distribution and power control. Equipped with touch-proof safety feature and polarization option, connector is suited for 1U/2U servers, storage enclosures, telecom equipment, and datacom/networking equipment.

ON Semiconductor, LLC    Phoenix, AZ 85008
Feb 05, 2010 With current capability up to 76 A, 100 V N-Channel MOSFETs feature avalanche ratings up to 500 mJ and RDS(on) as low as 13 mW. Units are 100% Avalanche tested, AEC-Q101 qualified, Pb-free, and RoHS-compliant. Typical applications include industrial motor control, power supplies, power inverters in uninterruptible power supplies, and direct gas injection in automotive industry.

JKL Components Corp.    Pacoima, CA 91331-2376
Feb 05, 2010 Featuring 78 x 22 mm footprint with 16 mm above PC board, Model LD-700A offers 10:1 dimming ratio using pulse width modulation. RoHS-compliant driver provides solution for situations with design limitations on space and size. Applications include display lighting, gaming machines, panel illumination, landscape lighting, and architectural lighting.

Analog Devices, Inc.    Norwood, MA 02062-9106
Feb 05, 2010 Designed using iCoupler® chip-scale micro-transformer technology, ADuM540xW Series integrates DC-to-DC converter, which provides up to 500 mW of regulated, isolated power at 5 V output. Units offer multiple isolation channels in variety of channel configurations and support data rates up to 25 Mbps. Operating from supply voltage of 4.5-5.5 V on either side, devices are qualified for AEC-Q100 -40 to +105°C automotive temperature, suited for HEV motor drives and battery management systems.

Crestron Electronics, Inc.    Rockleigh, NJ 07647
Feb 05, 2010 Designed for Prodigy® entertainment and control solutions, PAMP-4X100 delivers 6 stereo sources to 4 rooms at 50 W/channel and can be expanded up to 12 rooms. Room volume control and source selection are available from front panel; PTL4 touchpanel; PLX2 handheld remote; wired or wireless audio keypads; iPhone®; or iPod touch®. Multi-zone processor amplifier distributes music throughout multiple rooms by pressing one button.

Fairchild Semiconductor    San Jose, CA 95134
Feb 05, 2010 Model FSGM0565R FPS(TM) power switch features SenseFET 650 V startup circuit that includes drain-current sensing and shortens overcurrent time delay to less than 200 nsec. Suitable for off-line power supplies up to 60 W, switch achieves standby power consumption in 66 kHz flyback converter of 120 mW at 265 Vac in 25 mW of load. Product features multiple protection features, all with auto-restart, and offers supply-voltage range of 12-24 Vdc, 15 msec soft-start, and lightning surge immunity.

Central Semiconductor Corp.    Hauppauge, NY 11788
Feb 04, 2010 Packaged in HD DIP case, Model CBRHDSH2-100 has low reverse leakage current of 0.7 µA and addresses need for 2 A, 100 V full wave bridge rectifier in power management, solid state lighting, and power over Ethernet applications. Device offers 50% reduction in utilized board space compared to 4 individual Schottky rectifiers in SMA package.

Maxim Integrated Products    Sunnyvale, CA 94086
Feb 04, 2010 Supplied in 7 x 7 mm TQFN package, MAX2135 receives signals in VHF-low, VHF-high, and UHF bands and integrates 2 signal paths that operate from one fractional-N synthesizer. Each path's output consists of 4 MHz, low-IF signal that interfaces to most demodulator ICs, and on-chip lowpass filters that accommodate 4, 6, 7, and 8 MHz signal bandwidths make device suited for receiving ISDB-T and DVB-T broadcasts. UHF noise figure is 3.8 dB typ, and power consumption ranges from 330-200 mW.

Maxim Integrated Products    Sunnyvale, CA 94086
Feb 04, 2010 Featuring integrated gate logic, Models MAX17120/MAX17121 are triple/dual level-shifting scan drivers for TFT panels. Each has 2 channels that switch complementarily. Outputs swing from +40 V to -30 V and can drive capacitive loads. To save power, complementary outputs share charge of capacitive load before they change states. Housed in 5 x 5 mm TQFN package, Model MAX17120 is suited for large HDTV LCD panels, while Model MAX17121, housed in 4 x 4 mm TQFN package, suits regular-sized panels.

Maxim Integrated Products    Sunnyvale, CA 94086
Feb 04, 2010 Featuring 12 nsec propagation delay and 2 A drive capability, Model MAX15054 is suitable for high-brightness LED designs that require buck or buck-boost topology but lack high-side MOSFET driver. Dual UVLO feature protects power MOSFET from damage in event that gate-drive or supply voltage is too low. Housed in 2.9 x 2.8 mm, 6-pin SOT23 package, driver operates up to 60 V and is specified over -40 to +125°C automotive temperature range.

Semtech Corp.    Newbury Park, CA 91320
Feb 04, 2010 Supplied in 1.5 x 1.5 x 0.6 mm MLPQ package and requiring 3 external components, SC195 synchronous step-down (buck) regulator operates from 2.9-5.5 V input and provides 15 pin-programmable output voltages from 0.8-3.3 V. Multiple protection features are standard, along with integrated feedback network and internal loop compensation. In addition to 500 mA continuous output current rating, product offers 3.5 MHz PWM operation and up to 94% efficiency.
