Saelig Co., Inc.    Pittsford, NY 14534

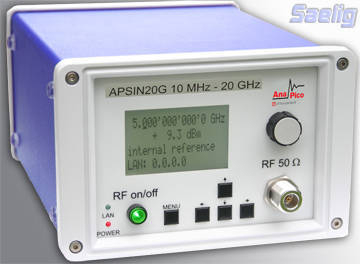

Feb 01, 2011 Model APSIN20G provides micro-Hz frequency resolution and flat output power range to 30 dBm. All modulation modes - AM, DC-coupled wideband FM, PM, FSK and PSK, frequency chirp, and pulse - can be combined, allowing for generation of complex signals for communication and location systems. Along with controllable trigger and sweeping modes, features include frequency synthesis with fractional-N divider, 200 µsec frequency switching time, and temperature-compensated 100 MHz reference.

Analog Devices, Inc.    Norwood, MA 02062-9106
Feb 01, 2011 Achieving 35 µVrms noise at 1.8 V output and 60 dB power supply rejection ratio at 100 kHz, ADP124 and ADP125 help battery-operated portable equipment run longer and more efficiently. LDOs operate from 2.3-5.5 V and provide up to 500 mA output current. While ADP124 offers 31 fixed-output voltage options from 1.75-3.3 V, ADP125 provides adjustable output voltage from 0.8-5.0 V. Quiescent current of 210 µA and 130 mV dropout voltage at 500 mA load further extends device battery life.

ROHM Semiconductor USA LLC    San Diego, CA 92121
Feb 01, 2011 Surface mount SIM-030/031ST and SIM-040/041ST IR LEDs feature wavelength technology that provides peak output of 850/870 nm, which is close to peak wave sensitivity of phototransistors, enabling high efficiency proximity sensing and energy savings. SIM-030/031ST measures 2.3 x 1.95 x 0.9 mm and with forward current of 100 mA delivers typical emission strength of 30 mW/sr, while SIM-040/041ST measures 3.1 x 2.25 x 1.6 mm and provides 40 mW/sr typical emission strength.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Feb 01, 2011 Integrating DAC and power rails, Model TLV320DAC3202 features digital input I²S and integrated clocking system that delivers 100 dB SNR at 6.5 mW power dissipation. Power management technology facilitates seamless operation between battery and switched mode input voltage supply for efficient playback. With 2 x 2.5 mm footprint, standalone headset driver offers optimal PSRR, enabling direct power from asynchronous switched mode input voltage supply at 100 dB per channel SNR.

Belden, Inc.    University City, MO 63105
Jan 31, 2011 Supplied in IP30-rated housings from 59 x 45 x 16.8 mm to 84.8 x 35.6 x 16.8 mm with test socket and active terminating resistor, Profibus DP connectors feature D-Sub and M12 interface with 35°, 90°, or 180° cable outlets. All versions support data rates to 12 Mbps, and quick-connection technology enables Profibus DP devices to securely connect with M12 Profibus cord sets without tools. Shielding geometry and die-cast zinc housing ensure error- and loss-free data transmission.

Maxim Integrated Products    Sunnyvale, CA 94086
Jan 28, 2011 Enabling design of retrofit LED lamps that can replace halogen MR16s without any changes to existing electrical infrastructure, MAX16840 employs architecture that ensures flicker-free, dimmable operation with electronic transformers and cut-angle dimmers. Product can also be designed without electrolytic capacitors, extending lifetime of LED lamp, and delivers up to 20 W of power. It is specified over -40 to +125°C range and comes in thermally enhanced, 3 x 3 mm, 10-pin TDFN package.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Jan 28, 2011 Powered by SiGe BiCMOS process, PowerWise® repeaters provide 36 dB equalization gain, consume 55 or 65 mW/channel, and deliver 20 m reach over 24-AWG cable. They enable data bandwidth up to 10.3125 Gbps by performing receive equalization and transmit de-emphasis. The DS100BR410 has 4 unidirectional channels and supports 2.5 V single-supply voltage, while DS100BR210 (2 unidirectional channels) and DS100BR111 (1 bidirectional lane) support 3.3 and 2.5 V supplies.

Berkeley Nucleonics Corp.    San Rafael, CA 94901
Jan 27, 2011 Model 725 Multi-Trigger Pulse Generator includes TimerPro software for visual control of 8 inputs, 8 outputs, and 8 triggers, and which controls delays and gates to valves, transfer coils, and deflector plates. Measuring 20.8 x 24.2 cm, product features timing unit that routes light pulses into chamber for storage, transfers it to second chamber, and then emits it from that chamber. Generator has 8 timing processors capable of less than 1 µs timing, and each timer can run in one of eight modes.

Fairchild Semiconductor    San Jose, CA 95134
Jan 27, 2011 Suited for switch mode power supply designs, UniFET(TM) II series can reduce switching losses and withstand double current stress during diode recovery dv/dt mode. Model FDPF5N50NZ is 500 V, 4.5 A, 1.5 ohm device that features RDS(ON) of 1.38 ohm typ @ VGS = 10 V, ID = 2.25A, and gate charge of 9 nC typ. Model FDPF8N50NZ is 500 V, 8 A, 0.85 ohm device featuring RDS(ON) of 0.77 ohm typ @ VGS = 10 V, ID = 4 A, and gate charge of 14 nC typ. Both devices have ESD capability of 2 kV HBM.

Supertex Inc.    Sunnyvale, CA 94619
Jan 26, 2011 Chipset includes MD1715 2-channel logic controller circuit with 12 low-impedance, high-speed MOSFET gate drivers and 2 sets of control logic inputs, each set containing 3 pairs of MOSFET gate drivers. Featuring 6 pairs of N- and P-channel MOSFETs, TC8020 pulser output stage provides peak currents of ±3.5 A at 200 V. Chipset generates 5-level waveform for high-resolution imaging in medical ultrasound, metal flaw detection, and piezoelectric transducer driving applications.

Electro Standards Laboratories    Cranston, RI 02921 3403
Jan 26, 2011 Equipped with 16-character auto identifying display, CellMite® Model 4337 works with strain gage extensometers used to test steel or other industrial testing applications. Unit connects directly to standard strain gage transducer and simultaneously generates serial output for direct connection to PC as well as scalable ±10 V analog output for interface to DAQ systems. Conditioner also offers storage for 3 calibrated sensors, each with 6-point calibration and display setup parameters.

Oclaro, Inc.    San Jose, CA 95134
Jan 26, 2011 Targeted at solid-state laser pumping, direct diode applications, and medical markets, 60 W 27% FF (Fill Factor) bars and 80 W 50% FF bars are developed for CW operation on conductive heat-sink. While both feature CS type assembly, 60 W product suits beam shaping and fiber coupling applications, while 80 W product suits pumping applications and line sources. These E2 facet passivated and hard-soldered bars are incorporated in collimated bar series and fiber coupled Prosario series.

PREMO Group    Barcelona   Spain

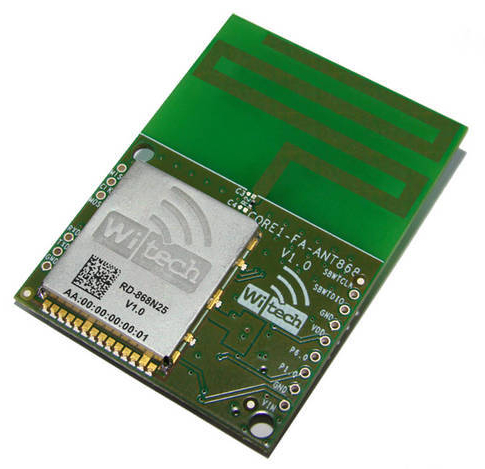

Jan 25, 2011 Along with different CPU capabilities, integrated broadband and narrow band radio modules offer choice of RF hardware interface: micro-strip antenna, ceramics, whip, or SMA connector for external antenna. Narrowband module delivers -114 dBm sensitivity, 2 km link-budget, 25 Kbps data speed, and 50 µA power consumption in Rx with 1 sec latency. With -105 dBm sensitivity and 1.5 km link-budget, broadband module offers 500 Kbps data speed and consumes 20 µA in Rx with 1 sec latency.

Calex Mfg. Co., Inc.    Concord, CA 94520
Jan 25, 2011 Housed in shielded 1 x 2 in. case attached to mounting flange, 6202 Series provides excitation, amplification, and filtering for any strain gage-based measurement or control system. Module provides fixed +10 Vdc excitation voltage with up to 30 mA current and can drive single 350 ohm load cell/strain gage. Amplifier has 0-10 Vdc output, which is rated at -3 V to +15 Vdc, and extraneous noise is eliminated via built-in 10 Hz 2-pole filter.

Analog Devices, Inc.    Norwood, MA 02062-9106
Jan 25, 2011 Offering plug-and-play compatibility for non-handset applications, ADMP441 iMEMS® microphone delivers 24-bit data with industry-standard I²S (Inter-IC Sound) digital interface. SNR of 61 dBA promotes sound quality and intelligibility in far-field applications, while flat frequency response from 100 Hz to 15 kHz produces balanced and natural sound. Also, PSRR of 80 dBFS delivers RF and electrical noise rejection to allow design flexibility for placement and power trace routing.

STMicroelectronics    Lexington, MA 02421
Jan 25, 2011 Model STi7108 decoder IC supports 3D graphics user controls, 3D TV, content protection, and connections to external devices. Unit features NDS VideoGuard Security Kernel for protecting media content and operator services, as well as DVB-CSA3 broadcast descrambler system. Integrating 3D graphics engine that supports 3D Electronic Program Guide and Internet content, product supports various video formats. It also provides inputs for up to 6 transport streams and HD 3DTV over HDMI 1.4.

Actions Semiconductor Co., Ltd.    Guangdong 519085  China
Jan 25, 2011 Equipped with embedded pseudo-3D graphic processing unit and 32-bit central processing unit operating at 500 MHz/sec, Series G1000 offers customized content protection tool that enables system makers to protect their integrated games. Hardware video engine facilitates video recording and full spec of 720P decoding functions. Additional features include power management unit and support for DDR2 memory as well as NAND Flash under 40-bit ECC architecture.

ITT Interconnect Solutions    Santa Ana, CA 92705

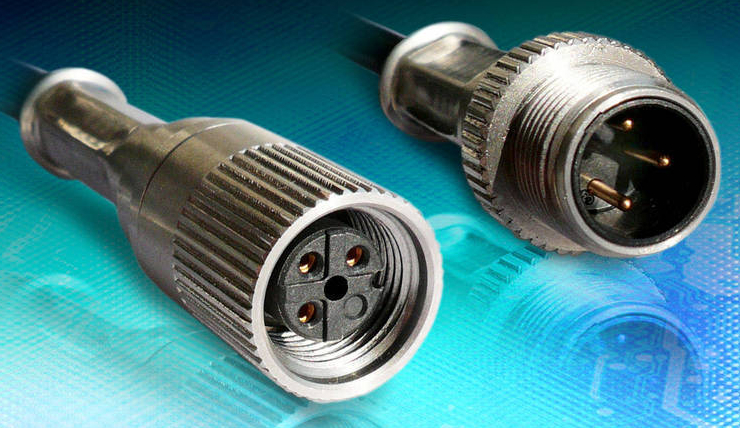

Jan 24, 2011 Delivering 100% signal integrity in harsh environments, Metr1x Series offers housing variations to meet needs of many applications. Signal connectors operate at 100 Vdc with current rating of 4 A, provide complete EMI shielding, and conform to UL94-V0. Stainless steel design, sealed to IP69K standards, remains fully dry and functional even in conditions involving heavy fluids. Adhering to M12 industry standards, mating face allows 2-, 3- or 4-way versions and standard cable configurations.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055

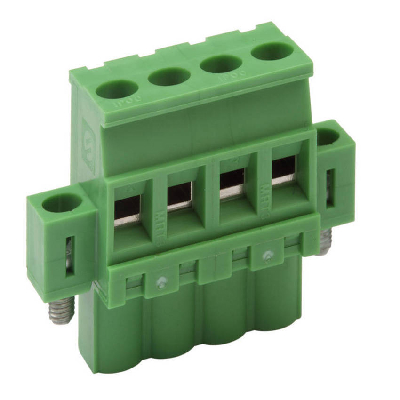

Jan 24, 2011 Designed to help resolve wire entry and screw access issues, Vertical Pluggable Terminal Blocks are available with wire entry from left or right. Plug, which is available in wide range of pin spacing from 5-5.08 mm and in sizes from 2-20 positions, features flange on each end with locking screw. Corresponding pin header, which is mounted onto PCB, has threaded insert to which screw from plug is engaged, enabling units to withstand vibration.

Acromag, Inc.    Wixom, MI 48393 7037
Jan 21, 2011 Model ST131 ASIC-driven RTD transmitters include digital USB setup and calibration interface and are designed for operation in harsh environments, in temperatures from -40 to +80°C. Providing electrical noise immunity and surge protection, DIN Form B head-mount instruments also have non-polarized and reverse polarity protected output. Windows configuration software is include and units perform advanced signal linearization, lead-wire compensation, and sensor fault detection functions.
