Champlain Cable
Colchester, VT 05446
Jun 04, 2009 Offering flexibility of elastomer, EXAR® XLE is UL and CUL approved for 1,000 V and 105°C ratings. Product is also successfully used in 150°C automotive applications per ISO 6722. Providing resistance to oil and abrasion, XLE has cold bend rating of -70°C and passes 45° angle flame tests in accordance with ISO 6722. Available in variety of colors, crosslinked insulation system is suited for motor leadwires, back panel wiring, automotive cables, and cable jacket insulation.

Aremco Products, Inc.
Valley Cottage, NY 10989
Oct 15, 2008 Designed to electrically insulate high temperature ceramic resistors, green-pigmented Cerama-Diptm 538N-GREEN inorganic-ceramic coating can be used for applications up to 2,600°F. It offers volume resistivity of 109 ohm-cm and dielectric strength of 225 V/mil at room temperature. Curing is achieved by air-drying at room temperature for 1-2 hr, then step curing for 1-2 hr at 200 and 350°F, respectively. Coating comes in standard pint, quart, gallon, and 5 gal containers.

ISP Industrial Support Products Ltd
Swallowfield   United Kingdom
Oct 13, 2008 Supplied in safe and self-contained bag, GELSEAL is capable of transforming standard electrical enclosures up to and beyond IP68 rating while offering re-enterabilty and protection against water, moisture, dust, and dirt. Non-toxic gel system, designed for facilitated pouring as well as optimal adhesion and dielectric properties, is suited for encapsulating, sealing, potting, insulating, and shock dampening. It can also be used for application in trunking and pipes.

SABIC Innovative Plastics
Pittsfield, MA 01201
Nov 27, 2007 Lexan DMX polycarbonate films include Lexan DMX 1HD00-112 film that is polished on both sides and Lexan DMX 1HDA3-112 film that is polished on one side and matte on other. Featuring layered construction that utilizes DMX resin, films offer pencil hardness rating of 1H as well as impact, chemical, saltwater, and isopropanol resistance. They can be fabricated with Insert Mold Decoration graphics and be thermoformed to greater than or equal to 35 mm draw depth.

Aremco Products, Inc.
Valley Cottage, NY 10989
Jun 12, 2007 Silica-based Ceramacoat(TM) 512N is suited for insulating circuit breakers and high temperature electrical components such as heaters, electrical feed-thrus, PTC devices, rheostats, and temperature sensors. Material properties include temperature resistance of 2,400°F, 250 V/mil dielectric strength, and 109 volume resistivity. Available in pint, quart, and containers, moisture- and chemical-resistant single-part paste can be dispensed through manual syringes or pressurized dispensing equipment.

Suflex/Regal Sleeving & Tubing
Newmarket, NH 03857
Mar 22, 2007 Available in Grade C, Acryflex-MR® is manufactured by impregnating and coating finely braided fiberglass sleeving with dielectric film of acrylic resin. It is fully compatible with most magnet wire coatings such as polyester, acrylic, polyamide, polyimide, epoxy, and phenolic. Ranging in size from ½ in. to No. 24, Class 155°C electrical insulation is suited for leads and crossovers on fractional and integral horsepower motors.

Dow Corning Corp.
Midland, MI 48686 0994
Dec 08, 2006 Applied once, Sylgard® HVIC+ provides long-term water repellency/hydrophobicity to protect against power distribution interruptions due to increased leakage current, dryband arcing, and flashover from salt spray, industrial pollutants, and desert sand. One-part silicone high voltage insulator coating (HVIC), unaffected by salt air, rain, and humidity, exhibits tracking resistance and prevents contaminants on insulator surface from becoming wet and producing conductive layer.

Leviton Manufacturing Co., Inc.
Melville, NY 11747
Oct 27, 2006 Rhino-Hide® 49 Series is comprised of male and female plugs, connectors, receptacles, insulators, and contacts suited for land-based and off-shore oil drilling rigs. Products are engineered to deliver up to 1,000 V ac or dc power and up to 1,135 A of continuous power. Accessory products, also available, include clevis pins, receptacle castings, dust cover caps, gaskets, and couplers.

Crystex Composites
Clifton, NJ 07011
Jun 14, 2006 Acting as ceramic thermal insulator, M/M 1600 Glass Mica Composite features fine grain construction and enables components to be machined from compression molded sheets using conventional cutting tools. Material exhibits 1.02 W/m°C thermal conductivity, ~300 sec tracking and arc resistance, and 500 V/mil dielectric strength. It comes in 8 in. dia discs ranging from 1/16 to 1 1/8 in. thick and 17 x 17 in. sheets in thicknesses to 1¼ in.

Norplex Micarta
Postville, IA 52162
May 05, 2006 Used to separate and isolate electrical contacts, oil-resistant NP613 maintains mechanical strength when used in oil-filled transformer equipment. It also maintains dimensional stability at elevated operating temperatures, guaranteeing contact will be separated and engaged as needed. Constructed from electrical grade of kraft paper and modified resin, NP613 has flexural strength of 27,000 psi, compressive strength of 40,000 psi, and max operating temperature of 140°C.

Aremco Products, Inc.
Valley Cottage, NY 10989
Mar 29, 2006 Ceramacoat(TM) 512N silica-based ceramic compound offers temperature resistance of 2,400°F, dielectric strength of 250 V/mil, and volume resistivity of 109. Single-part paste can be dispensed through manual syringes or pressurized dispensing equipment, and has set time of 4-6 hr at room temperature followed by curing at 200°F and 300°F for 1-2 hr, respectively. Compound is also suited for insulating wide range of high temperature electrical components.

Aremco Products, Inc.
Valley Cottage, NY 10989
Sep 28, 2005 As single-part, water-based, inorganic-ceramic coating system, Cerama-Dip(TM) 538N electrically insulates high-power ceramic resistors in applications to 2,600°F. Odorless, non-outgassing product contains no VOCs and features volume resistivity of 109 ohm-cm and dielectric strength of 225 V/mil at room temperature. Curing is accomplished by air-drying at room temperature for 1-2 hr then step curing for 1 or 2 hr at 200°F and 350°F, respectively.

Aremco Products, Inc.
Valley Cottage, NY 10989

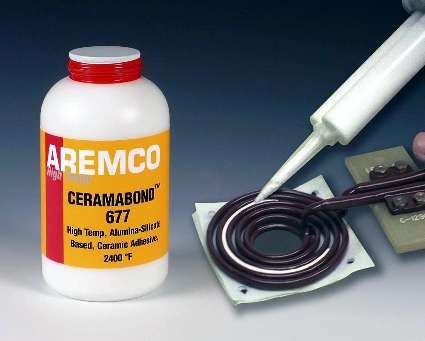

Mar 24, 2005 Pyro-Puttyâ„¢ 677 single-part, water-dispersed, alumina-silica based adhesive and coating system is suited for electrical insulation and bonding applications to 2,400°F. Thixotropic product is supplied in paste consistency with viscosity of 43,000 cps and specific gravity of 2.17 g/cc. After application, it dries at room temperature in 1-4 hr and cures in 2 hr at 200°F. Material produces hard shell that protects induction coils from high temperature oxidation.

Tra-Con, Inc.
Bedford, MA 01730
Apr 27, 2004 TRA-BOND 293-21 general-purpose adhesive adheres to gold, nickel, silver, and brass substrates. With lap shear strength up to 5,000 psi, product has work life of 3 hr and cures in 45 min at 120°C. Material comes in pre-mixed, frozen syringes, and, at optimal storage conditions, has shelf life of up to 1 year.

Bivar, Inc.
Irvine, CA 92618 2593
Feb 18, 2004 Made from UL-rated, 40% glass-filled Polyphenylene Sulfide, insulators come in shoulder design, flush low-profile, and dual-sided, low-profile configurations with stand-offs for added ventilation of mounted devices. Accommodating screws up to 0.125 in. dia, units provide grounding protection in applications up to 260°C and are chemically inert with oxygen rating index over 45%. Applications include power supplies, inverters, transistors, and discretes.

Mica-Tron Products Corp.
Braintree, MA 02184

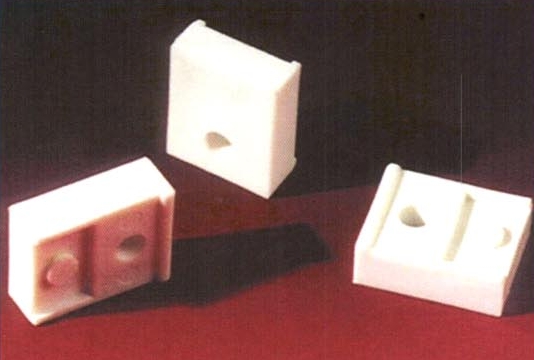

Feb 04, 2003 Machineable ceramic components perform in environments with temperatures to 1,000°C and thermal conductivity to 2,800°C, depending on material. Products offer tolerances to ±.0001 in. as well as flatness and parallelism within ±.0001 in. per 12 in., depending upon part material and configuration. Insulators can be precision machined from Mycalex®, Mykroy®, Arclex®, Grade A LAVA, Boron, Nitride, Macor®, and ceramic filled materials.

Interface Solutions, Inc.
Lancaster, PA 17603
May 09, 2002 Voltoid(TM)D-800 resin-bonded, cellulose-fiber composite can be fabricated into gaskets, insulators, lead separators, backing-plate barriers and other electrical insulation configurations. It is recognized by Underwriters Laboratories for continuous use as electrical and mechanical barrier to 105 deg C. Insulator is available in sheets in thicknesses of 0.031 to 0.125 in. It is easily fabricated by punching and blanking.

Richco, Inc.
Chicago, IL 60680
Dec 11, 2001 RTC Series insulates tab of transistor package from screw holding transistor tab down to heat sink for consistent heat transfer. It can withstand temperatures of up to 130 ºC. Insulator is flame retardant and made of glass filled material.
