Schréder Lighting LLC    Elk Grove Village, IL 60007
Jul 28, 2010 Utilizing 40 x 1 W Osram Golden Dragon plus LEDs, ALURA LED Luminaire provides color temperature of 6,000 K with Neutral and Warm White options. Unit features molded acrylic optic design, Type 5 distribution, and IP66-rated optical compartment. Luminaire is intended for installation in urban environments, including parks, playgrounds, and parking lots.

W.A.C. Lighting Company    Port Washington, NY 11050
Jul 27, 2010 Constructed of aluminum with acrylic diffuser, LEDme(TM) Quick Connect(TM) Socket Sets are finished in brushed nickel, chrome, or dark bronze. Each socket set uses 5 W and delivers 230 lumens, with color temperature of 3,500 K. Pendants can be dimmed with electronic low voltage dimmer from 100% to 15% or better. LEDme(TM) Socket Set includes a canopy and 72 inches of braided wire.

Federal Signal Corp., Signal Div./Electrical Products    University Park, IL 60466
Jul 26, 2010 Rated for 60,000 hours, Model 191XL is configurable for steady burning or flashing mode and produces light output equal to or greater than 100 W incandescent lamp. Low in-rush circuitry assures compatibility with factory automation systems. Die cast aluminum housing, featuring single ¾ in., 14 NPT pipe mounting, is finished with black epoxy powder coat paint for corrosion resistance. Type 4X, Marine-rated light operates on 24 Vac/Vdc, 120 Vac, and 240 Vac, and is available in 4 LED/lens colors.

Cooper Lighting    Peachtree City, GA 30269

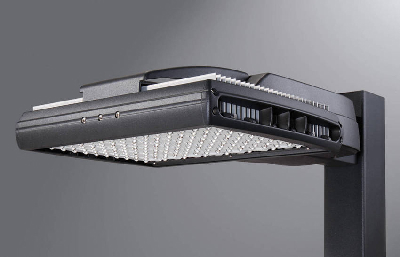

Jul 19, 2010 Incorporating modular LightBAR(TM) technology and AccuLED Optics(TM) system with efficiencies as high as 95%, McGraw-Edison Ventus Luminaire allows lumen and energy output to be customized to fulfill exact needs of outdoor space. Unit provides warm white light of 4,000 K CCT, similar to ceramic metal halide lamp. Featuring die-cast and extruded aluminum construction, luminaire comes in 2-12 IP66-rated LightBAR configurations with choice of 15 optical distributions.

Holophane    Granville, OH 43203
Jul 19, 2010 Intended for use in hazardous and highly corrosive environments, HDX Series features LED light engine and copper-free cast aluminum enclosure designed to withstand pressure of internal arc generated explosions without propagating to hazardous atmosphere. Fixtures include acrylic lens and are available in wall/pendant or end mount configurations with ½ in. NPT conduit entries. Units are UL Listed 844 for Hazardous Locations.

Holophane    Granville, OH 43203
Jul 19, 2010 Designed for safe operation, HXP luminaires meet requirements for Division 1 and Zone 1 environments and require minimal maintenance. Products combine factory-sealed cast aluminum housing and one-piece painted aluminum reflector with 93% reflective white finish. Luminaires may be used with T5, T8, and T5HO florescent lamps in 2 ft, 2-lamp; 4 ft, 2-lamp; 4 ft, 3-lamp; or 4 ft, 4-lamp combinations. Options include emergency battery backup and specular aluminum reflector.

Elma Electronic Inc.    Fremont, CA 94538
Jul 15, 2010 Available in 4 standard lengths to 2 m and various colors, HB LED Light Tubes feature 2 dragon LEDs and aluminum body. Single modules can be combined with rigid or flexible light guides in various lengths and are also available in all monochrome colors as well as RGB version. Offered with connecting leads or as plug-and-light version with main plug, tubes feature LED lighting housing in single- or double-ended configurations that send light in uniform color arrangement.

Lamar Lighting Co., Inc.    East Farmingdale, NY 11735
Jul 15, 2010 Featuring cast aluminum housings and polycarbonate diffusers, GR/GS Series uses Occ-Smart HF motion sensors to detect mass movement in field of operation. Sensors are resistant to false detections, and because they are not visible outside light fixture, they will not impact aesthetics of luminaire. Available in bi-level or full on/off options, luminaires provide proper illumination for safety and comfort while minimizing energy consumption.

Schréder Lighting LLC    Elk Grove Village, IL 60007
Jul 15, 2010 Available in Mini, Midi, and Maxi sizes that use lamps ranging from 39-400 W, SCALA series luminaires are designed with properly scaled arms for post or wall mounting. They utilize Philips® CosmoPolis HID system and feature IP66 Sealsafe® optical module and separate IP66 chamber thermally optimized for electronic ballast. Featuring micro reflector system for precision beam control to reduce glare, luminaires provide tool-free quick access to optical unit and ballast module.

Holophane    Granville, OH 43203
Jul 14, 2010 Tear Drop LED Series is comprised of 20th century, historically styled tear drop luminaires with LEDs and die cast construction for true street lighting performance. Offering tool-less access to all components, IP66-rated modular design features permanent glass optical lens and comes in various styles and sizes. Cast aluminum door supports tear drop, bowl, or sag-shaped thermal-resistant borosilicate glass refractor that provides asymmetric cut-off distribution.

LSI Computer Systems, Inc.    Melville, NY 11747
Jul 14, 2010 With supply voltage of 5 V, Model LS7642 powers up in Off state, while Model LS7642FO powers up in On state to illumination set by control voltage. Analog voltage at control input directly determines phase angle of triac trigger pulse. For automated applications, control voltage can be provided by uC, yielding accurate control of dimming patterns. For manual applications such as wall switches, wiper of sliding or rotary potentiometer can provide control voltage.

Edwards Signaling & Security Systems    Plainville, CT 06062
Jul 12, 2010 With XTRA-SAFE(TM) Technology, 125XBRi Chameleon XTRA-BRITE(TM) LED Multi-Status Indicators employ combinations of color and flash-rate to provide more definite status indication to those who are color-blind. Changeable dip switch settings enable units to adapt for use with or without control from external PLC, PAC, or control relay. NEMA 4X rated devices are available in 24 Vdc or 120 Vac and in red/blue/amber or red/green/amber, with either black or gray base.

Weigh-Tronix, Inc.    Fairmont, MN 56031
Jul 09, 2010 Featuring rugged enclosures, XLR Series Remote Displays include model XLR-8 with eight 3.5 in. red LED characters on 26.75 in. long display and XLR-12 with 12-char, 39.00 in. display. Below alphanumeric message, visual confirmation of loading status is indicated via bar graph spanning length of display. Products connect to agriculture scale indicators and other serial devices, automatically detect device's baud rate and broadcast string, and dim to accommodate changing lighting conditions.

Holophane    Granville, OH 43203
Jul 09, 2010 Featuring zero uplight to reduce light pollution, LEDgend(TM) Roadway LED Luminaires restrict direct view of individual LEDs, creating wholly luminous appearance and minimizing glare. Fixtures allow 100% light output when roadways are busiest and can decrease output to 50% throughout rest of daily cycle. Designed for minimum of 80,000 hours of virtually maintenance-free operation at 40°C ambient, luminaires have sealed optical system that provides IP66 rating against water and dust.

JKL Components Corp.    Pacoima, CA 91331-2376
Jul 08, 2010 With median output of 66 lumens and narrow deviation in both brightness and color, ZSM-6550-C LED Series eliminates need for controlling lot variations and consistency. Units offer 8 options for color temperature ranging from 2,700-6,500°K. Measuring 5.4 x 6.5 mm with 1.65 mm profile, LEDs are suitable when accurate imaging is required, such as medical and dental procedures, special effects, and cosmetic applications.

Elemental LED    Emeryville, CA 94608
Jul 08, 2010 Wall Washers are plug-and-play, freestanding fixtures that can be placed in almost any location. When aimed upward, they send columns of white or color light up face of vertical surface. LED lights last up to 50,000 hr, and RGB versions can be programmed to emit any color as well as to switch colors. Other effects, such as flashing and fading, are also possible. Able to work in indoors and outdoors, fixtures can be linked together for greater effect.

Aven, Inc.    Ann Arbor, MI 48108

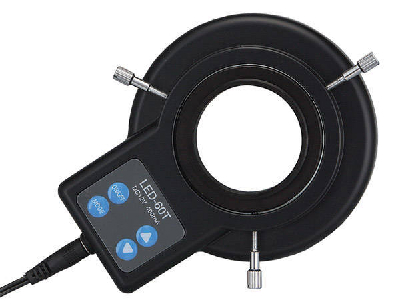

Jul 07, 2010 Combining 7 brightness choices and 4 lighting modes, White LED Ring Light utilizes 60 flicker-free LEDs that retain color integrity, providing illumination for life science labs, industrial inspection, and materials analysis. Full mode operation uses all evenly distributed LEDs at 35,000 lux, or users can illuminate 1, 2, or 3 quadrants. With 40 mm ID and 70 mm OD, plug-in accessory allows working distance of 50-160 mm when installed below microscope lens.

Elemental LED    Emeryville, CA 94608
Jul 07, 2010 With 1.5 in. Mini RGB Controller, users push one button to switch between color settings on any multi-colored LED fixture, including RGB strip lighting and RGB light bars. Tiny 12 V accessory can be installed with screwdriver by connecting 4 wires from RGB LED fixture and 2 wires from 12 V power source. Color modes include solid colors, strobing, flashing, quick fades, and slow fades.

Elemental LED    Emeryville, CA 94608
Jul 07, 2010 Designed to fit into standard E-27 screw-in socket, Remote Control RGB LED Bulb can replace traditional incandescent bulb. Unit offers 16 color options and 4 different effect modes, including flash, strobe, fade, and smooth. Consuming 5 W, bulb comes with on-off switch, never gets hot, and lasts up to 50,000 hours making it suited for retail, patio, restaurant, bar, and party lighting applications.

General Manufacturing, Inc.    Bluffton, IN 46714
Jul 01, 2010 Equipped with three 3 W LEDs, IS300(TM) Work Light is rated for use in Class 1, Div 1, Groups C and D areas. Unit can operate in beam mode for use as inspection light or flood mode for use as area task light. LEDs are rated at 50,000 hours and produce 5,000 K bright, white light. Operating for 7 hr straight on 4.8 V NiMH rechargeable battery pack, light includes red LED in handle that indicates low battery charge. Cut-off circuitry inside battery prevents damage from drawing charge down too far.
