Larson Electronics, LLC    Kemp, TX 75143
May 06, 2013 Featuring 4 LEDs sealed within extruded aluminum housing with unbreakable polycarbonate lens, 12 W Model LEDLB-4ET-IR-M-110V produces invisible infrared light in 850 or 940 Nm portion of light spectrum, depending upon configuration. Fixture is fully waterproof and rated to 3 m of submersion. Using 3 magnetic mounting pads, light bar can be securely attached to metal surfaces. Light is fitted with 6 ft of cord and inline transformer for operation with standard 110–120 Vac.

AVX Corp.    Myrtle Beach, SC 29578
May 06, 2013 Designed without plastic end-walls to minimize length, 00-9159 Series features double-sided configuration for high-density pin count, central keying rib for alignment, and tin-to-tin contact interface. Miniature units measure 1 mm in length/number of contacts and are available with 4, 6, 8, or 10 contact positions. Models with 4 and 6 positions are rated at 3 A, while 8- and 10-position models are rated at 2.5 A. Supporting 1.6 mm PCB thicknesses, 300 Vac connectors operate from -40 to +125°C.

Larson Electronics, LLC    Kemp, TX 75143
May 06, 2013 Capable of producing 4,320 lumens, 72 W Model WAL-M-LED72-120 features LED lamp mated to 3-leg aluminum pedestal mount fitted with 3 magnetic pads. Each pad provides 200 lb grip for total of 600 lb of magnetic gripping force, ensuring system will hold its position even when mounted to equipment where heavy vibration is present. Portable waterproof light operates on standard 110–277 Vac, but can also operate with 12 or 24 Vdc current when transformer is disconnected.

Phihong USA    Fremont, CA 94539
May 06, 2013 Suited for home or office lighting applications, LED lighting remote control lets users to switch lights on and off and use dimming features. Remote is powered by 3 V button-cell battery and has range of up to 23 ft when pointed directly at IR receiver. Offering same functionality as remote controls, wall-mounted touch control pads can be wall-mounted up to 33 ft away from receiver. Suitable lighting applications include medical facilities and clean rooms.

LEVITON    Melville, NY 11747
May 06, 2013 Virtually maintenance-free, Zipline LED Platinum Series installs in existing linear fluorescent fixtures, provides more than 50,000 hours at LM80,  and complies with DLC efficiency standards. Modular units are available in 2 x 4 and 2 x 2 versions, offering 5,700 lumens at 60 W and 3,400 lumens at 37 W, respectively. Integrated pre-wired drivers and array holders mount into housing using pressure-fit technology. For added efficiency, both versions are dimmable using Renoir® II lighting controls.

Philips Semiconductors Div., Royal Philips Electronics    Sunnyvale, CA 94088
May 03, 2013 LUXEON CoB (Chip-on-Board) LED array provides up to 6,000 lumens and reaches efficacies of up to 120 lm/W for bright white 80 CRI lights. Unit is specified to operate at 85°C and uses metal-core PCB. Suitable for downlights, spotlights, and directional lamps, array is offered in 4 versions with light-emitting surfaces of 9, 13, or 15 mm.

Wavien    Valencia, CA 91355
May 03, 2013 Suitable for architectural and signage applications, Recycling Light Technology (RLT™) increases brightness available to large core, single fibers by 3M and flexible, small diameter fiber bundles by Schott. Both are designed for side-emitting applications suitable for replacing neon tubes, with 50,000 hr lifetime of LEDs. Illumination platform has produced brightness improvements of up to 2.5X using white LEDs by Cree and is also suitable for use with multi-colored LED packages.

Dow Corning Corp.    Midland, MI 48686 0994
May 03, 2013 With Dispensable Thermal Pads, LED luminaire manufacturers can print layer of thermally conductive silicone compound in controllable thicknesses on complex substrate shapes while ensuring optimal thermal management. TC-4015 and TC-4016 offer thermal conductivity of 1.5 W/mK, while TC-4025 and TC-4026 offer thermal conductivity of 2.5 W/mK. Incorporating glass beads, TC-4016 and TC-4026 enable control over bond line thickness. All bond well with common lighting substrates like aluminum and PCBs.

Larson Electronics, LLC    Kemp, TX 75143
May 02, 2013 Measuring 5 ft long, 24 Watt FTL-5-LED-50-HD Heavy Duty LED Drop Light offers portable alternative to incandescent and fluorescent lights. Housing is water- and weather-resistant, allowing use in bad weather and damp locations. With no glass in construction, light is also suitable for food service applications. Unit works with standard 110–277 Vac current and is fitted with 50 ft of cord. With rubberized covers, handle and end cap offer impact resistance and non-conductive surfaces.

Larson Electronics, LLC    Kemp, TX 75143
May 02, 2013 Equipped with two 400 W metal halide lamps with die cast aluminum housings, aluminum reflectors, and heat/impact-resistant tempered flat door glass, Model WAL-2X400MCE illuminates 50,000 ft² of workspace. Lamps are attached to removable mounting arm with U-brackets that allow each lamp to be adjusted independently. Adjustable center mast can elevate lamps to provide maximum coverage. Operating with 110–277 universal current, light includes 50 ft of SOOW cord fitted with 5–15 straight blade plug.

Amerlux, Inc.    Fairfield, NJ 07004
May 02, 2013 Cylindrix IV Vertical LED Accent Track Head produces nearly 3,500 delivered/maintained lumens with 16,308 center beam candlepower. Providing 50,000 hr operating life, recessed 66 W luminaire has vertical, 0–90° tilt and 360° rotation. Track head can be mounted to track or busway and operates on 1-, 2- and 3-circuit 120–277 V systems. Product is available in Narrow Flood (22°), Flood (30°), and Wide Flood (40°) beams for various in-store applications plus 3 Correlated Color Temperatures.

Larson Electronics, LLC    Kemp, TX 75143

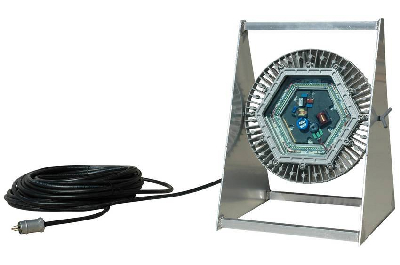

May 01, 2013 Featuring 16 in. light head integrated into triangular-shaped base stand, Model EPL-BS-161M-100 provides illumination for nearly 8,000 sq ft of work area. Light assembly can be adjusted through 180° of tilt and is connected to power sources via 100 ft of SOOW explosion proof cord and 15 A explosion proof plug. Class 1 and Class 2 Division 1 LED light, operating from 120–277 Vac, is constructed of non-sparking aluminum and provides 60,000 hours of operational life.

MaxLite    West Caldwell, NJ 07006
May 01, 2013 Designed to replace inefficient fluorescent incandescent and metal halide downlights, 8 in. Commercial LED Recessed Downlight Retrofit is suitable for ceilings ranging from 8–12 ft in height. Unit is available in 26 and 34 W configurations with variety of reflectors, including 35° and 80° beam angles for general, spot, and other ambient lighting applications. Operating from 120–277 Vac, dimmable light comes in 2,700, 4,000, and 5,000 k CCT options and has L70 life of 50,000 hr.

MaxLite    West Caldwell, NJ 07006
Apr 30, 2013 Intended for installation in T-bar or drop-in ceilings, ArcMAX™ Volumetric LED Panels deliver low-intensity, reformative optic technology to evenly disperse light output, minimize glare, and avoid pixelation patterns. Units are available in 1 x 4 and 2 x 2 ft models rated at 42 W as well as 2 x 4 ft model rated at 60 W. Offering 3,500, 4,100, and 5,000 K CCTs, panels feature stainless steel housing and reflectors, angled interior end caps, and polycarbonate milky white diffuser cover.

Patlite (USA) Corporation    Torrance, CA 90501
Apr 30, 2013 Featuring IP66G, IP67G, and IP69K ratings, CLN Series delivers 820 lx lighting, and can do so at 70% of original brightness for up to 60,000 hr, even when subjected to dust, water, oil, chemicals, and coolants. Units are 22.2 mm wide with 180° angle tilt adjustment and 120° rotating adjustment. Attaching virtually anywhere with stainless steel bracket, series can provide warm white light with natural light distribution for wide work area, or virtual midday sunlight color for detailed work.

FZLED    New Taipei City   Taiwan
Apr 29, 2013 Weighing 0.03 kg and measuring 16 mm dia x 105 mm long, FZL-2110 produces bright white beam with 30° angle up to 50 m using Nichia LED with 50,000+ hr lifespan. This 1 W LED light emits 70 lm and offers brightness levels up to 2,400 lux at 1 m. Constructed of aluminum alloy with anodized finish, torch is IP54 rated for dust and water resistance and features pen clip design. Power is supplied by 1 AAA battery, which provides up to 10 hr run time.

Larson Electronics, LLC    Kemp, TX 75143
Apr 29, 2013 Producing T6 temperature, paint spray booth-certified EPL-48-2L-T8HO features cast aluminum fixture that can be pendant or surface mounted. Each fluorescent lamp of this Class 1 and Class 2 Division 1 product is encapsulated within Pyrex tube. Intended for manufacturing and coating applications, this 4 ft, 2-lamp hazardous area light is available with polycarbonate overspray shield and stainless steel wire guard accessories.

Larson Electronics, LLC    Kemp, TX 75143
Apr 29, 2013 Equipped with 3,250 V generator, Model WAL-ML-3XM-3G utilizes three 1,000 W metal halide lamps to produce 330,000 lm in large flood pattern. Adjustable lamp brackets allow operator to adjust each lamp independently. When elevated to full 12 ft height, tower can illuminate 3 acres of work or event area. Tower and base assembly is constructed of powder-coated steel with rubber tires for mobility. Operating for 9+ hr on one tank of fuel, generator includes 120 Vac outlets to run additional devices.

Aleddra LED Lighting    Renton, WA 98057
Apr 29, 2013 Offering 360° lighting at 97.5 lm/W efficacy, LightFly 5000 is suitable for both indoor and outdoor work area lighting applications. Translucent balloon cover minimizes glare associated with harsh HID lighting alternatives, while soft white light helps create safe workplace. Lumen output level is controlled via toggle switch and can be set between 11,700 and 23,400 lm, depending on application needs. At 23,400 lm, luminaire consumes just 240 W.

Larson Electronics, LLC    Kemp, TX 75143
Apr 26, 2013 Intended for small work area applications in commercial and industrial environments, LEDWP-50-M features 5 in., 200 lb grip magnetic base for mounting to metal surfaces. Base also serves as stand on non-metallic surfaces, and light head can be tilted back and forth to position light pattern where needed. Unit has fully integrated drivers, operates from 120–277 Vac, and comes standard with 50 ft cord and 120 V wall plug; longer cords are available.
