Avago Technologies    San Jose, CA 95131
Jun 16, 2008 Comprised of light strip, ring, and round modules, ADJD-WMxx/YMxx Moonstone(TM) LED series meet needs of architectural, backlighting, decorative, garden, and reading light applications. Plug-and-play cool white (4,000K-10,000K) and warm white (2,600K-4,000K) LED modules have inputs from 1-15 W and deliver up to 1,140 lumens. Both versions are mounted, with 1-12 LEDs, on metal-core PCB to facilitate thermal management and encapsulated in heat- and UV-resistant silicone compound.

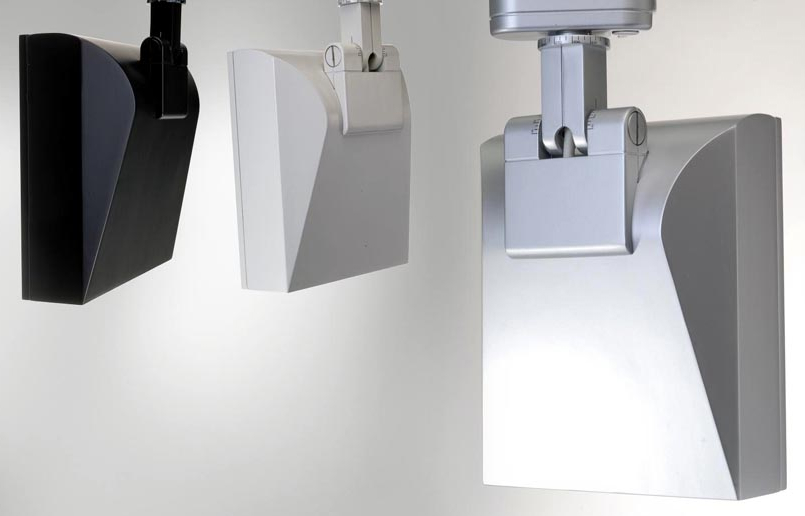

W.A.C. Lighting Company    Port Washington, NY 11050
Jun 13, 2008 Providing 350° horizontal adjustment and 90° vertical aiming with 10° indicator guide marks, W2 Wall Washers feature clean design with concealed wiring that is routed within track head to ensure that cords are not exposed. Seamless design prevents light leaks from the rear of fixture, while ballast housing offers locking feature for positive support of track head. Lamping options include 200 W Halogen T3, 20, 39, and 70 W metal halide T4, Metal Halide TD6, and Tri-Tube CFL.

Avago Technologies    San Jose, CA 95131
Jun 13, 2008 Available in amber and red colors, 1 W Moonstone(TM) LED emitter ASMT-Mx00 is capable of being driven to high current of 350 mA to deliver up to 42 lumens output. Energy efficient product features 120-deg viewing angle, exposed pad for heat transfer, low-profile design of 3.3 mm H, and greater than 8 kV ESD. Utilized in architectural, garden and decorative lighting applications, emitter is compatible with IR soldering processes, and is encapsulated in heat and UV resistant silicone compound.

Avago Technologies    San Jose, CA 95131
Jun 13, 2008 Available in tricolor PLCC-6 package, ASMT-YTB0 LEDs are suited for indoor and outdoor full color signs and video displays. They feature individual anode/cathode terminal to enable display of all colors on each individual chip, 115° viewing angle, moisture sensitivity of JEDEC MSL 2a, and silicone encapsulation material that enables operating life of over 50,000 hr. Pb-Free and RoHS compliant devices are compatible with reflow soldering processes.

Lighting Science Group Corp.    Dallas, TX 75201
Jun 13, 2008 Eyeleds are low-profile, recessed commercial and residential solid-state lighting systems for flooring, sidewalks, patios, and other surfaces. They operate on 12 Vdc, and consume .3 W per light point. Available in FloorLeds, Multi, Eyeleds Outdoor, PowerEye, and ColorEye models, units can be installed in most building materials including carpeting, hardwood, laminate, stone, ceramic, quartz, rubber, cork, and bamboo, both for indoor and outdoor applications.

DDP Supply    El Segundo, CA 90245
Jun 12, 2008 Available in range of color temperatures from 2,700-6,300 K, LED WashGraze® architectural, solid state, linear wall wash lighting system features optical configuration with user-specifiable viewing angles that reduce light loss. It is UL tested and certified, as each fixture consumes between 8-17 W/ft and offers upwards of 850 Lumens/ft. Offered in 1, 2, 3, or 4 ft sections, unit can be cascaded up to 10 ft with mounting options, and is compatible with standard dimming controls.

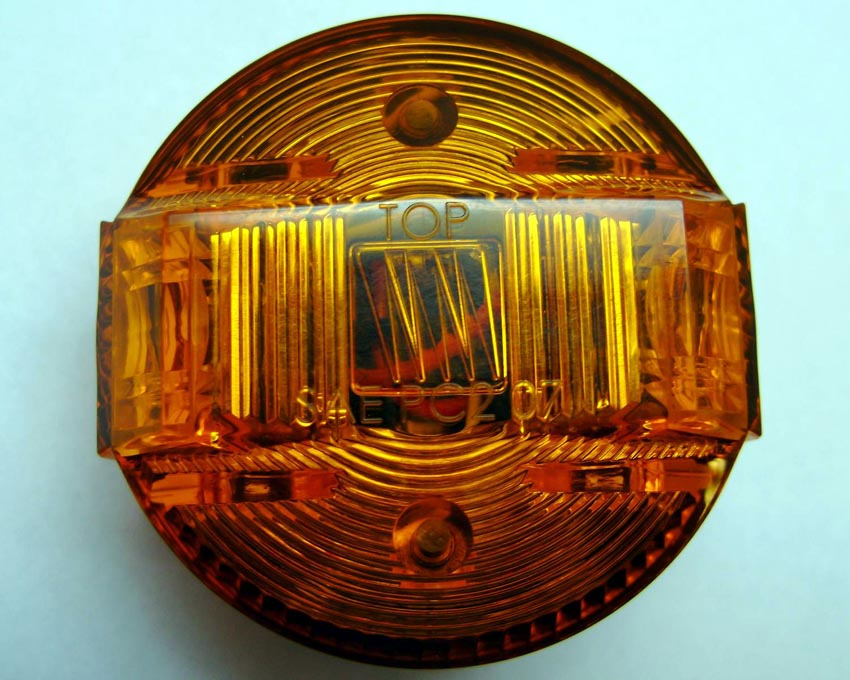

Innovative Lighting Inc.    Roland, IA 50236
Jun 11, 2008 Featuring sonically-sealed polycarbonate lens and waterproof housing, 209 Series 2 in. Round LED PCP2 Sidemarker comes with two 50,000 hr rated LEDs and provides 180° of visibility. Shock and vibration-proof unit requires 2.25 in. hole for installation, operates on 9-16 Vdc, and uses standard 2 pin plug. Reducing load on vehicle's electrical system by only consuming 130 mA, PCP2 rated light is available with amber/red LEDs and amber, red, or clear lens.

Cypress Semiconductor Corp.    San Jose, CA 95134
Jun 10, 2008 EZ-Color(TM) LED controllers incorporate ColorLock(TM) feature, which allows use of optical feedback to automatically ensure precise color points over time/temperature. Supporting up to 16 LED strings, solutions let users complete designs without any C or Assembly coding. Along with tools for supporting white lighting design, solution enables calibration of color sensor and setting of color coordinates using 1976 CIELUV or 1931 XYZ color space charts as well as allowable deviations.

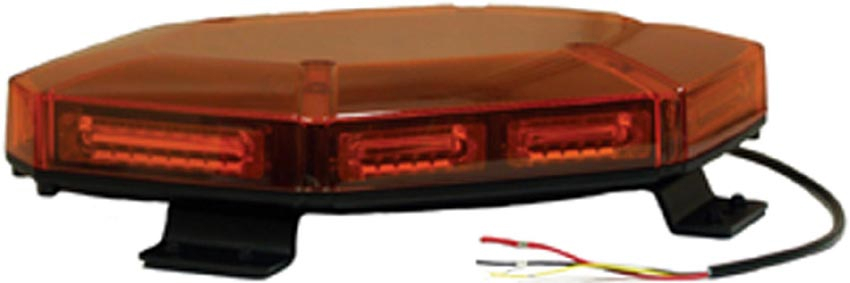

Superior Signals, Inc.    Olathe, KS 66062
Jun 09, 2008 Meteorlite® X Series SYLEDX LED mini bar comes in permanent/vacuum magnetic mount versions that have low profile design, wide angle optics, and are capable of up to 26 built-in selectable flash patterns. Housings are manufactured in polycarbonate plastic with amber/clear lenses and 8 heads. With 40 LEDs that come in amber, clear, or red/blue colors, 12 Vdc vehicle safety lights draw maximum of 4.5 A and meet SAE J575 and J845 specifications.

Prescolite    Spartanburg, SC 29303
Jun 09, 2008 Offered with various apertures, light sources, and distributions, Architektur series downlights are configured with socket cup that features spring position to facilitate installation as well as reflector adjustment. Design also ensures lamp maintains its vertical position while promoting rigidity and consistency from cup to cup and spring to spring. Compatible with limited plenum spaces, products also incorporate Virtual Source optics for glare control.

Pass & Seymour/Legrand    Syracuse, NY 13221
Jun 06, 2008 Tamper-Resistant Nightlight/GFCI Receptacles are designed to meet 2008 NEC standards for child electrical safety pertaining to newly constructed residential units. Lexan lens-sealed LED nightlight has 20-year life expectancy, and integrated photocell automatically turns light on and off in dark and daytime conditions, respectively. Duplex receptacle's built-in shutter system prevents children from inserting metal objects into slots and touching electrically live components.

Titan Tool Supply, Inc.    Buffalo, NY 14207 0569
Jun 06, 2008 Portable LED Fiberoptic Probe is comprised of illuminator handle and snap-in-place probe extension that slips over light source. Constructed of stainless steel, illuminator handle has pushbutton on/off switch and 1.25 W LED with focusing lens. Extensions come in 180°, 90°, and 45° angles, each in diameters of 0.120, 0.058, and 0.030 in., to reach and illuminate areas with limited access. Battery-powered probe can be fitted to borescopes with ACMI light guide connection post.

TOFRA, Inc.    Palo Alto, CA 94303
Jun 06, 2008 RGB LED Light Source enables independent control of red (619 nm), green (515 nm), and blue (465 nm) LEDs to create any desired color, including white light, for visual observation. Color images can be produced from monochrome cameras, giving full non-interpolated color at every pixel. Light source head mounts instead of condenser on upright microscopes and does not create any vibration or noise. Light source controller connects to computer serial or USB port.

Superior Signals, Inc.    Olathe, KS 66062
Jun 06, 2008 Available in high or low profiles with permanent or magnetic mounts, Meteorlite® SY22050 Class I heavy duty potted strobe light features 24 LEDs per head and up to 11 built-in selectable flash patterns. Constructed with polycarbonate lens and aluminum base, product operates at 12-48 Vdc with maximum draw of .8 A at 12 Vdc. Colors offered include amber, blue, or red, and magnetic mount models have lighted on/off rocker switch.

American Ballast    Fremont, CA 94538
Jun 04, 2008 With minimum lamp starting temperature of -30°C, energy efficient electronic HID ballasts are designed for supermarkets, malls, industrial sites, parking lots, and warehouses. Operating quietly at high frequency, they feature auto restart and shutdown function, 65-90 color rendering index, open circuit protection, short circuit protection, igniter failure protection, and surge protection. Units meet FCC rules and regulations and ANSI requirements as well as EISA and RoHS standards.

Expand International of America, Inc.    Stratford, CT 06615
Jun 03, 2008 Featuring rigid plastic cover to prevent overheating, 50 W, L3-BLA-50US spotlight fits all Expand retractable and non-retractable products. It includes dimmer switch for adjusting brightness, fitting that securely holds light bulb in place, and cord holder that prevents tangling. Spotlight is ETL-certified under UL, CSA, and CE and has been approved according to Intertek-Semko S-mark. Protective black nylon bag allows for secure transportation.

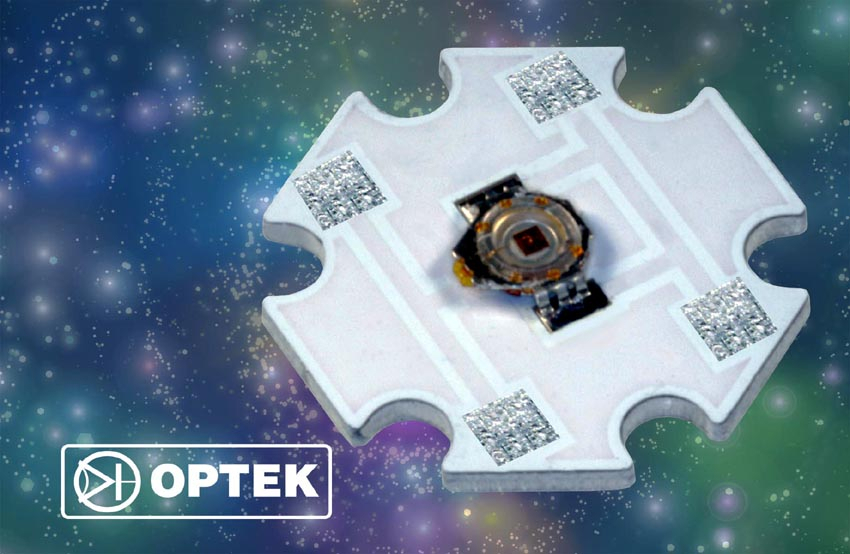

Optek Technology, Inc.    Carrollton, TX 75006-6905
Jun 03, 2008 OVTLZ Optimal I Star Series of LED assemblies consist of Lednium Series 1 W LEDs integrated with thermally-conductive heat spreader substrate to achieve overall thermal resistance of 4.9°C/W from LED junction to additional heatsink. LEDs feature viewing angle of 135° in various emitted colors, including blue, cyan, green, red, amber, cool white, daylight white, and warm white. Typical forward voltage at 350 mA ranges from 2.3-3.6 V, depending on color.

Dymax Corp.    Torrington, CT 06790
Jun 02, 2008 BlueWave LED generates light using an array of surface mount LEDs that produce visible light energy in narrow wavelength band centered at 410 nm. Emitting maximum visible light intensity output of over 2,500 mW/cm² from an 8 mm dia lightguide, system allows users to adjust intensity output from 0-100%. BlueWave LED is suited for spot curing of coatings, as well as adhesive bonding of polycarbonate, PVC, PET, metal, glass, and many other substrates.

Lithonia Lighting    Conyers, GA 30012
Jun 02, 2008 Eliminating harsh shadows created by parabolics, RT5R relight fixtures offer uniform lighting, smooth lines, and measured proportions. With RT5R, outdated buildings can relight their space without replacing entire lighting system. Units come with step-dim and full-range control options for additional operational efficiency.

Lithonia Lighting    Conyers, GA 30012
Jun 02, 2008 Decreasing cave effect created by traditional parabolics, ES8R(TM) relight fixtures help improve balance between horizontal and vertical light levels. They reuse existing fixture housings, and reduce waste through 50% fewer lamp replacements, reduced CO₂ production, and use of recyclable materials. Eliminating need for full-fixture replacement, relight assemblies are suited for outdated and inefficient spaces.
