Spectrum Advanced Specialty Products    Fairview, PA 16415
Jul 08, 2011 Able to connect to USB 2.0 or 1.1 ports, ruggedly constructed Type A right-angle mounted USB connector carries 1.5 A current rating and offers up to 30 mW contact resistance. RoHS-compliant product operates over -40 to +105°C range and meets seal requirements of IEC-60529, Code IP67 on PCB side, as well as immersion requirements per MIL-STD-810F Method 512.4 to 20 m (unmated).

Murata Power Solutions, Inc.    Mansfield, MA 02048
Jul 08, 2011 Measuring 2.3 x 0.9 x 0.4 in., UEE Series features nominal input voltage of 48 Vdc and can accommodate input range of 36-75 Vdc. Models UEE-3.3/15-D48 and UEE-3.3/30-D48 offer 15 and 30 A output, respectively, and fit within DOSA Eighth brick package. Fully isolated, open-frame units provide single 3.3 Vdc output with efficiency up to 90%. Available in through-hole pin or surface mount options, converters can operate from -40 to +85°C when forced air cooling is applied.

Deco Lighting    Commerce, CA 90040
Jul 07, 2011 Based on LEP (Light Emitting Plasma) technology, DP400 employs 280 W plasma lamp and produces 23,000 lm of white light with up to 95 CRI and efficiency as high as 115 lm/W at source. Luminaire is digitally compatible with intelligent lighting network systems for remote monitoring, diagnostics, and programmable dimming/switching control. Rated for 50,000 hr service life, product measures 23.6 x 16 x 6.4 in. and may be used in new and retrofit street and roadway lighting.

NKK Switches    Scottsdale, AZ 85260-3420

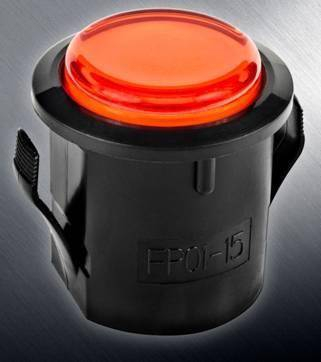

Jul 07, 2011 Utilizing single photo transistor to activate momentary ON position, FP01 Series provides minimum of 3 million mechanical operations. Rugged construction and smooth actuation allow repeated and rapid actuation force anywhere on cap surface. Operating from -25 to +50°C, contactless, snap-in mount devices include 6-pin socket and LED illumination with LEDs as integral component of switch. Required panel cutout is 22.9 mm and recommended panel thickness is 2.5-5 mm.

Larson Electronics, LLC    Kemp, TX 75143

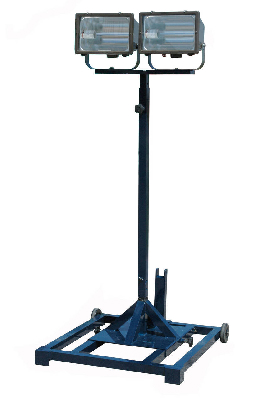

Jul 07, 2011 Rated Class 1, Division 2 for hazardous locations, Model HAL-2X400MCE features two 400 W metal halide lamps that provide 50,000 sq-ft of coverage, and 39 x 35 in. wheeled tower base that allows user to move fixture about workplace. Unit can be extended to 8 ft for max coverage and collapsed to 5 ft for transport. With tilting base design, user can tilt unit back while extending tower to full height, set lock pin, and then tilt it fully upright for secure placement.

Thomas & Betts Corp.    Memphis, TN 38125
Jul 07, 2011 Manufactured as continuously molded strip, Sta-Kon® Plastic Strip-Fed Terminals, rated to 600 V, will not jam equipment or tooling and have consistent surface. Funnel-entry facilitates and accelerates wire insertion, internal barrel serrations promote conductivity and pullout strength, and sleeved barrels prevent separation. UL94V2 flame-rated, nylon insulation withstands operating temperatures of 221°F and is resistant to chemical exposure, impact, and abrasion.

TE Connectivity Ltd.    Berwyn, PA 19312
Jul 06, 2011 Suited for use in elctronic devices, scalable spring fingers (shield fingers) are available in heights from 1.8-3.4 mm and are swappable upon demand. Preload function optimizes working area and contact force, while dimple on contact enhances reliability. Backward-bended tip prevents product from hooking by removing sharp edge, and pick-and-place area on back supports auto assembly processes. Also, holes at bottom increase soldering strength while reducing solder wicking issues.

UltraVolt Inc.    Ronkonkoma, NY 11779
Jul 06, 2011 AA Series and High Power C Series are available with -I5 and -I10 interface options, which are optimized for connecting to computers and PLCs in process systems and capital equipment. Options include buffered, low output impedance current and voltage monitors and have programming accuracy of ±1%. Also, remote programming for all polarities and all modes is 0 to +5 V (-I5) or 0 to +10 V (-I10). Both options also feature +5 V (-I5) or +10 V (-I10) reference, ±0.05% PPM/°C.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Jul 06, 2011 P-channel MOSFET power switches of AAT4616 SmartSwitch(TM) series offer precision-current-limit capability as tight as ±5% or 10%, allowing products such as HDTVs, STBs, and tablet computers to maximize power usage from USB or other supply rails and buses. Designed for high side load switching applications, products offer 2.4-5.5 V input range, 130 mW typ RDS(ON), programmable over-current limit from 300 mA to 1.6 A, and quiescent current ratings of 10 µA (enabled) and 1 µA (switch off).

Woodward Industrial Controls    Fort Collins, CO 80525
Jul 06, 2011 Available in 100, 250, 500, and 1,000 kW output ratings, SOLO series maximizes power output from solar array based on current switching, liquid cooling, and maximum-power-point tracker (MPPT) technologies. All models come with local color touchscreen interface and are available for indoor (IP54) or outdoor (IP55) installation. Configurations for extended temperature range (-25 to +55°C) and high-altitude (up to 3,500 m above sea level) are also available.

Atmel Corporation    San Jose, CA 95131
Jul 05, 2011 Intelligent multi-string LED drivers use efficiency optimizer (EO) technology to decrease power consumption to lowest practical level. Capabilities enable LCD TVs to achieve 10M:1 dynamic contrast and minimal motion-blur. ICs also provide over 10,000:1 PWM dimming range for PC monitors and industrial displays. In solid state lighting applications, ICs and MCUs allow dynamic white-point setting, color-mixing, and networked lighting with Zigbee, DALI, and other standards.

RF Precision Products    San Diego, CA 92126
Jul 01, 2011 Featuring triple shielding with low-loss dielectric and high-temperature jacketing, phase stable cables experience minimal phase effects when flexed multiple times. Connectors are made of stainless steel for extended attachment and feature strain relief support designed for armoring as option. Suited for applications up to 26.5 GHz, cables come in 24, 36, and 48 in. off-the-shelf lengths, and custom lengths are available.

Elemental LED    Emeryville, CA 94608
Jul 01, 2011 Available in both red and green, LED Exit Sign Replacement Kits include 2 ETL certified 12 Vdc LED bulbs with E26/27 candelabra base and 2 pairs of retrofit connectors that fit almost all exit sign models. Kits offer smooth, even light and exhibit no spotting, fading, flickering, or buzzing. Consuming 2.8 W, LEDs last approximately 80,000 hours, which is typically 8-10 years.

LEONI Fiber Optics Inc    Williamsburg, VA 23188
Jul 01, 2011 Used for communication and control, High Flex Fiber Optic Cables are offered in Plastic Optical Fiber (POF), Plastic Coated Fiber (PCF), HCS, and glass variants. These customized infrastructure cables and assemblies, depending on choice, can survive temperatures down to -40°C or up to +70°C. Torsion approved and tested, plug-and-play solutions are available with UV-resistant and rodent proof protective tubing and choice of connectors: HP, HFBR 4521, FSMA, ST, HP, SC, and F05.

Spellman High Voltage Electronics Corp.    Hauppauge, NY 11788
Jul 01, 2011 Housed in 9 x 1.5 x 6.1 in. package designed for OEMs, ESC Series provides accurate voltage required for semiconductor-based electrostatic chuck wafer applications. Regulated units precisely secure wafers during lengthy process cycles. Versions are available with ground referenced reversible output as well as with true floating bipolar output and associated floating center tap point. Fault diagnostic circuitry monitors power supply functionality and communicates status to user interface.

Rig-A-Lite Co., Inc.    Houston, TX 77075
Jul 01, 2011 Supporting up to 150 W incandescent or 32 W compact fluorescent lamps, AVP Series features aluminum housing suitable for use in hazardous, marine, and watertight environments. Twist lock lamp holder is offered for CFL fixtures to minimize impact of vibration. Available in pendant, wall, or ceiling mount models, fixtures are suitable for marine vessels, marine repair facilities, oil and gas exploration and production, industrial manufacturing, and food processing applications.

The Modal Shop, Inc.    Cincinnati, OH 45241
Jul 01, 2011 By integrating solid-state power amplifier, SmartShaker(TM) K2007E01 can be driven directly from any sound source. Unit provides force rating of 7 lbf with ½ in. usable stroke and 92% efficiency, contributing to precise modal testing or vibration studies. Model K2007E01 includes flexure suspension arms built from carbon fiber composite and EasyTurn handles for shaker positioning. Multiple gain settings and system mute are selectable via integrated digital control.

Holophane    Granville, OH 43203
Jul 01, 2011 Designed for safe operation, HFL Series meets challenges of Class I Division 2 and Class II Division 2 environments. Fixtures may be used with T5, T8, and T5HO fluorescent lamps in 2-, 3-, 4- and 5-lamp combinations, and emergency battery back-up is offered as option. In addition to chemical plants, food processing plants, and textile mills, applications include wastewater and water treatment plants, power generation plants, confectionary plants, and bakeries.

J-Works,Inc    Ganada Hills, CA 91344
Jul 01, 2011 Rated 0.5 A @ 120 Vac and 0.5 @ 100 Vdc with rhodium contact material, JSB2431 series has DPST relay outputs that provide host control between 2 poles of common line and NO reed relay connection points. Lack of moving armature extends relay life by reducing mechanical wear, and sealed design protects contacts from corrosion. Wire connection to relays is made with on-board screw type terminals, and user communicates with module from programming/test languages supporting USB communications.

Mini-Circuits    Brooklyn, NY 11235
Jul 01, 2011 Measuring 0.2 x 0.2 x 0.2 in., TRS1-23-75+ balanced-to-unbalanced 75 ohm transmission line transformer has wire welded, rectangular core design rated for up to 0.5 W max power. Additional characteristics include 0.3 dB typ amplitude unbalance and 20 dB typ return loss. Supplied in aqueous washable case, product is suitable for RoHS and tin/lead solder systems. Bandwidth covers CATV (forward and return), medical wireless and D2A/A2D, and other communications applications.
