Dynamic Power Source, LLC    New Albany, IN 47150

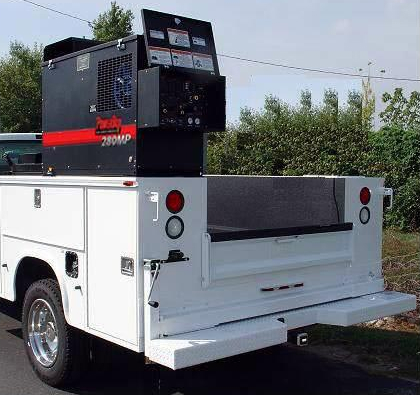

Nov 15, 2005 Featuring 20 x 36 x 48 in. design, PowerBox(TM) 280MP utilizes 18 hp gasoline Kohler engine to power its 20 cfm Quincy compressor and 200 A/5,500 W generator/welder combination. Self-contained, hydraulically driven PowerBox 280HD, with similar characteristics as 280MP, suits vehicle applications that already utilize power take off system. Both models mount onto side pack of service body, into load space of pick-up or service body vehicle, or onto welder platform.

ETCO Incorporated    Warwick, RI 02888 1501

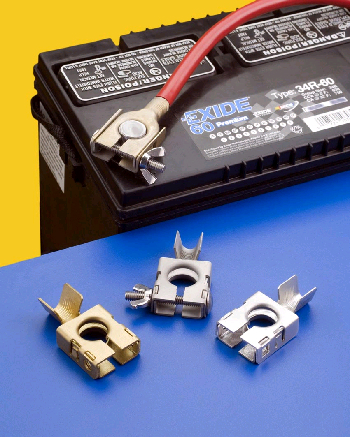

Nov 15, 2005 Clamp-style, Automotive Battery Terminals mate with positive and negative battery posts and accept wire sizes from 25,910-115,150 CMA per SAE standards. Open barrel F-crimp ear section provides secure connection. Supplied in strip form or as loose pieces, lead-free terminals can be manufactured from brass, steel, and exotic alloys. They are provided with variety of plating options including bright and matte finishes, and are labeled with + or - symbols.

DLoG Logistics, Inc.    Westminster, MD 21157

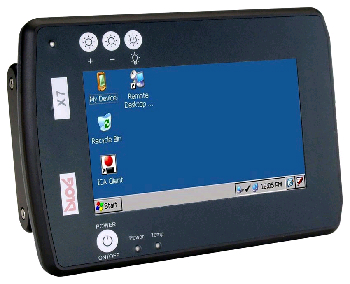

Nov 15, 2005 Measuring 22 x 15 x 8 cm, Mobile Industrial Terminal DLoG X 7 features 7 in. TFT display with touch screen, 520 MHz Intel PXA270 processor, and integrated ARM architecture. Rated to IP54/IP65 protection class, terminal operates safely at extreme temperatures. It includes WLAN/GSM connectivity, 2 serial ports, 2 USB ports, and LCD controller with brightness control and vibration/shock resilience. Unit enables both mobile and stationary Windows CE applications.

Thomas & Betts Corp.    Memphis, TN 38125
Nov 15, 2005 Used on walls up to ¾ in. thick, Steel City® 4 in. Square Old Work Box with Swing Ears enables contractor to secure installation by turning swing ears upward to grip backing of existing sheetrock or drywall. Swing ears are pre-mounted to box, eliminating need for on-site assembly while allowing secure installation. Swing ear mechanism turns with pan-head self-tapping screws on mechanism that feature combination slotted/Phillips drive.

Kinetic Instruments, Inc.    Bethel, CT 06801

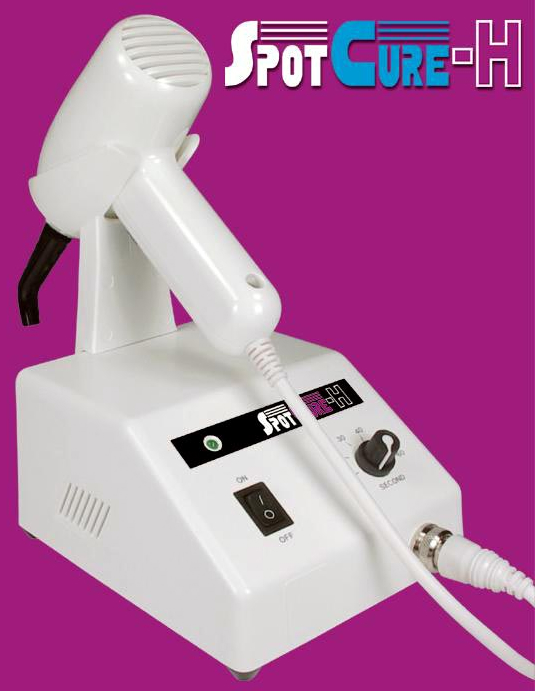

Nov 14, 2005 Utilizing UV elliptical reflector lamp to optimize radiant density, SpotCure-H is suited for curing variety of adhesives. Spectral output exhibits optimal intensity in near UV range from 300-400 nm. Along with variable timing from 1-60 sec, product features 110-220 V switchable voltage and can be configured to operate in hands-free mode.

Texas Instruments Inc. / Tiris Division    Dallas, TX 75243

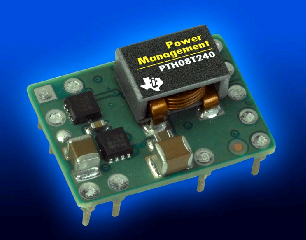

Nov 14, 2005 Non-isolated, plug-in T2 Series supports step-down dc/dc conversion from 4.5-14 V input with adjustable output voltages down to 0.7 V at output currents up to 50 A, making them suited for IBA applications. TurboTrans(TM) technology enables power supply designer to dynamically tune modules using single external resistor to meet specific transient load requirement, and SmartSync function allows synchronization of switching frequencies of multiple T2 devices.

Saelig Co., Inc.    Pittsford, NY 14534

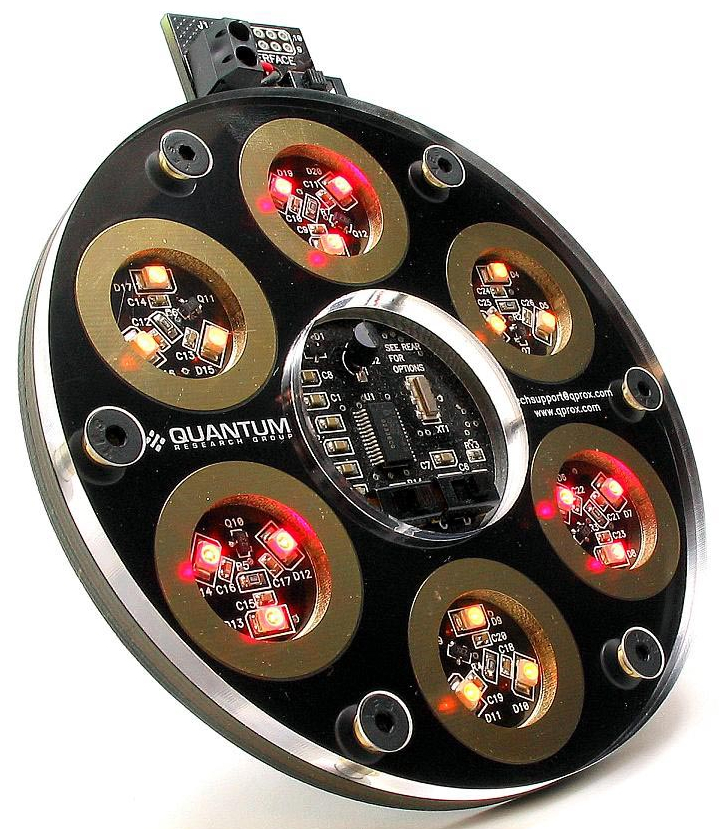

Nov 14, 2005 Capable of 6 channels of proximity or touch sensing, QT160 IC can be used to create capacitive, glass touch keys through insulating materials up to 4 in. thick. Self-contained QTouch chip is available with toggle mode, which permits on/off touch control. For electrically adjacent keys, AKS feature suppresses touch response from weaker responding keys so only dominant key is detected. With Sync feature, designers can create more keys using multiple QTouch devices.

Wieland Electric Inc.    Burgaw, NC 28425

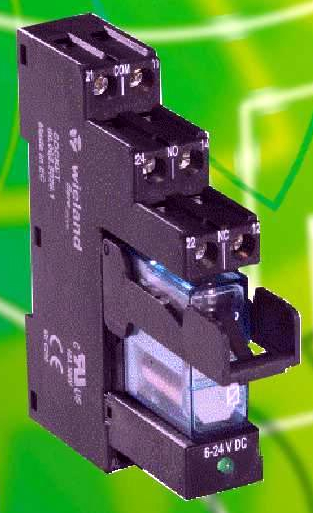

Nov 14, 2005 Used for signal conversion, isolation, and amplification, 6.2 mm thick flareMOVE series is offered in SPDT and DPDT, Form C contact configurations rated for 250 Vac nominal, with contact current ratings at 8, 10, and 16 A max. Design, which facilitates installation/replacement, has screw clamp base, dc polarity protection, LED indication, and reverse voltage protection diode on coil. Series is available in 12 and 24 Vdc as well as 12, 24, 115, and 230 Vac ratings.

Wieland Electric Inc.    Burgaw, NC 28425
Nov 14, 2005 Rated for IP65 usage in any industrial application requiring Ethernet connectivity and signaling or power, Multipole revosFLEX Connectors are UL and CSA approved for Cat 5 cabling and 100 Mbit/s. Signal/power connections are rated for 480 V/10 A circuits. Units offer connections in field for fieldbus communications, signal connections for watchdog circuits, or power connections for field devices in quick connect/disconnect design.

Honeywell Power Supplies    Northford, CT 06472
Nov 14, 2005 Used for dry or latching contacts, polarity reversal, phone line seizure, or other switched control logistics, HRB5, HRB1224, and HRB610 facilitate customization of security systems. Model HRB610, 6-unit relay cluster can be used as complete unit or snapped apart for individual use. This 12/24 Vdc selectable, 50 mA coil draw control relay has SPDT contacts rated 10 A/120 Vac/28 Vdc. Both HRB5 and HRB1224 feature set of DPDT contacts rated 5 A/120 Vac/28 Vdc.

Electroswitch, Unit Of Electro Switch Corp.    Weymouth, MA 02188 2913
Nov 11, 2005 Configurable with up to 8 positions and up to 20 poles, Detent-Action Series 24 features fully enclosed decks and self-cleaning, silver-plated, double-wiping contacts for low-resistance contacting of .01 Ω max. Molded phenolic insulating disks provide minimum insulation resistance of 100 MΩ. Make-before-break contacts allow sequential connections on same switching deck. Other features include waterproof mounts, gear-driven operation, and push-to-turn handles.

Universal Lighting Technologies    Nashville, TN 37214
Nov 11, 2005 Available for 1- and 2-lamp applications, Basic-12(TM) Ballasts comply with federal ballast efficiency requirements for installation into new fixtures as well as with 2010 requirements for replacement ballasts. Rapid Start units are wired identically to magnetic ballasts they replace, and mounting dimensions are identical as well.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Nov 11, 2005 Utilizing PowerTrench® MOSFET technology, high-side control MOSFET Model FDS6298 and low-side synchronous MOSFET Model FDS6299S optimize space in notebooks using Intel Mobile Voltage Positioning specifications. Chip set features low Qgd of 3 nC at VGS=4.5 V for fast switching, as well as Qgd/Qgs ratio of less than 1 to limit potential for cross-conduction losses. As matched pair, units are also suited for high current POL converters in high-end communications equipment.

austriamicrosystems AG    Premstatten   Austria
Nov 10, 2005 Configured as SPST, AS1751/AS1752/AS1753 analog quad switches are designed for high-speed switching of audio, video, and data signals in portable, handheld devices. Products operate from 1.6-3.6 V, and all digital logic inputs are 1.8 V CMOS-compatible. Able to switch currents up to 250 mA, units exhibit low R_on of 0.9 Ω and are available as NO (AS1751), NC (AS1752), and combination of open and closed (AS1753) in 16-pin QFN or 14-pin TSSOP packages.

Powerstax plc.    Farnborough, Hants GU14 0NR  United Kingdom

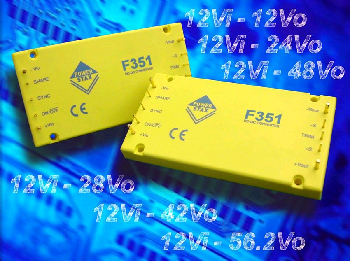

Nov 10, 2005 With 12 V nominal input, step-up Series F351 provides output voltages of 12, 24, 28, 42, 48, and 56.2 Vdc, making converters suited for battery back-up, automotive, industrial, and Intermediate Bus Architecture applications. Full brick size package, measuring 4.2 x 2.4 x 0.5 in., offers single wire connection, automatic current sharing parallel connectivity for true N+1 redundancy, efficiency of 87%, and extended temperature range of -20 to +100°C with no derating.

ADLINK Technology Inc.    Irvine, CA 92618

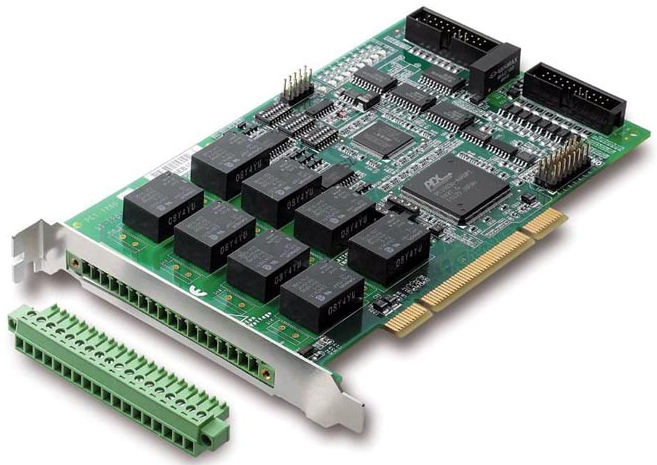

Nov 10, 2005 With support for 3.3 and 5 V Universal PC bus, PCI-7260 has 8 channels, each of which switches 5 A currents at 250 Vac or 30 Vdc. It also offers 8 isolated digital input channels with debouncing circuits. Along with emergency shutdown function, product features front panel connector that can carry high currents and facilitates wiring. Trace space, trace width, and copper thickness are designed to follow EN61010-1 safety standards to carry high currents over PCB.

Axon Cable Inc.    Schaumburg, IL 60173

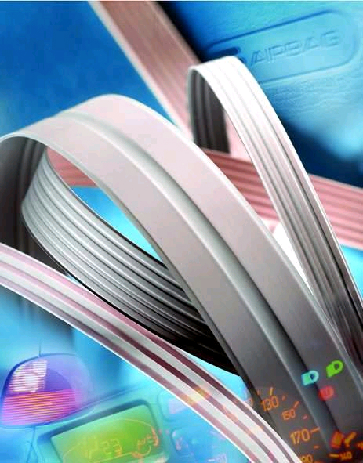

Nov 10, 2005 Consisting of flat copper conductors, AXOLINE® Automotive Cables are resistant to humidity due to adhesive-free nature. Fire retardant thermoplastic insulation assures performance under Class 1 at 80°C and Class 6 at 200°C. Different conductor widths and thicknesses within single cable can be fitted with appropriate connectors for wide variety of automotive equipment, each with different power needs.

EHM Technology, Inc    Las Vegas, NV 89120
Nov 10, 2005 EHM sealed Gel SLA Batteries employ heavy-duty lead calcium alloy grids and gas recombination system that converts generated gas to water. Along with safety sealing, products feature automatic gas pressure venting and separators that contain acid flow for stable mounting in any position. Batteries, which measure 151 x 50 x 94 mm and are rated at 6 volts @ 12 A hr, are suited for emergency lighting, fire, UPS, telecommunications, and power tools.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055

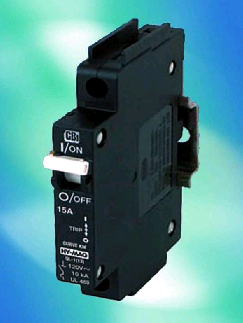

Nov 10, 2005 Suited for circuit protection up to 80 Vdc, QY Series is UL489-listed and DIN rail mountable. It is available in 1-50 A and is designed to standard industrial control trip curves.

Igus, Inc.    East Providence, RI 02914 0349

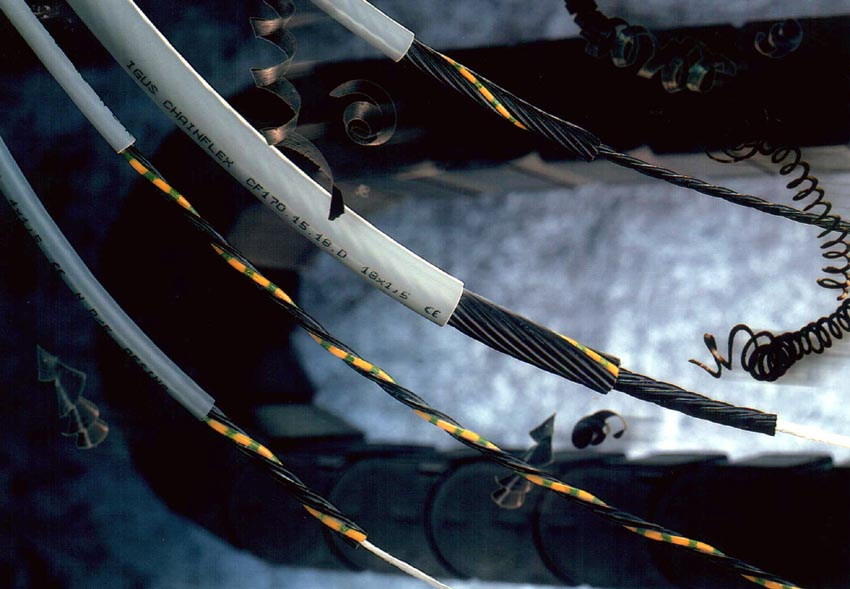

Nov 09, 2005 Resistant to oils as well as cooling and cutting fluids found on machine tools, Chainflex® CF170 is designed as continuously flexing cable for use in cable carriers. Product, available from stock from 20-8 AWG and up to 30 conductors, is PVC- and halogen-free and conforms to DESINA standards.
