Animatics Corp.    Santa Clara, CA 95054
Sep 20, 2004 Fully-molded Add-A-Motor(TM) cables daisy-chain multiple SmartMotor 1700 and 2300 Series motors for serial operation, supplying dc power and RS-232 communications. Products feature fully-molded connector ends and high-flex cable. Each cable has female 7-pin SmartMotor 7W2 Combo-D-sub connector on one end and female 7-pin 7W2 D-sub connector backed by male 7-pin connector on other end. Cables come in standard lengths of 0.3, 1.0, 3.0, and 7.5 m.

Belden    Richmond, IN 47375
Sep 17, 2004 Suited for use with pan/tilt/zoom security cameras, Unshielded Twisted Pair (UTP) cables provide video, control, and power functionality. Depending on product No., cables are available with 2 or 4 video/control UTP pairs and 23 or 24 AWG solid bare copper conductors. Power pair has 16 AWG stranded conductors. Cables include Riser and Plenum Siamese Composite, Riser and Plenum Round Composite, and Non-Plenum types.

Orion Energy Systems    Plymouth, WI 53073
Sep 17, 2004 Illuminator Seriesâ„¢ Model 4I4 is a 4-lamp fixture suited for applications that have ceiling heights from 14–100 ft. It provides full-spectrum light while using half the energy of standard high-intensity fixtures. Utilizing fluorescent lamps and electronic ballasts, Illuminator Series captures 360° of light using reflector logic and focuses it fully into workspace. Applications include warehouses, manufacturing facilities, distribution centers, and retail stores.

Foster Transformer Co.    Cincinnati, OH 45223 2571
Sep 15, 2004 Isolated machine tool transformers, available with lead wires, terminal blocks, lead screws, and other configurations to suit user needs, come in models from 0.025–5.0 kVA. Offered in UL/C-UL Recognized and Listed configurations, products have Class 130 and UL Class 180 Insulation Systems, respectively. All models feature 240/480 V, 50/60 Hz primary windings, with optional 208 V tap. Dual 120/240 V secondary windings are standard.

Rittal Corporation    Springfield, OH 45504
Sep 14, 2004 IP69K-Rated Enclosures protect against ingress of dust and harmful effects of high-pressure jet steam cleaning. Available with or without keyboard housing, Premium Panel units are Type 304 brushed stainless steel with depths of 4.72 or 8.66 in. Offering junction box solution, KL Premium Line is 304 stainless steel and available in sizes from 6 x 6 x 3 in. to 12 x 16 x 4 in. Offering corrosion protection, aluminum zinc AE Series is available in 4 sizes from 13 x 9 x 6 in. to 25 x 25 x 10 in.

Rittal Corporation    Springfield, OH 45504
Sep 14, 2004 Available in amperage ranges of 200–1,600 A, tin-plated Flexibar® provides alternative to cable or rigid busbar conductors, allowing increased flexibility in panel designs. It is designed with PVC insulation that permits conductor’s copper laminates to slide within protective jacket and also allows product to be twisted and bent to fit variety of panel layouts. Design eliminates need for termination lugs.

Quality Lighting    Franklin Park, IL 60131 0309
Sep 13, 2004 Available in 13 and 18 in. lengths, low-glare Series DS-13/18 emits sharply directional, forward-throw, downward illumination at building entryways, pathways, and parking garages. Fixtures feature smooth-edged, semi-cylindrical housing that mounts flush to interior or exterior wall surfaces. One-piece, asymmetric, anodized metal reflector provides precise beam control from metal halide, high-pressure, or low-pressure sodium lamps in different wattages.

Emerson Electric Co.    St. Louis, MO 63136 8506
Sep 13, 2004 With input voltage range of 10-14 Vdc, APC18 point-of-load converters provide up to 18 A of regulated power with efficiencies to 92%. Non-isolated converters measure 1.3 x 0.53 x 0.35 in. and suit environments with restrictive space requirements. With adjustable external resistor programming, single-output devices can provide selected output voltage from 0.75-5.5 Vdc with regulation to within 3%. Each unit has overcurrent and overtemperature protection.

Peak Beam Systems, Inc    Edgemont, PA 19028
Sep 10, 2004 Maxa Beam Force Protection Security Kit includes hand-held xenon searchlight that illuminates areas up to 1 mile away. Thumb of hand holding searchlight can control intensity of light, activate strobe function, and vary size of beam from wide 40° flood to narrow 1° beam. Water-resistant Maxa Beam may be used with full spectrum white light or with filter packs for infrared surveillance. Applications include offshore oil rigs, refineries, and nuclear plants.

Waytek Inc.    Chanhassen, MN 55317
Sep 10, 2004 Extending up to 3 ft, Jet Connex Trailer Connectors replace loose wires that hang down between vehicle and trailer with plug-and-tow coiled cord. Molded connectors on each end provide strong connection for running lights, turn signals, and brakes. Tightly coiled, jacketed, and mylar-wrapped multi-wire power cable includes integrated strain relief, eliminating broken or shorted wires in critical connection area. Outer jacket is water-proof and abrasive-resistant, all-weather urethane.

ITT Industries    Newton, MA 02458
Sep 10, 2004 Series APD DIN72585 Connectors feature lightweight composite bodies with IP69K-sealed connectors and bayonet coupling that ensures tight, vibration-resistant connection. With insulation resistance of 10 Mohm, 37- and 51-way connectors are voltage-proof to 1,000 Vac and rated for max of 12 A at 85°C. Optional secondary locking system on 51-way version provides added security. Applications include automotive, transportation, and industrial environments.

Pelican Products, Inc.    Torrance, CA 90505
Sep 10, 2004 HeadsUP Liteâ„¢ 2630 features LED battery-power indicator and switch that allows for 100, 50, and 25% light regulation for close-quarter dimming and battery conservation. Headlight includes intermittent safety beacon mode and has water-resistant, ABS-plastic construction. Energy adjustment circuit regulates 30 lumen Luxeon® 1 W LED lamp, ensuring consistent light throughout battery life.

Times Microwave Systems    Wallingford, CT 06492 5039
Sep 09, 2004 Designed for LMR-400 series coaxial cables, TC-400-NMH-RA-SS (3190-1668) N male right angle passivated connector exhibits low loss and optimal VSWR performance through highest ISM frequency band of 5.8 GHz. LMR® cables are flexible, non-kinking, RF transmission line cables suitable for use as antenna feeders, system jumpers, and interconnects.

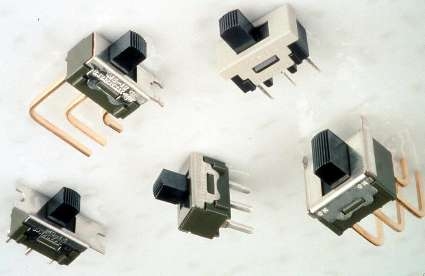

NKK Switches    Scottsdale, AZ 85260-3420
Sep 09, 2004 Available in SPDT, SPTT, and DPDT, Series MS can be configured in 2 or 3 positions, with maintained circuits. Power rated models are rated 6 A at 125 Vac or 3 A at 250 Vac, while logic level devices are rated 0.4 Va max at 28 V ac/dc max. Offered in single or double pole, with 2-position ON ON circuits, Series CS is straight-PC mounted. Units are rated 3 A at 125 Vac or 2 A at 250 Vac. Both series feature epoxy-sealed terminals and UL 94-V0 flammability ratings.

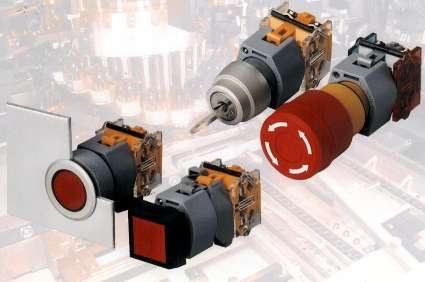

EAO Switch Corp.    Milford, CT 06460
Sep 09, 2004 Series 04 includes square or round indicators and pushbuttons, rotary switches, emergency stops, and mushroom-headed pushbuttons. Pushbutton/indicator lens can be flush-mounted to front panel or raised for viewing status from side. Incandescent lamps, neons, or LEDs provide illumination with choice of continuous or flashing elements. Snap-action and slow-make styles come with screw or plug-in terminals. Switching currents range from 2 mA/110 Vdc to 10 A/24 Vdc.

Ericson    Willoughby, OH 44094 0890
Sep 08, 2004 Perma-Tite® 2 plugs and connectors, rated NEMA Type 4, 4x, 6p, and IP 66 and 67, are UL listed and CSA certified. Configurations are from 15-30 A, up to 600 V, single- and 3-phase, and devices withstand hose-down pressures up to 1,000 psi. Color-coded, cord-grip bushings accommodate various cable diameters. Elastomeric housing has ergonomically designed finger grips and resists impact, corrosion, oils, solvents, and other chemicals.

TURCK, Inc.    Plymouth, MN 55441
Sep 08, 2004 The 4-pin, picofast Junction Box allows users to consolidate wiring of 4-pin sensors or connect up to sixteen 3-pin sensors. Available with 4 or 8 ports, unit offers snap-lock and M8 threaded connection. Top-mount, home-run connector or side-exit, integral cable facilitates access in tight areas. Fully encapsulated IP67-rated unit, with nylon housing, has operating voltage of 10–48 Vdc.

Jerome Industries Corp.    Elizabeth, NJ 07201 2005
Sep 08, 2004 Fan-cooled, Max Power Series features universal input voltage of 90–264 Vac, 47–63 Hz. Available in desktop version for medical and information technology equipment, units are short-circuit and overload protected. They are are approved to UL, CSA, and EN for Domestic, European, and International standards.

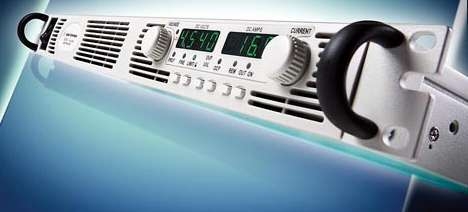

Agilent Technologies, Inc.    Santa Clara, CA 95051
Sep 07, 2004 Providing up to 1500 W in 1U-high package, Series N5700 features PC-standard I/O including LAN, USB, and GPIB. Series consists of 24 single-output programmable power supply models that provide stable output power and built-in voltage and current measurement from 6-600 V and 1.3-180 A. Power supply instruments can be configured in parallel or series operation. All models have universal ac input with power factor correction.

Belden CDT    Fort Mill, SC 29715
Sep 07, 2004 Exceeding TIA/EIA Cat 5e Standards, Belden IBDN System 1200 supports 1.2 Gb/s network applications and provides clear bandwidth up to 160 MHz. System 2400 exceeds TIA/EIA Cat 6 standards, supports 2.4 Gb/s, and delivers 250 MHz bandwidth. Providing 300 MHz, System 4800LX performs beyond Cat 6 and supports demanding, ultra-high speed and multi-Gigabit protocols. All include UTP cables, hardware, patch panels, patch cords, outlets, modules, faceplates, and adapters.
