DDP Supply    El Segundo, CA 90245
Jun 08, 2006 Designed as retrofit and replacement for incandescent light bulbs, T1 ¾ midget flange based LED lamp comes in 6, 12, 14, 24, and 28 V versions. Solid-state lighting product is suited for indicators used for backlighting switches, pushbutton rockers, and panel builders in harsh conditions. Available in standard or custom assemblies, product ensures clean white light without any color mixture and works with variety of color lenses.

Opto Technology Inc.    Wheeling, IL 60090 6056
Jun 08, 2006 Using 50 die in TO-66 package, Shark OTLH-0480-UV achieves 150 mW of optical power. It offers half max viewing angle of ±54° and features peak wavelength at 365 nm with radiant flux of 150 mW when driven at max peak current of 300 mA. It suits applications that include fluorescence excitation or absorption; document validation; and UV curing of acrylates used in adhesive, polymer, and ink curing. Collimating optics and custom lenses are available.

Power Sentry    Plymouth, MN 55447
Jun 08, 2006 In addition to V3(TM) surge protection technology, surge protectors incorporate EMI/RFI noise filtration and built-in cord management. Power Blocker(TM) automatic shutdown technology protects connected devices against harmful power surges once unit's capacity has been reached. Top model, 14-Outlet Satellite/Home Theater and Professional Workstation Surge Protector, has 4,200 J rating. Other 14 models, which have 7-12 outlets, carry ratings from 1,000-3,500 J.

Scientific Technologies Inc.    Fremont, CA 94555
Jun 07, 2006 Stand-alone Model MFS requires magnetic and ferroresonant signals to close safety signals, making it resistant to tampering. NEMA 4 enclosure enables switch to withstand water washdown cleaning, while providing up to 10 million actuations of operation. Unit is pre-wired and mounts on 1 in. square tubing. For lower risk applications, it can be used as stand-alone safety switch with direct switching of relays and contactors up to 2 A at 230 Vac.

ETCO Incorporated    Warwick, RI 02888 1501
Jun 06, 2006 Custom electrical terminals and switches integrate with discrete component overmolding to offer strain and flex relief. Manufactured from medical grade, titanium, platinum, stainless, and copper alloys, units are available reel-to-reel or as loose pieces for integration into automation systems. With sizes ranging from 0.008-0.090 in. thick with ±0.002 in. tolerance, they can be inlaid or edgelaid with precious metals for enhanced wear properties.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Jun 05, 2006 DIN rail mount CKS series includes solid state modules in single 5 A or dual 2.5 A relay versions with spring clamp connections. Products use PTC/CK/42 push-in jumpers that can be cut to any number of positions, and all relays are soldered-in for immunity to shock and vibration problems. Suited for manufacturing automation equipment requiring high number of switch cycles, industrial control relays may also be used for switching solenoids up to 1 A.

Electroswitch, Unit Of Electro Switch Corp.    Weymouth, MA 02188 2913
Jun 05, 2006 Type W Switch is available with maintained, momentary, slip, or lateral contacts. Built with up to 10 decks, 10 poles, and 12 positions, product comes in control-switch configuration. Type W-2 Switch, offered in instrument- and control-switch configurations, features rotary roller action design with up to 6 rollers and can be built with up to 8 decks, 48 poles, and 12 positions. Spring-actuated design provides for momentary, maintained, or combination shorting/non-shorting contacting.

TE Connectivity Ltd.    Berwyn, PA 19312
Jun 05, 2006 AMPMODU receptacles come in single- and double-row arrangements for motherboard/daughterboard applications. RoHS-compliant, 0.100-centerline products mate with unshrouded and breakaway style headers. Horizontal versions include Mod II thru-hole and SMT products, both with closed entry housings. With vertically configured product, Mod II thru-hole product with top-entry is available in addition to Mod IV thru-hole and SMT products, both with dual entry.

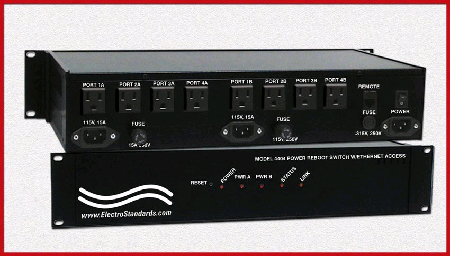

Electro Standards Laboratories    Cranston, RI 02921 3403
Jun 05, 2006 Accessed via 10-Base-T connection, Model 4404 enables user to cycle power to 8 remotely located devices. Equipment prone to lock-up is plugged into unit's AC power outlets. By entering IP address of switch into Web browser, graphical representation can be accessed. User selects any of 8 AC outlets individually, or in groups, and removes and restores power. No special software is required, and system is secure with username and password authentication.

Samtec, Inc.    New Albany, IN 47151 1147
Jun 05, 2006 Data Rate(TM) I/O Cable Plugs (VPDP Series) and Receptacles (VRDPC Series) are used for panel-to-panel and panel-to-board applications. Available with standard or reverse polarization, plugs use 30 AWG twinax micro ribbon cable and feature 100 W differential signal routing with 8, 12, 16, or 24 signal pairs. Right-angle receptacles have contacts on .8 mm pitch for mating with high-density cable plugs. System is rated at 1 A per contact, with per contact resistance under 15 milliohms.

Transition Networks, Inc.    Minneapolis, MN 55344
Jun 05, 2006 Remotely managed MILAN by Transition switch has nine 10/100/1000 copper interfaces and 2 Gigabit SFP fiber interfaces, latter of which can connect multiple switches over fiber optic links and offer redundant super ring capability. Offered with various management and security features, low-port switching solution supports IEEE802.3ad with LACP function and has 4 priority queues per port. It suits indoor and outdoor applications with temperatures from 0 to +60°C.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jun 05, 2006 Serving as direct replacements for MiniLED, PLCC-2, and PLCC-4 models in TLM Series, VLM Series is RoHS-compliant and compatible with IR reflow, vapor phase, and wave solder processes according to CECC 00802 and JEDECSTD-020b. Applications include backlighting in automotive dashboards, car radios, and switches; indicators and backlighting in telecommunications systems, audio and video equipment, and office equipment; and in flat backlighting for LCDs, switches, and symbols.

Foundry Networks, Inc.    San Jose, CA 95164-9100
Jun 02, 2006 Featuring modular upgradeability in 1.5 U high form, FastIron® GS Series compact edge switches are available in 4 base models with 10/100/1000 Mbps PoE, 24 or 48 ports, and with or without Ethernet. All models are 10-GE upgradeable, include ac power supply, and support 4 combination copper-SFP ports. IronShield 360 security protects network access and integrity, while port mirroring and sFlow traffic sampling can be configured together for system-wide traffic monitoring.

C & M Corporation    Wauregan, CT 06387 0348
Jun 02, 2006 MacroFlex Series includes Series 10, 12, 25, and 39 with wire gauge ranges from 26-16 in Series 10 down to 30 AWG in Series 12, and pitch ranges from .025-.100 in. With Teflon®-insulated cables, assemblies withstand temperatures from -55 to +200°C and can be used in variety of demanding environments. Applications include board-to-board connections avionics equipment, PCB jumpers, computers, datacom harnesses, test equipment, and medical electronic equipment.

Igus, Inc.    East Providence, RI 02914 0349
Jun 02, 2006 Chainflex(TM) CF.INI Cables include sensor/actuator cord set for process automation applications. Insulation and jacket are made from flexible, anti-abrasive thermoplastic polymer containing fire retardants. Non-porous TPE outer jacket also provides chemical resistance. With temperature range of -31 to +212°F, Chainflex CF.INI Cables come with straight or right angle connectors. Over-molded, thermal-plastic connector body is sealed to prevent intrusion of water.

Liebert Corp.    Columbus, OH 43229
Jun 02, 2006 Line-interactive, rack-mount 1,920 VA Liebert PSI takes 2U rack space and is available network-enabled with OpenComms Web Card installed for integrated SNMP communications. Device utilizes industry standard backup power technology to optimize data network availability. Few battery replacements are needed due to wide input voltage window, which minimizes number of times UPS goes to battery. Voltage settings are programmable for any country.

Athena Controls, Inc.    Plymouth Meeting, PA 19462 1129
Jun 01, 2006 Prewired 5-, 8-, and 12-Zone Mold Junction Boxes are completely assembled, prewired with marked zones, and contain terminal strips for accurate wiring. They include 25-pin power connector for 15 A/240 zones and 10-, 16-, or 24-pin thermocouple connector.

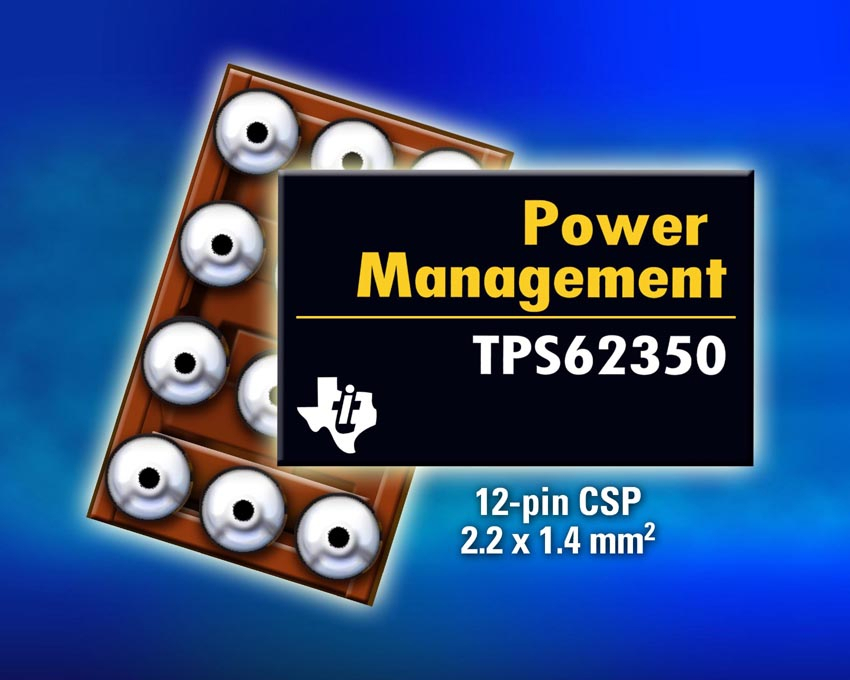

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Jun 01, 2006 Compatible with SmartReflex(TM) technology, 3 MHz TPS62350 synchronous, 800-mA step-down DC/DC Converter features 28 µA quiescent current, pin-selectable output voltage, and 2% PWM DC voltage accuracy. Integrated 3.4 Mbps I2C communications interface allows it to adjust output voltage between 0.75-1.53 V. TPS62350 can operate in power-save mode at light-load currents and can be placed in shutdown mode when power consumption is reduced to <1 µA.

California Micro Devices    Milpitas, CA 95035
Jun 01, 2006 Current regulated fractional charge pump WLED drivers line includes CM913x/4x series that can drive up to 6 WLEDs, up to 50 mA on each output, with input voltage ranging from 2.9-6 V. Voltage regulated CM915x drivers feature fixed output voltage of 4.5 V with output ripple of <1% and accuracy of 2%. All drivers can operate in both 1x and 1.5x fractional modes.

California Micro Devices    Milpitas, CA 95035
Jun 01, 2006 PhotonIC(TM) family is based on FlexBoost(TM) technology, which allows designers to drive several asymmetrical strings of WLEDs, as well as OLED display, with appropriate voltage on each channel using single chip and inductor. Operating with input voltages from 2.7-6 V at 1 MHz switching frequency, current is independently set for each output using external resistor or controlled by analog voltage and PWM input. Devices feature input undervoltage lockout and output overvoltage protection.
