Displaytech Ltd.    Carlsbad, CA 92008

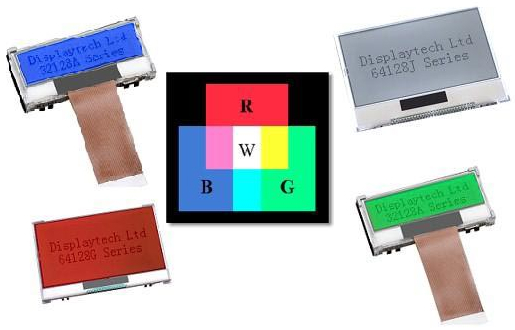

Jun 21, 2006 Lens type RGB LED backlights, suited for company's chip on glass LCDs, feature composite 635 nm red, 525 nm green, and 470 nm blue LEDs. Colors can be used individually to show red, blue, or green background colors, or in combination to make violet, yellow, turquoise, and white. Products operate at 3.2 V, drawing 60-120 mA. Standard RGB backlights are available for graphics modules with dot matrices of 128 x 32, 128 x 64, 240 x 64, and 240 x 128.

UltraVolt Inc.    Ronkonkoma, NY 11779

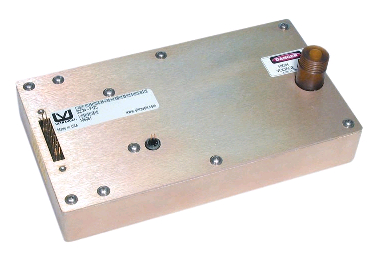

Jun 21, 2006 Measuring 39 in.³, High Power 30C DC/DC Converters are available in 0-60 or 0-124 W output. They feature low ripple, temperature stability, low-overshoot capacitor charging, and stable DC bias operation. Each includes output voltage and current monitors as well as maximum I_out down to 0 V.

Jerome Industries Corp.    Elizabeth, NJ 07201 2005

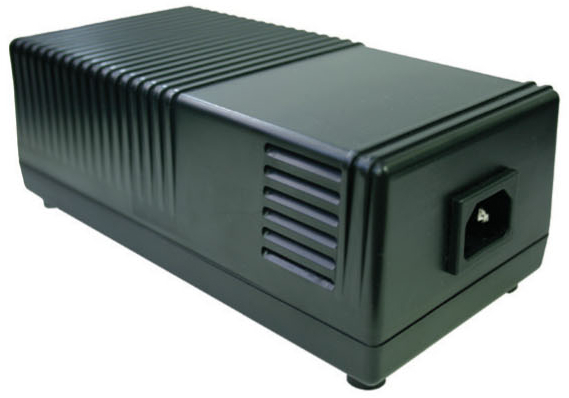

Jun 21, 2006 Suited for Medical Electronic and Information Technology Equipment industry, desktop Max Power series is designed for continuous duty and accepts universal input voltage of 90-264 Vac, 47-63 Hz. Fan cooled, RoHS-compliant products, supplied in 3.75 x 6.5 x 2.56 in. (X series) and 3.75 x 7.4 x 2.56 in. (XL series) case sizes, feature max ripple under 100 mVp-p. They offer short circuit and overload protection and operate over 0 to +40°C range.

Permlight Products Inc.    Tustinm, CA 92780
Jun 21, 2006 Consuming 2 W, ENBB Series Enbryten Bullet LED Lighting System measures 3.09 in. long x 1.98 in. dia and comes with Class 2 step down electronic transformer for converting 120 Vac line voltage to operating power of replaceable/serviceable LED module. Weatherproof housing and enclosure feature LED optic, which collimates and intensifies light output from LED modules. Each ENBB Bullet is configured for direct coupling from 3/8-¾ in. conduit or piping systems.

C & M Corporation    Wauregan, CT 06387 0348
Jun 21, 2006 Consisting of thermoplastic elastomer alloy with matte finish, Duralon(TM) jacket withstands sunlight and most oils, chemicals, acids, and fuels. It looks and feels like rubber, and is flexible enough for high-flex, C-track, rolling flex, and bend flex applications for tens of millions of cycles. Suited for semi-automated and fully automated assembly and manufacturing environments, jackets can be used in plating operations, chemical plants, machine shops, and refineries.

Pickering Interfaces    Wobum, MA 01801
Jun 21, 2006 Available with up to 80 relays in SPST, SPDT, DPST, and DPDT configurations, 2 A Model 40-139 is suitable for high-density applications requiring medium power switching up to 220 Vdc, 250 Vac, 60 W, and 2 A. Mixed relay configuration uses pluggable daughtercards and through hole relays. Customer access is via high-density front panel connector.

GE Intelligent Platforms    Charlottesville, VA 22911
Jun 20, 2006 Modular Level-Up αi series includes spindle amplifiers, servo motors, power supplies with continuous output up to 100 kW, and 1-3 axis servo amplifiers with HRV4 control and minimal heat generation. Servo amps use single fiber optic cable to connect up to 16 servo axes, and all units utilize energy-saving power source regeneration. Servo motors utilize permanent magnet rotor, while motor-mounted, 16 million ppr encoders feature error correction learning functions.

APEM Components    Haverhill, MA 01835

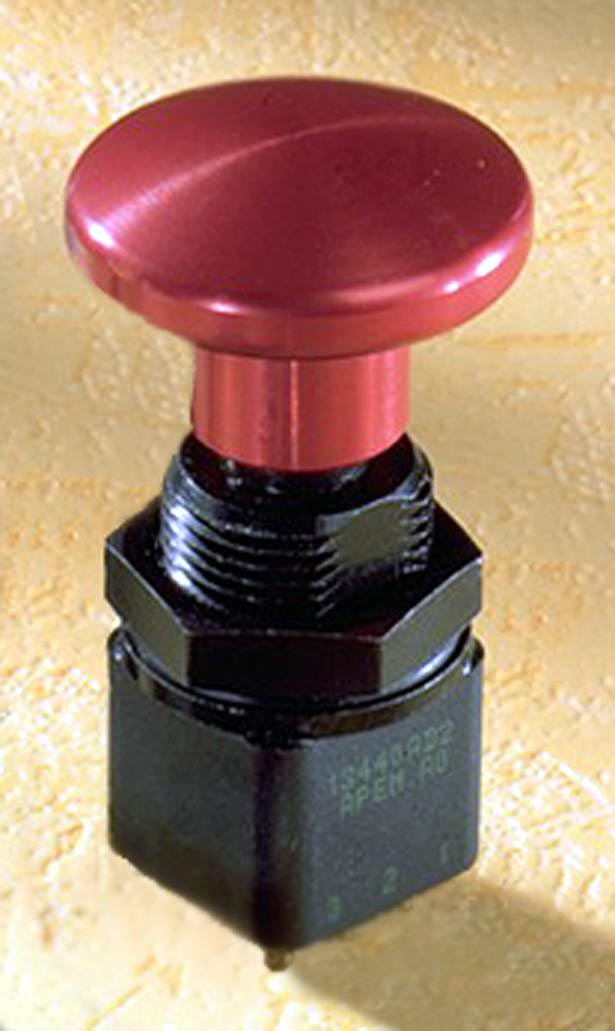

Jun 20, 2006 Series 13000X778 switches are sealed to IP67 and feature double shell case for mechanical strength and electrical insulation. Positive detent action and 5 lb actuation force help ensure reliable operation. Offered with red anodized aluminum actuator, series features gold-plated, solid silver rivet contacts and matte black chromium finish for non-reflective appearance. Switches are suitable for applications of 10 mA at 50 mV and for power applications up to 4 A at 125 Vac.

Greenlee Textron, Inc.    Rockford, IL 61109
Jun 20, 2006 Models EK121D and CK121D feature flip open indentor crimping head capable of crimping wide range of lugs and splices. Tools are UL and cUL Classified for 8 brands of aluminum color-coded code connectors from 6 AWG to 1,000 kcmil and for 8 brands of copper-coded code connectors from 4 AWG to 1,000 kcmil. Resulting crimps show single indentation marked with Greenlee logo for future identification of tool that made crimp. Corded and battery powered versions are available.

STMicroelectronics    Lexington, MA 02421
Jun 20, 2006 Compatible with digital transmission standards such as ADSL2 and ADSL2+, SMP80MC TRISIL micro-capacitance transient surge arrestors protect ADSL/VDSL modems and similar high bit-rate communications equipment. Junction capacitance does not depend on device breakdown voltage, and series combines 80 A repetitive peak pulse current rating with 12 pF typ capacitance at 50 V. Maximum leakage current is 2 µA, with 345 V maximum breakover voltage 150 mA minimum holding current.

Schaffner EMC, Inc.    Edison, NJ 08837
Jun 19, 2006 Delivering RF attenuation, ACARA(TM) Filtered Connectors prevent emission and protect sensitive computers as well as switching and cellular equipment. Units are available in current ratings from 65-100 A in variety of capacitance values from 100-600 nf. They offer EMI suppression to frequencies up to 6 GHz, and insertion loss of less than 100 dB beyond 6 GHz. Positive latch prevents accidental unmating, but allows for immediate power disconnect for emergency service.

Wobble Light, LLC.    Arlington Heights, IL 60004
Jun 19, 2006 Suited for DIYers and tradesmen, Wobble Light Jr.(TM) has rounded, counter-weighted 13 in. base that keeps 27 in.-high unit upright. Internal ventilation system ensures unit stays cool, and floating shock system protects bulb from jarring and strikes. Weighing 15 lb, product has polycarbonate dome for 360° illumination. It comes in 150 W incandescent, 500 W compact fluorescent, and 100 W metal halide models that respectively deliver 10, 14, and 30 ft of light output.

Linear Technology Corp.    Milpitas, CA 95035
Jun 16, 2006 Supplied in 22-pin, 6 x 3 x 0.75 mm DFN package, LTC4089/-5 acts as autonomous power manager, ideal diode controller, and standalone high-voltage switching battery charger for portable USB devices. Switching topology accommodates various inputs, including power sources from 6-36 V (40 V max), 5 V wall adapters, or USB inputs. While LTC4089's switching regulator features Bat-Track(TM) adaptive output control, LTC4089-5 provides fixed 5 V output from high-voltage input.

Interpower Corporation    Oskaloosa, IA 52577-0115
Jun 16, 2006 Molded Interpower(TM) Swiss 16 A power cords and cordsets are for equipment rated up 16 A with service at 250 Vac. Products are available with Swiss 16 A plug and 1.50 mm² HAR cable in 2.5 m length. Power cord has stripped conductors while cordset includes one of three angled IEC 60320 C19 connectors. Units are SEV, Electrosuisse SEV 1011:98, CH-Type 23, and Standard-Sheet SEV 5934-2 approved.

American Ballast    Fremont, CA 94538

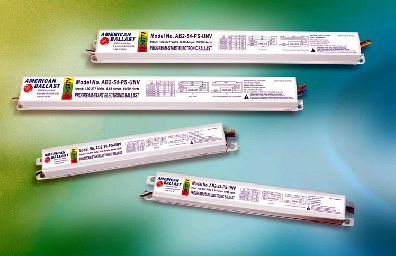

Jun 16, 2006 Available in standard and high output options, T5 and T5/HO Electronic Ballasts feature 108-305 V input voltage and are intended for commercial office, retail, distribution warehouses, and industrial high bay lighting applications. Suited for indirect and pendant mount fixtures, T5 family helps maintain lamp life with automatic end-of-life shutdown. Units are used in Energy Star® compliant fixtures, and meet FCC rules and regulations and ANSI requirements.

Micro Plastics, Inc.    Flippin, AR 72634
Jun 16, 2006 Adhesive-based Releasable Wire Clip has positive latch design for multiple open/close cycles used for adding or removing wires. Part is molded in natural nylon 6/6 with double coated adhesive foam tape for installation without mounting screws or holes for push mounts.

Syndesis Ltd.    Richmond Hill, ON L4B1J5  Canada
Jun 16, 2006 Syndesis® Express(TM) fulfillment suite powers rapid service definition, integrated service design, and activation across connectivity, applications, and device. With integrated view of subscriber, carriers can launch and automate fulfillment of new services, including IPTV, Triple/Quad Play, and video conferencing, without replacing existing systems. Real-time subscriber self-management product offers CSPs ability to support thousands of round-trip subscriber requests per second.

Linear Technology Corp.    Milpitas, CA 95035
Jun 16, 2006 Optimized for driving 2 banks of white LEDs from one Li-Ion battery, LTC3452 utilizes synchronous buck-boost topology that delivers up to 90% efficiency over 2.7-4.2 V Li-Ion range. Up to 5 parallel LEDs can be driven at up to 25 mA each for LCD backlighting, while 2 LEDs can be driven at up to 200 mA each for camera flash. Supplied in 4 x 4 mm QFN package, product has constant 1 MHz switching frequency and operates in synchronous buck, synchronous boost, or buck-boost mode.

Raytheon JPS Communications    Raleigh, NC 27616
Jun 15, 2006 Featuring self-diagnostic capabilities and internal library of pre-configured radio templates, Model ACU-M provides interoperability between 4 audio ports, 2 VoIP channels, and headset port. Digital signal processing functions allow unit to interconnect radios in any band including HF, VHF, UHF, P25, 800 MHz, and Nextel iDEN phones. Ethernet port provides access to network for VoIP channels and is also used for remote control and firmware upgrades.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Jun 15, 2006 Mushroom head emergency stop switches are available in both metal and plastic with either 40 or 60 mm operator head. Rear panel locking design and mounting feature facilitate installation in panel. Up to 6 auxiliary contacts can be added to operator and they can be wired even after assembly. Switches are suitable for industrial and process control applications, and are offered in red, with additional colors available for use in other applications.
