Altronix Corp.    Brooklyn, NY 11220
May 11, 2005 With 115 Vac input power, Series ALTV248UL AC Wall-Mount Power Supplies deliver 24 Vac output and either 12.5 or 25 A total supply current. All units are UL2044/CUL listed and include master power switch with built-in circuit breaker as well as electronically isolated outputs. Output protection is provided by fuse or Class 2 Rated PTC, depending on model.

Altronix Corp.    Brooklyn, NY 11220
May 11, 2005 With input power of 115 Vac, 2U rack mount Models R615DC416UL, R615DC616UL, R615DC416ULCB, and R615DC616ULCB feature adjustable 6–15 Vdc output range that is filtered and electronically regulated, making them suited for CCTV cameras and accessories. All units include short circuit/thermal overload protection, master power switch with built-in circuit breaker, individual power LEDs, and removable terminal blocks with locking screw flanges.

Altronix Corp.    Brooklyn, NY 11220
May 11, 2005 Models VB1 and VB1T both convert 12–24 Vdc power source to 24 Vdc, .75 A regulated output. Model VB1 offers modular connector/cable assembly to facilitate wiring, while Model VB1T utilizes conventional screw terminal block. In addition to compensating for voltage drop due to long cable runs, boosters can also provide power for 24 Vdc access control devices from 12 Vdc power source.

Dortronics Systems, Inc.    Sag Harbor, NY 11963
May 11, 2005 Designed for environmentally unprotected areas, 6495 Series uses weather-resistant switch contacts and fits any standard 36 in. wide door; special widths are available for doors up to 48 in. wide. Single or dual contact outputs can be used for REX input to card access systems or EDR-101 Delayed Egress Systems. Imprinted with Push to Exit in black accent, aluminum egress bar has clear anodized finish and can be supplied as mechanical rim device.

C & M Corporation    Wauregan, CT 06387 0348
May 11, 2005 DuraFloat Cable relies on foam core extrusion capabilities to achieve precise cable buoyancy requirements. It is flexible, UV-stable, and abrasion-resistant and may be fitted with choice of jackets to achieve resistance to various chemicals including acids, salt water, oil, and gasoline. Cable is suited for powering and controlling robotic cleaning systems in swimming pools and aquarium facilities as well as marine applications and submersible environmental pumping systems.

Waytek Inc.    Chanhassen, MN 55317
May 11, 2005 Made from braided polyester yarn, Expandable Sleeving slips over wire harness or tubing by bunching it together and then stretching it to bring it back down to size. Standard sleeving is 10 mil thick, while heavy wall version is 15 mil thick and provides extra protection against extreme abrasion. Available in 5 sizes and 4 colors, sleeving cuts with hot knife or scissors and is rated to 257°F max.

Transtector Systems    Hayden Lake, ID 83835
May 11, 2005 Installed as line-to-line or line-to-ground device, Series SXRR offers response time of less than 5 ns and continuously protects against surges up to 20 kA. Multiple Silicon Avalanche Suppressor Diodes are utilized, suppressing induced voltages and shunting high currents away from signaling circuits. Housed in clear polycarbonate module rated to UL94V-V0, unit has breakdown voltage threshold of 75 V at 5 mA and operates from -40 to +75ºC.

Para Light Corp.    Walnut, CA 91789
May 11, 2005 Each waterproof unit in LLEA-0001 series incorporates twenty 150 mA E-power LEDs with integrated heat-sink design and total flux of 100 lumens. Along with color-changing RGB version, series is comprised of 32 different models in amber, red, green, blue, and blue-green with 10°, 20°, 30°, 60°, and 100° viewing angles. Applications include landscaping, architectural, and swimming pool lighting.

Linear Technology Corp.    Milpitas, CA 95035
May 11, 2005 Synchronous buck regulator, Model LTC3548, delivers up to 800 mA of continuous output current from one channel and up to 400 mA from the other. Housed in 3 x 3 mm DFN package, unit features switching frequency of 2.25 MHz and can generate 2 independent output voltages as low as 0.6 V. Using constant frequency and current mode architecture, unit operates from input voltage of 2.5-5.5 V, making it suited for single cell Li-ion, multi-cell alkaline, or NiMH applications.

Lamar Lighting Co., Inc.    East Farmingdale, NY 11735
May 11, 2005 Site-adaptable AWL Series enable side lamp components to be independently adjusted up or down 45° to meet lighting requirements of applications from high storage aisles to warehouses. Able to accommodate T5HO or T8 lamps, fixtures install via hanging hook, cable, or pendants. Options include acrylic diffusers, wire guards, integrated motion sensors, and uplight apertures.

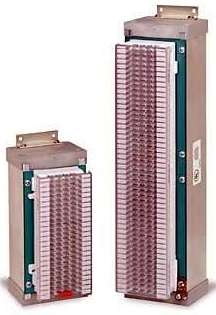

Meter-Treater Inc.    Lake Park, FL 33403
May 10, 2005 TLT-66 IDC (Insulation Displacement Connection) Series provides Secondary, UL 497A, Transient Voltage Surge Suppression for Telephony line protocols. Each line is protected against surge current impulses to 1 kA/wire. TLT 66 Block IDC Models incorporate replaceable protection modules, each of which protects single pair of wires and can be built for specific telephony applications. Products can be mixed and matched to application requirements.

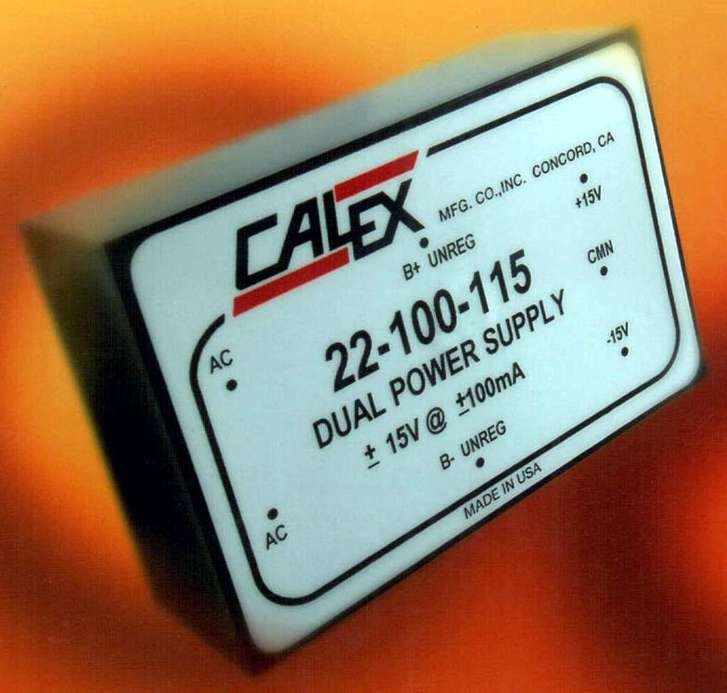

Calex Mfg. Co., Inc.    Concord, CA 94520
May 10, 2005 PCB-mount 22-100, housed in 3 x 2 x 1 in. plastic case and potted with epoxy compound, features ±15 V output voltage and provides up to ±100 mA output current. Powered by 100, 115, 220, 230, and 240 Vac, unit offers quiet operation with noise and ripple at 2 mV rms. Characteristics include ±0.5% voltage accuracy, ±0.04% line and load regulation, and 50 megohms isolation resistance. Product is protected from short circuit through Foldback Current Limiting.

EGS ELECTRICAL GROUP • APPLETON    Rosemont, IL 60018
May 10, 2005 Factory-sealed, dead-front interlocked, Model MD2SR is listed by NEC for use in Class I and Class II hazardous locations. It includes positive polarization, defeatable door interlock, and dual-color operating handle that indicates when switch is energized. Waterproof, corrosion-resistant unit has copper-free aluminum enclosure with epoxy powder coating. Fused and non-fused designs offer short-circuit rating of 200,000 and 10,000 rms symmetrical amps, respectively.

Samtec, Inc.    New Albany, IN 47151 1147
May 10, 2005 Series DPAM/DPAF offers up to 168 usable signal pairs, which are on staggered layout with perimeter grounds to simplify signal routing on boards. Connector set has .394 in. mated height and features solder crimped to tails for processing. Final Inch® data is available for 168 signal pairs. Other standard sizes include 48 and 104 signal pairs.

Aved Electronics, Inc.    Lowell, MA 01851-2729
May 10, 2005 Custom Cable Harnesses are manufactured to specification with regard to flexibility and cycling, exposure to chemicals and harsh environments, signal and power requirements, and connector types. Featuring 100% electrical and mechanical testing, units are UL/CSA approved and can be fabricated from 4–30 ga wire with virtually any type of positive locking connector and quick-disconnect. Harnesses support low signal loss applications down to 1 ohm and systems up to 6,000 V.

HBControls, Inc.    Fall River, MA 02720
May 10, 2005 HBC-EZ series features pre-installed controller wiring harness for single-phase, 3-phase/2-pole, or 3-phase/3-pole applications. Relays offer zero cross-switching, max output of 6 A/pole at 40°C ambient temperature, and input control voltage range of 4-15 Vdc for dc model and 90-140 Vrms for ac model. Mounted on DIN rail clip and measuring 3 x 9 in., controls are suited for use in plastics molding, semiconductor manufacturing, medical, and food processing equipment.

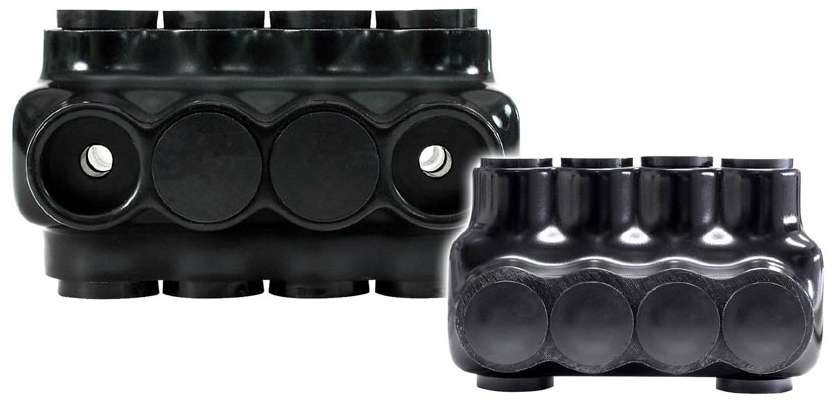

ILSCO    Cincinnati, OH 45227 1426
May 10, 2005 Designed for use in troughs, wire ways, or panels, NIMBUS® mountable connectors feature dual-sided configuration and are available in up to 12 ports with wire range of 750MCM-6. Products, dual rated for copper or aluminum conductor, are UL-Listed through 500MCM and feature removable plugs for entry port closure.

Linear Technology Corp.    Milpitas, CA 95035
May 09, 2005 Supplied in 8-lead MSOP package, LT1936 current mode PWM step-down DC/DC converter has internal 1.9 A power switch, 3.6-36 V input range, and adjustable output down to 1.20 V. Soft-start eliminates input current surge during start-up, and 500 kHz operating frequency allows use of ceramic capacitors. Operating at efficiencies to 88%, converter integrates cycle-by-cycle current limit, which provides protection against shorted outputs.

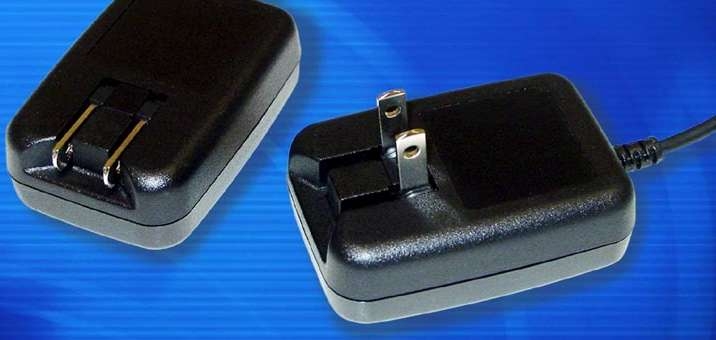

Phihong USA    Fremont, CA 94539
May 06, 2005 Designed to save space during storage or travel, PSM04A measures 2.73 x 1.89 x 0.98 in. and weighs 5.12 oz. It is suited for use with cell phones, PDAs, and personal entertainment devices and carries cUL/UL safety approvals. Capable of producing dc output voltage of 5 V, adapter offers no load power consumption of less than 0.5 W.

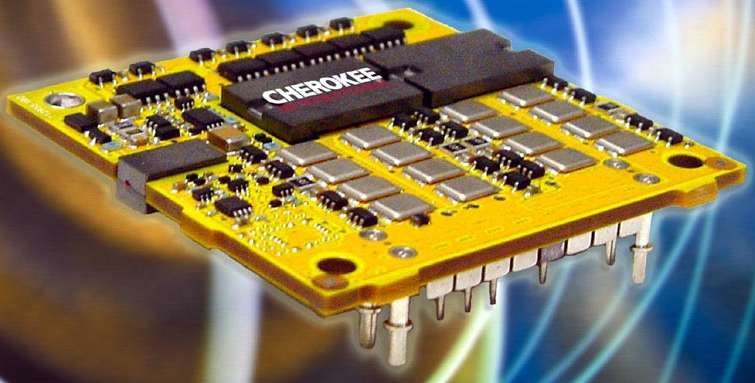

Cherokee International, Inc.    Tustin, CA 92780
May 06, 2005 Polaris 2 converters have isolated, fixed-frequency design, which uses synchronous rectification to achieve efficiencies up to 92% and operates without de-rating. Having no external bias requirements or min load requirements, units offer remote on/off feature and constant frequency operation. With current density of 46 A/in.³, single output units deliver 120 A for 1.2, 1.5, and 1.8 V versions; 100 A for 2.5 V; 80 A for 3.3 V; and 55 A for 5 V versions.
