MKS    Andover, MA 01810 2449
Aug 15, 2011 Available in 2U full rack and 3U half rack enclosures, elite(TM) RF Generator comes in power levels of 300, 600, and 750 W. Full rack design eliminates cables and connectors, while inductive clamp technology protects generator from adverse VSWR load conditions. Air-cooled, single phase, 13.56 MHz generator is suited for amorphous thin film solar manufacturing, LED passivation and etch, MEMS, and semiconductor processes including PVD, CVD, ALD, strip, and etch.

Schr¨¦der Lighting LLC    Elk Grove Village, IL 60007
Aug 15, 2011 Designed for Philips® CosmoPolis(TM) arc tube lamps, FURYO 3 utilizes multilayer HiR® high-powered reflectors and has die cast aluminum housing that optimizes cooling of electronic ballast, which is protected within IP66-rated compartment. Sealsafe® IP66 optical module, together with self-cleaning lens, optimize energy efficiency and deliver dust/water tightness over long term. FURYO III is compatible with OWLET Intelligent Street and Area Lighting System for dimming streetlights in off-peak times.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Aug 15, 2011 Available from 0-1 A to 0-10 A, Current to Analog Converters allow user to monitor flow of current in circuit indicating circuit is operating and load is connected and active. Use of Hall Effect sensor enables both AC and DC currents to be measured. Since 3 different common analog outputs are available, modules will work in any control application where current to analog signal conversion is required.

Magnasphere Corp.    Brookfield, WI 53008
Aug 15, 2011 Suited for use with safes, vaults, and SCIF applications, L1.5 Series High Security Switch features dual alarm contacts, providing both intrusion detection and access control in single unit. Measuring 1 x 1 x 1 in., unit minimizes installation time with solid color lead wires, integrated removal/pry tamper, and 2-hole mounting. No field adjustment is required and no brackets are need for most swing-out door installations.

Osram Sylvania, Inc.    Danvers, MA 01923
Aug 15, 2011 Providing average rated life up to 42,000 hours and CRI of 83, OCTRON 800 XV eXtended Value Lamp Series includes 4 ft long models in 32 W as well as SUPERSAVER® 30, 28, and 25 W models. Also included are 8 ft long versions rated at 50 and 54 W. USA-made lamps are TCLP and RoHS compliant and feature lead-free glass.

Cooper Lighting    Peachtree City, GA 30269
Aug 12, 2011 Featuring Advanced Retrofit Technology(TM), Metalux Commercial, OpticaHP, Archos(TM), and Cruze(TM) Retrofit Kits include one-piece tool-less reflectors with squeeze-and-fit mounting capability, and Ready-Set(TM) captive and secure self-tapping screws. Kits fit into most existing luminaires and can upgrade troffers and parabolics as shallow as 3½ in. Available in 2 x 2 and 2 x 4 ft sizes with T5/T5HO and T8 lamp options, kits offer WhiteOptics(TM) reflector option, which optimizes output and distribution.

North Atlantic Industries, Inc.    Bohemia, NY 11716
Aug 12, 2011 With +28 Vdc input, 3U cPCI Model NAI 44LS1 protects downstream DC-DC converters from MIL-STD-704A-F and MIL-STD-1275 transients, including high and low voltage transients as well as power interruptions lasting up to 50 msec. Unit also provides reverse polarity protection for downstream electronics. Open Collector Signals monitor holdup capacitor's internal storage energy, input voltage, and output status. Internal storage can support 100 W load for 50 msec.

Bulbrite    Moonachie, NJ 07074
Aug 12, 2011 Offering alternative to CFL (compact fluorescents) and LED (light emitting diode) lighting, Eco-Friendly Halogen A19 lamp complies with Energy Independence and Security Act (EISA), is fully dimmable, and can last up to 1,000 hr. Product comes in 29, 43, 53, and 72 W versions, all with both clear and soft white finishes. Uses include chandeliers, outdoor and security lights, ceiling pendants, recessed downlights, portable table and floor lamps, and wall sconces.

SJE-Rhombus    Detroit Lakes, MN 56502

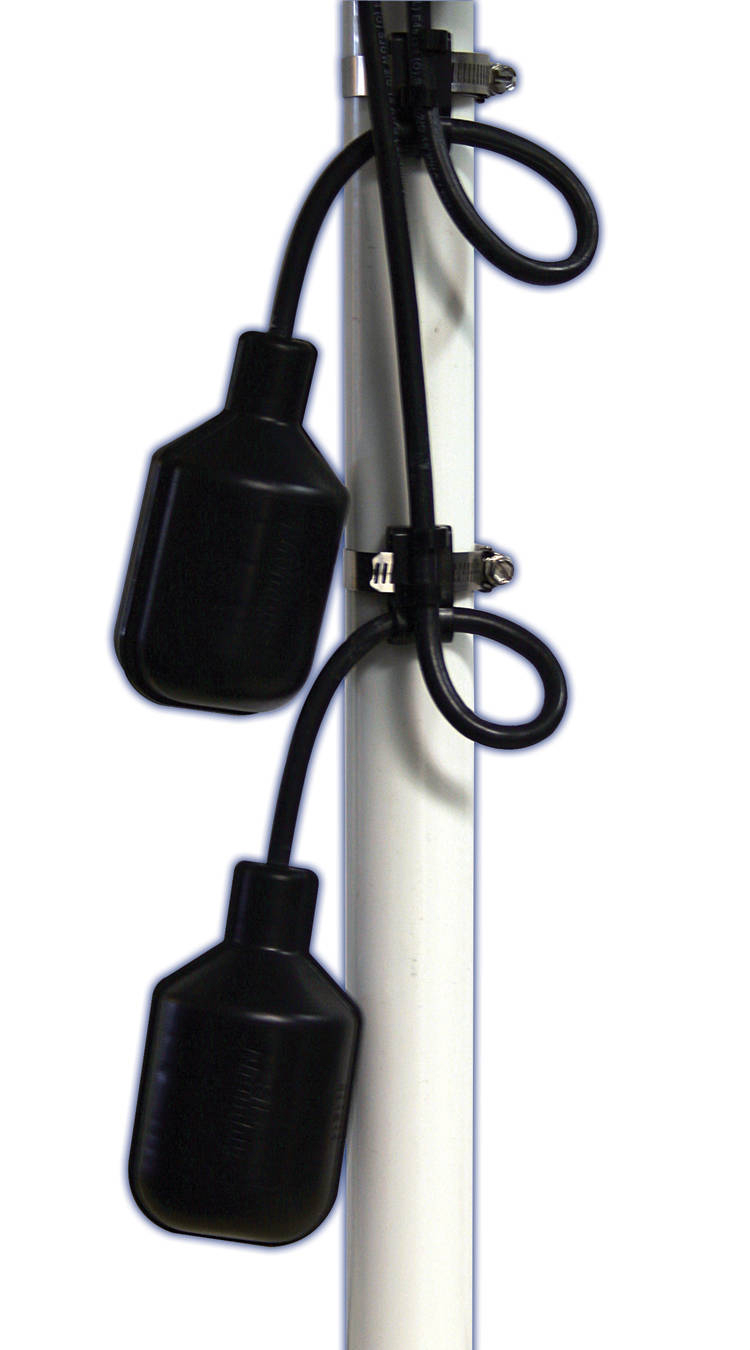

Aug 11, 2011 With pumping range of 3-48 in. and amp rating of 15 FLA at 120 or 240 Vac, Double Float® Master mechanical pump switch accommodates needs of various applications. Unit consists of 2 narrow-angle mechanical floats and splice tube. Latter contains holding relay that enables floats to function in series. Holding relay eliminates pump chatter in turbulent conditions, allowing switch to operate relay control panels for larger pump applications.

Besa Lighting Co., Inc.    Blacklick, OH 43004
Aug 11, 2011 Cierro, Juli, Lucia, Luna, Pape, Pera 9, Stilo 10, Stilo 16, Suzi, Tao 10, and Tessa products, each with 10 ft of included aircraft-quality stainless steel cable, are available with cable-suspended mounting option. This option, available for 120 V, mid-sized, glass pendant series, compliments areas with contemporary or transitional themes. Covering variety of shapes and decors, above-listed series utilize incandescent lamps; most offer CFL options.

Omega Engineering, Inc.    Stamford, CT 06907

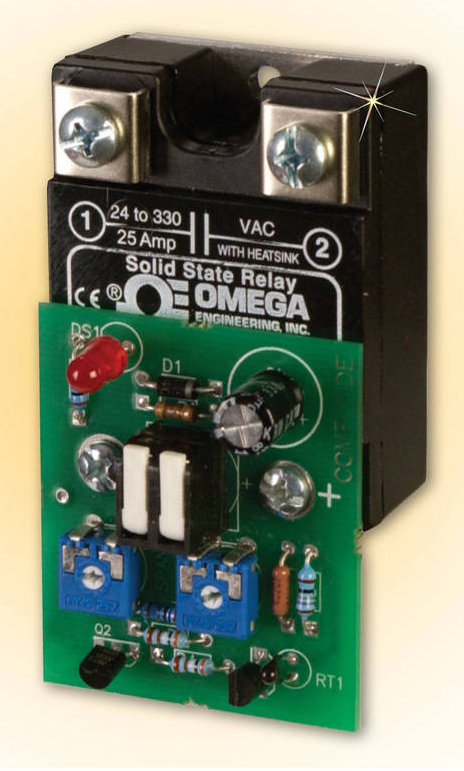

Aug 11, 2011 PCM5 series converts 4-20 mA signal from process/temperature controller or computer to time proportional output. Mounted directly on single 3-32 Vdc Input SSR, module supports single-phase, 50 or 60 Hz operation and tolerates inputs of less than 4 mA. In manufacturing environment, series is used with process controller and solid state relay to control electric heaters for oven drying manufactured parts. Other areas of use include water, chemical, automotive, and food processing industries.

Larson Electronics, LLC    Kemp, TX 75143
Aug 11, 2011 On top of aluminum mast that extends up to 8 ft high, battery-powered and IP67-rated LED10W-LT features vertically and horizontally adjustable, 10 W LED light head capable of producing 800 lm. Tower can operate for 40 hr on one charge and recharges from 115 Vac or 12 Vdc source. Nominal configuration illuminates 50 x 50 ft area, and spotlight configuration is also available for producing 900 ft long focused beam. Tower can be used as construction flagger light or work area illuminator.

Eaton Corp.    Pittsburgh, PA 15272
Aug 10, 2011 Providing circuit protection for wind farm collector substations, 38 KV VCP-Wind Circuit Breakers incorporate vacuum interrupters, which switch high stress currents and require no cooling or ventilation systems. Units are encapsulated in epoxy resin material and are designed to require virtually no maintenance over product life cycle. With current ratings up to 2,000 A, circuit breakers meet ANSI and IEEE C37.09 standards.

W.A.C. Lighting Company    Garden City, NY 11530
Aug 10, 2011 Designed for residential, retail, hospitality, and commercial spaces, Roxy LED Pendant uses LEDme(TM) Quick Connect(TM) Socket Set with 3.4 W LEDs that provide 119 lumen output, CRI of 80, and 50,000 hour potential life. Unit includes shade and adapter that can be used with various monorail, track, and canopy lighting systems. Measuring 7 in. tall and 8.25 in. wide, Roxy can also be used with 12 V 50 W Halogen bi-pin lamp.

Unipower Corp.    Coral Springs, FL 33065
Aug 10, 2011 Featuring built-in charger, 5 kVA INVO Series enables user to design long-run UPS by specifying battery capacity to be used. Inverter section is rated 5,000 Va or 4,200 W at 220, 230, or 240 Vac output, programmable from front panel. Charger section is rated 20 A/35 A for 48 Vdc battery voltage and 10 A/15 A for 96 Vdc battery voltage. Using typical 100 AH battery, INVO will maintain full load for 45 minutes and 30 A charger will replenish battery in less than 4 hours.

ETCO South    Bradenton, FL 34203
Aug 10, 2011 Supplied in strip form, ETCO FWC Series Connectors attach 8-22 AWG wires to aluminum- and copper-foil or film laminates from 0.001-0.095 in. thick. Units feature ears for wire attachment and 2 faces with lances that securely embed into foil or film when crimped. Available in brass and tinned high brass, connectors can attach multiple layers securely and are suitable for transformers, capacitors, relays, flexible heaters, and electro-luminescent lighting and displays.

Harting KGaA      Germany
Aug 09, 2011 Offering potential equalization, Han® GND Connector makes it possible to execute grounding systems in pluggable design. Single-pole unit features IP65 plastic housing designed for stranded wires from 10-35 mm² and is optionally available in crimp or axial screw termination. Extra connector mating security can be provided by use of additional locking elements that prevent unintentional opening.

Mill-Max Mfg. Corp.    Oyster Bay, NY 11771
Aug 09, 2011 Single-row, right-angle sockets and headers can be combined with vertical .070 in. pitch connectors for various interconnect configurations. Right-angle header and socket pair suit board edge daisy chain applications or mix-and-match with vertical sockets and headers for perpendicular mating of boards. With 871 series, sockets accept device leads as well as mate with 870 header series. Sockets allow for versatility in orientation of display and imaging chips built on Shrink DIP platform.

Sentry Electric, LLC    Freeport, NY 11520
Aug 09, 2011 Combining classic styling with design features that help facilitate luminaire maintenance, Utility Base Series has removable access door with tool-less spring latch. Safety cable on door prevents it from falling to ground below where it could cause injury. Removable modular ballast tray, which slides out to allow access to electrical components, utilizes quick disconnects for power supply conductors and lamp socket conductors. Tray also has option for NEMA locking type photo control.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Aug 09, 2011 Designed to operate using 2 legs of 3-phase circuit, CSW Series includes 24 Vdc models in 5 and 10 A, 12-15 Vdc adjustable versions, plus 7-8 A and 15-16 A models, as well as 48 Vdc unit in 5 A, all with universal input range of 185-550 Vac. DIN rail mounted power supplies enable user to select hiccup or constant power protection based on application. Featuring fully enclosed, touch-safe design, all models have both output overload and short circuit protection.
