Elma Electronic Inc.    Fremont, CA 94538

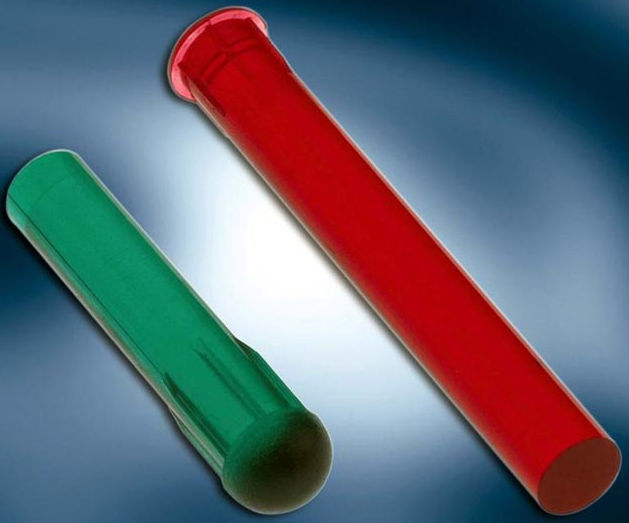

Jan 05, 2007 Offered in 1-10 wide options, lightpipes feature LEDs that transfer light to front panel with translucent coloration. Products are available in protruding styles or versions that are mounted flush with front panel. Capable of emitting light even when embedded deeper within panel, lightpipes have chamfered light coupling area that allows other LEDs to emit light perpendicular to circuit board. Combinations of single, dual, vertical, and horizontal configurations are available.

TE Connectivity Ltd.    Berwyn, PA 19312
Jan 05, 2007 Accepting RJ45 inserts for Ethernet communication applications, Series 45 is designed for Category 5 and 5e cable. Positive lock coupling provides reliable connections, while protective cap can be used to cover receptacles when not in use. Featuring IP67 sealing, RoHS-compliant connector is suitable for industrial machinery, diagnostics equipment, printers, and other locations where ruggedization and environmental sealing are necessary.

Electro Standards Laboratories    Cranston, RI 02921 3403

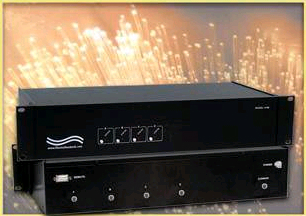

Jan 05, 2007 QuickSwitch Model 4294 allows fiber optic device connected to unit's FC Simplex COMMON connector to access any of 4 fiber optic networks connected to A, B, C, or D ports. Offering optical scalability, remotely controllable FC Simplex A/B/C/D switch is designed with fiber optic mirror technology and is bit rate-, data-, and service/protocol-transparent. Switch has position memory, and position can be changed via front-panel pushbuttons or rear-panel RS232 serial remote port.

Universal Lighting Technologies    Nashville, TN 37214
Jan 04, 2007 Designed for F96T12HO lamps, Basic-12(TM) Model B295SRUNVHP replaces traditional magnetic T12 high-output ballasts in existing or new fixtures. Featuring universal input voltage of 120-277 V, unit provides 21 W savings when replacing magnetic ballast operating two F96T12HO lamps. Basic-12 is lighter than magnetic ballasts but has same mounting dimensions and wiring, and can also operate F48, F60, F72, and F84T12HO lamps.

E-Switch Inc.    Brooklyn Park, MN 55428 1514

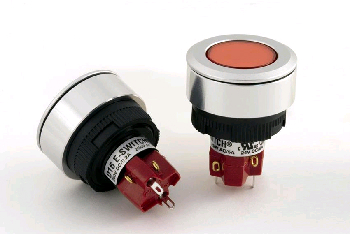

Jan 04, 2007 Available in many different colors and illumination options, flush-mount LA Series features brushed aluminum bezel and is sealed to IP65 standards. RoHS-compliant units offer contact ratings of 5 A at 250 Vac, 5 A at 125 Vac, .2 A at 250 Vdc, and 6 A at 24 Vdc. Switches are available with incandescent, neon, or LED options and are suited for outdoor, industrial, medical, audio/visual, and gaming applications.

FSR Metal Products    West Paterson, NJ 07424

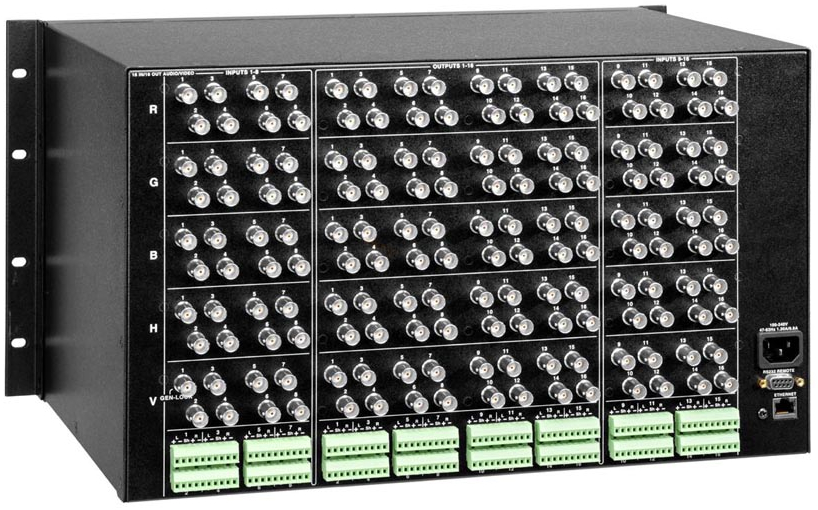

Jan 04, 2007 PathFinder Matrix Switchers feature 32 presets, RS-232 and IP Ports, as well as over 600 MHz of bandwidth with ±1 dB of flatness. Each supports split mode switching and can handle HD-compatible 720p, 1080i, 1080p, and digital cinema signals. Products are available in sizes from 8 x 8 to 16 x 16, including 12 x 8 and 16 x 8, and offer optional balanced stereo audio on all units.

Electro Standards Laboratories    Cranston, RI 02921 3403
Jan 04, 2007 Featuring threaded FC connectors and 100/140 graded index fiber, QuickSwitch® Model 4294 4-Way All-Optic Simplex Fiber Switch is bit-rate and data transparent as well as service/protocol transparent. Remotely controllable switch allows fiber optic device connected to unit's FC Simplex COMMON connector to access any of 4 fiber optic networks connected to A, B, C, or D ports. When power is lost, switch automatically changes to default position and will continue to pass data.

KORENIX Technologies    Taipei 231  Taiwan
Jan 04, 2007 JetNet 5010G is equipped with 3 combo Gigabit ports, each combining small form factor plug-in and RJ-45 Gigabit copper port. Switch will automatically detect Gigabit cable connections priority for each Gigabit port. It supports Rapid Super Ring technology, providing network redundancy with fast failover time. Housed in aluminum extrusion case with IP31 rating, industrial managed switch features fan-less mechanical design that adapts thermodynamic technique to ventilate heat.

CI Lumen Industries    Hauppauge, NY 11788

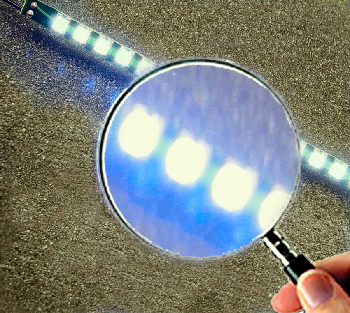

Jan 03, 2007 Suitable for heavy industrial applications, LED Backlighting solution was developed for panels ranging in size from 5-19 in. and requiring brightness levels of 800 nits or more. Since no heater is needed, LEDs can be turned on to full brightness immediately, which is beneficial in military systems used in extremely cold environments where immediate activation is critical. Product lifetimes range from 60,000-100,000 hr with little or no degradation.

HTP Connectivity, LLC.    Parsippany, NJ 07054

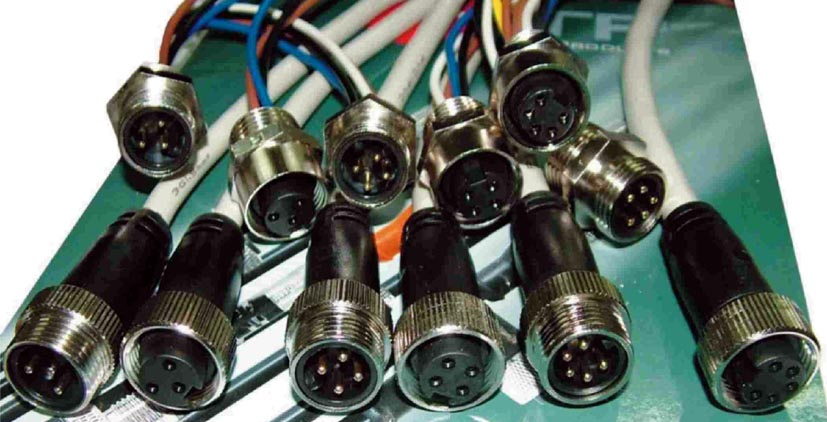

Jan 03, 2007 Available in male and female versions, both with 3, 4, or 5 poles, 7/8 in. circular connectors feature field-attachable or molded PVC cables (right angle or straight) and receptacles. Connectors are constructed using metal housings with gold-plated surfaces for optimum contact efficiency, operate between -40 and +80°C, and carry IP68 protection rating.

Cummins Engine Co., Inc.    Columbus, IN 47202 3005
Jan 03, 2007 Designed for over-the-road trucks, ComfortGuard(TM) APU combines generator with tailored HVAC components. Quiet system offers solution to anti-idling regulations while reducing wear and tear on truck engines. Plug-and-play, 21 x 24.5 x 28 in. design facilitates installation via quick disconnects and pre-charged a/c lines. Equipped with Cummins alternator, unit produces 4,000 W @ 120 V, 60 Hz ac. It also produces up to 40 A @ 12 Vdc for charging truck batteries.

Components Corp.    Denville, NJ 07834

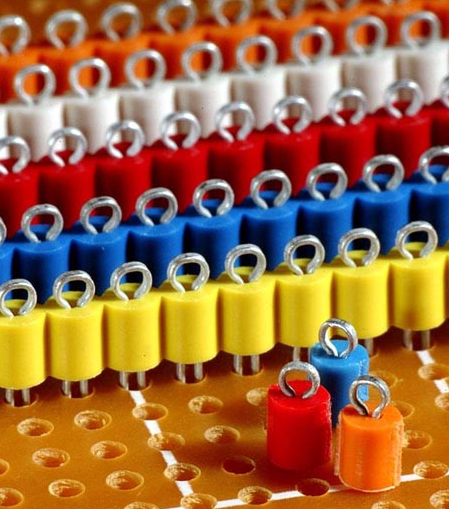

Jan 02, 2007 PCB-mountable, RoHS-compliant TP-104 Series are through-hole parts engineered for use on 0.062 in. thick boards. Suited for high-density PCB fabricators, products can be ordered precut to any of 30 positions and feature loop-style test points' plastic standoffs that facilitate polarization. Rectangular passage in molded standoff maintains wire form alignment. Low-profile series facilitates secure, non-slip grip of alligator clips, probes, J-hooks, tips, and grabbers.

CeramTec North America Corp.    Laurens, SC 29360
Jan 02, 2007 Available in 40 kV and 50 kV, Hermetic High Voltage Feedthroughs each have 10 A current carrying capacity. Units include weldable, ConFlat®, and ISO flange-mounted installation configurations. Corona-resistant cable assembly utilizes molded silicone body and silicone insulated cable in lengths of 8 ft. Built for extreme conditions, feedthroughs feature temperature capability of -269 to 450°C and are guaranteed to be leaktight to leak rate less than 1 x 10^-10 atc-cc/sec.

W. L. Gore & Associates, Inc.    Elkton,, MD 21921
Jan 02, 2007 Constructed to meet demands associated with motion control and vision systems, GORE(TM) FireWire® High Flex Round and Flat Cable Assemblies bend without incurring any bit errors or loss of data. They maintain stable attenuation over flex life. Round cable assemblies are tested to 5 million cycles in rolling flex motions on bend radius of 50 mm, and flat cable assemblies are tested to 20 million cycles in rolling flex motions on bend radius of 20 mm.

NKK Switches    Scottsdale, AZ 85260-3420
Jan 02, 2007 Carrying UL, CSA, C-UL, VDE, SEMKO, and SEV certifications, P series features silver alloy contacts that resist arcing and promote stable electrical contact. Min mechanical life ratings are 50,000 and 100,000 operations, respectively, for rockers and toggles. Both have min electrical life of 25,000 operations. Stainless steel frame is clinched to case above base and terminals, providing 4,000 V dielectric strength. Circuits can be specified as single/double pole in 2 or 3 positions.

Princo Instruments, Inc.    Southampton, PA 18966
Jan 02, 2007 Available in 19 pressure ranges from -14.5 to 5,800 psi, SmartPress Model LP-D pressure/liquid level transmitters feature 316 SS flush diaphragms and variety of process connections including 1 in. NPT and several Triclamp® sizes. Two-wire, loop-powered units offer push button programming and can be supplied pre-calibrated. Provided in IP65/NEMA 4X housings, transmitters operate over temperature range of -14 to +158°F ambient and -13 to +257°F for process materials.

TURCK, Inc.    Plymouth, MN 55441
Jan 02, 2007 Able to be extended up to 4 times their original retracted length, retractile cordsets are constructed with polyurethane jackets and straight or right angle connectors. They can extend up to 1, 2, or 5 m in length and feature nickel-plated brass and stainless steel coupling nuts to promote durable connection. Suited for motion and robotics in automotive applications, products meet requirements of EN-50170-2-2 for communication up to 12 Mbaud.

Technology Dynamics Inc.    Bergenfield, NJ 07621

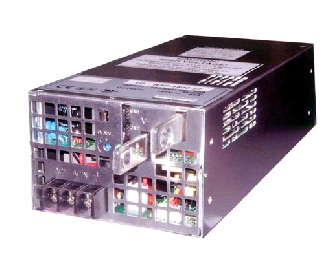

Dec 29, 2006 Featuring universal ac input, 1,500 W single-output Series TD-RSP includes OV/OL/OT protection, ZVS technology, remote turn-on/turn-off, dc-operated ball bearing fan, and ±10% voltage adjust range. Units operate from -20 to 50°C, are RoHS-compliant, and include UL, CSA, and CE approvals. They are suited for industrial telecommunications, communications, and military applications. Rack mount and panel mount options are available.

Tripp Lite    Chicago, IL 60609
Dec 28, 2006 Providing UL 60601-1 compliance for connected mobile electronic devices, Medical-Grade Power Retrofit Kit includes everything needed to power medical carts. Power supply features isolation transformer, which minimizes cumulative shock potential of connected equipment. Battery module provides up to 12 hr of mobile power in standard applications, while PowerAlert Software saves patient data from loss or corruption. Kit also includes remote user interface, mounting hardware, and cabling.

Absolute Process Instruments Inc.    Libertyville, IL 60048
Dec 26, 2006 Offering 2 channels of signal isolation and retransmission, DuoPak(TM) Signal Conditioners can be custom-configured to accept any 2 process signal inputs including DC voltage or current, AC voltage or current, frequency, potentiometer, or RTD temperature. Two optically isolated output channels can be configured for standard or custom DC voltage or current signals. Units include I/O LoopTracker® LEDs and functional test pushbutton for testing output independent of input signal.
