Atlantic Scientific Corp.    West Melbourne, FL 32904
Jan 17, 2007 ZoneDefender PRO AC surge protector provides protection between line to neutral, line to ground, line to line, and neutral to ground. With NEMA 4X enclosure that can be surface- or nipple-mounted, it features EMI/RFI filtering, status indication via LEDs with voltage free contacts, built-in audible alarm, and 100k AIC fusing. Device uses metal oxide varistor technology and DPHW fusing to deliver dual-redundant varistor networks, ensuring site protection.

NKK Switches    Scottsdale, AZ 85260-3420
Jan 17, 2007 Designed for logic level applications, AS Series has Sliding Twin Crossbar contact mechanism, which offers smooth positive detent actuation. Devices are constructed with antistatic superstructure of carbon-blended polyacetal that prevents static discharge to contacts when used with support bracket options. Rated 0.4 Va at 28 Vac/dc max, switches feature .100 x .100 in. terminal spacing. All terminals are molded in, epoxy sealed, and ultrasonically welded.

Corning Cable Systems    Hickory, NC 28603-0489
Jan 17, 2007 FREEDM® Loose Tube Gel-Free Plenum Cables eliminate need to transition splice when entering building. Featuring 250 µm color-coded fibers that facilitate identification during installation, these flame-retardant, indoor/outdoor, plenum-rated products have all-dielectric cable construction that requires no grounding or bonding. Cables are available with 12-60 fibers and come in 62.5 µm, 50 µm (including laser-optimized), and single-mode versions.

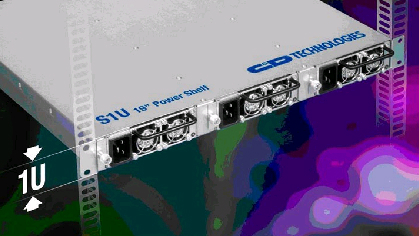

C & D Technologies    Mansfield, MA 02048-1151
Jan 16, 2007 Alleviating need to develop custom chassis to accommodate multiple power supply modules, 1U high Model S1U-3X is fully compatible with standard 19 in. rack systems. Unit, rated at 12 V and holding three D1U-W-1600-12 power supplies, is able to support 4.8 kW of bulk 12 V power, while 48 V model containing three D1U-W-2000-48 power supplies supports 6 kW of bulk 48 V power. Both offer hot intersection/removal of power supplies and feature blind docking connection.

Vorne Industries, Inc.    Itasca, IL 60143 1849
Jan 16, 2007 Model XL800 combines visual display, production monitor, expandable I/O, multiple channel communication hub, program executioner, and data warehouse. LED display delivers real-time information that alerts and motivates employees. Up to 16 concurrent visual controls enable mixing text, graphics, and tables in any combination. Performance management modules are provided for count, rate, cycle time, production time, visual OEE(TM), target, goal, and process Time.

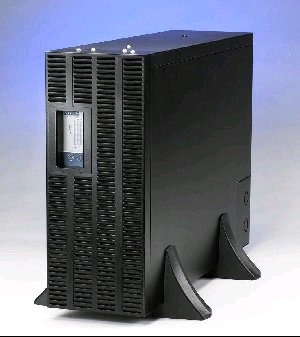

Sola/Hevi-Duty, EGS Electrical Group    Rosemont, IL 60018
Jan 16, 2007 Housed in 10.5 in. enclosure configurable for rack mounting or as tower, Model S4K6U protects electronic equipment against fluctuating power and complete power loss. True On-Line, double conversion topology continuously converts incoming ac power into filtered dc power, and then recreates it into low-distortion ac power. Device senses input voltage and configures output inverters to match input supply. It includes internal batteries, maintenance bypass switch, and self-diagnostics.

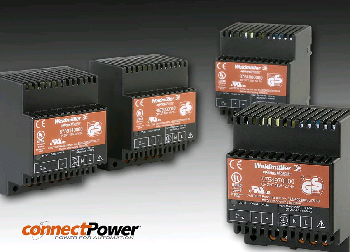

Weidmuller, Inc.    Richmond, VA 23236
Jan 15, 2007 Offering adjustable voltage settings, DC Power Supplies come in 4 models rated at 25 W, 5 Vdc, 5 A; 48 W, 12 Vdc, 4 A; 48 W, 24 Vdc, 2 A; and 48 W, 48 Vdc, 1 A. Units are each TS35 DIN-rail mountable and include LED status indicators. In addition, all have regulatory approvals including UL 508, cRUus 60950, GSA, and CE.

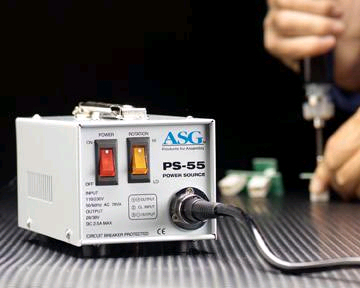

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110
Jan 11, 2007 Intended for use with low-voltage dc drivers, Model PS-55 includes switchable 2-speed output and delivers full 30 Vdc on its higher setting. Input voltage is 110 or 220 Vac, selected via external switch. Standard clutch signal output allows use with counters or programmable logic controllers to monitor driver. Removable ac power cord can be replaced if damaged.

Linear Technology Corp.    Milpitas, CA 95035
Jan 11, 2007 Housed in ThinSOT(TM) package, Model LTC3560 features 2.25 MHz constant frequency and operates from input voltage of 2.5-5.5 V, making it suited for single-cell Li-Ion, or multi-cell alkaline/NiCad/NiMH applications. Synchronous buck regulator can generate output voltages as low as 0.6 V, enabling it to power DSPs and microcontrollers. Delivering efficiencies as high as 95%, step-down converter uses low dropout 100% duty cycle operation to allow output voltages equal to VIN.

American Power Conversion    West Kingston, RI 02892
Jan 11, 2007 APC AV C3 Power Filter delivers surge protection and isolated noise filtering to help eliminate power anomalies such as surges, spikes, or EMI/RFI that threaten AV component hardware, signal integrity, and system availability. Featuring 8 outlets, unit offers surge protection efficiency with less than 85 V let-through rating. Gold Coax connections and phone jack surge protection provide additional safeguard for incoming signals on dataline.

American Power Conversion    West Kingston, RI 02892
Jan 11, 2007 Back-UPS® RS 1300 and 1500 feature integrated LCD that provides 20+ status indicators which give available runtime, load, and power event count. Protecting against data loss caused by power problems, BR1300LCD and BR1500LCD offer battery back-up capabilities for working through power outages up to 136 and 154 min, respectively. Each unit offers 8 outlets, 6 with battery backup and 2 with surge protection only. Units also feature automatic voltage regulation.

Lenexpo Electronics    San Jose, CA 95131
Jan 11, 2007 Offered in lengths up to 15 m, ATF series flat HDMI cables have HDMI 1.3 rating to transfer high resolution 1440p/WQXGA signal. Cables carry 30, 36, and 48-bit color depth to transmit 1B, 69B, and 281T colors and also support Dolby® TrueHD and DTS-HD Master Audio(TM) compressed digital audio formats, providing 8 channels of surround sound. Available in black and white colors, RoHS and CL2 rated cables also have paintable jackets to hide them on walls.

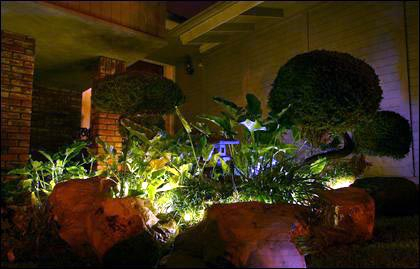

LEDtronics, Inc.    Torrance, CA 90505
Jan 10, 2007 At 125° viewing angles, Super White XIW LED String Lights glow at intensity of 900 mcd while operating on 12 Vdc. Splash proof lights are available in 100/50 mm LED spacing sequences at 33/16 m string lengths and suit applications including garden accents, indirect accent lighting, and signage. Solid-state design renders LEDs resistant to shock, vibration, frequent switching, and environmental extremes.

Impact Acoustics    Dayton, OH 45404
Jan 10, 2007 RapidRun Digital(TM) cabling system supports HDCP compatible DVI and HDMI signals, and features RapidRun Digital Active Wall Plate(TM) with integrated equalizer/extender, allowing 1080p signal to be transmitted over base cable as long as 65 ft. Runner(TM) base cable provides pathway for uncompressed HD video, and runners fit through ¾ in. conduit even with 90° sweep. DVI or HDMI break-away flying leads or wall plate termination options are available.

Foster Transformer Co.    Cincinnati, OH 45223 2571
Jan 09, 2007 Able to be used in intermittent duty applications, 100 VA SURVIVOR model features short circuit and overload protection to withstand direct short circuit in excess of 15 days. It does not require external protection or internal fusing and can be sized for average or continuous current load. Available with 60 Hz or 50/60 Hz ratings, product has UL-Recognized Class 130 (B) insulation. Primary input voltages include 115, 115/230, and 200/230 V with 24 V output.

E-Switch Inc.    Brooklyn Park, MN 55428 1514
Jan 09, 2007 Available with gram force of 130 or 260, TL3330 right-angle SMT tactile switch series features profile suited for consumer electronic applications such as handheld devices and cell phones. RoHS-compliant product operates over -20 to +70°C range and exhibits mechanical life of up to 50,000 cycles. While initial max contact resistance is 100mW, min insulation resistance @ 100 V is 100 mW. Contact rating is 12 Vdc, 50 mA.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089
Jan 09, 2007 Designed for power demands of automatic machinery, 480 W model of SPD Series offers 24 Vdc and 48 Vdc outputs; short circuit, overvoltage, and overload protection; and Power Ready relay output. Diagnostic LEDs indicate Power OK and Low Output Voltage, and potentiometer is included for fine tuning dc output voltage. Operating from universal 90-265 Vac or 120-370 Vdc supply voltages, product features PFC and Parallel Connection functions as well as internal noise filtering.

Advanced Power Solutions    Pleasanton, CA 94588
Jan 09, 2007 With external package measuring 5.91 x 2.36 x 1.32 in., APS100ESM Series 100 W Medical Approved Desktop Switchers draw minimal input power under no-load conditions to comply with appliance energy efficiency standards. Universal ac input with harmonic correction is featured to comply with EN61000-3-2 limits. With operating efficiency from 88-90%, series delivers output up to 100 W with single output voltages of 12/15/19/24 Vdc.

MKS    Andover, MA 01810 2449
Jan 09, 2007 With microprocessor-based 30 kV 5 mA dc power supply, Model 7305 Charging Generator provides timed charge action, output level alarms, remote output control, and 3 modes of output control. High-performance 7430 charging bars with tungsten electrodes help achieve high charging currents, while electrode resistors help prevent formation of high-voltage arcs. All internal components are encapsulated in special fiber-reinforced resin body.

Kim Lighting    City of Industry, CA 91749
Jan 09, 2007 Available in pole- and surface-mounted indirect/direct models, MiniBounce(TM) Luminaires feature ribbed, die-cast aluminum fixture that allows heat to dissipate and broad top hood that ensures max illumination is reflected down into space or area. Units employ internal spectral metal reflector for accurate illumination, as well as sealed and gasketed optical chamber. Illumination is provided by pulse-start metal halide, standard metal halide, high-pressure sodium, or triple-tube CFL lamp.
