Linear Technology Corp.    Milpitas, CA 95035
Mar 15, 2007 Models LT3478 and LT3478-1 are 40 V, 4.5 A converters that can drive up to six 700 mA LEDs in series from 12 V input. Model LT3478-1 uses internal current sense resistor, limiting output current to 1 A, whereas Model LT3478 uses external sense resistor to extend max LED current to 4.5 A. True Color PWM(TM) dimming delivers constant LED color with dimming ranges up to 3,000:1. Housed in thermally enhanced package, both parts deliver efficiencies up to 90% in boost mode.

E-Switch Inc.    Brooklyn Park, MN 55428 1514

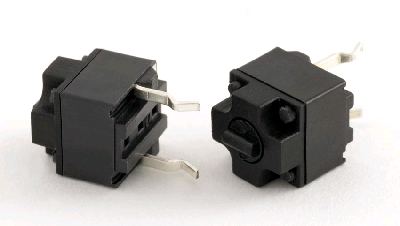

Mar 15, 2007 Featuring 2-lead, 6 x 6 mm design, Model TL1140 provides 100,000,000 cycle operating life. RoHS-compliant unit has contact rating of 30 Vdc, 50 mA and is suited for handheld instrumentation, laptop computers and peripherals, and other electronic devices.

Westinghouse Lighting Corporation    Philadelphia, PA 19154
Mar 15, 2007 Intended for high bay mounting heights of 18-105 ft, Industrial Fluorescent Lighting Fixtures feature one-bounce-and-out reflector design that focuses light only where it is needed, maximizing ftc/W consumed. Units employ T5H0 lamps that maintain up to 95% of lumen output over 20,000 hour rated life. Available in over 20 configurations, fixtures use specular reflector styles designed specifically for jobs requiring narrow, medium, or wide beam distribution.

Innovative Lighting, Inc.    Roland, IA 50236
Mar 15, 2007 Designed to help prevent difficult or dangerous conditions, ChannelBrite illuminates interiors of cargo trailers to facilitate loading of equipment. System utilizes white LEDs and comes in 2, 4, or 8 ft lengths. Depending on space available, system can be cut every 3 in. to fit. Aluminum channel measures 2 in. wide and is offered in colors to match design of trailer. Weatherproof system secures to trailer and has aesthetic, non-obtrusive design.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Mar 15, 2007 Comprised of terminated and un-terminated SP4T and SP6T multiport switches as well as one transfer switch, L Series features insertion loss repeatability of under 0.03 dB throughout 2-million-cycle operating life. RF switches operate up to 26.5 GHz and provide flexibility to deal with complex switch matrix and automatic test equipment (ATE) applications. Series includes 4-port (L7104A/B/C, L7204A/B/C) and 6-port models (L7106A/B/C, L7206A/B/C).

BI Technologies Corp.    Fullerton, CA 92835-1051
Mar 15, 2007 Supplied in SMT packages for variety of output voltages, RoHS-compliant HM110 Series features flyback topology. Models come in 4 power ratings, from 5-15 W, with inductance values from 180-70 µH. Transformers are specified at powered device and serve to step down voltage to IC level. Designed for Power-over-Ethernet (PoE) applications, products feature dc resistance from 2.5-75.0 mW, 1,500 Vrms isolation, and -40 to +125°C operating temperature range.

Belden    Richmond, IN 47375

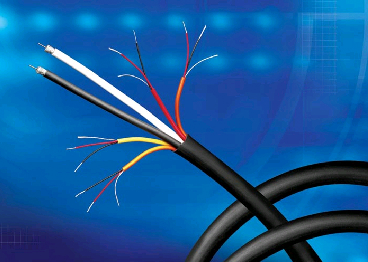

Mar 14, 2007 Delivering optimal video and audio functionality to ENG/EFP cameras, Belden Brilliance Composite Camera Cables incorporate two 1505A RG-59 Type SDI coaxes featuring 20 AWG solid .032 in. bare copper conductors, gas-injected foam polyethylene insulation, Duofoil plus tinned copper braided shields, and PVC jackets. Coaxes are sweep tested from 5-1,600 MHz and 1,600-4,500 MHz, achieving minimum Return Loss values of 23 dB and 21 dB, respectively.

MEDER electronic, Inc.    West Wareham, MA 02576
Mar 13, 2007 Measuring 0.598 x 0.150 x 0.268 in., MS series miniature Single-In-Line Reed Relays are capable of switching beyond 1 GHz with less than 100 ps rise time. Construction and design allow tight board density. Able to switch into billions of operations, series is offered in 5 and 12 V versions with internal magnetic shield and diode option.

IXI Mobile    Redwood City, CA 94065
Mar 13, 2007 Ogo(TM)2.0 handheld mobile communication device, model CT-25E, measures 118 x 69.5 x 20.2 mm and integrates full QWERTY/QWERTZ keyboard, QVGA 320 x 240 TFT display with 64k colors, and microSD memory. As detachable component that adds dedicated functionality, OgoClip(TM) can act as camera, music streamer, microphone, Bluetooth accessory, or other device that will support applications not yet invented. Handheld offers multimedia, email, IM, SMS, RSS, voice, and Web browsing capabilities.

Safety Technology International    Waterford, MI 48327
Mar 13, 2007 Designed with polycarbonate housing, Stopper® Station Model SS-2204 offers interchangeable or replaceable NO or NC, SPST gold-plated contact blocks rated for 3 A at 600 Vac or 1 A at 250 Vdc. Standard switch includes one NO and one NC contact and holds up to 3 sets of isolated contacts. Featuring design that helps stop accidental activation, ADA compliant push button is available with or without protective cover to combat vandalism and accidental damage.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Mar 13, 2007 Featuring inherently low video leakage of less than 10 mVpp, Models U9397A and U9397C operate from 300 kHz to 8 GHz and 300 KHz to 18 GHz, respectively. FET SPDT switches incorporate design that results in settling time of less than 350 µs measured to 0.01 dB. Port-to-port isolation is specified at greater than 90 dB, minimizing crosstalk between signal paths. Switches are suited for semiconductor manufacturing system test and R & D engineers.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Mar 12, 2007 Integrating 1.3 A and 0.5 A switch, respectively, Models TPS61081 and TPS61080 combine power MOSFET and power diode in 3 x 3 mm QFN package. Both models have switching frequency of 600 kHz or 1.2 MHz. Model TPS61081 supports input voltages from 2.5-6 V, single-cell Li-Ion batteries, 3-cell NiMH battery pack, regulated 5 V input, or point-of-load voltages, such as 3.3-12 V or 5-24 V. Device is protected against short circuit, over-current, over-voltage, thermal shutdown, and under-voltage.

American Bright Optoelectronics Corp.    Chino, CA 91710

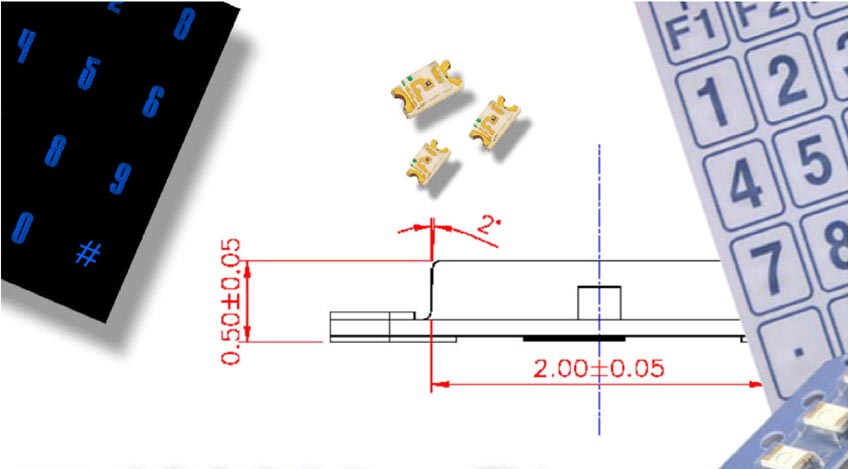

Mar 12, 2007 Series 1206 SMT LEDs are offered in range of visible colors from 460 nm blue through 700 nm red, as well as in IR wavelengths ranging from 850-940 nm. RoHS compliant units are compatible with lead free processes and are available on 3,000 piece reels. They are suited for backlighting membrane style keypads, automotive instrumentation, legend illumination, and miniature indication in wide range applications.

Thomas & Betts Corp.    Memphis, TN 38125
Mar 12, 2007 Equipped with inner ring that adjusts from ½-1½ in., Steel City® Adjustable Mud Ring ensures that stud-mounted outlet boxes will fit flush with any thickness of finished drywall, plaster, or ceramic tile. Two adjustment screws enable inner ring to be set at anticipated depth prior to installation and adjusted after installation. Featuring steel construction, mud ring includes measured rule markings and is mountable to 4 in. sq metallic deep outlet boxes.

Tellabs, Inc.    Naperville, IL 60563
Mar 12, 2007 In transitioning from 2G to 3G networks, Tellabs 8605 access switch offers wireless operators the ability to handle circuit-switched and packet-based traffic in 44 mm compact device that fits in one rack unit. Enabling operators to roll out new, bandwidth-intensive applications, switch meets evolving needs of subscribers while sustaining optimal network performance.

XP Power    Sunnyvale, CA 94085
Mar 12, 2007 Convection cooled 150 W Model SDS150 open frame version measures 3 x 5 x 1.44 in. and offers power density of 6.9 W/in.³, while U channel, 3.2 x 5 x 1.54 in. version has power density of 6.1 W/in.³. Featuring up to 90% efficiency, universal input of 90-264 Vac, and offered in 8 single output 9-48 Vdc voltage versions, power supplies provide overvoltage, overcurrent, and short circuit protection. SDS150 operates at full power from 0-50°C and up to 70°C with derating.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Mar 09, 2007 Supplying up to 4.5 W of power, AAT1210 step-up converter can take single-cell Lithium-ion battery voltage and boost it to 5 V/900 mA output. Hysteretic current mode control circuit eliminates need for external compensation, and 2 MHz switching frequency enables use of low-profile external components. Supplied in 1 mm high, Pb-free, 16-pin TDFN34 package, product achieves power efficiency levels to 90% and provides fixed output voltage set using external resistor divider.

Dymax Corp.    Torrington, CT 06790
Mar 08, 2007 Emitting UVA and blue visible light from 300-450 nm, BlueWave(TM) 200 cures adhesives, coatings, and encapsulants. Intensity Adjustment feature allows manual adjustment during initial UV process validation and production and permits engineers to evaluate full range of intensity produced by lamp from 0-100%. Integral shutter can be actuated by foot pedal or PLC, making lamp suitable for manual and automated processes. Solid-state power supply delivers 90-263 V, 47-63 Hz.

TE Connectivity Ltd.    Berwyn, PA 19312
Mar 08, 2007 Able to accommodate variety of electrical terminals and splices, offerings include hydraulic pumps, controls, and hose; heavy-duty crimp heads for shank dies; medium-duty crimp heads and hand tools for U-dies; and integrated crimp die tooling for SOLISTRAND terminals. Portable, battery-powered hydraulic unit and self-contained power unit are also available. All tools operate at 10,000 psi and suit crimping applications requiring up to 12 tons of crimp force.

E-Switch Inc.    Brooklyn Park, MN 55428 1514
Mar 08, 2007 RoHS-compliant JS1300 Navigation Switch features multi-position, multi-switch functionality integrated into single package. With contact rating of 12 Vdc, 50 mA, SPST normally open switch exhibits typical operating life of 100,000 cycles. It is suited for use in hand-held instrumentation, laptop computers and peripherals, as well as other electronic devices.
