Thomas & Betts Corp.    Memphis, TN 38125

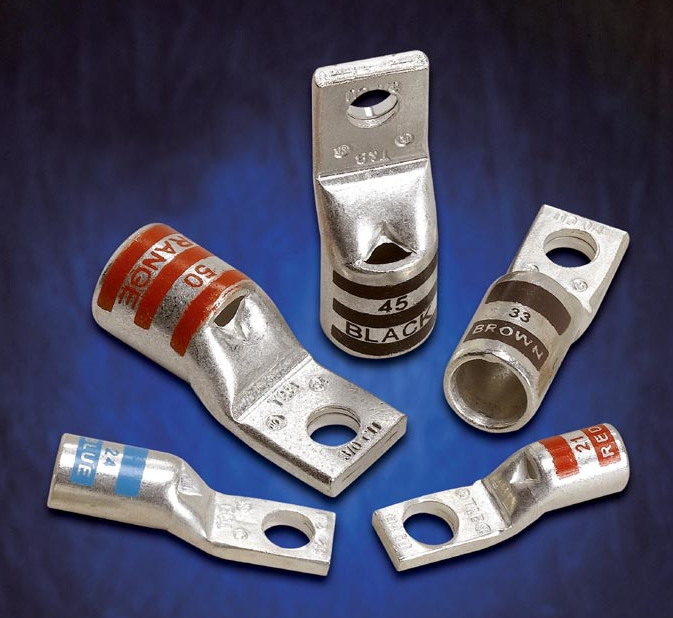

Apr 06, 2007 Color-Keyed® Narrow Tongue Lugs feature engineered width for uniform connector dimension, and standard barrel length to accommodate applications in limited spaces. They are manufactured with high-conductivity, seamless electrolytic wrought copper tubing electroplated with tin to prevent corrosion. Color coding ensures correct matching of lugs to die sets, correct number and location of crimps, and proper inspection and verification of connections.

TE Connectivity Ltd.    Berwyn, PA 19312
Apr 05, 2007 Designed for T200 printers, non-adhesive Series HLX-NEL Cable Markers come in narrow edge in-line format and feature limited fire hazard attributes, making them suited for trackside, construction, and offshore markets where smoke and toxic fume emissions can cause hazard. Markers come in white or yellow, and are 10.5 mm high with 60 mm printable width. Rated from -40 to +221°F, units are RoHS-compliant and meet MIL-STD-202 and SAE-AS81531 requirements.

Greenheck    Schofield, WI 54476 0410
Apr 05, 2007 Suited for use in dynamic smoke management systems containing combination fire smoke dampers, toggle switch Model GTS-1 and key switch Model GTS-2 provide normal, closed, and override positions with open and close indicator lights. Model GTS-3 features momentary test switch with open and close indicator lights, while Model GTS-4 has open and close indicator lights only. All come with 5 x 5 in. stainless steel plate.

Fairchild Semiconductor    San Jose, CA 95134
Apr 05, 2007 Along with analog switch capability, input clamps, and bias circuitry, 8-input and 6-output FMS6502 integrates selectable 0 and 6 dB cable drivers capable of driving dual video loads into single device. It accommodates SD, ED, and 1080i/1080p HD video signals for consumer and industrial video applications and optimizes system power by turning off unused outputs. Sync-tip clamp or bias option lets device handle video signals with or without sync.

Phoenix Contact    Harrisburg, PA 17111 0100

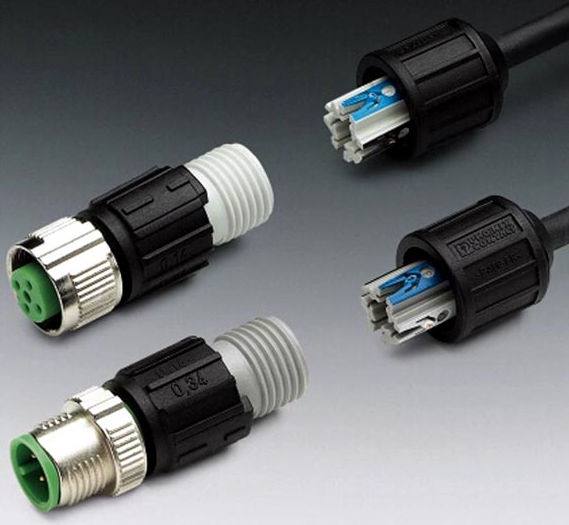

Apr 04, 2007 As 2-piece, screw-less connection system, Quickon-One eliminates task of assembling field wireable connectors to sensors or cordsets. Integrated IDC contacts, which provide gas-tight connection, eliminate potential for lost screws or stray copper strands during assembly. Product features SPEEDCON connection system, with which ½ turn results in secure, watertight, and vibration-proof connection. Solution has No. 26-18 AWG wire range.

Powerstax plc    Farnborough, Hants GU14 0NR  United Kingdom
Apr 03, 2007 Available with output power ratings of 125, 160, 250, and 260 W, N series open-frame switching power supplies have 1U form factor and offer efficiencies up to 92%. Models are offered with output voltages of 3.3, 5, 12, 24, and 48 Vdc in dual- or quad-output configurations. Able to be operated safely with no load, all models have universal AC input, active PFC, and output ORing diodes for N+1 redundant operation. Customer-specific output voltages are also available.

Optek Technology, Inc.    Carrollton, TX 75006-6905
Apr 03, 2007 With this design kit, lighting design engineers have all necessary resources to develop products for solid-state lighting applications. IRC Anotherm® technology enables design engineers to mount visible LEDs and other components directly to included thermally conductive aluminum alloy substrate, reducing or eliminating need for attached heatsinks and mounting hardware. Along with 3 LED drivers, kit includes linear/round/square assemblies available with 3-20 OVSPxBCR4 Series 1 W LEDs.

Richard Gray's Power Company    New Orleans, CA 70130

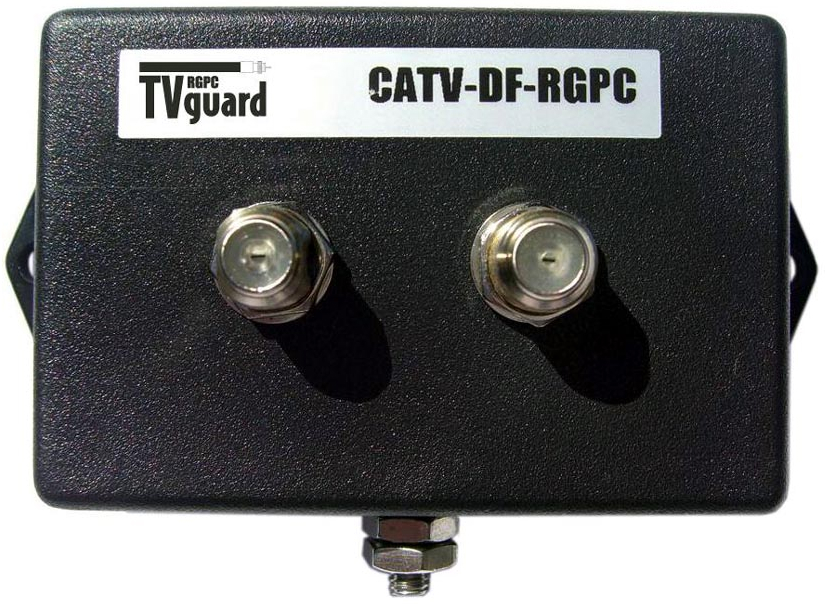

Apr 02, 2007 With response time under 100 nsec, TV Guard plugs into Coax cable line to protect sensitive video gear from surges, spikes, and EMI or RFI that can cause damage or negatively affect performance. In-line device features plastic box and hand-crafted internals that can absorb over 600 catastrophic surges in excess of 500 A before replacement is needed. Unit is suited to shield HDTV receivers, CATV set-top converters, cable modems, and any other device that has coax connection.

Raycap Inc.    Post Falls, ID 83814

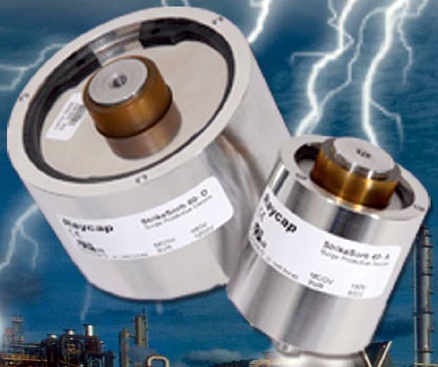

Apr 02, 2007 Exceeding UL-1449 (2nd edition) requirements without internal fuses, Strikesorb® absorbs and dissipates excess energy of lightning strikes and power surges in completely safe manner. Transient voltage surge suppression (TVSS) module can sustain multiple and successive lightning strikes and power surges up to 140 or 200 kA without requiring maintenance. Construction consists of one distribution-grade, 40 or 80 mm dia MOV disc encased in hermetically sealed aluminum housing.

Microchip Technology, Inc.    Chandler, AZ 85224 6199

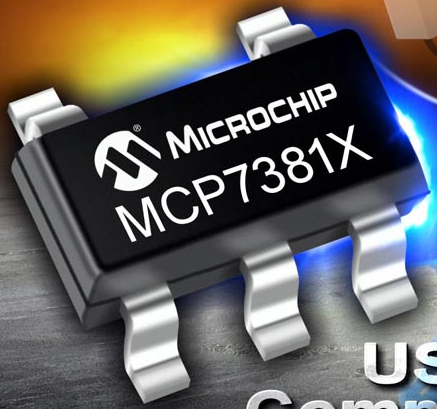

Apr 02, 2007 Supporting charge currents up to 500 mA, MCP73811 and MCP73812 are single-cell devices that provide fully integrated charge-management functions. Both come with integrated current sense, pass transistor, and reverse battery protection as well as on-chip thermal regulation safety feature. While MCP73811 provides charge currents without intervention from external components, MCP73812 offers user-programmable charge current via external resistor.

SLI Lighting    Mullins, SC 29574
Apr 02, 2007 Suited for various high bay applications, CENIT 400 Series features anti-corrosive treated steel housing, finished with electrostatic powder paint. Anodized aluminum reflector is specifically designed for each lamp configuration. Providing 104 lm/W, T5/HO lamps deliver high color rendering and offer several choices of color temperature. Applications include warehouses, indoor sport facilities, and industrial manufacturing facilities.

Electri-Flex Co.    Roselle, IL 60172 1994

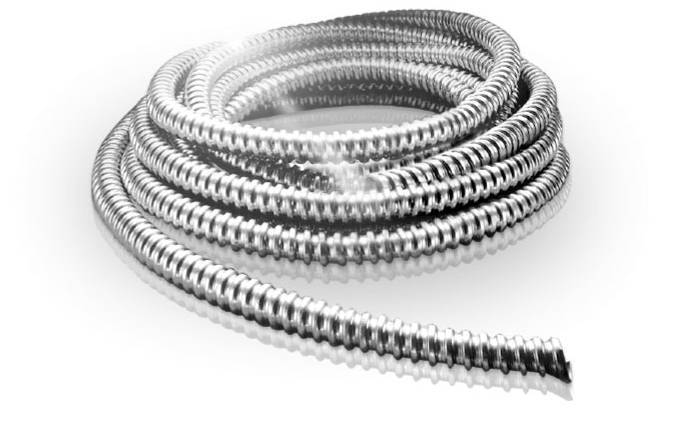

Apr 02, 2007 Made of corrosion resistant, hot-dipped galvanized steel strip, type FSC flexible conduits feature profile and helical shape that allows it to withstand substantial impact and crushing forces. Available in 3/8-4 in. sizes, unjacketed, non-combustible conduits are able to make tight bends and are suited for high temperature applications.

Eaton Corp.    Cleveland, OH 44114
Apr 02, 2007 Operating at 95% efficiency, Powerware 9395 is suited for mission-critical applications such as data centers, manufacturing operations, and medical facilities. This 3-phase Uninterruptible Power System (UPS), rated from 275-550 kVA, completely isolates output power from all input power anomalies and integrates capabilities of redundant multi-module UPS system into pre-wired solution. It has scalable architecture and can be field-upgraded for capacity or redundancy.

UNIVERSAL ELECTRIC CORP    Canonsburg, PA 15317
Mar 30, 2007 Starline Track Busway, B400 Series, provides modular, overhead, high-density electrical distribution system intended for industrial and high-tech applications. Installed above computer cabinets, product can eliminate need for raised floors or make air handling for cooling systems more effective by eliminating under-floor cable whips. Continuous plug-in track concept promotes plug density and provides universal hanger slots. Users can connect/disconnect plugs while busway is energized.

TDK-Lambda Americas Inc.    San Diego, CA 92154

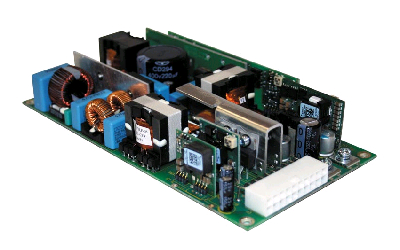

Mar 30, 2007 Measuring 3.75 x 7.25 x 1.34 in., NV-300 Series provides up to 4 regulated outputs from 1.8-24 V, with current up to 40 A, and 5 or 12 V standby output optional. No minimum load current is required on any output. Input voltage ranges from 90-265 Vac, 45-63 Hz with active PFC. Designed to meet EN55022 Level B conducted emissions standards with earth leakage current of 257 µA, power supplies are suited for medical, data communications, and test-and-measurement equipment.

Power-Sonic Corp.    Redwood City, CA 94063

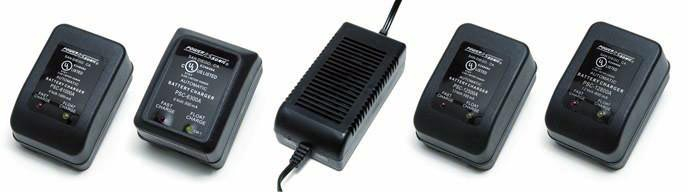

Mar 29, 2007 C-Series Chargers switch from higher fast charge voltage to lower float voltage when batteries are close to being fully charged. Integrated circuits control and regulate current and voltage, and chargers are useable on domestic and overseas voltages from 110 Vac 60 Hz to 240 Vac 50 Hz. Available in 6, 12, and 24 output voltage models, devices are UL- and European CE-approved, as well as RoHS compliant.

STMicroelectronics    Lexington, MA 02421
Mar 29, 2007 With Point-to-Point Differential Signaling display technology, use of STD8420x facilitates LCD intra-panel interconnect and minimizes total number of required column-driver signals. Model STD8420C is PPDS interface-compatible and offers 414/420 outputs, support for independent digital gamma control of each RGB color, support for dot and N-line inversion drive schemes, and 1,024 gray levels per output. Model STD8420A differs only in output gray levels, which are limited to 256 steps.

EnerSys, Inc.    Reading, PA 19612-4145
Mar 29, 2007 Utilizing pure lead technology, 12 V Model SBS170F offers nominal capacity of 170 Ah at both 8- and 10-hour rates. Grid formation minimizes recharge time and enables battery to handle power interruptions. Operating from -40 to 122°F, thin plate battery withstands harsh environments and is suited for wired and wireless telecom outside plant applications in cell sites, cabinets, CEVs, and huts, as well as for utility/switchgear and cable TV applications.

ACT Fastening Solutions    Gardner, MA 01440
Mar 29, 2007 Designed to save time and cost associated with replacing nicked wires and hoses damaged during maintenance and repairs, hand tools feature smooth safety guards that slide behind strap to prevent sharp blades from contacting bundled items. Features include ergonomic cushion grip handles designed for optimal natural hand contraction and auto return spring. Intended users include maintenance technicians, assemblers, shipping and receiving personnel, and electricians.

D-Link Systems, Inc.    Fountain Valley, CA 92708
Mar 29, 2007 Multilayer, Single IP Management 12-port Gigabit switch, xStack DGS-3612G, secures managed network distribution across multiple facilities. Fiber-based core switch is designed for long-distance connections exceeding 330 ft when paired with another switch in larger enterprise environments that require managed, switch as centralized point of termination for multiple fiber cable connections. With virtual stacking functionality, up to 32 units can be managed via one IP address.
