Fortress Interlocks Ltd    Erlanger, KY 41018
Sep 19, 2011 Part of amGard range of modular safety gate switch interlocks, Model E1 ensures that door to hazardous machinery cannot be opened without removing safety key, and machinery cannot then be restarted until key is returned. E1 also ensures specific sequence of operation and can be stacked or combined with other adapters; up to 5 adapters can be used in one configuration. Working with access key and safety key adapters, Model E1 is suitable for hinged or sliding door applications.

Pickering Interfaces Inc    GRANTS PASS, OR 97526
Sep 19, 2011 Based on electro-mechanical relays, Model 40-754 is available in 2 versions with common switch design. High-density version occupies 1 slot of 3U PXI chassis and uses high-density MS-M RF multi-way connector suitable for switching frequencies to 500 MHz. For switching signals to 1.2 GHz, higher frequency version is 2 slots wide and uses SMB connectors. Both are suitable for commercial and military ATE systems.

Acuity Brands Lighting    Conyers, GA 30012
Sep 19, 2011 Designed to provide supplemental lighting in surgical suites, Healthcare Lighting® Surg5(TM) Luminaire delivers equivalent light output of 6-lamp fluorescent troffer while requiring only 5 lamps. Ballasts are accessible on each side after opening sealed door frame and removing tool-free ballast tray covers. Lamps stay in place during ballast maintenance, minimizing risk of glass breakage, which is important in critical-care area of hospitals.

EAO Switch Corp.    Milford, CT 06460

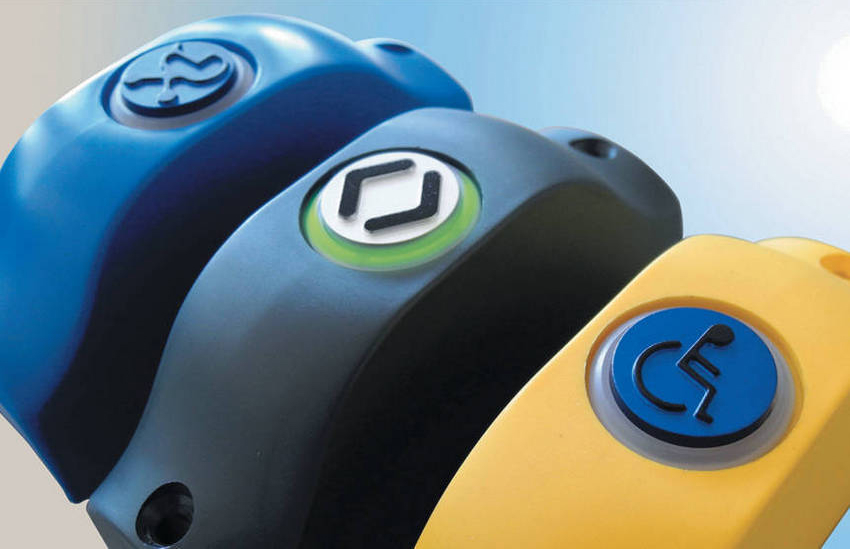

Sep 19, 2011 Intended for use in public transport vehicles, Series 84 Stop Request features 1 mm raised, 18 mm wide symbols for visually impaired passengers and illuminated LED halo for visual indication for hard-of-hearing passengers. Able to be pole- or panel-mounted, PRM TSI-compliant switch requires 6-12 N for activation and provides positive tactile feedback. Range of common symbols/pictograms are standard, including wheelchair ramp request and door open/close. Custom symbols are also available.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Sep 19, 2011 Used to monitor gas concentration in underground parking garages and loading docks, Series GSTA offers field-selectable current and voltage outputs that allow transmitters to be used with almost any building management controller. User can select output range to be 0-200 or 0-500 ppm for carbon monoxide (CO) units, and nitrogen dioxide units come with 0-10 ppm range. Using internal dip switches, output can be inverted to read 20-24 mA or 10 (5) to 0 Vdc.

Flexible Picture Systems    Richmond Hill   Canada
Sep 19, 2011 Based on video scalers with Geometry Correction and Edge Blending, Image AnyPlace-3D creates fully immersive, passive 3D viewing that can be scaled to fit any projection screen size and accommodate any number of viewers. Passive system utilizes separate and simultaneous polarization for each eye for comfortable viewing experience. Kit includes 2 signal processors, HDMI distribution amplifier, HDMI cables, polarizing filters and glasses, IR remote control, and rack mounts.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Sep 19, 2011 Suited for brushless DC and permanent magnet synchronous motor applications, DRV8301 integrated 3-phase brushless motor pre-driver comes in 14 x 8.1 mm HTSSOP. Features, in addition to fully protected, 3-phase brushless gate driver, include 1.5 A step-down voltage regulator; 2 bi-directional current-sense amplifiers with integrated input and feedback resistors; and SPI interface. Multiple protection features - thermal, over current, under voltage, shoot through - are also included.

Corning Cable Systems    Hickory, NC 28603-0489
Sep 19, 2011 To facilitate installation, Pretium EDGE® Solutions feature snap-in routing guides, mounting brackets for depth adjustments, and compact cable leg outer diameter. Reverse Polarity Uniboot jumper and harness enables accelerated polarity management in field without tooling. Terminated with MTP® connectors on both ends and ClearCurve® multimode cable, 12-fiber 40G jumper meets IEEE 802.3ba 40/100G total connector loss requirements of 1.5 dB for OM3 and 1.0 for OM4 at 40G.

Larson Electronics, LLC    Kemp, TX 75143
Sep 16, 2011 Featuring 12 CREE XLamp XPG® 5 W LEDs, IP68-rated Magnalight LEDP5W-12ET is waterproof to 3 m and resists damaging effects of salt water, vibrations, and sandy/dusty conditions. Light draws 5 A @ 60 W when connected to 12 V electrical system yet produces focused 5,556 lm beam reaching up to 500 ft long in spot mode. Optional flood configuration is available, and trunnion mounting system fixes light permanently into place while still allowing adjustment via 270° of vertical movement.

Philips    Knoxville, TN 37914
Sep 16, 2011 Offering cities and municipalities sustainable and energy-efficient lighting solutions, UrbanScape and MetroScape utilize LUXEON high-power LEDs and have rated life of 100,000 hr. UrbanScape lends modern and minimalistic look for urban projects, while MetroScape featuires retro design. Made of sustainable materials, both luminaires employ optical systems with acrylic refractor lenses, Xitanium driver, and LEDgine platform. Flat lens creates 0% uplight.

TCP, Inc    Aurora, OH 44202
Sep 16, 2011 Facilitating government-mandated transition from inefficient incandescent light bulbs, TruDim(TM) CFL Series includes SpringLamp® full-spiral configuration and R40 floodlight. Units feature 12,000-hour rated life, reach full brightness in seconds, and have on/off capabilities at low dim levels. CFLs utilize GreenChip(TM) by NXP micro-chip componentry to manage lamp voltage, resulting in optimal dimming performance.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Sep 16, 2011 Supplied in RoHS-compliant, 5 x 5 mm QFN-32 package, CC1120 and CC1121 transceivers and CC1175 transmitter, promote connectivity for low-power radio frequency (LPRF) wireless applications. Adjacent channel rejection of 65 dB at 12.5 KHz offset and 90 dB blocking enhance end products' capability to offer reliable wireless links resistant to disturbances from surrounding wireless systems. With 139 dB link budget, range reaches beyond 10 km and provides max indoor penetration.

Besa Lighting Co., Inc.    Blacklick, OH 43004
Sep 15, 2011 Linear versions of Pahu 4 double-glass pendant feature transparent color glass outer cylinder paired with Opal glass inner cylinder. Available in Clear/Opal, Amethyst/Opal, Armagnac/Opal, and Olive/Opal color combinations, products utilize 40 W max G9 Halogen 120 V lamping that is fully dimmable with standard incandescent dimmers. Four sizes are available: 3 light (22 in. long), 4 light (30 in. long), 5 light (38 in. long), and 6 light (46 in. long).

HellermannTyton, A Spirent Co.    Milwaukee, WI 53224
Sep 15, 2011 Available in fiber types such as OM3, OM4, and OS1, RapidNet® Very High Density (VHD) Cassette uses 72 strand fiber with 6 MTP connectors which minimize losses across link and provide potential upgrade path from 10GbE through 100GbE. Patching solution, intended for accelerated installation of MTP/MPO fiber optic network to space-challenged data center, supports up to 288 fibers in one rack unit of space while facilitating access to connections.

Extreme Engineering Solutions (X-ES)    Middleton, WI 53562

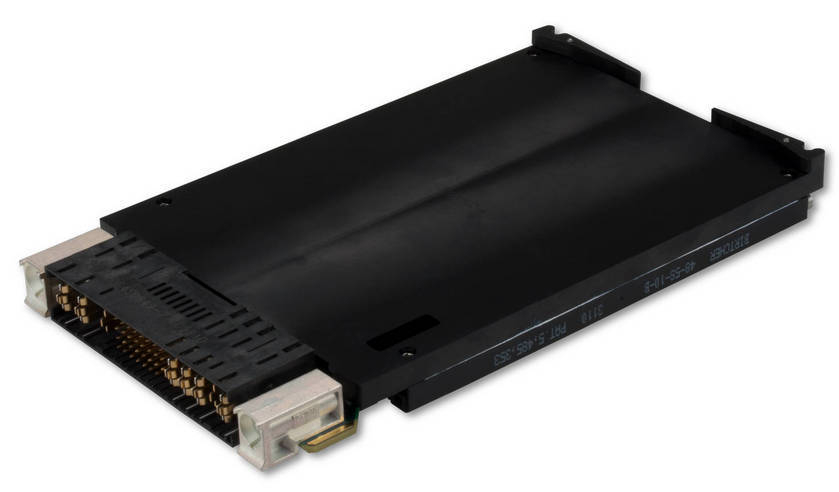

Sep 15, 2011 Featuring VITA 62 pinout and 3U VPX form factor, conduction-cooled XPm2120 takes MIL-STD-704 input voltage of 28 Vdc and provides up to 300 W of power on 3.3, 5, and 12 V rails at 90% efficiency; 12 V is primary power distribution rail in system. Product integrates MIL-STD-461E EMI filtering and can operate over 16-50 V steady-state input. Providing up to 15 A on 3.3 and 5 V rails and and 25 A on 12 V rail, 0.8 in. pitch power supply supports current sharing and has IPMI controller.

XP Power    Sunnyvale, CA 94085
Sep 15, 2011 With input voltage range of 80-264 Vac, Model ECS60 provides nominal outputs of +12, +15, +24, or +48 Vdc. Convection-cooled unit features no load power of less than 0.5 W and efficiencies from 87-89%. Device delivers full power output from -20 to +50°C without external fans or forced airflow, and can operate up to +70°C with derating. Suited for designers of medical, IT, or industrial equipment, power supply includes overvoltage, overload, and short-circuit protection.

Accu-Tech Lighting Solutions    Wauconda, IL 60084
Sep 15, 2011 Along with optics designed to minimize glare and eye strain, LED Gooseneck Light features triple high power Nichia LED, anodized aluminum light head, built-in cooling fins, adjustable neck, and variable base configurations. It provides reliable operation under industrial conditions, and no heat is generated in light path. Consuming 5 W total energy, product has 25° optic and 50,000 hr average bulb life.

Larson Electronics, LLC    Kemp, TX 75143

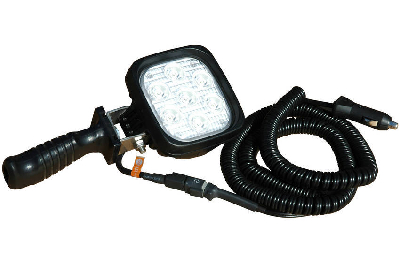

Sep 15, 2011 Drawing 24 W of power at 1.7 A, Magnalight HL-7LED-3C Handheld LED Control Light uses 7 CREE EZBright® 3 W LEDs to produce 1,596 lumens and LED reflectors to produce light beam 650 ft long x 50 ft wide. Lamp housing is constructed of heavy extruded aluminum, while LED and reflector assembly is protected by unbreakable, shatterproof polycarbonate lens. IP68-rated waterproof and dustproof, spotlight withstands full submersion in water up to 3 m, making it suited for marine applications.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Sep 15, 2011 Operating off DC inputs from 14.4-36.0 Vdc, CN100A24 Series is available with output voltages of 5, 12, 15, or 24 Vdc. Fully regulated and isolated 100 W power modules meet shock and vibration requirements of IEC61373 Category 1, Grade B. Baseplate-cooled units have standard pin-outs and provide full output power from -40 to +100°C at baseplate without derating. Housed in 1.45 x 2.28 x 0.50 in. package, Model CN100A24-12 delivers 8.4 A at 12 Vdc with conversion efficiency of 88% at full load.

Larson Electronics, LLC    Kemp, TX 75143

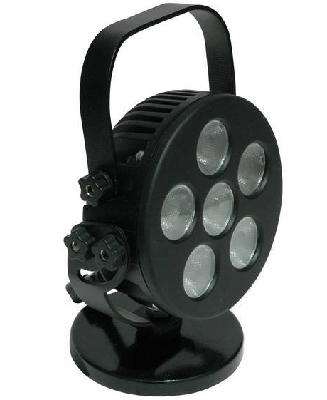

Sep 15, 2011 Operating on any voltage from 9-50 Vdc, Magnalight LED10W-6R-HT produces 5,400 lumens and throws light beam up to 675 in length when configured in spot mode. Extruded aluminum body houses 6 Seoul Z-Power 10 W LEDs, providing IP68 rated waterproof protection for internal electronics, while unbreakable polycarbonate lenses protect LED and reflector assemblies. Drawing 6 A at 60 W from 12 V electrical system, portable light includes integrated handle for directional control and carrying.
