Phihong USA    Fremont, CA 94539

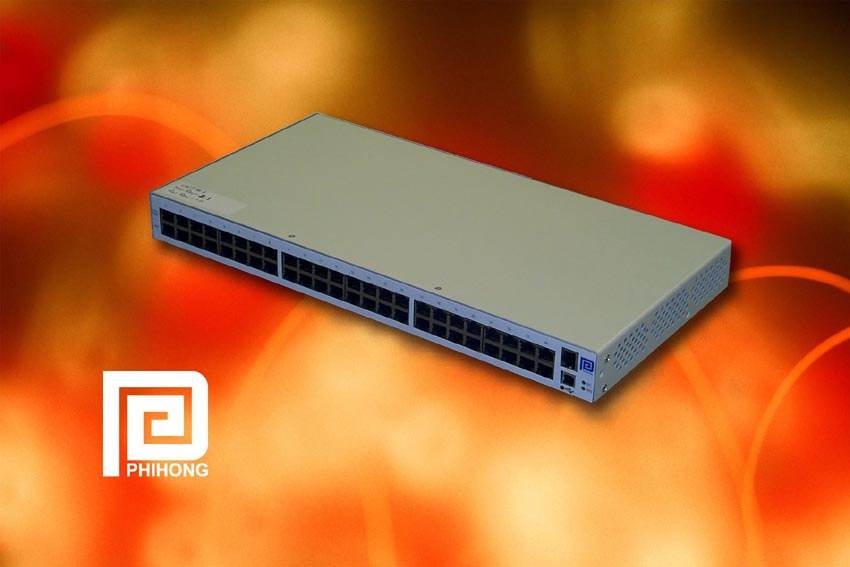

Jul 06, 2006 With 24 ports for VoIP phones, access points, security systems, and lighting systems, POE370U Series midspan is suited for 10-, 100-, and 1000-Base-T networks. Product supports 15.4 W per port while offering IEEE 802.3af detection, disconnect and overload protection, GUI for diagnostics or remote control, and optional NIC interface. POE370U measures 17.25 x 8.98 x 1.75 in. and weighs 9.0 lb.

Belden    Richmond, IN 47375
Jul 06, 2006 Suited for professional broadcast/entertainment market, Belden Brilliance Audio/Video Cable Assemblies are offered in following types: breakouts, BNC, camera cable, CatSnake, composite A/V, dubbing cable, DMX, DT-12, fanouts, MIDI, mults (snakes), musical instrument, patch cords, RCA, RGB, speaker, S/PDIF, S-video, VGA, video patch, Y-adapter, and XLRs. Applications range from network events to film and video production and post-production as well as corporate A/V applications.

Keystone Electronics Corp.    Astoria, NY 11105
Jul 06, 2006 Engineered for replacing wire-wrap posts and turret terminals, compact style (No. 5021) and multipurpose style (No. 5020) Test Points ensure firm gripping with J-Hooks, EZ-Hooks, grabbers, alligator clips, tips, or probes. Design keeps terminals perpendicular to PCB so relative position is maintained during, and permanently after, wave soldering. Made from .017 in. dia. Phosphor Bronze with Tin Plating, products are designed for high-density packaging on .062 and .093 in. thick PCBs.

Zettler Magnetics, Inc.    Aliso Viejo, CA 92656
Jul 06, 2006 Available with power handling capacities from 3-24 VA, AGL series mounts on box or shelf and has winding configuration that lets same part be used for 115 or 230 V applications. It provides 1,500 V of isolation from primary to secondary and is deigned to meet UL1585 Class II and Class III requirements. Built using UL-approved Class B insulation system, transformer can be supplied with custom voltages and choice of connectors or partial wiring.

Coto Technology    Providence, RI 02907 3105
Jul 06, 2006 Featuring molded thermoset body, 9104 HV SIP has metal shell that reduces interaction of relays that may be mounted next to each other. Product is available in 5 and 12 V coils with optional internal diode. High-voltage switching capability is rated up to 1,000 Vdc/ac peak, and dielectric strength is greater than 2,000 Vdc/ac peak in normally open contact state. Applications include automatic test equipment, instrumentation, and process control circuitry.

Electro Standards Laboratories    Cranston, RI 02921 3403
Jul 06, 2006 Model 7284 Multi-Peripheral A/B Toggle Switch can be manually controlled via front panel toggle switch or remotely controlled via screw terminal Remote port on rear panel. Each channel - A, B, and COMMON - contains PS/2 Mouse port, PS/2 Keyboard port, and USB port. Switch ports are transparent to all data, and all pins of connectors for each channel are switched. Front-panel LEDs display switch position.

Pass & Seymour/Legrand    Syracuse, NY 13221
Jul 06, 2006 Designed with contemporary styled knob, line of Rotary Dimmers come in 600 and 1,000 W versions with pre-set and lighted options for each. Dial on/off 600 W Dimmers are activated by rotating knob, while Pre-set 1,000 W Single Pole and 3-way Dimmers turn on when knob is pushed in. Measuring 1.24 in. deep, products are offered in light almond, ivory, and white.

MULE LIGHTING, INC.    Providence, RI 02905
Jul 06, 2006 Wet location/IP 65 rated, Pinnacle exit signs are constructed of 0.420 in. cast aluminum and incorporate clear polycarbonate shield and tamper resistant hardware. Operating off 120, 277, or 347 Vac input in -30 to +135°F temperature range, LED illumination consumes less than 5 W and sealed nickel-cadmium batteries provide 90 min runtime in event of power outage. LED exit signs are suitable for wall, ceiling, or end mounting, and come with field selectable chevrons.

Astrodyne Corp.    Mansfield, MA 02048
Jul 05, 2006 PowerBlock micro-miniature, modular power supplies include PWB and AFC product lines, which are supplied in respective 1 x 2 x 0.6 or 0.9 in. packages with 0.40 in. dia connection pins designed for PCB mounting. Both types include 5 models with single outputs of 3.3-24 Vdc and 3,000 Vac input to output isolation. Accepting universal input from 85-265 Vac, 47-440 Hz, fully encapsulated products are over voltage (clamp type) and short circuit (continuous) protected.

NKK Switches    Scottsdale, AZ 85260-3420

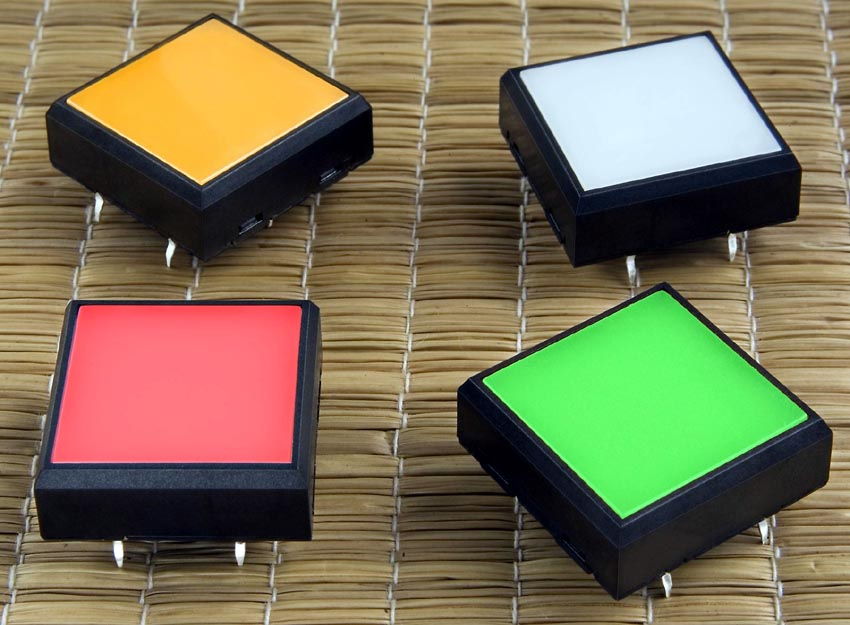

Jul 05, 2006 Rated at 50 mA @ 24 Vdc, JL series illuminated switches are 22 mm square with black housing to frame 19 mm square polycarbonate actuator. Housing and case are constructed of glass fiber reinforced polyamide and terminals are brass with silver plating. PC terminals are crimped to provide spring type action that ensures secure mounting and prevents dislodging during soldering process. LEDs are offered in red, green or amber, while actuators are available in white, red, amber, and green.

EAO Switch Corp.    Milford, CT 06460
Jul 05, 2006 Low profile, flush mount, illuminated Series 84 pushbuttons are available with aluminum or plastic bezels in standard 22.5 mm cutout. IP67 rated pushbuttons can be connected by 300 mm ribbon cable or plug-in terminals. Double-blade, slow make switching system ensures pleasing tactile operation and promotes reliable switching, even of very light loads. With a maximum rating of 42 Vac/dc, 100 mA, switches are suited for PLC level signals.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Jul 05, 2006 Equipped with internal cooling fan, Loctite® 7700-HD LED Light Source portable curing system offers output of 1.0-1.5 W/cm² at peak wavelength of 405 nm and provides effective continuous duty cycle use. Powered from ac power adapter, hand-held or stationary mount system features extended tip for use on small adhesive joints. Sized at 9 x 1.4 x 2 in. and weighing 0.75 lb, unit may be actuated using foot switch, PLC interface cable, or timer.

LEDtronics, Inc.    Torrance, CA 90505
Jul 05, 2006 Providing portable light source, Flashing LED safety band features 4 red LEDs spaced 2 in. apart against lime green reflective tape background. Velcro strap facilitates attachment to anything requiring visibility during low light levels, and one replaceable CR2032-cell battery powers unit for 85 hr. Measuring 9 x 1 ¼ in., product is made of soft nylon material and utilizes LEDs with 100,000+ hr lifespan and solid-state design impervious to environmental fluctuation.

EXAIR Corporation    Cincinnati, OH 45249-1621
Jul 05, 2006 Housed in 5.5 x 3.5 x 4.4 in. metal enclosure, Four Outlet Power Supply features four 5 kV output connectors designed to energize up to 4 static eliminators. Output current is limited to 5 mA, and unit requires 115 Vac, 50/60 Hz input. Without fuse or mechanical reset, short circuit protection takes voltage output to zero if short occurs in static eliminator. CE- and RoHS-compliant, UL-listed unit comes with 6 ft power cord and lighted power switch.

ERNI Electronics, Inc.    Midlothian, VA 23112
Jul 03, 2006 Measuring 10 x 10 x 3 mm, 4-pin MiniBridge(TM) is suited for space-saving and flexible board-to-cable connections. Miniature connector components offer current-carrying capacity of 4 A. Using straight or angled male connectors, and female connectors where cables are fed out at 90° or 180°, it is possible to overcome spatial restrictions. Male connectors have SMT termination, and female connectors use IDC termination. Additionally, female connectors are available with locking latches.

Picor, a subsidiary of Vicor Corporation    North Smithfield, RI 02896
Jul 03, 2006 Operating from 10-76 Vdc, QuietPower® QPI-12 attenuates conducted common-mode and differential-mode noise to comply with CISPR22 requirements. It supports 7 A loads up to 80°C, is parallelable for high power, and occupies 0.5 in.² of board area. QPI-10 complies with AdvancedTCA PICMG3.0® requirements for hot insertion and board-level conducted noise limitations defined by EN 55022 class B. It provides conducted common-mode and differential-mode noise attenuation from 150 kHz to 30 MHz.

Linear Technology Corp.    Milpitas, CA 95035
Jul 03, 2006 Synchronous, current-mode controller IC, Model LT3837, regulates output voltage based on sensing secondary voltage via transformer winding, allowing for tight output voltage regulation without optoisolator. Unit can convert input supply of 9-36 V to isolated output of 3.3 V at 12 A with up to 90% efficiency and ±1% regulation. Switching frequency can be adjusted from 50-250 kHz with capacitor. Housed in 16-lead TSSOP package, controller is rated for -40 to 125°C operation.

Samtec, Inc.    New Albany, IN 47151 1147
Jun 30, 2006 Intended for low profile panel-to-board and cable-to-board applications, Micro RF081 and RF113 feature 0.81 mm and .045 in. OD, respectively. Series RF113 is available with MHF1 micro RF connectors, while Series RF081 comes in 2 sizes: MHF1 for 2.5 mm mated height and MHF3 for 1.5 mm mated height. Both offer SMA bulkhead connections on second end in standard and reverse polarity for panel-to-board/antenna applications.

Linear Technology Corp.    Milpitas, CA 95035
Jun 30, 2006 Housed in 3 x 3 mm DFN-10 package, step-down switching regulator, Model LT3481, operates within VIN range of 3.6-34 V, making it suited for load dump and cold-crank conditions found in automotive applications. Internal switch, rated at 3.2 A, can deliver up to 2 A of continuous output current to voltages as low as 1.26 V. Converter features user programmable switching frequency from 300 kHz to 2.8 MHz, external synchronization, power good flag, and soft-start capability.

Linear Technology Corp.    Milpitas, CA 95035
Jun 30, 2006 Featuring low-noise, 1 MHz operation, LTC3203-1/B/B-1 step-up charge pumps accept input voltages from 2.7-5.5 V, have 2 user-selectable conversion modes (1:1.5 and 1:2), and produce output current to 500 mA. While LTC3203B provides adjustable output voltage, LTC3203-1 and LTC3203B-1 have user-selectable fixed output voltage options of 4.5 or 5 V. Model LTC3203-1 features automatic Burst Mode® operation and LTC3203B and LTC3203B-1 utilize constant-frequency architecture.
