Power-One, Inc.    Camarillo, CA 93012
Sep 13, 2007 Offering power density up to 56 W/sq in., SSQE48T20033 3.3 Vout, 20 A sixteenth-brick is suited for communications, data server/storage, and workstation applications. It has 36-75 V input voltage range and can withstand 100 V input transient for 100 ms. Featuring 0.374 in. profile, it includes on-board input differential LC-filtering, +10%/-20% output trim, and remote sense and remote on/off interface capabilities available with positive or negative logic option.

Power-One, Inc.    Camarillo, CA 93012
Sep 13, 2007 Designed for applications requiring several high-current rails, 600 W Series HP600 is available with up to 5 outputs from 0.8-48 V, plus 5 V standby power source. Hot-swap units feature backplane-mounted AC connectors, 85-264 Vac input range with PFC, I2C interface, and ORing diodes to support paralleling and current sharing for up to 4 outputs. Housed in 1U high enclosure with 11.5 x 5 in. footprint, devices include output overvoltage, output overcurrent, and over-temperature protection.

Aeroflex Laboratories    Plainview, NY 11803
Sep 13, 2007 Offering single-box radar testing solution, 6810 Series Microwave Signal Generators and 6820 Series Microwave Scalar Analyzers with Internal Pulse Modulator perform radar testing, calibration, maintenance, and repair in coax or waveguide media. Systems with modulator allow sensitivity and range measurements for radar receivers and enable user to test pulsed amplifiers under pulsed conditions. Option is available in 50 MHz to 18 GHz and 50 MHz to 40 GHz ranges.

Banner Engineering Corp.    Minneapolis, MN 55441
Sep 13, 2007 Designed for use with PICO-GUARD safeguarding system, PICO-GUARD(TM) Emergency Stop Button works in conjunction with PICO-GUARD Controller and other optical elements in personnel safety and equipment protection applications. Models are available with fiber entry/exit from same or opposite sides of IP65-rated, impact-resistant enclosure. Switch features bright red push-to-stop, twist-to-release button with yellow background and accommodates up to 3 E-Stops in series on single channel.

PulseTech Products Corporation    Southlake, TX 76092
Sep 13, 2007 Combining unique charge algorithm with battery evaluation capabilities, 12 V Xtreme Charge(TM) eliminates need for users to identify battery type or chemistry, to select and set any specific charge criteria prior to charging, or worry about charging in improper or potentially unsafe manner. Computer-integrated system determines and delivers appropriate amount of charge from .1-2.5 A, while PULSE technology minimizes sulfation buildup on battery plates.

Maxim Integrated Products    Sunnyvale, CA 94086
Sep 13, 2007 Integrating high-performance step-up regulator, 2 linear-regulator controllers, 5 high-current operational amplifiers, and logic-controlled, high-voltage switch with adjustable delay, Model MAX8795A is suited for LCD TV and monitor displays. It utilizes 1.2 MHz current-mode regulator with integrated 20 V n-channel MOSFET to provide regulated supply voltage for panel source drivers. Available in 5 x 5 x 0.8 mm, 32-pin TQFN package, device is specified over -40 to +85°C.

Power Sources Unlimited, Inc.    Wrentham, MA 02093-2210
Sep 13, 2007 Featuring wide input ranges of either 9-36 Vdc or 18-75 Vdc, Tracopower TEN-8WI Series of 8 W, 24-pin DIP dc/dc converters consist of 14 models with single or dual outputs of 3.3, 5, 12, 24, ±5, ±12, or ±15 Vdc. Features include remote on/off, 1,500 Vdc input-to-output isolation, fully regulated outputs, and comprehensive protection circuitry. RoHS compliant units are certified to 60950-1 standards, and have operating temperature of -40 to 85°C with derating after 75°C.

Lamar Lighting Co., Inc.    East Farmingdale, NY 11735
Sep 12, 2007 Featuring integrated ultrasonic technology, Ophelia Series is suited for areas where lighting is typically left on, but are not constantly occupied. Units are available in on/off controlled or bi-level with adjustable standby levels of 5, 10, 20, or 30%. Offered in 2-4 ft lengths, luminaires come in 1 or 2 lamp, T5 or T8 models with painted finishes or optional stainless steel. Applications include hotels, restaurants, medical facilities, and college dorms.

Staco Energy Products Co.    Dayton, OH 45403 1314
Sep 12, 2007 Available in models from 125-225 kVa, TreStar P Series is suited for applications with input voltage of 208 or 480 Vac. Online, double-conversion units feature digital control system to eliminate overloads, frequency variations, transients, flicker, and black-outs in real-time. Up to 8 modules can be installed in parallel for redundancy or additional capacity. Additional features include vector-controlled IGBT inverter, input circuit breaker, and battery management system.

RECOM Power Inc.    Brooklyn, NY 11201
Sep 12, 2007 Measuring 1 x 1 in. with 0.39 in. height, galvanically isolated RP15-SAW Series offers efficiency up to 87% and operates at ambient temperatures exceeding 60°C, without external cooling measures. Outputs are trimmable within ±10% of nominal output voltage. Housed in 6-sided nickel-coated copper material, converters feature 2:1 input ranges of 9-18, 18-36, and 36-75 V as well as 4:1 input ranges of 9-36 and 18-75 V. Output voltages are set at 3.3, 5, 12, and 15 V.

Federal Signal Corp., Signal Div./Electrical Products    University Park, IL 60466
Sep 12, 2007 Equipped with Extreme Light Technology, Model 27XL produces 60 high-intensity flashes/min and operates on 24 Vdc, 120 Vac, and 240 Vac 50/60 Hz. Unit is configurable to either steady burning or flashing mode. Corrosion resistance is achieved with powder epoxy finish applied over copper-free aluminum housing and 316 SS hardware. With effective candlepower of up to 134, light features low in-rush circuitry design that is compatible with factory automation control systems.

TE Connectivity Ltd.    Berwyn, PA 19312
Sep 12, 2007 Providing direct IP connectivity between Voice Interoperability Data Access networks and standard IP telephony systems, VIDA CTI allows IP, VoIP, and PBX phone networks to seamlessly receive and place telephone calls to and from portable and mobile radios. Gateway application features inbound and outbound selective calls and can simultaneously conduct up to 30 interconnected telephone calls, as well as caller identification on outbound calls.

W.A.C. Lighting Company    Port Washington, NY 11050
Sep 11, 2007 Available in 4 finishes and 3 models, Premier Low Voltage Adjustable Spot Track Heads are crafted of die-cast aluminum and have maximum extension of 6 11/16 in. Measuring 2¾ x 4¼ in., Model 815 accommodates MR16 halogen lamp at maximum of 50 W. Model 817 uses two 35 W MR16 halogen lamps and measures 2¾ x 7¾ in., while Model 819 accommodates MR16 halogen 50 and 75 W lamps and measures 3 1/8 x 2 5/8 in.

Remke Industries, Inc.    Wheeling, IL 60090 6039
Sep 11, 2007 Able to withstand continuous flexing and bending, NEMA 6P- and IP68-rated Dome Cap Cable Glands can be used indoors/outdoors with range of cables. Standard nylon connectors are available with NPT or Pg threads; Spiral-Flex extended version is optimized for strain relief; and nickel-plated brass connectors come in several NPT, metric, and Pg thread sizes. Submersible to 300 ft, products provide tight seal and relieve any strain on cable once user inserts cord and tightens dome-nut.

Integrated Device Technology, Inc.    Santa Clara, CA 95054

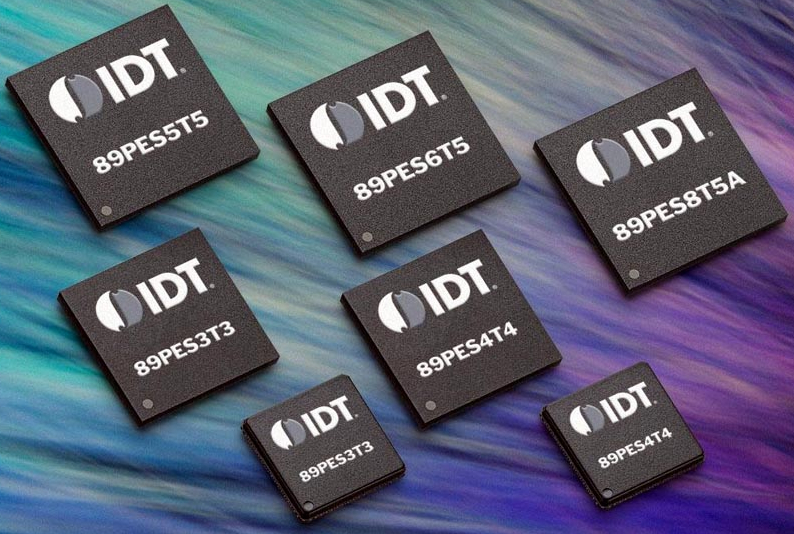

Sep 10, 2007 Featuring 2-4 downstream x1 connections, 5 PCI Express® (PCIe®) switches are optimized to address I/O connectivity challenges faced by systems requiring low-lane and low-port counts in embedded medical, automotive, PC and consumer applications. Devices range from 3-lane, 3-port switch to 8-lane, 5-port switch, all leveraging IDT's high-speed switching while using PCI Express standard to allow seamless interconnect of processing, storage, and networking system elements.

W.A.C. Lighting Company    Port Washington, NY 11050

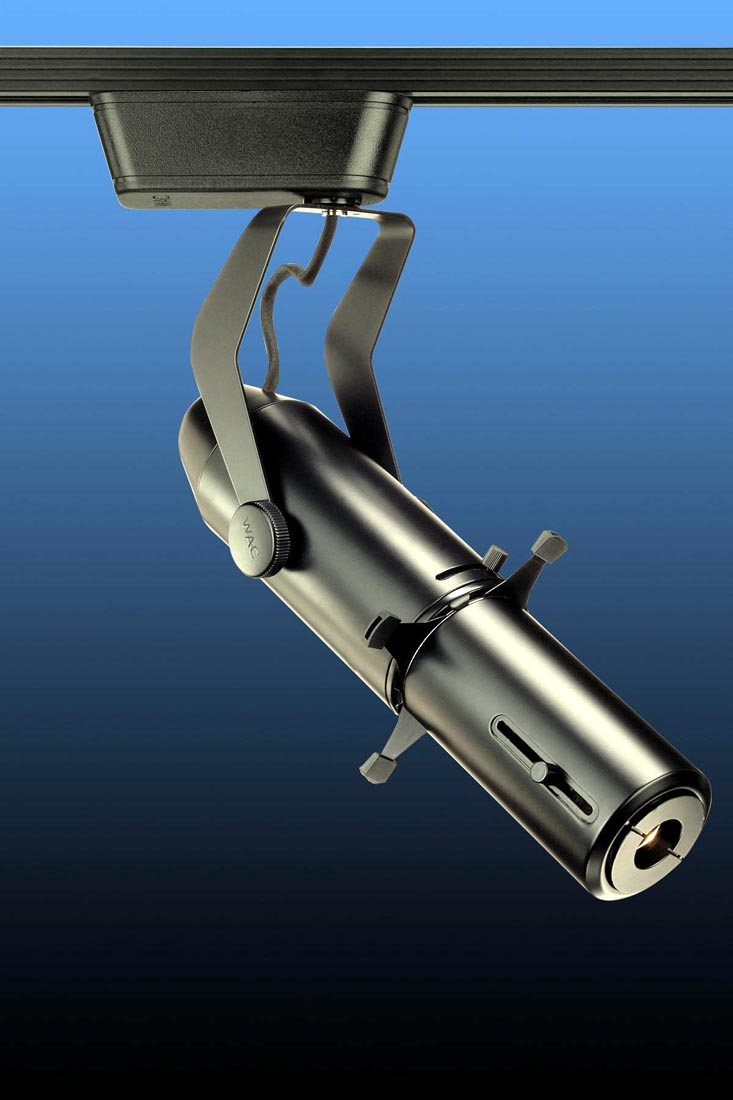

Sep 10, 2007 Offered in black and white finishes, 13 3/8 in. long Premier Low Voltage Framing Projector Track Fixture features diameter of 4 3/8 in. and maximum extension of 9 in. Luminaire accommodates 75 W MR16 FPA or EYF (narrow beam) halogen lamps and creates square or rectangular area of light with minimal light spill to frame or highlight 4-sided flat objects on display. Using 2 lenses, fixture controls precise size and sharpness of edge of light beam.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Sep 10, 2007 Exhibiting 10 ps typical jitter performance at data transmission rates up to 3.125 Gbps, Model DS25CP104 low-voltage differential signaling (LVDS) 4 x 4 crosspoint switch consumes only 122 mW per channel. It features 8 kV ESD protection and 100 W termination on LVDS I/O pins to minimize insertion losses, component count, and board space. Model DS10CP154 is targeted at applications up to 1.5 Gbps. Both are available in 40-pin LLP® packages.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Sep 10, 2007 Designed to facilitate installation, wiring, and setup while meeting requirements for modularity, sturdiness, and reliability, ASI limit switches are available with choice of roller plunger, push lever, roller lever, and wobble stick operating heads. Auxiliary contact blocks are removable, and metal heads offer axial rotation in any of 4 positions at 90° angles. Removable body cover, made of self-extinguishing polymer thermoplastic, has captive closing screw and is hinged at bottom.

Xuron Corp.    Saco, ME 04072 1840

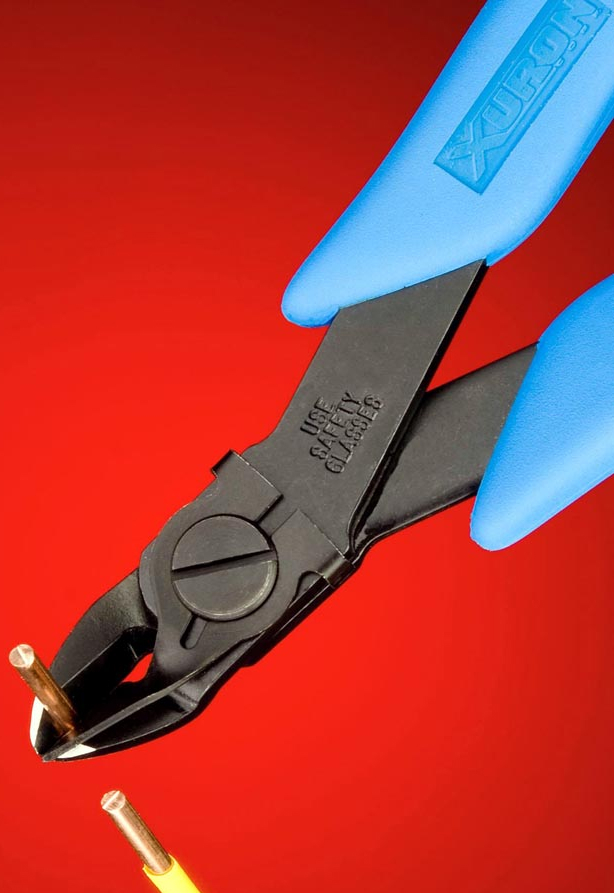

Sep 07, 2007 Utilizing bypass cutting technology, 9100F Micro-Shear® Flush Cutter with Lead Retainer produces clean, square cut and prevents flying leads which can injure users and end up inside equipment, where they can cause short circuits. Product is made from alloy steel with cutting edges hardened to Rc 56-58 and requires minimal force for operation. To fit comfortable in user's hand, unit is equipped with cushioned Xuro-Rubber(TM) hand grips and Light-Touch(TM) return spring.

Electro Standards Laboratories    Cranston, RI 02921 3403
Sep 07, 2007 PathWay(TM) Model 7349 Dual-Channel CAT5e RJ45 A/B/Off-Line Switch lets user schedule changes in switch position or lock/unlock front panel control at any given date and time. All switched signals are passed via copper contact relays that maintain their position and continuity, even in case of power loss/failure. Access can be achieved manually via pushbuttons or remotely via any web browser; security is assured via login password authentication and 4 user access levels.
