Federal Signal Corp., Signal Div./Electrical Products    University Park, IL 60466
Nov 12, 2007 Model 27XL explosion-proof LED light with Extreme Light Technology produces 60 high-intensity flashes/min and operates on 24 Vdc, 120 Vac, and 240 Vac 50/60 Hz. UL listed for Class 1, Division 1, Groups C and D; Class II, Division 1, Groups E, F, and G; Class 1 Division 2, Groups A, B; and Class III, it is also Marine- and type 4X-rated. Powder epoxy finish applied over aluminum housing provides corrosion-resistance and all exposed hardware is 316 SS.

Federal Signal Corp., Signal Div./Electrical Products    University Park, IL 60466
Nov 12, 2007 Rated for hazardous environments, Model 2000 is available in 24 Vdc model and multi-volt configuration with circuit that automatically compensates for different input voltages. Beacon is activated through direct application of power or by contact closure from remote field device. It may be operated in steady-on, slow-flash, or rapid-flash, depending on position of terminal block wiring. Constructed of LM6 or A356.0-T6 aluminum, IP66 enclosure features integral mounting feet.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Nov 09, 2007 PowerWise® LM201xx and LM202xx series include 10 synchronous buck regulators, each of which integrate 2 switching MOSFETs and utilize externally compensated peak current-mode control loop. Operating from 2.95-5.5 V input, 9 buck regulators (fixed and adjustable switching frequency) deliver up to 5 A continuous output current. High-voltage buck regulator, LM20242, operates with 4.5-36 V input and delivers up to 2 A continuous output. Frequency is adjustable from 250 kHz to 1 MHz.

Honeywell Power Supplies    Northford, CT 06472
Nov 09, 2007 Comprised of 7 models, HPTV24-E Series powers CCTV cameras and other video accessories. Products feature 2 circuit protection choices (automotive fuses or circuit breaker type PTCs), transformers with built-in thermal protection, and LED diagnostic indicators. Series delivers constant source of 24 Vac power with 4 or 8 A of supply current. All models offer choice of output distribution via 4, 8, or 16 individually protected circuits.

Bridgeport Fittings, Inc.    Stratford, CT 06497
Nov 09, 2007 Vaporproof Lighting Fixtures offer rugged, seamless die-cast aluminum construction that prevents moisture entry. Configurations include VAX Series box mount fixtures, VAT Series surface mount units, VAP Series right angle units, VAS Series pendant mount fixtures, and VPX Series wall mount units with box. All fixtures operate on 110/120 Vac and are rated 100 W when installed with glass globe and 75 W with Lexan® globe. They are available in amber, blue, clear, green, and red.

E-Switch Inc.    Brooklyn Park, MN 55428 1514
Nov 09, 2007 Available with or without mounting bosses, JS1200 five-position joystick switch is designed for SMT applications that require navigation. Respective travel for push and tilt is 0.15 mm ±.01 mm and .20 mm ±.01 mm, and life expectancy is 200,000 actuations in any direction. Switch has contact rating of 20 mA @ 12 Vdc and is suited for use in consumer electronics or handheld instrumentation devices for various markets requiring user interface.

Omron Electronics, LLC    Schaumburg, IL 60173

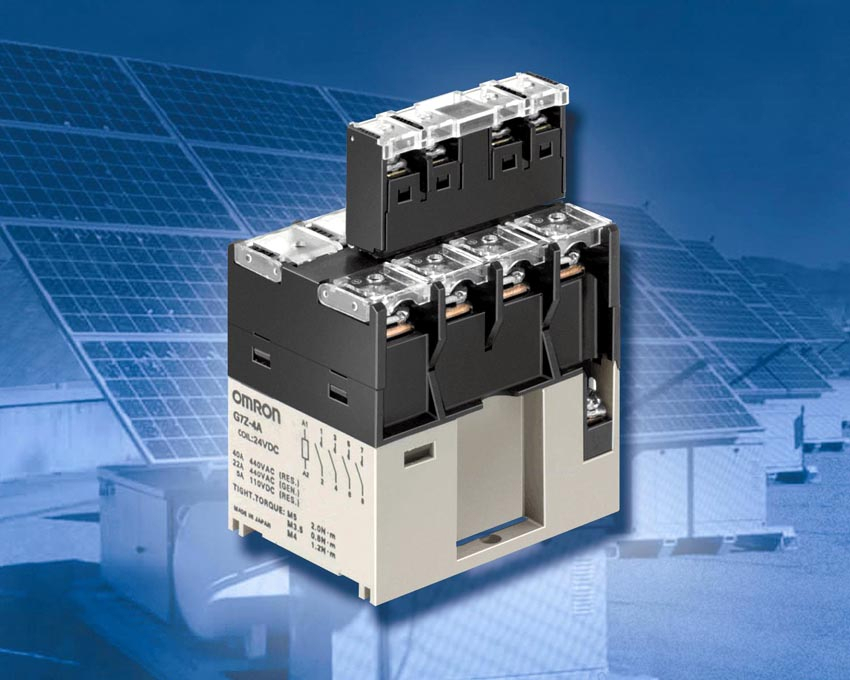

Nov 09, 2007 Providing up to 40 A switching capacity per pole on NO contact, Model G7Z features resistive load rating of 40 A at 440 Vac for NO contact and 25 A at 440 Vac for NC contact. Space saving unit is offered in 12 or 24 Vdc coils, and maintains dielectric withstand of 4,000 Vac between coil and contacts. Suited for inverter, solar/fuel battery, and Uninterruptible Power Supply applications, it has inductive load rating of 22 A at 440 Vac on NO contact.

Tyco Electronics/Raychem.    Menlo Park, CA 94025-1164
Nov 09, 2007 Featuring 0805 EIA compliant form factor, surface-mount PolySwitch(TM) picoSMD035F offers circuit designers smallest PPTC (polymeric positive temperature coefficient) overcurrent protection device available for consumer and computer electronics. Resettable solution, rated at 6 V, provides hold current of 0.35 A, trip current of 0.75 A, and max resistance of 1.4 X. It is full-edge terminated with nickel-gold finish and RoHS-compliant.

SE Relays LLC - Magnecraft Brand    Northfield, IL 60093
Nov 09, 2007 Capable of switching up to 15 A dc and 10 A ac and built with heat sinking capability in 17.5 mm modular design, Magnecraft 861 eliminates need for heat dissipation calculations. RoHS-compliant unit features 100% solid state operation, integrated snubber, and isolated input and output circuits. Finger-safe terminals protect operators from live currents and accidental shocks. Suited for medical equipment and lighting, relay mounts to DIN rails as well as panels using extendable tabs.

Phihong USA    Fremont, CA 94539
Nov 08, 2007 Measuring 2.3 x 1.1 x 1.38 in., Model PLA03A 3 W Linear Replacement Adapter features input voltage range of 90-264 Vac. Wall plug is double-insulated and meets safety approvals for UL/cUL 60950-1. With zero minimum load, it has minimum average efficiency and no-load power requirements for Energy Star and CEC Compliancy level IV. Short circuit protection with auto recovery allows adapter to shut down without causing damage to connected device.

EAO Switch Corp.    Milford, CT 06460
Nov 08, 2007 Large-headed pushbuttons address hazards associated with industrial tasks. Surface area enables switch activation by palm or fist, and units produce tactile feedback even when activated at edge. With flush mounting, products are tamper-proof and resist abusive operation. Sizes range from 22.5 mm mounted switch with 32 mm dia actuator up to 30.5 mm mounted switch with 40 mm dia actuator. Modularity affords end-user's choice of lenses, front rings, switching elements, and illumination.

FCI    Etters, PA 17319
Nov 08, 2007 Providing 170 contacts on 0.75 mm pitch, press-fit, Vertical Card Edge Connector enables AdvancedMC(TM) cards to be plugged directly to backplane, accommodating speeds up to 10 Gb/s. Surface mount version utilizes PCB footprint and will support differential signals at data rates up to 12.5 Gb/s. Available to handle 48, 24, or 12 Vdc, D-Subminiature Connectors enable DC input connections to power modules used in MicroTCA shelves.

Magic Power Technology Inc.    Sunnyvale, CA 94085
Nov 08, 2007 Capable of generating 80 W at 50°C under convection cooling, Model MPI-P10H ac/dc switching power supply can also generate 100 and peak 120 W continuously with 10.2 cfm forced air cooling. Power supply also provides users with ATX output option. It features power good, power fail signals and remote On/Off function. RoHS compliant unit fits within 1U height constraints, and is suited for low power, no noise, and compact industrial automation systems.

Baumer Ltd.    Southington, CT 06489 1534
Nov 08, 2007 Made of stainless steel, TED/YTED and ETTN/YTTN measuring instruments are designed for pressure and temperature control, and suit severe industrial environments. They have 2 threshold outputs: PNP transistors or galvanic isolation. TED/YTED digital devices are suitable for vacuum and absolute or gauge pressure measurements up to 400 bar, while ETTN/YTTN range digital temperature switches can measure scale from -200 up to +400°C with accuracy of ±0.5°C.

Cinch Connectors    Vinita, OK 74301
Nov 08, 2007 Available in 330 and 1,000 pF configurations, RoHS-compliant high-density filtered D-Sub connector features dense contact arrangement. Using turned pin contacts, connector shells are available in bright tin or nickel finish. Filter elements are encapsulated using epoxy resin for optimal performance characteristics in hazardous environments.

Hoffman    Anoka, MN 55303 1778
Nov 07, 2007 Providing horizontal and vertical cable managers, CableTek(TM) Management Systems support cable bundles and individual cables in 19 in. data racks. They are EIA compliant and accommodate CAT 5e, 6, and 6A cables. Systems include covers with positive engagement and bi-directional hinges, as well as pass-through holes for wiring flexibility. Arrowhead finger design facilitates insertion and removal of cables, while rounded edges minimize twisting, over-stretching, and nicking of cables.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Nov 07, 2007 AS-Interface Flat-to-M12 adapter cables facilitate connection of I/O devices such as intelligent sensors, emergency stop switches, and modules to AS-Interface. Products also aid connection of junction boxes and panels to trunk line as well as power supplies and AS-Interface scanners to bus. These M12 adapters are available in straight or 90º M12 head angles with single or dual flat cable configurations in lengths of 0.3, 1, 2, or 5 m.

Phihong USA    Fremont, CA 94539
Nov 07, 2007 Model POE80U is designed for powering satellite receivers, video conferencing systems, access points, LCD displays, security cameras, kiosks, and computer workstations. Gigabit-compatible device incorporates diagnostic LEDs and features single-source 4-pair power current sharing. Voltage detection, disconnect, and control is included and unit offers overvoltage, overcurrent, and short-circuit protection.

Amphenol Corp., Amphenol Aerospace    Sidney, NY 13838
Nov 07, 2007 Offering water-tight construction, over-molded Amphe-Armor Series is available in variety of shell sizes and contacts with PT or GT insert option. Field-installable, field-repairable units are constructed of high-impact glass-filled thermoplastic with solder wire termination and heavy-duty coupling nut. Rated to IP67, connectors operate in temperatures from -67 to +267°F. Applications include geophysical, machine tool, railway, and motor control environments.

Genie, a Terex Company    Redmond, WA 98052
Nov 07, 2007 Terex® T360 Super Quiet Generator is powered by heavy-duty 426 hp Cummins diesel engine that is electronically controlled to provide frequency regulation to accuracy of ±0.25%. Fuel capacity offers operators 24 hr continuous operation on 1 tank. Unit includes detachable front panels, engine bay doors, removable rear louver panel, and distribution panel with 5-lug distribution board and single-phase convenience receptacles.
