Bravo Electro Components    Santa Clara, CA 95051
Nov 19, 2007 With less than 10 mV noise/ripple and operating temperature of -40 to +75°C, XUP Series is suited for sensitive equipment in harsh environments. Four chassis measure 2.5 in. tall x 7.3 in. deep with varying widths that accept 2, 3, 4, or 5 output modules. Single and dual outputs cover any voltage requirement from 1.5-350 Vdc and 200 W/40 A per module. Total output power is 700 W at 90-180 Vac/1,200 W at 180-264 Vac or total combined output power of populated output modules.

Panasonic Electric Works Corporation of America    New Providence, NJ 07974
Nov 19, 2007 Offering zero force replacement for mechanical push buttons, Model SUNX SW-101 features fully configurable operation indicators that provide visual feedback to operation with respect to process status. Ergonomic design allows for multiple mounting configurations to achieve optimum application coverage.

DDP Supply    El Segundo, CA 90245

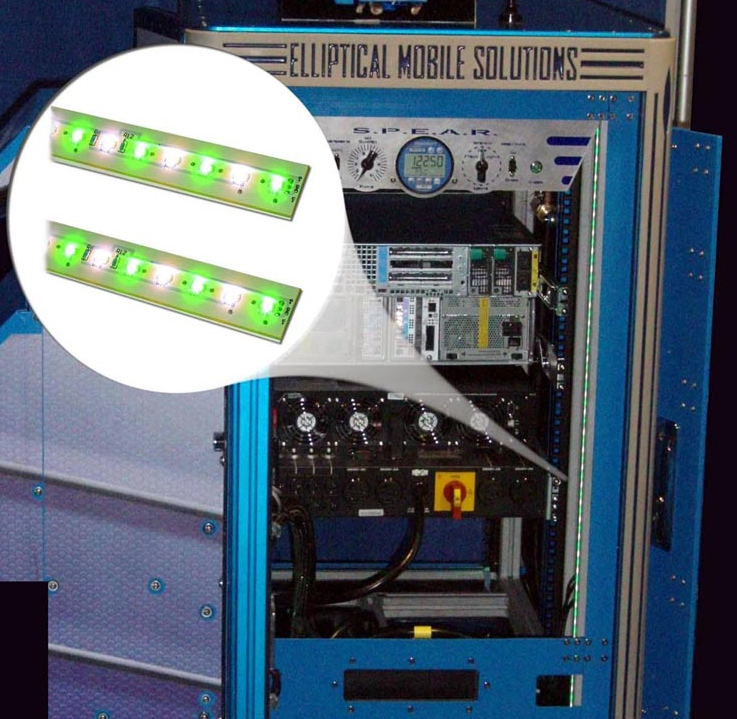

Nov 16, 2007 Providing task lighting in portable electronic equipment enclosures, LED assembly features alternating white and green LEDs that allow operators to use night-vision technology while working with equipment. Surface mount technology reduces profile of this bi-color LED lighting strip assembly, which can be designed for any enclosure, rack, or shelving unit. Various standard and custom configurations are available.

TURCK, Inc.    Plymouth, MN 55441

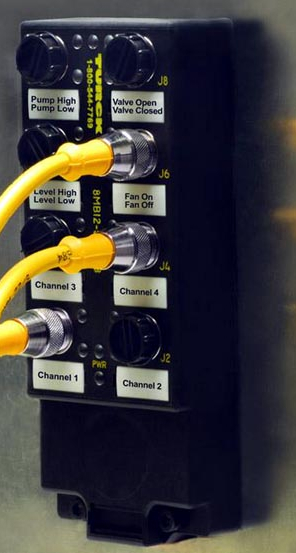

Nov 16, 2007 To minimize installation time, M12 eurofast® junction box elimniates need to punch 8 receptacle holes for through panel signal connections. It is available with 8 ports and dual outputs and features nickel-plated brass or stainless steel insert threads. Nylon, fully encapsulated housings offer IP67 protection rating when all receptacles are connected or covered with plugs. Solution provides operating current of 4 A per port and 9 A total, with 10-48 Vdc operating voltage.

Streamlight, Inc.    Eagleville, PA 19403
Nov 16, 2007 Weighing 12.8 oz, measuring 8.85 in. long, and generating up to 80 lumens of light, Stinger® DS LED features 2 fully independent switches, one located on light head and one on tailcap. Constructed of machined 6000-series aluminum with tough anodized finish and non-slip rubberized grip, 3 W unit delivers up to 1.75 hrs of continuous runtime per charge at full power, up to 3.75 hrs of runtime on medium brightness, and up to 6.75 hrs of continuous runtime on low power setting.

Hewlett-Packard Co. (Corporate Headquarters)    Palo Alto, CA 94304-1185
Nov 15, 2007 Based on ProVision ASIC technology, ProCurve Switch 8212zl is high-performance chassis core switch platform that provides comprehensive Layer 2 through Layer 4 features and advanced security. It offers high-density Gigabit and 10 GbE connectivity, hot-swappable, redundant management, and fabric and power to ensure system continuity.

ERNI Electronics, Inc.    Midlothian, VA 23112
Nov 14, 2007 Featuring 2.54 mm pitch and -55 to +125°C temperature range, single-row MaxiBridge(TM) Connector System provides straight and angled male connectors as well as straight female connectors with 180° cable outlet. Male connectors have SMT terminals while female connectors are designed in crimp technology. Components offer selective gold plating in contact area, fully coated contacts, double-sided spring contacts, and guaranteed minimum contact forces in addition to soldered clips on side.

Phihong USA    Fremont, CA 94539
Nov 14, 2007 Available in 5, 12, 24, and 48 V outputs, Series PSC30U 3-wire input switching adapter consumes less than 0.5 W and supplies from 20-30 W to single output voltage. Compact unit measures 3.88 x 2.17 x 1.24 in. and weighs 8.82 oz, making it suitable for portable equipment, peripherals, networking systems, and gaming machines. Contained in non-vented case, adapter is equipped with auto restart for over-current protection and output can be shorted without damage.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Nov 14, 2007 Low-impedance, high-voltage analog switches are available in DG467, DG468, DG447, and DG448 SPST models and DG449 SPDT model, with maximum on-resistance down to 10 W, flatness up to 2.6 W, and ±15 V analog signal range. Devices operate from single 7-36 V supply or from dual ±4.5-20 V supplies. Suiting audio, video, and data switching applications, switches feature rail-to-rail signal handling and are TTL and CMOS input compatible.

Linear Technology Corp.    Milpitas, CA 95035
Nov 14, 2007 Supplied in 15 x 15 x 2.8 mm LGA package, LTM4607 regulates output voltage from variable input voltage greater than, less than, or equal to the output voltage. It integrates synchronous buck-boost DC/DC controller, 4 N-channel MOSFETs, input and output bypass capacitors, and all compensation circuitry. Operating from 4.5-36 VIN and regulating output voltage from 0.8-24 V, product is phase-lockable to external clock frequency from 200-400 kHz and achieves efficiencies up to 97.7%.

Real Time Automation    Wauwatosa, WI 53222
Nov 14, 2007 InstantCommunications is complete industrial communications interface on chip that enables manufacturers of industrial and process industry products to add Modbus, Modbus TCP, EtherNet/IP, DeviceNet, and/or TCP industrial communications to their products. InstantCommunication solutions for OEM manufacturers are delivered on chips, as small circuit board modules, or as packaged add-on modules.

3M Co., Electronic Products Div.    Austin, TX 78726
Nov 14, 2007 Suited for system design engineers working with VME and CompactPCI backplane systems, MetPak HSHM B19 supports speeds of up to 5.0 Gbps per differential pair while maintaining pin-to-pin compatibility on backplane with VME64x, P0 VITA 31, and P3 PICMG 2.16 connectors. It uses virtual coaxial shielding technology to provide maximum performance with minimal cross talk and skew, allowing them to plug into existing 2 mm hard metric connectors and support PCI Express and RapidIO protocols.

SIXNET    Clifton Park, NY 12065 0767
Nov 13, 2007 Available with rugged D38999 style connectors, Models ET-8MS-MIL-1 (Managed) and ET-8ES-MIL-1 (Unmanaged) 8-port Ethernet switches are rated for MIL-STD-810F, MIL-STD-461E, and MIL-STD-1275. Each port supports auto-speed/duplex, auto-crossover, and auto-polarity for plug and play connections. Managed models support features such as RSTP, SNMP, QoS/CoS, IGMP, and VLAN. Dual (redundant) power inputs with MIL-STD-1275 military spike and surge protection are also available.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 13, 2007 Suited for oscilloscope measurements in environmental chambers and other settings with extreme temperature conditions, Model N5450A extension cable offers 2 different operational temperature ranges, depending on probe head configurations. It provides temperature range coverage of -55 to 150°C and -25 to 80°C when used with N5381A differential solder-in probe head, and E2677A differential solder-in probe head, E2678A differential socket probe head, or N5425A/26A ZIF tip, respectively.

Astrodyne Corp.    Mansfield, MA 02048
Nov 13, 2007 Including 30 and 60 W models, PLN Series devices use PFC topology to offer up to 86% efficiency, class C Harmonic levels for lighting industry, and comply with UL1310 class 2 safety approvals providing less than 5 A. IP64 enclosure protects against dust and moisture, making them suitable for indoor/outdoor lighting applications. Units feature built in constant current operation with adjustable overcurrent and output voltage settings, and operating temperature range of -30 to +50°C.

RECOM Power Inc.    Brooklyn, NY 11201
Nov 12, 2007 Suited for ambient temperatures up to +85°C at full load, constant current Model RCD-24-0.35 features non-isolated buck regulator topology in 22.1 x 12.6 x 8.5 mm case. With input voltage of 4.5-36 V, unit provides 1.2-35 V and 350 mA with ±2% accuracy. Converter can be powered down and dimmed by applying PWM signal with frequency from 10-1,000 Hz. Driver is suited for applications such as fork lift trucks, traffic lights, railway signaling, and aircraft interior illumination.

Richard Gray's Power Company    New Orleans, CA 70130
Nov 12, 2007 Suited for limited-space applications, RGPC 600RM Pro contains 6,000 W parallel choke engineered to fit into 2U rack space. There are 6 commercial-grade Hubbell outlets on back panel and one convenience outlet on front. Also available, one rack-space RGPC Extender Pro utilizes 12-gauge wiring and offers 6 commercial-grade Hubbell Outlets hand-wired independently to power source with no filtering. Both models are designed to add automation capabilities to any power line conditioner.

Federal Signal Corp., Signal Div./Electrical Products    University Park, IL 60466
Nov 12, 2007 Utilizing eXtreme Light Technology, Model 191XL Hazardous Location Flashing LED Warning Light is Class I Division 2, Class II Division 1, and Class III signal that is configurable for steady burning or flashing mode. Low in-rush circuitry assures compatibility with factory automation systems and reduces electrical interference with in-rush-sensitive devices. Type 4X, Marine-rated unit features aluminum alloy housing with ¾ in. 14 NPT pipe mounting and operates on 24 Vac/dc, 120, and 240 Vac.

Federal Signal Corp., Signal Div./Electrical Products    University Park, IL 60466
Nov 12, 2007 Featuring eXtreme Light Technology(TM), 225XL LED Warning Light produces light output equal to or greater than 100 W incandescent lamp. Unit operates on 24 Vac/dc, 120 Vac, and 240 Vac, and is available in amber, blue, green, and red. Though factory set to flashing mode, light can be switched between flashing and steady burn in field. Housed in die cast zinc alloy with ½-14 NPT pipe mounting, light has polycarbonate clear dome and is Type 4X, IP66, and Marine rated for indoor/outdoor use.

Federal Signal Corp., Signal Div./Electrical Products    University Park, IL 60466
Nov 12, 2007 Model 27XL explosion-proof LED light with Extreme Light Technology produces 60 high-intensity flashes/min and operates on 24 Vdc, 120 Vac, and 240 Vac 50/60 Hz. UL listed for Class 1, Division 1, Groups C and D; Class II, Division 1, Groups E, F, and G; Class 1 Division 2, Groups A, B; and Class III, it is also Marine- and type 4X-rated. Powder epoxy finish applied over aluminum housing provides corrosion-resistance and all exposed hardware is 316 SS.
