Crescent/Stonco    Union, NJ 07083
May 23, 2007 NyteWatch(TM) low-glare, luminaires offer twin 150 W quartz illumination while preserving nightime environments by projecting no visable light 90° above the fixture. NyteWatch(TM) lights feature Cut-off optics to reduce glare and Nyte-Glow(TM) dimming for dusk-to-dawn operation. Steinel(TM) motion sensitivity includes two 120° sensors with adjustable masks. NBA Model is adjustable from 0-30°, while NBC Model is fixed at 0°. Both models are available in black or white.

Linear Technology Corp.    Milpitas, CA 95035
May 22, 2007 Combining monolithic linear power manager, diode controller, and standalone battery charger, Model LTC4067 is intended for portable devices and battery backup systems. PowerPath(TM) control provides power to peripheral device and also charges single-cell Li-Ion/Polymer battery from USB bus or wall adapter power supply. Battery float voltage is preset at 4.2 V with 0.8% accuracy. Housed in 4 x 3 mm DFN package, unit provides up to 1.5 A programmable charge current and operates from -40 to 85°C.

Mid-West Instrument    Sterling Heights, MI 48314
May 21, 2007 Model 121 features industrial terminal strip and removable cover for wiring, 8-28 Vdc loop power, weather resistant gauge front, and push button zero reset feature. Accurate at ±2% from 20-100% of full scale, Model 121 operates at temperatures of 20-150°F and safe working pressure of 6,000 psig. It is available in aluminum or 316 SS pressure housing with 316 SS and internal ceramic parts in pressure ranges from 0-5 to 0-110 psid.

Kulicke & Soffa Industries, Inc.    Willow Grove, PA 19090
May 21, 2007 MaxSoft(TM) copper bonding wire, engineered for various discrete and IC applications, offers physical properties that help reduce IC bond pad stress and promote second bond strengths - even in fine-pitch applications. Available in diameters from 0.8-1.3 mil, wire has 6 month shelf life when stored in recommended conditions inside original packaging.

Kulicke & Soffa Industries, Inc.    Willow Grove, PA 19090
May 21, 2007 Designed for stacked-die and multi-tier applications, Formax(TM) bonding wire offers consistent loop profiles and promotes linearity and stability. It is capable of loop heights of less than 3 mil to over 16 mil, with wire span up to 320 mil using 1 mil dia wire. Intermetallic stability is based on proprietary 3N gold composition.

Heyco Products    Toms River, NJ 08753
May 21, 2007 Characterized by precision-molded, 2-piece mechanism with attached integral locking closure, Flexicon Conduit Mounting Clips provide secure means of mounting Flexicon FPAS or FPI liquid-tight conduit, cables, and tubing into vertical or horizontal indoor/outdoor configurations. Constructed from polyamide 6/6 Nylon, units accommodate .25-2 in. conduit and tubing and are resistant to salt water, weak acids, gasoline, oil, grease, and common solvents.

XP Power    Sunnyvale, CA 94085
May 21, 2007 Single output, 480 W-rated DNR480 offers universal input, accepting voltages from 90-264 Vac (single phase) without switch selection or 340-575 Vac (3-phase) - depending on model. Both 24 and 48 Vdc output variants have adjustable outputs: 22.5-28.5 Vdc for 24 V model, and 47.0-56.0 Vdc for 48 V model. For applications requiring increased power, up to 3 units may be connected in parallel. Each industrial ac/dc power supply is offered with detachable or fixed screw terminals.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
May 21, 2007 Integrating level shift and slew rate control functionality into single device, Model AAT4285 allows designers to minimize parts count in 12 V applications. P-channel MOSFET switch operates across 3.0-13.2 V input range and is designed for high-side load switching. Housed in 8-pin SC70JW package, unit offers turn-on time of 100 µs, fast shutdown load discharge capability, and RDS(ON) of 240 mW at 12 V to maximize load switch power handling.

W.A.C. Lighting Company    Garden City, NY 11530
May 18, 2007 Black/White Double-Paned, Cut-Glass Quick Connect Pendants are handcrafted products with individual shades produced with 2 panes of glass, fused together, and cut by hand to create 3D design. Daytona (G526), Harlequin (G525), and Groove (G524) cylindrical pattern pendants measure 9 in. tall and 4 5/8 wide, while Hendrix (G527), Chaplin (G528), and Hepburn (G529) pendant styles comes with buffet-shaped glass lampshades, each with 3 7/8 in. width and 4 1/8 in. height.

Electro Standards Laboratories    Cranston, RI 02921 3403
May 18, 2007 Able to fit in 1U high rackmount configuration, Model 7406 allows single device connected to COMMON port to access either of 2 networks connected to ports A and B. Product can be controlled via front-panel pushbutton or rear-panel RS-232 serial port. Once computer is connected to remote port, any common terminal emulation software may be used to interface with switch. Switched RJ45 ports are transparent to data format, and front panel LEDs display switch position and power presence.

LEDtronics, Inc.    Torrance, CA 90505
May 18, 2007 Designed to fit battery-powered flashlights with 9 mm screw-in incandescent bulb, T3¼ (9 mm) Single-Contact Screw-In LED Bulbs are offered with 1 or 3 cool white LEDs that respectively offer total light output of 15 and 45 cd. Average life span is 50,000 hr, and solid-state design is impervious to shock, vibration, frequent switching, and environmental extremes. Cool white (8,000 Kelvin) bulbs output 13,000 MCD at 20° angles and produce minimal heat.

FiberFin, Inc.    Yorkville,, IL 60560
May 18, 2007 Intended for use with Versatile link® connectors, Installer's Tool Kit includes hand tool that can terminate fiber and strip jacket to proper length, as well as crimp tool that installs connector with consistent results every time. Blade on termination tool is mounted on gear assembly that rotates blade every time user cuts fiber for even wear. After 1,260 cuts, cutting assembly will stop and prevent usage of unit until replacement cutting head is installed.

BRECOflex Co., L.L.C.    Eatontown, NJ 07724
May 18, 2007 Designed for T10 and AT10 pitch timing belts, Mechanical Connection System allows for access to shafts and pulleys without disassembling machinery parts. Finger spliced ends of timing belt are prepared to be clamped together with connecting kit hardware, which consists of carbon fiber reinforced polyamide connecting plates and tooth inserts, including screws.

Fairchild Semiconductor Corp.    South Portland, ME 04106
May 18, 2007 PDP-SPM(TM) integrated modules include FVP12030 energy-recovery circuit module and FVP18030 sustain circuit module. Designed to optimize board space and minimize component count, each PDP-SPM integrates multiple HVICs, buffer ICs, IGBTs, and diodes within one 44 x 26.8 mm Mini-DIP package. Modules come in Pb-free packages and utilize transfer-molded packaging technology that provides thermal resistance and isolation voltage of 1,500 Vrms (for 1 min).

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
May 18, 2007 Measuring 80 mm wide, 20 A-rated model CSF500C offers efficiency rating of greater than 92% that results in minimal power dissipation, cooler operation, and minimal stress on internal components. It uses auto ranging input of 120-230 Vac and offer adjustable 24 Vdc output. Suited for starting up heavy loads with its ability to produce up to 50 A, power supply is protected against short circuit, overload, over temperature, and I/O overvoltage conditions.

Electro Standards Laboratories    Cranston, RI 02921 3403
May 18, 2007 QuickSwitch® Model 6270 allows access to either of 2 SC Duplex Fiber Optic networks from one computer connected to SC Duplex COMMON port. Able to be controlled manually or remotely, product features MEMS-based multimode mirror switch. Insertion losses are less than 1.0 dB, and switched Fiber Optic SC Duplex ports are transparent to data and speed. Switch retains current position in case of power failure.

Telegartner, Inc.    Franklin Park, IL 60131
May 17, 2007 Featuring lead management design that prevents pairs from overlapping, Cat. 6+ AMJ Module includes crimp clamp that accepts solid wire from AWG 26/1-22/1 and flexible stranded conductors from AWG 24/7-27/7. Cable tension relief and shielded contacting permit small bending radii without endangering contacts. Made of solid cast zinc, shielded housing includes spaded ground connector. Module can be mounted vertically or horizontally and can be rotated in 90° increments.

Del City    Menomonee Falls, WI 53051

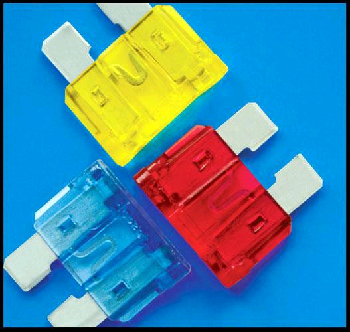

May 17, 2007 Ranging from 3-40 A, ATO® Fuses protect electrical devices from excess current flow. Internal element is activated by excessive heat, greater than what fuse is rated for, thus melting element and eliminating flow of electricity. End electrical component is then protected from over current state. Once fuse is blown, it must be replaced.

Linear Technology Corp.    Milpitas, CA 95035
May 17, 2007 Tested to junction temperature of 140°C, LT3437HFE switching regulator operates from continuous inputs of 3.3-60 V and withstands transients to 80 V. Its 500 mA internal switch delivers up to 400 mA continuous output current at voltages down to 1.25 V, and areas of use include automotive and telecom applications. Supplied in TSSOP-16E package, synchronizable product features Burst Mode® operation, 200 kHz switching frequency, and soft-start capability.

Quail Electronics    Livermore, CA 94550
May 17, 2007 NEMA Locking Configurations plugs and receptacles come in sleek molded configuration. Molded plugs and receptacles can be supplied with several cord types and with many options on other end. Molded items provide correct wiring, water-proof and tamper-proof assembly.
