TDK-Lambda Americas Inc.    San Diego, CA 92154
Nov 03, 2011 Supplied in 9.49 x 1.70 x 1.36 in. Lexan 920 plastic cases, AL60-100 series is comprised of AC/DC power supplies with 60, 80, and 100 W output ratings. Constant-voltage models are available with 12, 24, or 36 V outputs, and constant-current units provide 1-4 A with DC outputs from 6-48 V. Operating with universal power inputs from 90-305 Vac, all products are convection cooled, operate from -30 to +70°C, and include PFC. Typical output efficiencies are 85%-90% under full load.

Ceragon Networks, Inc.    Paramus, NJ 07652
Nov 03, 2011 Designed to provide up to 4 Gbps of traffic and support up to 4 carriers in single rack unit, FibeAir® IP-10Q meets needs of Ethernet and IP/MPLS aggregation networks. Traffic optimization and frame cut-through technology optimize operation, while no single point of failure (SPoF) design enables operators to meet subscriber SLA requirements. Built for 3G, 4G/LTE, converged, and private networks, solution is optimized for migration from SONET/SDH aggregation networks to packet networks.

Motolight    Cincinnati, OH 45215
Nov 03, 2011 Available in various finishes, motorcycle LED lights include standard output version that produces 100 lm, 6623K color, and 10° beam spread and high-output model that produces 200 lm, 6588K color, and 25° beam spread. Standard bulb is available with clear or amber lens and will mount on virtually any motorcycle or Spyder as well as ATVs and UTVs. Lights are available as replacement bulbs for Motolight housings or when ordering motorcycle riding lights.

GlacialTech Inc.    Taipei   Taiwan
Nov 02, 2011 Capable of accommodating different battery capcities, FA1210 (12 V/10 A), FA2407 (24 V/7 A), and FA2407S (12 and 24 V/7 A) feature built-in charger function and also provide power supply mode for all electronic products in car. Portable solutions, which can also revive deep discharge battery when boost mode is selected, have charging voltage range of 2-15 V for dead battery and can detect battery capacity when there is NO input ac power. Intelligent MCU monitors and supervises charging process.

Contech    Goddard, KS 67052
Nov 02, 2011 Housed in metal cage type chassis mount case designed for free air convection cooling, CM100 Series features universal input voltage of 88-264 Vac and delivers output voltages of 12, 24, and 48 Vdc with efficiencies up to 84%. Unit includes short circuit, over voltage, and overload protection. Rated for 3,000 Vac isolation, RoHS-compliant power supply has easily accessible terminal block and output voltage adjustment potentiometer for variety of applications.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 02, 2011 Using impulse thermal dispersion measurement technique, Series TDFS indicates whether flow rate is above or below user-set value, from 0.5-10 fps, with NO and NC NPN outputs. Setpoint is field set by tapping included magnet on desired rate 3 times, and 2 LED status indicators on opposite sides of unit illuminate green and red when flow is above and below setpoint, respectively. Also, empty pipe does not pose overheating threat.

TE Connectivity Ltd.    Berwyn, PA 19312
Nov 02, 2011 Offering alternative to typical thermal fuses, RTP200R060SA helps protect against thermal-runaway damage caused by MOSFETS, capacitors, ICs, resistors, and other power components that can crack and fail in automotive, lighting and industrial applications. Surface-mount Reflowable Thermal Protection (RTP) device provides 0.6 mOhm typ series resistance, 32 Vdc high-voltage capacity, 200 A high-current DC-interrupt rating at 16 Vdc. Open temperature of 200°C helps prevent false activations.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Nov 02, 2011 Available in through-hole or surface mount configurations, UWS Series accommodates input range of +18 to +75 Vdc and offers outputs of 3.3, 5, or 12 Vdc. Up to 54 W output is available without need for forced air cooling. With input to output isolation of 2,250 Vdc, output is protected from spikes, transients, and noise on input. Converters meet DOSA standard for 1/16th brick dimensions of 1.31 x 0.91 x 0.36 in. and are suited for data and telecommunication applications.

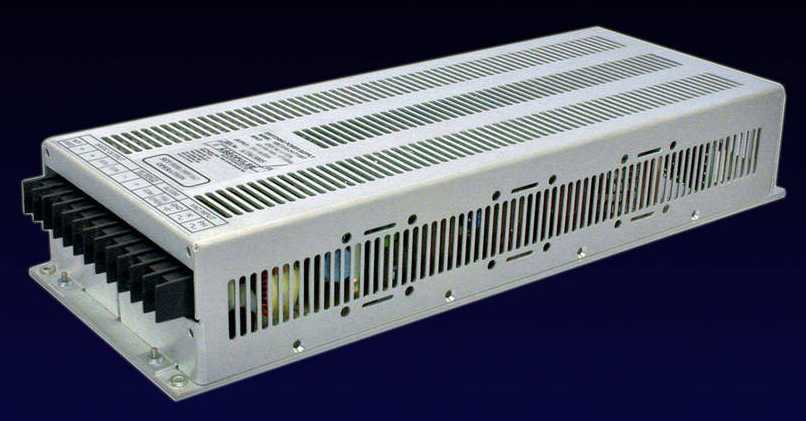

Absopulse Electronics, Ltd.    Carp, ON K0A1L0  Canada
Nov 01, 2011 Developed for start-up of motor in electric switchgear, HBC 319-A/125FTS delivers 750 W peak output power without fan cooling. It generates 125 Vdc at 4 A, with 6 A peak current for 30 sec during motor start-up stage. To ensure output voltage remains constant, several modules can be connected in parallel. Input accepts 115 Vac, with 230 Vac and custom inputs also available. Measuring 130 x 64 x 353 mm, power supply also has built-in redundancy diode and electronic protection features.

American Conec Corp.    Garner, NC 27529
Nov 01, 2011 Compliant with USB 2.0 specifications, Mini-USB Connector is water-resistant with internal components housed in black plastic. Bayonet locking-ring, measuring 12 mm in diameter, is vibration-resistant and provides audible snap indicating connectors are securely mated. Contacts are phosphor bronze and gold-plated with contact resistance of 50mW max and insulation resistance of 100mW. Operating from -40 to +80°C, connector is rated 1.0 A max at 25°C.

Pass & Seymour/Legrand    Syracuse, NY 13221
Nov 01, 2011 Audible Alarm GFCI Receptacle meets NEC® requirements for GFCI protection. In addition to GFCI trip indicator light, audible alarm provides supplemental signal that sump pump, refrigerated display case, freezer, or refrigerator has lost power. Series includes 15 and 20 A, tamper-resistant duplex GFCI receptacles; hospital grade models are also available. Constructed of impact-resistant thermoplastic, devices also offer SafeLock(TM) Protection for power shut-off if protection is compromised.

Pass & Seymour/Legrand    Syracuse, NY 13221
Nov 01, 2011 Designed to meet NED® requirements, Isolated Ground GFCI Receptacle minimizes electrical interference from building's ground system. Product range, which includes 15 and 20 A tamper-resistant duplex receptacles, is specifically designed to protect computers and other electronic equipment. Hospital Grade models are also available. Constructed of impact-resistant thermoplastic, receptacles feature LED trip indicator and SafeLock(TM) Protection for power shut-off if protection is compromised.

Electro Standards Laboratories    Cranston, RI 02921 3403
Oct 31, 2011 Certified for Cat6 compliance, Model 7372 allows users to connect 2 separate devices via Online or Offline connection, eliminating need to plug and unplug cables. Single-channel data switch utilizes shielded RJ45 connectors and switches all 8 pins of RJ45 interface. Transparent to data speed and format, switch can be controlled via front panel pushbutton or remotely via Contact Closure commands. Unit retains last switch position in even of power loss and continues to pass data.

Keystone Electronics Corp.    Astoria, NY 11105
Oct 31, 2011 Available in vertical, horizontal, and through-board blade entry types, Surface Mount Automotive Blade Fuse Clips secure fuses in place even after multiple insertions. Units accept standard style ATO and ATC fuses, low profile Mini No. 891 or ATM-LP fuses, as well as Mini and ATM series of Mini Auto Fuses. Made of brass with tin nickel plate, clips feature voltage rating of 500 Vac and current rating 15-30 A.

Crydom    San Diego, CA 92154
Oct 31, 2011 Featuring logic compatible control inputs of 4-32 Vdc or 90-140 Vac, with standard LED input status indicator, PowerPlusDC Series utilizes low dissipation power FETs coupled with 2.5 KV optically isolated trigger circuit for load control in all types of DC switching applications. Units are housed in standard 45 x 58 mm panel mount package with screw terminals. Optional IP20 touch-safe clear plastic cover and installed phase change thermal interface pad are available.

Unirac, Inc.    Albuquerque, NM 87102-1545
Oct 31, 2011 Made with durable structural tubes, ISYS Single Axis Tracker works with any standard solar module used in commercial and utility solar projects. System can withstand up to 25 psf of snow and 120 mph winds, and it employs GPS and tilt sensors to ensure precise tracking. Corrosion-resistant system replaces standard bearings with maintenance-free sleeve/bushing, and uses hydraulic actuation system that features 1 hydraulic drive per 50 kW.

austriamicrosystems AG    Schloss Premstaetten A 8141  Austria
Oct 28, 2011 Operating from 3.0-5.5 V supply voltage, Model AS1123 is optimized for LED panels where only single LED is connected per output. Constant-current, 16-channel device features integrated diagnostics for over-temperature, open-LED, and shorted-LED conditions. Low-current diagnostic mode eliminates display flicker during global fault testing. Adjustable up to 40 mA/channel using external resistor, output current features ±3% accuracy between LEDs and between ICs.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Oct 28, 2011 Supplied in 12 x 12 mm, automotive-qualified, 169-ball nFBGA package, TPS658629-Q1 provides all power supply functions and reduces board space for infotainment, navigation, and LCD/TFT cluster applications. Components include 3 DC/DC buck converters, 11 LDOs, 4 programmable PWM outputs, 2 RGB LED drivers, and one WLED driver. I²C interface enables control of subsystem parameters, and internal registers have complete set of status information.

ONPATH Technologies    Marlton, NJ 08053
Oct 28, 2011 With up to 64 ports of any combination of 1 or 10 Gbps traffic and up to 4 ports of 40 Gbps traffic in one rack unit, PFS1764 high-density packet flow switch offers high-speed packet switching and wire-speed packet processing. All ports can be used in any combination, for connectivity or to perform functions such as aggregating, filtering, disseminating, or load-balancing network traffic to various devices. Other features include 300 nsec latency, packet slicing, and MPLS/VLAN flexibility.

Larson Electronics, LLC    Kemp, TX 75143
Oct 27, 2011 Measuring 4 ft long with solid state LED light tubes and no ballast, Model GVP-48-2L-LED draws less than 0.2 A of power. Light fixture operates from 120-277 Vac and includes 2 LED lamps that provide 160° beam angle. Shatterproof polycarbonate lens enables glare-free output, while integral aluminum heat sink tube backings provide cool operation. Featuring 50,000 hour service life, Model GVP-48-2L-LED is suited for both indoor and outdoor applications.
