FCI    Etters, PA 17319
Oct 17, 2008 Including angle exit versions for 50-way cable connectors, D-sub shielded hoods are suited for indoor signal and power applications requiring high EMI/RFI performance in industrial and telecommunications markets. They can withstand operating temperature from -40 to +120°C and offer EMI/RFI performance of greater than 40 dB from 30 MHz to 1 GHz. With just 2 screws to fasten, metal strain relief works with cable diameters from 8.0-17 mm.

Advanced Energy Industries Inc.    Fort Collins, CO 80525
Oct 17, 2008 Designed for utility-scale installations, 500 kW Solaron® Inverter features transformerless, grid-tie design, converting raw dc power from solar-cell arrays to ac-grid electricity. Unit includes soft-switching technology and wide maximum power point tracking window, which ensures day-long power processing. Both local and remote communications and control are always available via Solaron IDS integrated data system.

CUI, Inc.    Tualatin, OR 97062
Oct 17, 2008 Designed for use with AMT series modular encoders, CUI-102E-10 and CUI-103E-10 cables have on board line driver chip that converts normal TTL voltage output of AMT encoder to line driver output. One end of cable terminates in 5 conductor 24 AWG connector and other end terminates in 8 conductor 24 AWG shielded round twisted pair leads with stripped and tinned ends. Model CUI-102E-10 is compatible with AMT102-V radial encoder while CUI-103E-10 is designed for AMT103-V axial encoder.

Hendrix Wire & Cable Corp.    Milford, NH 03055
Oct 16, 2008 Able to minimize amount of vegetation needing removal when clearing right-of-way for distribution circuits, Spacer Cable Systems have compact design capable of withstanding temporary contact with branches without causing outages. The covering limits electrical charge on surface, and phase to phase or phase to ground contact will not be lethal for wildlife. Polymer components are made of 100% No.2 HDPE recyclable plastic.

Switches Plus    Milford, CT 06460
Oct 16, 2008 RoHS-compliant Series 44 industrial controls include black-and-white double on/off pushbutton switch with illuminated central lens that indicates equipment status. Suited for use where on/off function exists, switch can be supplied with or without engraved I and 0 symbols and with matt grey or chromium-plated case. It is offered with self-cleaning, slow make switching element and lamp block; illumination is provided by LEDs or Ba9s (T-3¼ bayonet base) lamps.

Gigavac, LLC    Santa Barbara, CA 93140
Oct 16, 2008 Model GX11 and GX12 contactors feature 12 and 24 Vdc high-efficiency coil options that can power switch up to 750 Vac or Vdc. Measuring 4.5 x 2.4 x 2.25 in., sealed, SPST, NO universal contactors use EPIC® sealing technology with 2 coils and mount in any direction. They are UL 508-ambient-compliant to 75°C at 150 A and 225 A, respectively, but can carry and switch 225 A/275 A at 50°C. Units meet UL 1604 for Class I and II, Div 2 and Class III, as well as IP67 specifications.

Atlona Technologies    San Jose, CA 95131
Oct 16, 2008 Featuring 4-in to 4-out HDMI female ports as well as RS-232 control port, AT-HDMI-44M enables HDMI matrix switching between multiple sources and displays. It offers frequency bandwidth of 2.25 Gbps (single link) and supports resolutions up to 1080p. There are HDMI Boosters on all outputs to ensure signal has no degradation on output cables up to 60 ft, and HDCP-compliant solution supports 50/60 Hz transfer (worldwide compatible).

Tumbler Technologies, Inc.    Santa Clara, CA 95054
Oct 15, 2008 Delivering efficiencies above 85%, TMP150 series AC/DC desktop power adapters offer single output voltages of 12, 15, 19, 24, 27, or 48 V with continuous output power of up to 150 W. Class II units, furnished with IEC 320/C18 AC inlet without ground pin, are doubly insulated to provide proper safety protection where availability and integrity of earth cannot be guaranteed. Class I units come with IEC 320/C14 AC inlet that has ground pin.

ABB Automation    New Berlin, WI 53151
Oct 15, 2008 Designed for ACS350 drive line, FENA-01 Ethernet Adapter offers drive solution to building control systems. Flexible plug-in adapter provides connectivity to controllers used for applications such as conveyors, compressors, door openers, industrial fans and pumps, mixers, and ovens as well as palletizing, stretch wrapping, tension control, and volumetric feeder control.

Tapeswitch Corp.    Farmingdale, NY 11735

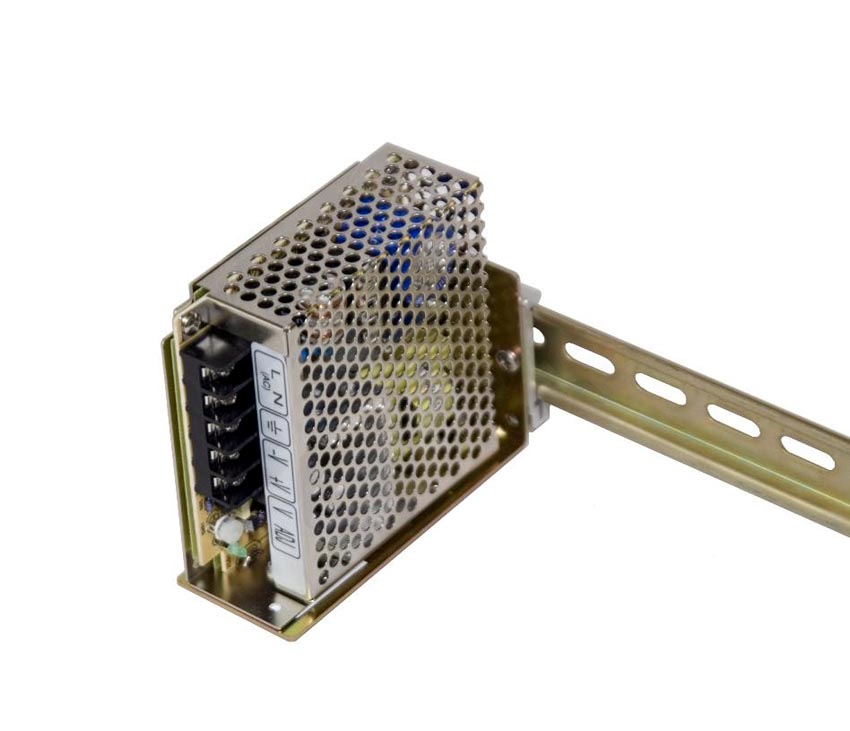

Oct 15, 2008 Featuring compact design that allows for multiple DIN rail mounting options, Model GDC1 switching mode power supply is designed for use with B-Series light curtain and controller interface units. It provides regulated 24 Vdc supply to safety equipment from wide range of AC input voltages.

Cole Hersee Co.    Boston, MA 02127 2467

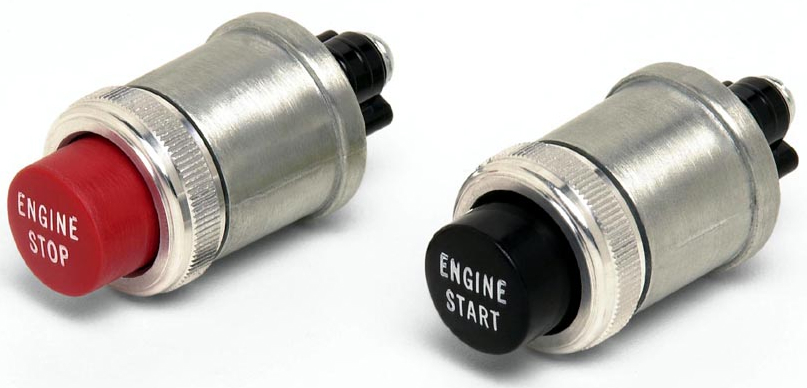

Oct 15, 2008 Models 90047-01 and 90048-01 are marked Engine Start and Engine Stop respectively, permanently engraved into surface of button. They are rated at 35 A at 12 Vdc, 20 A at 24 Vdc and have 2 brass screw terminals with lockwashers and rugged diecast zinc housing with knurled aluminum facenut. Suited for exterior applications, they prevent ingress of moisture and contaminants, and are keyed to ensure switch or lettering will not rotate after it has been installed.

Summit Microelectronics, Inc.    Sunnyvale, CA 94085
Oct 15, 2008 Suited for single-cell Li-Ion and Li-polymer powered systems, Model SMB339 provides automatic input current limit, dead-battery charging, and automatic power source detection, which differentiates between USB 2.0 port and USB ac/dc adapter. Unit is based on 3 MHz switch-mode architecture, and features TurboCharge(TM) technology, which allows charging current up to 750 mA from 500 mA USB source. Housed in 2.3 x 2.0 mm package, SMB339 operates from +3.5 to +6.2 V input and from -30 to +85°C.

Vista-CCTV    Wokingham RG41 5TS  United Kingdom
Oct 15, 2008 Optimized for use with Vista RG59 and URM70 coax cables, Vista BNC Connectors can be used to connect various parts of CCTV system to provide optimum signal transmission. They are available individually, or in 100 connector box kits.

DDP Supply    El Segundo, CA 90245
Oct 14, 2008 PowerLine BA9-style T3-1/4 LED lamp is used for retrofitting and replacing incandescent bulbs that backlight annunciators in industrial plants and power utilities. Available in configurations that incorporate one or four 120° SMT LEDs, these wide-angle, bayonet-based LED retrofit lamps have average life span of 100,000 hr; come in red, amber, green, blue, and white; and are offered in variety of voltages from 12 Vdc to 120 Vac.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Oct 14, 2008 Available with 9-36 or 18-75 Vdc inputs, UEI15 series is supplied in 0.96 x 1.10 x 0.36 in. package and offers regulated fixed output voltages from 3.3-15 V. Synchronous rectifier forward topology enables efficiencies up to 89%, and stable no-load operation is possible without external components. Along with input undervoltage lockout and over-temperature shutdown, series has magnetic and optical isolation as well as output overvoltage and reverse conduction elimination capabilities.

Siemon Co., The    Watertown, CT 06795
Oct 14, 2008 Providing horizontal and vertical cable management, Data Center VersaPOD is available with integrated zero U vertical patch panels, which supply up to 288 patching ports in front and/or rear vertical space between 2 bayed cabinets. Each VPP can slide forward, facilitating insertion and removal of copper and fiber outlets, preterminated trunking cables, or plug-and-play fiber assemblies. Measuring 30 x 39.4 in., cabinets feature welded cold-rolled steel frame with industrial black finish.

ISP Industrial Support Products Ltd    Swallowfield   United Kingdom
Oct 13, 2008 Supplied in safe and self-contained bag, GELSEAL is capable of transforming standard electrical enclosures up to and beyond IP68 rating while offering re-enterabilty and protection against water, moisture, dust, and dirt. Non-toxic gel system, designed for facilitated pouring as well as optimal adhesion and dielectric properties, is suited for encapsulating, sealing, potting, insulating, and shock dampening. It can also be used for application in trunking and pipes.

austriamicrosystems AG    Premstatten   Austria
Oct 13, 2008 Offering negative signal capability, dual SPDT Model AS1747 allows designs without AC coupling capacitance in audio applications. Unit combines low on-resistance of 0.4 W with channel-to-channel matching of less than 0.03 W, minimizing amount of signal deviations between channels. Available in 10-pin 3 x 3 mm TDFN package, Model AS1747 operates from -40 to +85°C and handles negative signals with single positive 1.8-5.5 V power supply.

Aven, Inc.    Ann Arbor, MI 48108

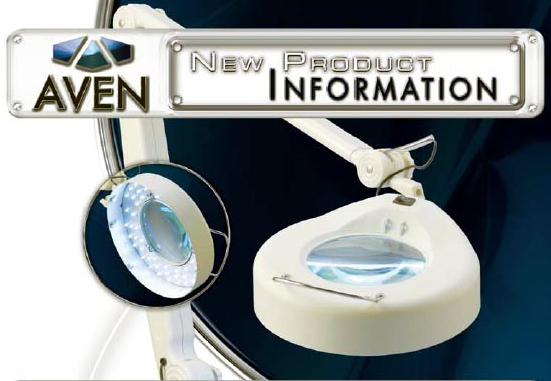

Oct 13, 2008 Operating free of glare, hot spots, and color degradation, ProVue Magnifying Lamp comes in engineered plastic housing and incorporates 5 in., 3 diopter (1.75x) glass lens for distortion-free viewing. Unit operates at 115 Vac and has 33 in. spring-balanced arm; concealed springs and tension adjustment knobs ensure arm stays set in any position. Options include weighted base, swing away 5 diopter (2.25x) lens, and 3 diopter (1.75x) auxiliary lens.

Roman Manufacturing, Inc.    Grand Rapids, MI 49509
Oct 13, 2008 Available as water or air-cooled versions in single and 3 phase from 1-5,000 kVA, Special AC Transformers are optimized for rugged conditions associated with glass/fiberglass manufacturing, resistance heading, and furnace processes. Units feature fully sealed external shell that is resistant to rust, corrosion, moisture, dust, debris, and vibration. Solid-state full epoxy encapsulated construction, inside unit, provides complete moisture resistance and stability at high temperatures.
