Eastprint, Inc.    North Andover, MA 01845
Jan 16, 2008 Custom membrane switches are totally sealed in package that is 0.081 in. thick, depending on configuration. Back lights provide uniform brightness in any color, without hot spots, and switches can be positioned on 0.787 in. centerline spacing. Offered in sizes from 1-12 in. square, with custom graphics and die-cuts, switches can be designed to conform to ASTM specifications for electrical and environmental output as well as IP-67 requirements.

American Portwell Technology    Fremont, CA 94538
Jan 16, 2008 Building on Intel® chipset 852GM with Celeron® M BGA CPU, Model NAR-2085 supports 6 GbE (Max) CA rackmount platform, and offers network bandwidth configurations that range up to 6 PCI32 GbE. It performs network intrusion using prevention/detection hardware, spyware control, content filter, P2P control, and instant message recording. Communication appliance platform includes two 200 pin SODIMM sockets, 1 Ultra ATA IDE interface, dual 2.0 USB ports, standard PCI slot, and RJ45 console.

American Portwell Technology    Fremont, CA 94538
Jan 16, 2008 Featuring Intel® 945G Chipset, Model NAR-5520 1U communication platform supports LGA775 socket CPUs such as Celeron® D, Pentium® D, and Pentium® 4. With up to 6 PCI-E x1, RJ45 GbE, and 4 PCI GbE ports (maximum 10 GbE RJ45), it meets mainstream demand for 6-10 LAN ports. Suited for network security applications, unit can also support EIDE and SATA 2.0 storage devices, including hot plug function 1,066/800/533 MHz FSB and dual-channel unbuffered 800/667/533 DDR2 RAM expandable to 4 GB.

Arbor Technology    San Jose, CA 95125-1039
Jan 16, 2008 MBX-1736 Series supports Intel Core 2 Duo CPU up to 2.13 GHz and up to 4 GB Dual Channel DDRII system memory as well as Active Management Technology for server application response and I/O performance. It has six 1,000 base-T PCIe Gigabit LANs, out of which 2 support Bypass function. Offering support for watchdog timer, hardware monitoring function, TPM, and Intel LAN chip, unit features CompactFlash Type II, 3.5 in. HDD, 32 bit PCI slot, and Mini PCI slot.

Chloride Systems    Burgaw, NC 28425
Jan 15, 2008 Outdoor architectural fixture, PathMaster, provides energy-efficient illumination of walkways, decks, sidewalks, and landscape areas for normal and emergency use. Each light engine utilizes 3 white LEDs for illumination and can be applied from one to all 4 sides of bollard to optimize path of egress. Solution is fabricated from fiberglass-reinforced polymers, all exposed hardware is stainless steel, and light engines are constructed of die cast aluminum.

Emerson Network Power    St. Louis, MO 63136

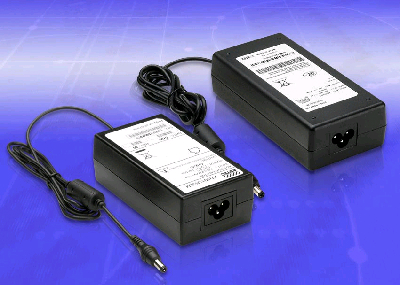

Jan 15, 2008 Featuring 90-264 Vac input, Astec 50 W Series AD50 produces 12 V output and can deliver up to 4.16 A continuously with 80% efficiency, while 100 W Series AD100 produces 48 V output and can deliver up to 2.08 A continuously with 90% efficiency. Series AD50 is also available with medical safety approvals for non-patient contact and non-patient critical use. Suited for portable and desktop applications, freestanding Series AD50 and AD100 operate from 5-40°C and 0-40°C, respectively.

NKK Switches    Scottsdale, AZ 85260-3420
Jan 15, 2008 Designed to handle large inrush currents, JWL Series DC-rated Switches are dust-resistant with interior seal of PPS between actuator and contact area. Housing and case are heat-resistant polyamide meeting UL 94V-0 standards. Snap-in mounted devices are rated 16 A at 125/250 Vac as well as 5 A at 72 Vdc for applications such as power distribution. Available with flat or barrier flanges, switches can be configured with SPST, SPDT, DPST, or DPDT circuits.

Cobra Electronics Corp.    Chicago, IL 60707 4000
Jan 15, 2008 In addition to models CPI 475 to CPI 2575 that provide continuous power values from 400 to 2,500 W, respectively, power inverters include portable models for smaller applications. Model CPI 200 CH, which fits in a car cup holder, offers 200 W of continuous power and 400 W surge. Providing 150 W continuous and 300 W peak, CPI 150 BK includes cigarette lighter plug and airline connector power cable. Model CPI 130 fits directly in cigarette lighter and supplies 130 W continuous, 260 W peak.

DMK USA, Inc.    Stevens Point, WI 54481
Jan 14, 2008 With 6,000 K color temperature light output to simulate sunshine, 48 W LED 1010 series off-highway work lamps are suited for use with various off-highway machinery. They feature shatterproof polycarbonate lenses and are dust and water ingress protected to IP 67 and also feature EN 12895 plus electromagnetic emission/susceptibility compliance. Input voltage is from 9-32 Vdc. Lamps are installed using 20, 30, and 40 mm high brackets with M10 mounting bolts.

Kreative Power, LLC    Rosemead, CA 91770
Jan 14, 2008 Offering 6 outlets spaced to accommodate large-size plugs, POWRAMID(TM) E-Series powers and protects electronics and electrical appliances. Various models are available, each with stable base, centralized on/off switch, ergonomic hold-down knob, and safety switch cover. POWRAMID E-900H has 8 ft power cord with right-angle, low-profile plug; illuminating round on/off switch; and re-settable 15 A circuit breaker. It supports 900 J of surge protection and measures 5 in. in diameter.

Littelfuse, Inc.    Des Plaines, IL 60016
Jan 14, 2008 Transient voltage suppression (TVS) diodes are offered in SMT versions with power ratings from 400-5,000 W and axial leaded versions from 400-30,000 W. Low-capacitance products (under 50 pf), when used on signal lines, reduce transmission loss in modem, ADSL, and similar functions. Available with unidirectional and bidirectional polarities, diodes offer response times of less than 1.0 ps (typ) from 0 V to min breakdown voltage and precision clamping.

Alps Electric    Raleigh, NC 27607
Jan 14, 2008 Suited for car cabin interior map lamps, hazards, and window locks, SPEF Series in-car switches feature push-lock mechanism that moves into locked position when pressed and returns to initial position when pressed again. Low-profile and compact unit measures 9.4 x 9.0 x 6.9 mm. Featuring ratchet cam construction, it can be surface mounted utilizing reflow soldering process.

EAO Switch Corp.    Milford, CT 06460
Jan 14, 2008 Designed for standard 22.5 mm cut out, Series 84 is modular pushbutton system of lenses, actuator elements, and switching elements. Light is emitted around edges of raised aluminum lens by 3 mm single LED. Both lens and LED are available in various colors including white, blue, and green. Maximum rating is 42 Vac/dc, 100 mA, and pushbutton is available with 300 mm ribbon cable or plug-in terminal.

AutomationDirect.com    Cumming, GA 30040-9905
Jan 14, 2008 Available in 4-14 gauge sizes, THHN building wire is 19-strand 600 V uncoated copper wire that can be used in wet/dry locations. Suited for control cabinets, machine tool, and appliance wiring, MTW-type wire is available in 19- and 26-strand 600 V bare, annealed copper in 10-16 gauge sizes. Used as fixture wire in dry locations, TFFN-type wire is offered as 16 gauge, 26-strand, 600 V, uncoated copper. All are color-coded with Nylon outer covers per UL 1063/83 standards.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Jan 14, 2008 Available for use on 120 V, single-phase, 15 and 20 A branch circuits, Combination Type AFCI device is equipped with LED trip indicators that help pinpoint problems that cause device to trip. LEDs located near circuit breaker's handle can distinguish whether trip was caused by arcing faults, arcing to ground, or over current conditions. Compact unit is retrofitable for all Siemens, Murray, I-T-E, and Crouse-Hinds load centers and meter load center combinations.

Legrand Electric Limited    Birmingham B19 2LF  United Kingdom
Jan 14, 2008 Salamandre LT2 lighting trunking features friction grip couplers and fittings, which are automatically held in place by metal tabs that grip trunking base, leaving both hands free to tighten fixing screws. Strengthening ribs on sides ensure rigidity and stability, while wide opening on cable retainer facilitates easy cable access. Fixing screws are supplied in backed-off position to slide connector into place and secure screws.

Phoenix Contact    Harrisburg, PA 17111 0100
Jan 14, 2008 Certified according to DIN EN 50155 VDE 0115 Part 200 railroad standard, 6 or 14 mm pluggable PLC RW relay modules operate over ambient temperature range of -40 to + 70°C, and have vibration and shock features. With 1 or 2 changeover contacts, coupling relay modules come equipped with spring cage connectors and can switch loads up to 250 Vac/10 A. Wear-free solid state relays in accordance with EN 50155 for loads up to 110 Vdc/3 A are also available.

Mitsubishi Digital Electronics America    Irvine, CA 92618
Jan 14, 2008 Designed for indoor signage applications, Resolia(TM) LED screen monitor has 150° horizontal and 120° vertical viewing angles. It accepts input computer or video signals including HD-SDI for up to 1080p HD imaging or SD-SDI for standard imaging signals, and comes with digital screen controller that allows up to 4 input sources. GUI lets users configure source content for shared display of up to 4 simultaneous images, side-by-side images, or picture-in-picture style.

ITT Electronic Components    Santa Ana, CA 92705
Jan 11, 2008 Suitable for motor flanges of up to 150 x 150 mm, Series Cm5 features crimp contacts and includes 2 sealed entries for power and signal cables. Power connectors feature cable diameter of 19 mm, max current of 40 A at 80°C, contact resistance of less than 5 mW, and max voltage of 630 Vac. Signal connectors feature cable diameter of 11 mm, max current of 3 A at 80°C, contact resistance of less than 10 mW, and max voltage of 48 Vac. Both connectors meet IP67 approval.

Wieland Electric Inc.    Burgaw, NC 28425
Jan 11, 2008 The gesis® IP+ series consists of 4 components: connectors for on-site assembly, preassembled plug-in distribution units, cut-to-length over-molded cable assemblies, and panel mount or device connectors. Comprised of 3- and 5-pole screw clamp connectors, one version is UL and CSA rated 25 A, 600 V, 10 AWG. Second version, comprised of 2-5 pole screw clamp connectors, is UL and CSA rated 20 A, 600 V, 12 AWG. Both versions are rated IP65/68 for use in harsh indoor/outdoor environments.
