Microteknix    Pottstown, PA 19465
Feb 05, 2009 Designed for environmental protection and control, Model EPC-2374 digitally monitors and processes ambient temperature, humidity, external RTD temperatures, and dewpoint. Six modes of operation include trip above, trip below, inside window, outside window, regulate heat, and regulate cool. In addition, unit records time and date formatted history and event logs. Configurable data logging mode allows any monitored input to be recorded and captured to PC with import-ready data file.

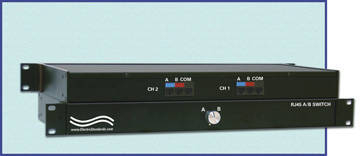

Electro Standards Laboratories    Cranston, RI 02921 3403
Feb 05, 2009 With both channels switching to A or B simultaneously via one knob on front of unit, Model 9455 dual channel RJ45 A/B switch with self wiping contacts is rated for 10/100/1000 networks (up to Cat 5e) and is transparent to data format. Each of the 2 channels reroutes data from its common port to its A or B port, depending on switch position. All aluminum case provides EMI/RFI shielding. Switch also eliminates need to plug and unplug cables.

Clare Inc.    Beverly, MA 01915
Feb 05, 2009 Targeting low voltage and security applications, miniature 30 V, 1-Form-A (single pole, normally open) CPC1020N features 1.2 Arms of current handling in combination with 0.25 Ohms max on-resistance. It employs optically coupled MOSFET technology to provide 1,500 Vrms of input-to-output isolation, and can be driven directly from any control IC, making it suited for automated power control. Component is UL Recognized, meets EN/IEC 60950-1 requirements, and is CSA Certified.

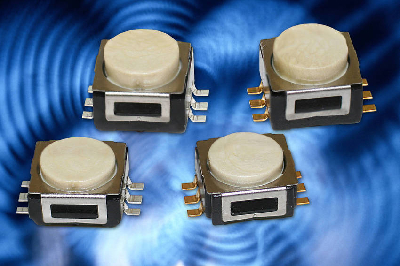

C&K Components    Newton, MA 02458
Feb 04, 2009 Featuring silver- or gold-plated dome inserts for tactile feedback, K5 Series are suited for automotive, computing, and multi-function device applications. Measuring 8.2 x 8 x 6 mm, momentary action, SPST Model K5G features mean operating force of 3.7 N for first stroke, 6.5 N for second stroke, and operational life of 30,000 actuations. Momentary action, normally open Model K5A2, measuring 8.2 x 8 x 4.5 mm, has mean operating force of 5.5 N and operational life of 50,000 actuations.

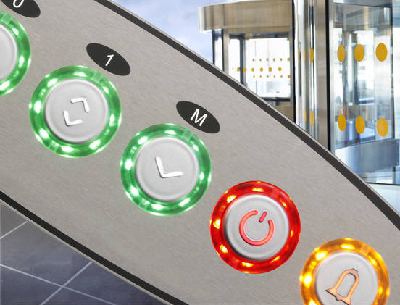

EAO Switch Corp.    Milford, CT 06460
Feb 04, 2009 Along with mechanism to protect against harsh use and vandalism, Series 56 features snap-action switching system behind lens to protect itself from damage and ensure stable force is always applied to switch unit independent of that exerted on lens. Design eliminates no-actuation zones, producing tactile feedback even when pressed at edge of lens. At front, 34 mm dia aluminum lens is wide enough for palm activation. LED illumination is optional.

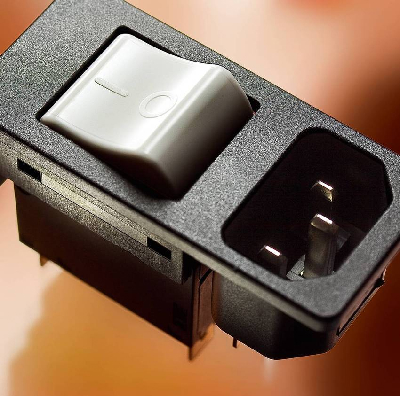

Schurter, Inc.    Santa Rosa, CA 95403
Feb 04, 2009 Providing overcurrent protection up to 20 A, Series 6135 offers C14 appliance inlet, while Series 6136 features C20 inlet, according to IEC 60320. Both provide snap-in mounting and are equipped with thermal positively trip-free release circuit breaker. Series 6135 features 2-pole switch with or without 1- or 2-pole overcurrent protection, while 6136 is offered in 1-pole with switch only or switch and overcurrent protection. Ability to manually reset circuit avoids need for fuse replacement.

Men Micro Inc.    Lago Vista, TX 78645-4160
Feb 04, 2009 Designed for rugged, communication-intensive applications, F302 3U CompactPCI switch features 8 Ethernet channels on front via RJ45, M12, or D-Sub connectors and optional channel accessible through rear J1 connector for fast/secure communication within embedded system. Utilizing FPGA-based low-power CPU, EN 50155 railway standard compliant product offers operating temperature of -40 to +85°C as well as shock/vibration resistant soldered components. It also features built-in self-test mechanisms.

Chicago Miniature Lamp, Inc.    Hackensack, NJ 07601
Feb 04, 2009 Available in cool and warm white color, 18 in. linear module, Light-Line(TM) has internal driver circuitry to insure that LEDs are supplied with proper current to insure bright even illumination. Requiring 12 V supply voltage to work, ROHS compliant, energy-efficient light strips have life of over 50,000 hr. They utilize Connect and Glow technology.

Electro Standards Laboratories    Cranston, RI 02921 3403
Feb 04, 2009 Providing 4-port switching, Model 7424 allows sharing of single RJ45 interface device connected to common port among four other devices connected to A, B, C, and D ports. Front panel pushbutton allows for manually controlling switch, while RS232 interface allows user to remotely control switch, query switch position, or lockout front panel controls using ASCII commands. All 8 switch ports are transparent to all data, and switched signals are passed via copper contact relays.

Cooper Lighting    Peachtree City, GA 30269
Feb 04, 2009 Suitable for interior and exterior environments, Shaper 613 Rio Decorative Elements Series is available in 6 and 8 in. sizes with choice of 13 round and square decorative elements, including recycled glass, fabric, resin, colored acrylic, and bamboo rings. Fixture is comprised of die-cast aluminum, stainless steel hardware, high-temperature silicone gasket, tempered glass lens, and double-finish protection. Lamp options include compact fluorescent, metal halide, halogen, and LED.

AMETEK Drexelbrook    Horsham, PA 19044
Feb 04, 2009 Safety IntelliPoint RF(TM) Switch, used in above-ground bulk storage tanks, meets American Petroleum Institute's 2350 Recommended Practice for overfill/spill protection. Specifically, it comes standard with SIL1 certification; SIL2 is optional, and SIL3 is possible with redundant switch. Integral software continuously monitors application for changes and maintains repeatable trip point on probe. Switch detects presence or absence of material without calibration, and MTTF is 110 years.

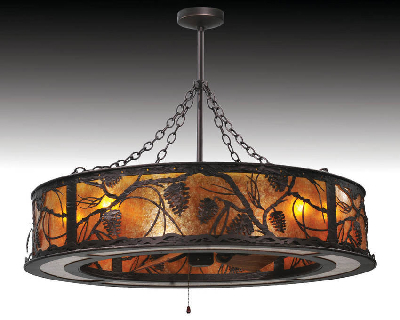

Meyda Tiffany    Yorkville, NY 13495
Feb 03, 2009 Measuring 44 in. dia x 35 in. high, Whispering Pines Chandel-Air features Amber Mica shade transformed into decorative/functional casement for fan. Fixture can be adjusted to accommodate flat or vaulted ceilings of any pitch or height. It operates with 2-circuit remote control with 3-speed fan control and dimming capabilities. Chandel-Air can be used to pull hot air up and keep space cool in summer, and reversed in winter to push down hot air and maintain warmth.

Atlantic Ultraviolet Corp.    Hauppauge, NY 11788
Feb 03, 2009 Designed for fluids with high ultraviolet (UV) absorbency, Infinity liquid disinfection purifier is available with custom configuration and modular design that allow for fluid flow and variations. Product features reflective interior surface and stainless steel sanitary fittings and accommodates flow rates from .5-12 gpm. Areas of use include pharmaceutical, food, beverage, and any water industry system.

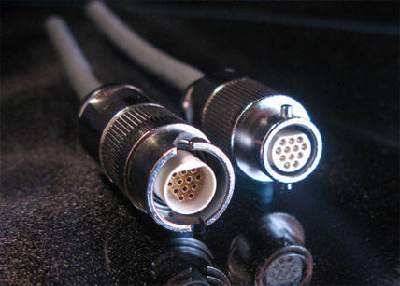

Omnetics Connector Corp.    Minneapolis, MN 55432
Feb 03, 2009 Available in sizes ranging from 2-27 positions, Micro-Miniature Circular Connectors have contacts arranged on 0.050 in. pitch. Devices utilize military-quality contact system, and when combined with jacketed cable, can be sealed to IP67 rating. Operating from -25 to 105°C, connectors feature current rating of 3 A per contact, dielectric withstand voltage of 600 Vac Rms, insulation resistance of 5,000 MW at 500 Vdc, and contact resistance of 26 mW at 2.5 A.

Renesas Technology America, Inc.    San Jose, CA 95134-1368
Feb 03, 2009 R2J24020F Group ICs are available in SiP configuration that features 16-bit MCU integrated with A/D converter for measuring current and voltage. Designed for lithium-ion battery packs with Smart Battery System (SBS) support, ICs are available in 3 flash memory capacities for storing MCU programs and come in compact 48-pin LQFP package. E8a Emulator on-chip debugger with single-pin interface support is available as development environment.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Feb 03, 2009 With ability to operate under supply voltage range of 2.4-5.5 V, SiP4613A/B suits applications including load switching, battery switching, USB peripheral ports, hot-swapping, and power management applications. User-defined current limit level protects input supply voltage from excessive load currents. In shutdown mode, switch reduces supply current to less than 1 µA. Available in Pb-free 6-pin PowerPAK® TSC75-6 package, it operates within industrial temperature range of -40 °C to +85 °C.

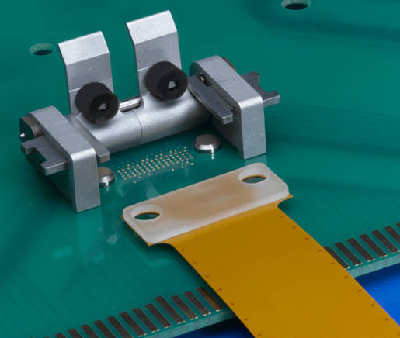

Molex Inc.    Lisle, IL 60532-1682
Feb 02, 2009 FlexBeam(TM) Tool-Less Copper Flex Interposer is flex-to-board interface that provides densities of .039 in. or less in various pin-matrix configurations. It integrates proprietary high-speed copper flex assembly with Neoconix HD/S PCBeam(TM) interposer and features durable, all-metal spring beams permanently embedded onto FR-4 substrate. Design allows differential signal speeds of greater than 10 Gbps and single-ended speeds of 4 GHz and higher.

Intersil Corporation    Milpitas, CA 95035
Feb 02, 2009 High-performance, 24 V, 2 A standard buck PWM regulator, ISL8500 is suited for applications in set-top-boxes, LCD displays, industrial measurement, and automation. PWM controller drives internal switching N-Channel power MOSFET that generates output voltage from 0.6-19 V when used with external Schottky diode. Housed in 4 x 3 mm DFN package, product switches at fixed frequency of 500 kHz and is optimized for 5 V point-of-load applications, 12 V power supplies, and 24 V battery powered systems.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Feb 02, 2009 Utilizing charge balanced drain structure to lower gate charge by up to 45% for lower switching losses and faster switching, Gen III TrenchFET® power MOSFETs include two 20 V and two 30 V n-channel devices. They feature on-resistance times gate charge FOM down to 76.6 mWnC at 4.5 V and 117.60 mWnC at 10 V. 30-V TurboFET models Si7718DN, and Si7784DP offer gate charge of 13.7 nC at 4.5 V and 30 nC at 10 V, and on-resistance times gate charge FOMs of 112.34 mWnC at 4.5 V and 180 mWnC at 10 V.

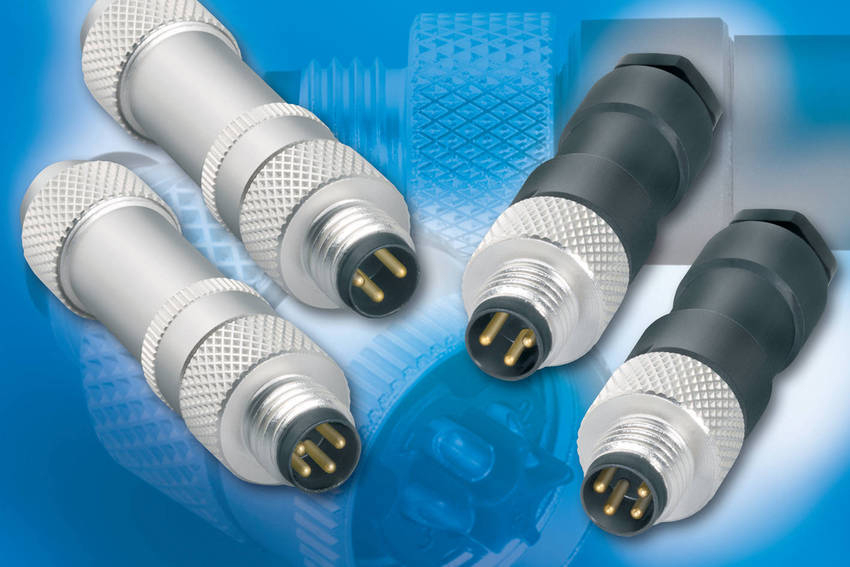

Binder-USA, LP    Camarillo, CA 93012
Feb 02, 2009 Including full plastic contact body design, 768 M8 connectors feature cross wire section of 0.34 mm² (AWG 22), and are available with 3 and 4 gold-plated contacts. They are fully mating-compatible with other M8 connectors, including cordsets and front- and rear-mounted panel receptacles. When properly mated, mated pair is IP67-rated, protecting connection from ingress of liquids and debris. Shielding options are offered providing protection from electromagnetic interference.
