Optek Technology, Inc.    Carrollton, TX 75006-6905
Jul 28, 2008 Series OPB420 slotted optical switch has 880 nm wavelength infrared LED and phototransistor housed in right angle package that allows for opaque object to block light beam from multiple directions, including X-, Y-, and Z-axes. It features 2 Vdc reverse voltage, reverse current of 100 mA, and operating temperature range of -40 to +85°C. Electrical performance of output phototransistor is characterized at collector-emitter voltages of 24 and 30 V and power dissipation of 100 mW.

Electro Standards Laboratories    Cranston, RI 02921 3403

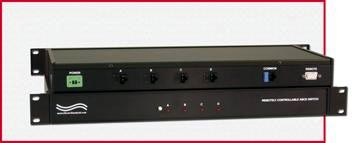

Jul 28, 2008 Model 7278 RJ45 is Cat5e compliant, 4-position A/B/C/D switch with serial remote control that allows connection of any device between 4 other devices or networks. Using ASCII RS232 serial commands, users can remotely change switch position, query switch position, and lockout front panel push button control. Switch maintains position and signal pathway during power loss, and all 8 signals of RJ45 interface are switched and switched ports are transparent to all data.

Exar Corp.    Fremont, CA 94538
Jul 28, 2008 Supplied in 100-pin QFP package, XR16M598 (16-Byte FIFO) and XR16M698 (32-Byte FIFO) are 8-channel UARTs with global interrupt status register and automatic hardware or software flow control. Only one chip select and one interrupt line is required per device, simplifying hardware design, and fractional baud rate generator eliminates need for extra crystal or external clock source. Features include programmable TX/RX trigger levels and automatic RS-485 half-duplex direction control.

Day-Brite Lighting    Tupelo, MS 38802-1687
Jul 28, 2008 SofTrace features concealed lamp center panel with efficiency in excess of 95% and total luminaire efficacy as high as 87 lumens/W. Contouring sides create fluid appearance with soft illumination across face of luminaire, eliminating glare. Enclosure options accommodate T8, T5, T5HO, or CF lamp types. Recommended lighting levels can be achieved using energy densities as low as 0.5 W/sq ft (diffuse) or 0.6 W/sq ft (perf.).

Littelfuse, Inc.    Des Plaines, IL 60016
Jul 28, 2008 Operating in -55 to 150°C temperature range and quickly responding to over-currents without tripping, 437 Series surface-mount 1206-size ceramic fuse provides dc circuit protection in wide range of electronic applications. Available in current ratings from 250 mA to 8 A, it provides maximum fault current rating of 50 A and l2t nominal melting rating. RoHS compliant and UL and CSA approved unit is 100% lead- and halide-free.

Eastprint, Inc.    North Andover, MA 01845
Jul 25, 2008 Custom designed and manufactured to OEM specifications, Single-Use Membrane Switch Assemblies are available for customer integration or fully assembled with plastic housings, cabling, and connectors. Units can incorporate key centerline spacing from less than 0.5 in. Featuring disposable design, switch assemblies meet IP67 requirements and can be produced to quality standard PQ-MP-09-93-010. Actuation forces and tactile feel can be specific to instrument design.

ifm efector, Inc.    Exton, PA 19341
Jul 25, 2008 Directly mounted into pipe, TK Series Temperature Switch and its 316 stainless steel RTD probe measure 72 mm. Two mechanical setup dials rotate to establish setpoint and resetpoint temperatures, while 2 LEDs indicate switching and operating status. For temperature measurement, unit uses Pt1000 RTD platinum resistor that exhibits resistance of 1,000 W at 0°C. Featuring operating temperature range of -25 to 140°C, switch is Micro DC unit with G1/4 BSPP process connections.

MagnaChip Semiconductor    Cheongju-si,Chungbuk   Korea (south)
Jul 24, 2008 Optimized for Web browsers, mid-sized TFT-LCD driver chip can reproduce 1.6 million colors and supports VGA (640 x 480), WVGA (800 x 480), and WSVGA (1,024 x 600) resolution levels. It also supports the LVDS interface. Combined features make this product suited for various mid-sized applications, such as ultra mobile PCs, personal mobile players, personal navigation devices, car navigation systems, and digital video cameras.

Safety Technology International    Waterford, MI 48327
Jul 23, 2008 With LT-1 Latching/Timer Module, UB-1 Universal Button can be used as latching module, which can be reset with closure of any type. When installed with normally open contact on door, unit will automatically reset without waiting for timer to expire. Digital timing circuit can be set for 15, 30, 45 sec or indefinitely. Featuring 12-24 Vac/Vdc operation, module has Form C contact rating of 3 A at 125 Vac/30 Vdc. Two-inch lens accessory is available to make Universal Button more noticeable.

STMicroelectronics    Lexington, MA 02421

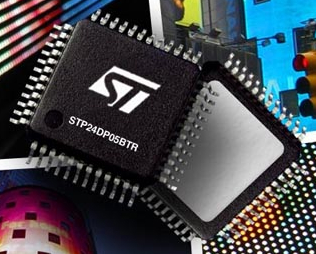

Jul 23, 2008 Supplied in 7 x 7 mm package, STP24DP05 provides 24 constant-current outputs, each capable of driving RGB LEDs at up to 80 mA. This serial-in, parallel-out FIFO supports operation at 25 MHz to enable responsive image rendition. Allowing closer spacing of pixels and constituent LEDs, driver also promotes display resolution. Driving current of 5-80 mA per LED channel is adjustable via one external resistor per color group of 8 outputs. SPI port permits accurate control and diagnostics.

Murata Power Solutions, Inc.    Mansfield, MA 02048

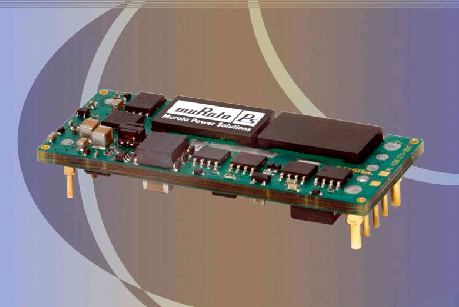

Jul 23, 2008 Featuring open-frame design that uses interleaved synchronous rectifier topology to achieve efficiency over 90%, 100 W UCE Series offers fixed output voltages from 1.5-12 V and output current to 40 A. Modules accept input voltage of 36-75 Vdc and operate with full-rated power at max temperature of 85ºC with only moderate airflow. Measuring 58.4 x 22.9 mm with 10.16 mm profile, RoHS-compliant devices include 2,250 Vdc isolation and self-protection features.

Meggitt (Maryland), Inc.    Germantown, MD 20876
Jul 23, 2008 Measuring 1 in. across flats with 0.82 mounting pad, Models SF21 and SF22 accommodate up to medium diameter accelerometers and small diameter side-exit accelerometers. Models SF23 and SF24 are both 1 1/8 in. across flats with 0.94 in. mounting pad that can accommodate large diameter top-exit sensors. All have ¼-28 integral stud on accelerometer side, and are used to prevent voltage spikes from reaching sensor by electrically isolating it from case of machine.

Astec America Inc.    Carlsbad, CA 92008

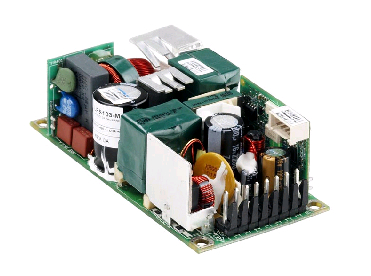

Jul 22, 2008 Featuring open-frame design measuring 2 x 4 x 1.29 in., 100-150 W Model LPS103-M offers full load efficiency of 88% and power density in excess of 14 W/cu-in. Unit features 85-264 Vac input for worldwide use, but can also operate from 120-300 Vdc input. In addition to isolated 12 Vdc fan output, AC-DC supply produces regulated 12 Vdc main output, which can deliver up to 8.3 A continuously with convection cooling, or up to 12.5 A continuously with 30 cfm forced air cooling.

C&K Components    Newton, MA 02458

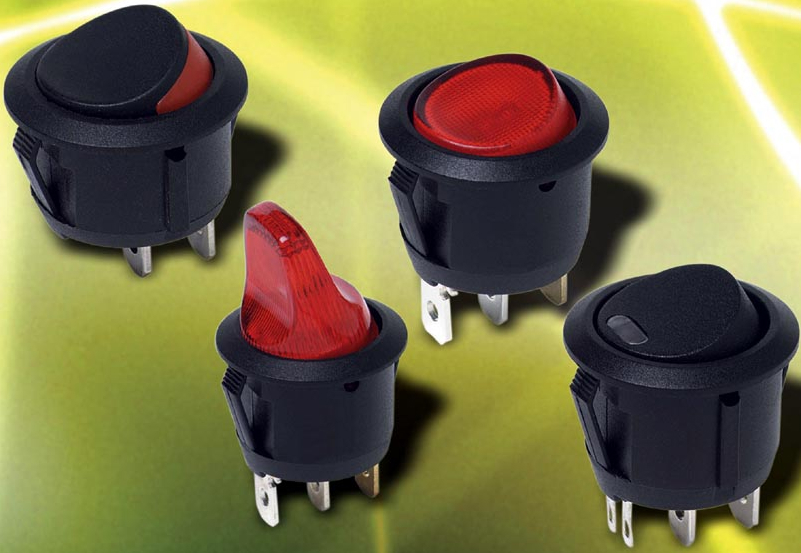

Jul 22, 2008 Available in SPDT/On-On or SPST/On-Off configurations, CR Series panel-mount switches feature round body and choice of circular, oval, or paddle actuator styles. They fit 20.2 mm dia panel cut out, with behind-panel-depth of 22.6 mm, and can be illuminated in white, red, amber, or green. Max current rating is 16 A @ 125 Vac and 10 A @ 250 Vac, with VDE rating of 10 A @ 125 Vac and 6 A @ 250 Vac. Switches are available in black, white, and red opaque color combinations.

Unilux, Inc.    Saddle Brook, NJ 07663
Jul 22, 2008 Suited for industrial inspection applications, Pocket Pixel uses reflector design to focus light from 8 LED lamps onto fast-moving machinery components. Pocket-sized unit offers low pulse duration (less than 50 µsec) and up to 50,000 flashes/min. Users can adjust flash duration from 10-250 µsec and set unit to automatically adjust proportionately to flash rate. Able to run for up to 2 hr continuously using NiCad batteries, product can be mounted or used as handheld unit.

E-Switch Inc.    Brooklyn Park, MN 55428 1514
Jul 22, 2008 With 1.5 mm travel and carbon pill contact design, Model TL9000 features contact rating of 50 mA at 12 Vdc and operating force of 150 ±50 g. Unit operates from -20 to +70°C with initial contact resistance of 100 mW and insulation resistance of 100 MW. Providing electrical life of 100,000 cycles, switch is suited for consumer electronics, audio/visual, medical, testing and instrumentation, and telecommunications.

RECOM Power Inc.    Brooklyn, NY 11201
Jul 22, 2008 Suited for space critical applications, 30 W Series RP-30 is available with 2:1 inputs of 9-18, 18-36, and 36-75 V as well as 4:1 inputs of 9-36 and 18-75 V. Output voltages are set at 3.3, 5, 12, and 15 V. Units also offer dual outputs of ±5, ±12, and ±15 V. Housed in 6-sided, nickel-coated copper package, galvanically isolated converters provide 91% efficiency and guarantee operation at ambient temperatures exceeding 60°C, without external cooling.

Schaffner EMC, Inc.    Edison, NJ 08837
Jul 22, 2008 ECOsine(TM) load-applied passive harmonic filters are suited for 3-phase power electronics with 6-pulse rectifier front ends. With total harmonic current distortion of under 5%, products guarantee compliance with IEEE 519 and other international power quality standards. Two ranges are available, one for 380-500 V, 50 Hz grids (FN 3410 series) and one for 440-480 V, 60 Hz systems (FN 3412 series). Plug-and-play concept facilitates installation, wiring, and commissioning.

Semikron International Dr Fritz Martin GmbH & Co      Germany
Jul 22, 2008 Featuring thermal resistance of 0.95K/W and junction temperature of +175°C, Miniskiip® IPM is developed for motor power up to 15 kW and has latch-up free SOI driver IC. Power, control, and auxiliary contacts are connected directly to PCB via springs, and snap-on mounting with one standard screw achieves assembly of module, PCB, and heat sink. Driver IC with advanced level shifter technology is responsible for enabling IGBT driving without optocoupler.

SatCon Technology Corp.    Cambridge, MA 02142 1221
Jul 22, 2008 Suited for commercial and large-scale grid connected photovoltaic power systems, PowerGate® Plus 75, 100, and 135 kW models are certified to UL1741-2005 standards and have California Energy Commission (CEC) efficiency rating of 96.0%. Products, optimized for energy harvesting and longevity, feature G90 galvanized steel enclosure, DSP control, as well as HMI with sunlight-visible display and membrane keypad.
