RF Micro Devices, Inc.    Greensboro, NC 27409-9421

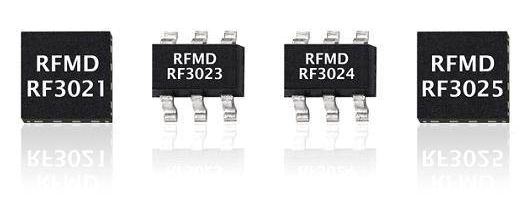

Jun 29, 2009 Utilizing Gallium Arsenide (GaAs) pseudomorphic high electron mobility transistor (pHEMT) technology, symmetric SPDT switches operate in multiple market segments, including cellular infrastructure, WiFi, WiMAX, and antenna tuning applications for mobile devices. Models RF3021 and RF3025 are housed in 16-pin 3 x 3 mm QFN package and feature high isolation and single-bit control. Offered in 6-lead SC70 package, RF3023 and RF3024 feature low insertion loss and moderate isolation.

FDK CORPORATION    Tokyo 105-8677  Japan
Jun 29, 2009 Supplied in 0.657 x 0.402 x 0.134 or 0.173 in. RoHS-compliant package, FPDK12SR8003PSS, FPDK12SR8004PSS, and FPDK12SR8006PSS are non-isolated point-of-load (POL) DC-DC converters that respectively deliver up to 3, 4, or 6 A output current. Power densities reach 860 W/in.³, with efficiencies to 93%. SMT devices operate from 5.6-14.0 Vdc input bus with programmable output voltage of 0.8-6.6 Vdc and provide complete power conversion solutions without external input and output capacitors.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Jun 29, 2009 Housed in 16-pin micro SMD package, PowerWise® LM3554 drives 1 or 2 high-current LEDs for flash applications in handheld devices. Fixed-frequency, step-up DC-DC converter with 2 regulated current sources is capable of driving loads up to 1.2 A from single-cell Li-Ion battery. Device drives LEDs in high-power flash mode for still photography or low-power torch mode for video conferencing. To configure driver, designers adjust flash current levels and timer durations via I2C compatible interface.

Corning Cable Systems    Hickory, NC 28603-0489
Jun 29, 2009 Designed for data centers, high-density LANscape® Pretium® Evolved-Density, Growth-Enabled (EDGE) solutions feature preterminated multi-fiber assemblies, or trunks, with minimum bend radius as small as 5 times OD of cable. Cable can be tightly routed around corners and bends, and extra slack can be coiled without causing attenuation. Interconnect cables offer bend radius of up to 8 times OD, while housings are available in 1U and 4U sizes and mount in 19 in. racks or cabinets.

STMicroelectronics    Lexington, MA 02421
Jun 26, 2009 Specified for operation up to 150°C without derating, 4 A Model T410H, 6 A Model T610H, 8 A Model T810H, and 10 A Model T1010H feature low gate current of 10 mA, which allows direct logic-level switching. Units maintain specified minimal commutation and 75 V/µs noise immunity. Rated up to 600 V, TRIACs are suited for control of AC loads such as electric heaters, inductive heating equipment, medium-power motors, and other small appliances.

Linear Technology Corp.    Milpitas, CA 95035
Jun 26, 2009 Available in 6-pin ThinSOT(TM) package, H-grade version of LTC3803-3 current mode flyback DC/DC controller can be powered by input ranging from 9-75 V. Unit maintains 300 kHz operating frequency and offers adjustable slope compensation for optimized transient response with minimum output capacitance, and soft-start function that minimizes inrush current/output voltage overshoot. Operating in -40 to +150°C temperatures, IC features 40 µA start-up and 240 µA quiescent current.

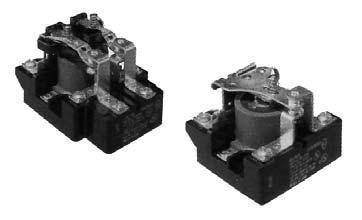

American Zettler, Inc.    Aliso Viejo, CA 92656 4115
Jun 26, 2009 Rated to operate in ambient temperatures as high as 115°C, AZPRD Series of high voltage power relays have expected life of 100,000 operations at rated load. They are available with both AC and DC coils with molded Class F construction, SPDT, SPST, DPST and DPDT contact arrangements. Suitable applications include controls for motors, pumps, compressors, blowers, lights, heaters and fans.

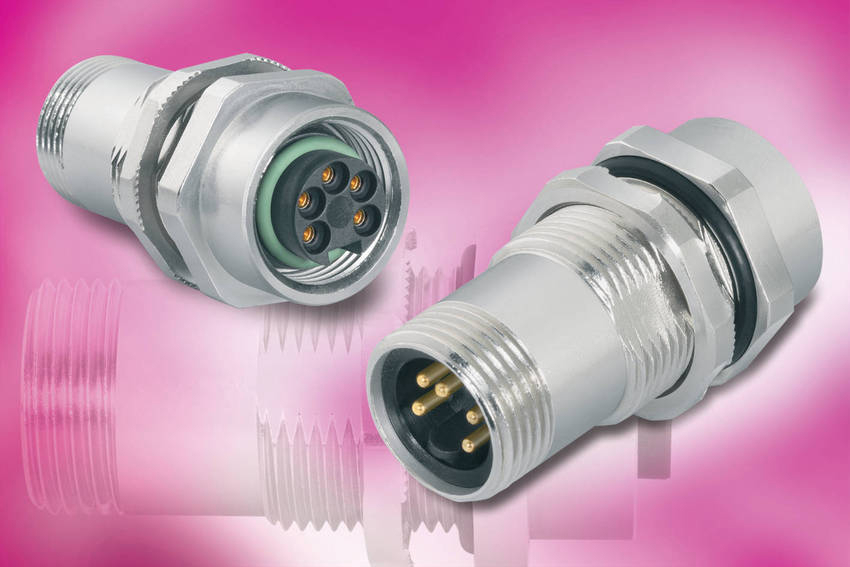

Binder-USA, LP    Camarillo, CA 93012
Jun 26, 2009 Used with power supply networks, Series 820 threaded-locking feed-through connector connects male and female cable connectors between cabinet and industrial environments. It is available with 5 gold-plated contacts and has rated current of up to 8 A per contact. Each connector is constructed with nickel-plated brass housing and M25x1.5 fixing thread. Unit is IP67-rated protecting from ingress of debris and liquids.

SynQor    Boxborough, MA 01719 1316
Jun 26, 2009 Delivering up to 50 W of power, PQ60xxxEKA series comprises of 7 output voltages including 1.5, 1.8, 2.5, 3.3, 5, 12, and 15 V. It has wide input voltage range of 35-75 V, basic 2,000 Vdc input to output isolation level, and can withstand input transients up to 100 V for 100 msec. Operating at -40 to +100°C, RoHS 6/6 compliant unit features input under-voltage lockout and over-voltage shutdown, output OVP, current limit, as well as short circuit and thermal shutdown protection.

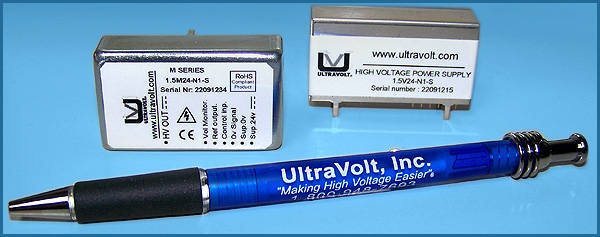

UltraVolt Inc.    Ronkonkoma, NY 11779
Jun 26, 2009 With volume of 0.84 and 1.045 in³ respectively, "V" and "M" Series offer low ripple, tight tolerances, self-restoring output voltage, voltage monitors, and arc and continuous short-circuit protection. Output voltages range from 0-600 through 0-1,500 V, at up to 1 W output power, with output current ranges from 300 µA to 1 mA. Power supplies are suited for applications requiring bias voltage, such as avalanche photo diodes (APD) and photomultiplier tubes (PMT).

Siemon Co., The    Watertown, CT 06795
Jun 26, 2009 Available in both UTP and shielded configurations, 6 A Z-MAX Patch Cords feature RJ-45 Smart-Plug design, which integrates PCB into every plug, offering signal tuning capabilities. Zero-Cross(TM) termination method eliminates split pair, pair-crossing, and pair untwisting. To maintain pair twist to point of contact, cable conductors are terminated to IDC contacts at rear of plug. Double-ended stranded patch cords and single and double-ended solid cords are available.

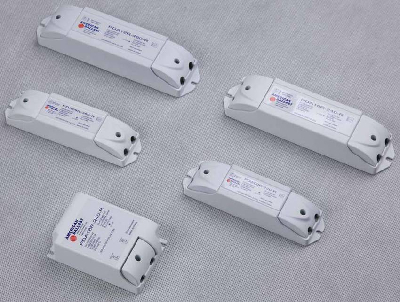

American Ballast    Fremont, CA 94538
Jun 25, 2009 Suited for parallel and series configurations, energy-efficient LED drivers employ Instant Start technology and operate over -20 to +70°C range. They are protected against over-voltage and over-current conditions, and auto-recovery technology ensures return to full power if driver does short circuit. Rated IP20 and IP66 for dry and wet locations, drivers can create lighting effects with dimming capabilities and light distribution control for each LED built into fixture.

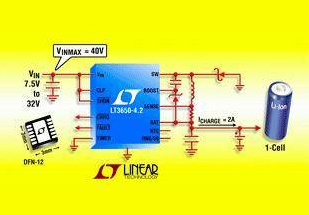

Linear Technology Corp.    Milpitas, CA 95035
Jun 25, 2009 Designed for single-cell Li-Ion/Polymer batteries, Models LT3650-4.1 and LT3650-4.2 operate from 4.75-32 V and have 40 V absolute maximum rating. Model LT3650-4.1 offers 4.1 V battery float voltage, while Model LT3650-4.2 features 4.2 V final charge voltage. Once charging is terminated, devices automatically enter low current standby mode that reduces input supply current to 85 µA. Housed in 12-pin, 3 x 3 mm DFN package, both 1 MHz chargers operate from -40 to +85°C.

Schurter, Inc.    Santa Rosa, CA 95403
Jun 25, 2009 Available in single- and double-pole versions, Model MSM LA offers point or ring illumination, actuator travel of greater than 5 mm, and switching voltages up to 125 Vdc/250 Vac. Unit comes in 19 and 22 mm mounting diameters, with red, green, or blue illumination, making it suited for application in dimly lit areas or to indicate On/Off status. Featuring IP67 protection rating from front, stainless steel vandalproof switch withstands temperatures from -40 to +85°C.

Electro Standards Laboratories    Cranston, RI 02921 3403

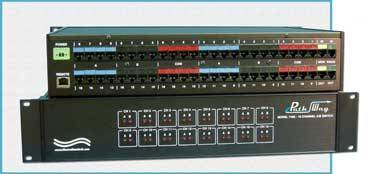

Jun 25, 2009 Available in rackmount configuration, Model 7435 allows sharing single port RJ45 interface device connected to COMMON port among 2 other devices connected to A and B ports for each of 16 channels. Port position of A and B can be configured manually by GUI or automatically via programming. Unit controls position of individual channels by sensing incoming data on ports A and B every millisec and switching them appropriately.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115
Jun 25, 2009 Suited for use in industrial controls and appliances, AZ1641, AZ1651, and AZ1661 general purpose relays offer coils from 6-240 Vac and 6-220 Vdc. They come with optional LED indicator and can be used in building automation, system integrators, robotics, control boards, motion controls, I/O modules, and elevator controls.

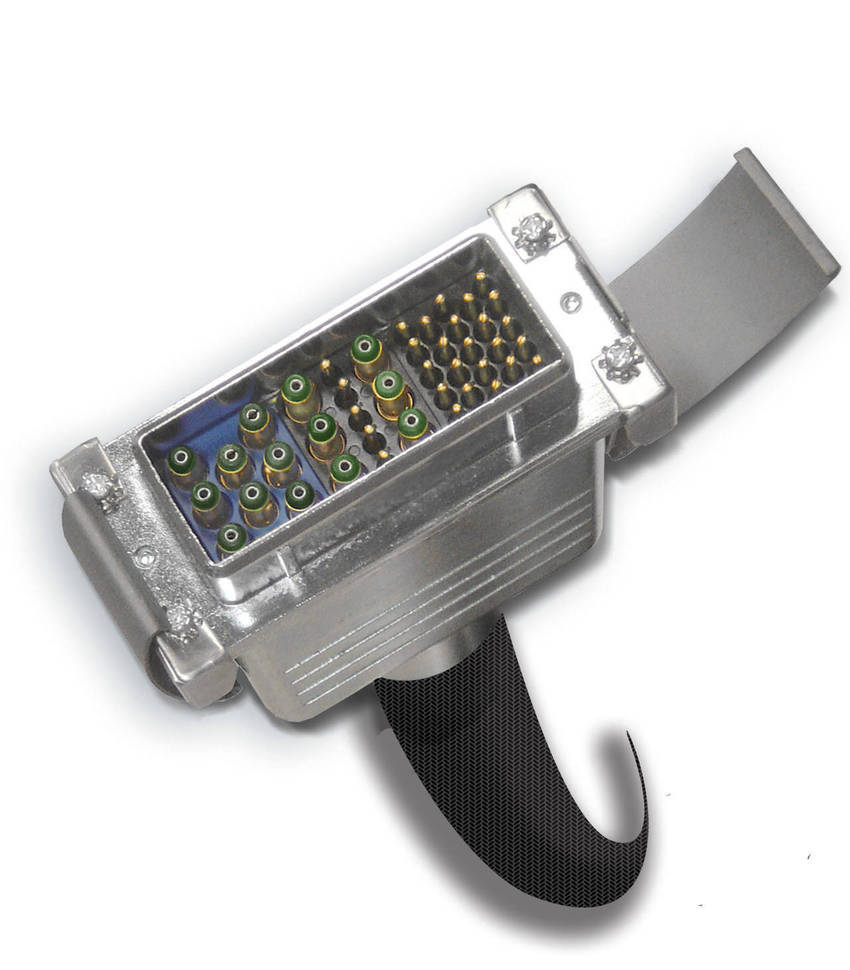

Wireworks Corp.    Hillside, NJ 07205
Jun 25, 2009 Simplifying set up by eliminating need to make individual connections directly to equipment and wall panels, AV2000 multi-pin connector system can accommodate audio, high definition video, data over Cat6 cabling, and control signals in single sophisticated hybrid connector. System utilizes 3 components; access point, umbilical and link, and can be integrated into any existing AV system. Applications include multi-media presentation rooms, corporate board rooms, and classrooms.

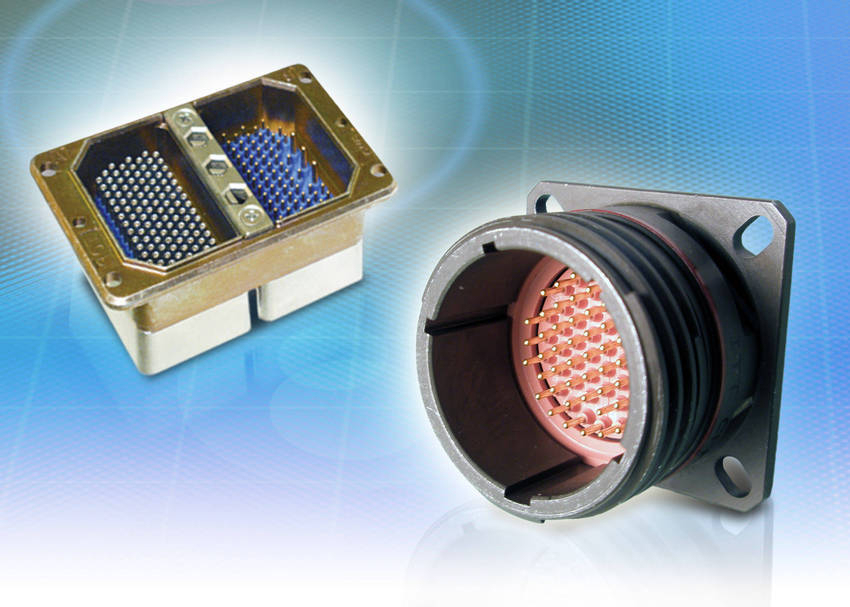

ITT Interconnect Solutions    Santa Ana, CA 92705
Jun 25, 2009 Offering contact counts of 1-600, Chip-on-Flex (CoF) connectors are available in rack and panel, circular and D-subminiature configurations. Filter design features one standard flex per layout and utilizes flexible circuit internal to connector, with chip capacitors surface-mounted on small pad adjacent to feed-thru contact. Tested to MIL-DTL-38999 Series III mechanical shock, vibration, and high altitude DWV specifications, connectors exceed 1,000 cycles of thermal shock per MIL-STD-1344.

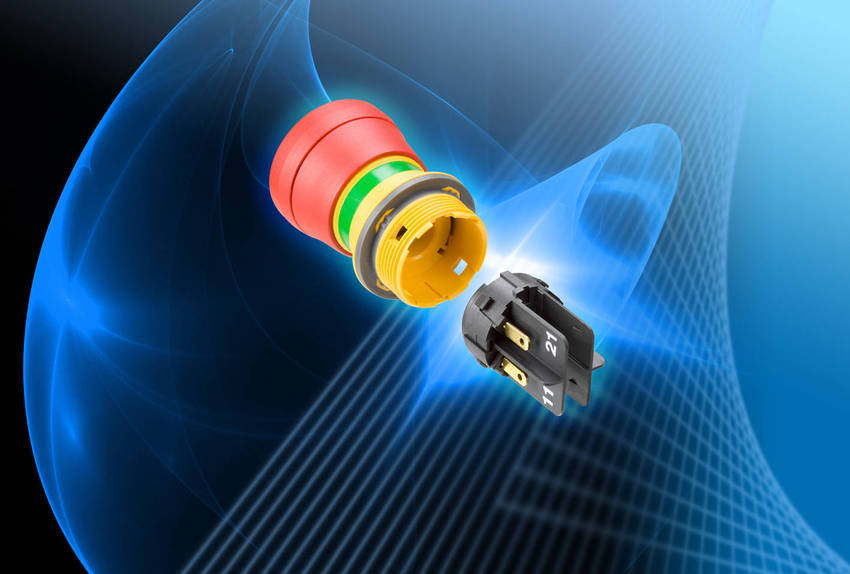

C&K Components    Newton, MA 02458
Jun 25, 2009 Requiring only 27 mm of mounting depth behind front plate, RAFIX 22 FS Series switches are available in pushbutton, selection, key, signal lamp and emergency-stop configurations. Switch components are IP65 splash-water protected in accordance with DIN standards, while mounting diameter in front plate is 22.3 mm in accordance with IEC 60947 specifications. Illuminated versions of pushbutton and signal lamp switches are also available, with LEDs in 5 different colors.

Cell-Con, Inc.    Exton, PA 19341
Jun 25, 2009 Featuring 3 step charge control with current detection as charge termination, DC-DC input lithium ion battery charger can charge 3-8 cell battery packs and is protected against reverse polarity and short circuit. All charger ratings are based on nominal input of 10-30 Vdc, while output current ranges from 1.0-3.0 A. Switch mode charger has universal input voltage and protects batteries from over-charging. Waterproof (IP67) version is also available.
