Linear Technology Corp.    Milpitas, CA 95035
Mar 13, 2009 Including complete circuitry and inductor in 9 x 15 x 4.32 mm SMT package, LTM8040 DC/DC µModule(TM) LED drivers can drive from 0-1 A through string of LEDs with ±2% accuracy at full load current. Units can convert input voltage range of 4-36 V to lower voltage ranging from 2.5-13 V. Analog and True Color PWM(TM) dimming allow 400:1 constant color dimming range. Switching frequency of 500 kHz can be adjusted with resistor for up to 2 MHz operation.

Spectrum Control, Inc.    Fairview, PA 16415
Mar 12, 2009 With capacitance range of 10 pF to 1 µF, EMI Filtered Audio Connectors offer ESD protection up to 8 kV direct discharge and 15 kV air discharge. Waterproof and polarized, connectors come in plugs and receptacles and are available in C and PI circuit configurations. Units meet all requirements of MIL-STD-810F making them suited for aviation, communication, and security applications where electronic systems might be exposed to ESD environments.

TE Connectivity Ltd.    Berwyn, PA 19312
Mar 12, 2009 Available in diameters from 0.093-1.5 in., TMS-90-SCE heat-shrink marker sleeves feature 3:1 shrink ratio. They have operating temperature range of -55 to +135°C, and are made from flame-retardant, radiation-cross-linked heat shrinkable homopolymer-based polyolefin. Supplied in thin and flat ladder format, UL listed and CSA certified sleeves are held horizontally between 2 hole-punched polyester strips.

TE Connectivity Ltd.    Berwyn, PA 19312
Mar 12, 2009 Designed for computer-based printing using T2000CT printer, TTMS-MP cable marker sleeves are supplied in packs of 50 or 100 m to minimize spool changes during print run. They are made from flame-retardant, radiation-cross-linked heat shrinkable polyolefin with operating temperature range of -55 to +135°C. Available in sizes ranging from 2.4-50.8 mm, sleeves meet performance requirements of SAE-ASM-DTL-23053/5 class 1 and are UL listed and CSA Certified.

XP Power    Sunnyvale, CA 94085
Mar 12, 2009 Ranging in size from 1.26 x 4.0 x 4.88 in. to 2.36 x 4.60 x 4.88 in., DRS series is comprised of 80, 120, and 240 W single-output models with efficiency levels from 89-92%. Each accommodates universal input range of 85-264 Vac without any input range selectors and accommodate peak load 150% of nominal rating for up to 4 sec max. Series provides output voltage variants of 12, 24, or 48 Vdc, which can be adjusted above nominal to 15 Vdc, 28.5, and 56 Vdc, respectively.

Petra Solar, Inc.    South Plainfield, NJ 07080
Mar 12, 2009 Designed for installation on utility distribution poles and streetlight poles, SunWave(TM) Solar AC Systems connect to grid secondary power line. Systems are compatible with existing grid infrastructure and their intelligent communications system is compliant with Smart Grid technology. They can be remotely upgraded to leverage future applications and standards as they emerge.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Mar 12, 2009 UL/CUL recognized RC Series has switch function choices of OFF-ON or OFF-(ON) in single pole or double pole configuration. They are offered in 4 housing color choices, 8 actuator color choices, and with 8 different actuator markings. Terminals options include quick connect, solder lug, PC pins, right angle PC pins, and left angle PC pins. Illumination options include 2 choices of neon bulbs and 3 tungsten lamps. Electrical rating is 10 A at 125/250 Vac.

Linear Technology Corp.    Milpitas, CA 95035
Mar 12, 2009 Dual channel 1 MHz, LTC3535 current mode synchronous boost DC/DC converter with 3 x 3 mm DFN-12 footprint is suited for single- or multi-cell alkaline/NiMH as well as Li-Ion/Polymer applications. Unit's internal 550 mA switches deliver output voltages up to 5.25 V from input voltage range of 0.7 V start-up, and 0.5-5 V when running. Burst Mode® operation lowers quiescent current to 18 µA for both channels, providing extended battery run time in handheld applications.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Mar 11, 2009 With voltage range of 2.7-5.5 V, resistor-programmable, logic-output Models MCP9509/10 can trigger for temperatures from -40 to 125°C. Model MCP9509 has low static operating current of 30 µA and provides open-drain output, while Model MCP9510 has static operating current of 50 µA and is offered in 3 user-selectable output configurations with internal 100 kWOhm pull-up resistor. Units are suited for battery-powered applications in power supplies, multimeters, refrigerators, and freezers.

LEDtronics, Inc.    Torrance, CA 90505

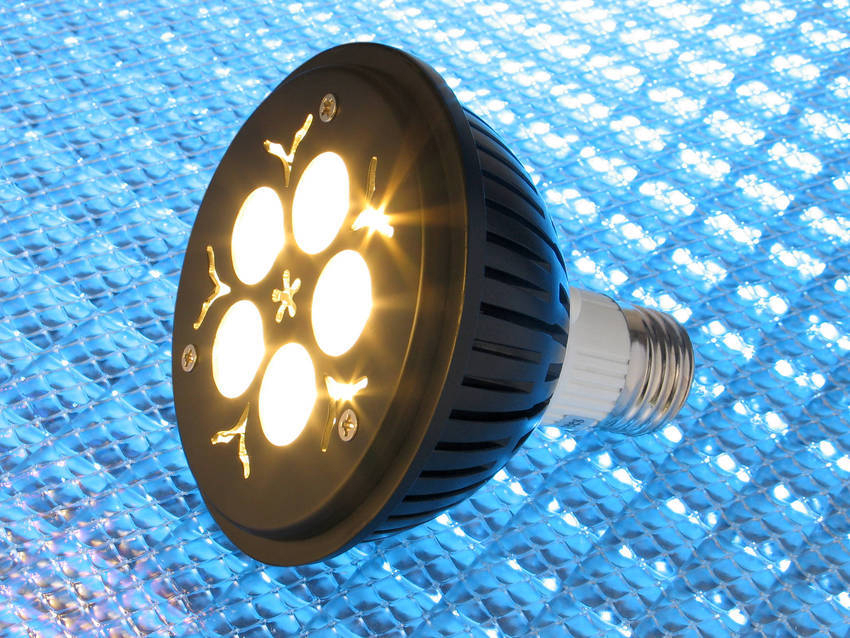

Mar 11, 2009 With ability to produce 367 lumens or 2,938 cd total end foot candles of warm-white light, 15-degree narrow-beam PAR30A LED bulbs run on voltage range of 85-260 Vac current. Available in 3,000 K warm-white color temperature and with color-rendering index of 80, LEDs last up to 50,000 continuous hr. RoHS and CE compliant lights suit recess or track lighting, accent lighting, general area lighting, architectural and landscape lighting, and biomedical applications.

Linear Technology Corp.    Milpitas, CA 95035
Mar 11, 2009 Housed in 3 x 5 mm DFN package, 7 V Model LTC3534 delivers up to 500 mA of output current to regulated output above, below, or equal to input using single inductor. Synchronous buck-boost converter includes 2 N-Channel MOSFETs and 2 P-Channel MOSFETs to deliver efficiencies up to 94%. Device provides continuous transfer through all operating modes making it suited for 3- or 4-cell Alkaline/NiCad/NiMH or single-cell lithium applications which must maintain constant output voltage.

Linear Technology Corp.    Milpitas, CA 95035
Mar 11, 2009 Supplied in 16-lead 3 x 5 mm DFN package or SSOP-16, LTC3534 synchronous buck-boost DC/DC converter delivers up to 500 mA output current to regulated output above, below, or equal to input using single inductor. It has 2.4-7 V input and 1.8-7 V output ranges as well as constant 1 MHz switching frequency, and inclusion of 2 N-channel and 2 P-channel MOSFETs deliver 94% efficiency. Burst Mode® operation requires 25 µA of quiescent current, and shutdown current is less than 1 µA.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Mar 11, 2009 Housed in 3 x 3 mm TDFN package, Model AAT3620 operates across 4.3-6.0 V input range and performs charging using 1.5 MHz PWM converter. During constant current and most of constant voltage mode, device delivers up to 2 A. When current dips below 300 mA in CV mode, device automatically switches to low-noise linear mode minimizing noise, EMI, and RFI emission. Li-Ion charger also features programmable end of charge, built-in reverse blocking, and integrated programmable charging timer.

Meyda Tiffany    Yorkville, NY 13495
Mar 11, 2009 With dia of 49 in. and height of 35 in., Van Erp Chandel-Air (108444) can be adjusted to accommodate flat or vaulted ceilings of any pitch or height. Features included are amber mica shade decorative/functional casement for fan, and silver mica panels circle outside pendant/fan fixture, with matching hub. It operates with two-circuit remote control with three-speed fan control. Energy saver unit also can be used to pull hot air up and keep space cool in summer, and reverse in winter.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089
Mar 10, 2009 Offered in 120, 240, 480, and 960 W outputs, SPD Series features input voltage ranges of 340-575 Vac and 480-820 Vdc. DIN-rail-mounted, 3-phase units provides up to 93% efficiency and include power factor correction, as well as protection against short circuits, overvoltage, and overload conditions. LEDs provide and annunciate onboard diagnostics and power source ON, while Power Ready Output Relay signals presence or lack of proper 24 Vdc output power.

One Stop Systems    Escondido, CA 92029
Mar 10, 2009 Based on redriver technology, PCI Express x16 Gen 2 Host Cable Adapter enables high-speed expansion over PCIe cable from host system to PCIe downstream device or expansion chassis. Half-card form factor enables adapter to be installed in space-constrained slot. In host mode, add-in card will accept clock as input, and in target mode, card will drive clock. Requiring no additional software, adapter is suited for applications such as video, imaging, and audio devices.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Mar 10, 2009 Offering 2 footprint styles, American and European PC layout, sealed, immersion cleanable, A5 series suits application in automotive and lamp accessories. It has coil voltage options of 6, 9, 12, 18, and 24 Vdc with coil power choices of 1.6 and 1.9 W. With SPST Normally Closed/Open and SPDT contact arrangements, contact resistance is less than 50 Wmm. Featuring insulation resistance of 100 MW at 500 Vdc, unit has electrical life of 100K cycles with mechanical life of 10M cycles.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Mar 09, 2009 DIN rail-mountable, XCSA line of converters are available in versions with inputs ranging from 12-110 Vdc and outputs of 12 and 24 Vdc at 5-10 A. They are fully protected against short circuits, overloads, and over temperature, and are also input protected. Compact units have pluggable terminations, adjustable output, and LED status indicator.

3M Co., Electronic Products Div.    Austin, TX 78726
Mar 09, 2009 Dynatel Locators 2200M Series 12 W transmitter provides four active frequencies (577 Hz and 8, 33, and 200 kHz), which can be used individually or simultaneously to compensate varying field conditions and 3 induction frequencies (8, 33, and 200 kHz). It uses either internal 6 x C-size alkaline batteries or rechargeable sealed gel-cell battery that plugs into external power plug. Unit features ohmmeter function and high voltage detection, with 240 Vac output protection.

Aimtec, Inc.    Dollard Des Ormeaux, QC H9G3B9  Canada
Mar 06, 2009 Series AM20E-Z 20 W converters offer inputs of 9-18, 18-36, and 35-72 Vdc and ±0.5% balanced and 1,500 Vdc isolated single and dual output voltages of 3.3, 5, 12, 15, and ±12 V and ±15 Vdc. With short circuit and overvoltage/overcurrent protection, 2 x 1 in. units offer isolated outputs, eliminating output interaction problems while allowing reverse polarity of output with reference to input. They feature temperature range of 40°C to +70°C and to +85°C with derating.
